ACE_WIN32_Asynch_Timer Class Reference

This class is posted to the completion port when a timer expires. When the complete method of this object is called, the 's handle_timeout method will be called. More...

#include <WIN32_Proactor.h>

Inheritance diagram for ACE_WIN32_Asynch_Timer:

Inheritance graph
[legend]

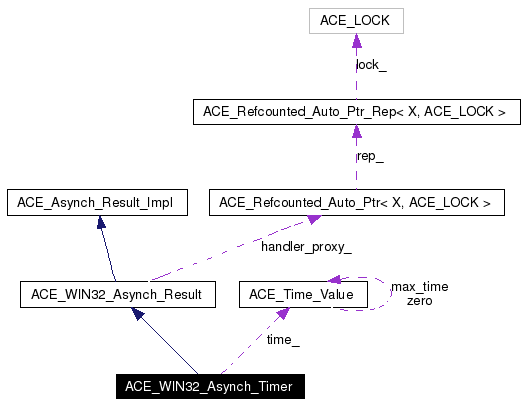

Collaboration diagram for ACE_WIN32_Asynch_Timer:

Collaboration graph
[legend]
List of all members.

Protected Member Functions

 ACE_WIN32_Asynch_Timer (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=0)
 Constructor.

virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error=0)
 This method calls the 's handle_timeout method.


Protected Attributes

ACE_Time_Value time_
 Time value requested by caller.


Friends

class ACE_WIN32_Proactor

Detailed Description

This class is posted to the completion port when a timer expires. When the complete method of this object is called, the 's handle_timeout method will be called.

Definition at line 296 of file WIN32_Proactor.h.

Constructor & Destructor Documentation

ACE_WIN32_Asynch_Timer::ACE_WIN32_Asynch_Timer (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
const void *  act,
const ACE_Time_Value &  tv,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = 0
)  [protected]


Constructor.

Definition at line 751 of file WIN32_Proactor.cpp.

References ACE_Handler::Proxy_Ptr.

00757   : ACE_Asynch_Result_Impl (),
00758     ACE_WIN32_Asynch_Result (handler_proxy, act, event, 0, 0, priority,
00759                              signal_number),
00760     time_ (tv)
00761 {
00762 }

Member Function Documentation

void ACE_WIN32_Asynch_Timer::complete (  size_t  bytes_transferred,
int  success,
const void *  completion_key,
u_long  error = 0
)  [protected, virtual]


This method calls the 's handle_timeout method.

Implements ACE_Asynch_Result_Impl.

Definition at line 765 of file WIN32_Proactor.cpp.

References ACE_Refcounted_Auto_Ptr< X, ACE_LOCK >::get(), and ACE_Handler::handle_time_out().

00769 {
00770   ACE_Handler *handler = this->handler_proxy_.get ()->handler ();
00771   if (handler != 0)
00772     handler->handle_time_out (this->time_, this->act ());
00773 }

Friends And Related Function Documentation

friend class ACE_WIN32_Proactor [friend]


The factory method for this class is with the POSIX_Proactor class.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 300 of file WIN32_Proactor.h.

Member Data Documentation

ACE_Time_Value ACE_WIN32_Asynch_Timer::time_ [protected]


Time value requested by caller.

Definition at line 318 of file WIN32_Proactor.h.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 11:33:06 2006 for ACE by doxygen 1.3.6
