Master EVLA POLCAL Database

Data appearing in this table was reduced automatically in CASA. Observations appear in archive under TPOL0003 project code. Use caution when interpreting variations in quantities.

There are 17 observation sessions containing a total of 20 sources in the database

Follow links on Source/Band headings for plots.


I - I flux in map (Jy/beam).   P - linearly polarized flux (Jy/beam).   M - Frac POL - P/I.
PHAS - R/L Phase Difference (degrees) = 2xEVPA on-sky.
Of course, beware of sources with low (<0.5%) polarization for angle calibration, though these are good for leakage calibration!

Note: values followed by * are total fluxe densities from Gaussian image fitting (when sufficient S/N). All other values are Peak quantities are measured at reference pixel in image.
Watch for resolution effects due to configuration changes.

C Band X Band U Band K Band Ka Band Q Band
Source Config Date/Sched I (Jy) P (Jy) Frac Pol RL Phase (deg) Date/Sched I (Jy) P (Jy) Frac Pol RL Phase (deg) Date/Sched I (Jy) P (Jy) Frac Pol RL Phase (deg) Date/Sched I (Jy) P (Jy) Frac Pol RL Phase (deg) Date/Sched I (Jy) P (Jy) Frac Pol RL Phase (deg) Date/Sched I (Jy) P (Jy) Frac Pol RL Phase (deg)

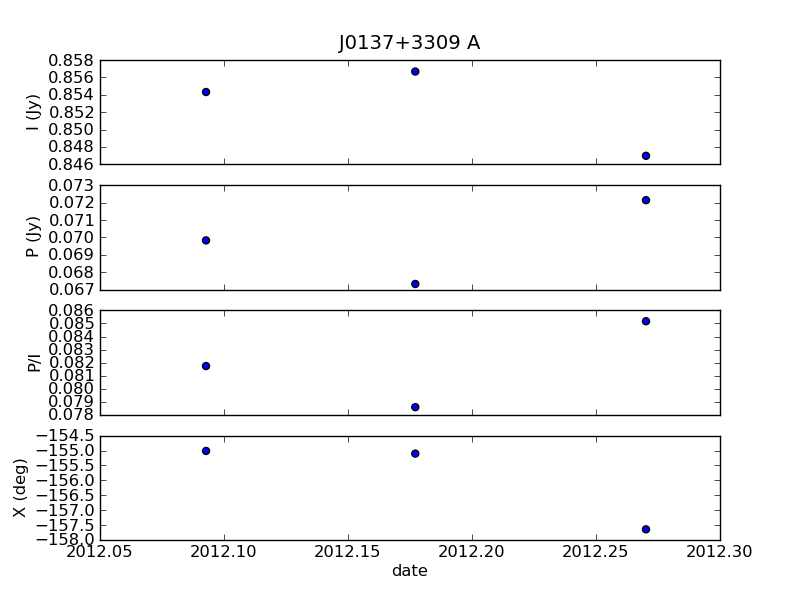

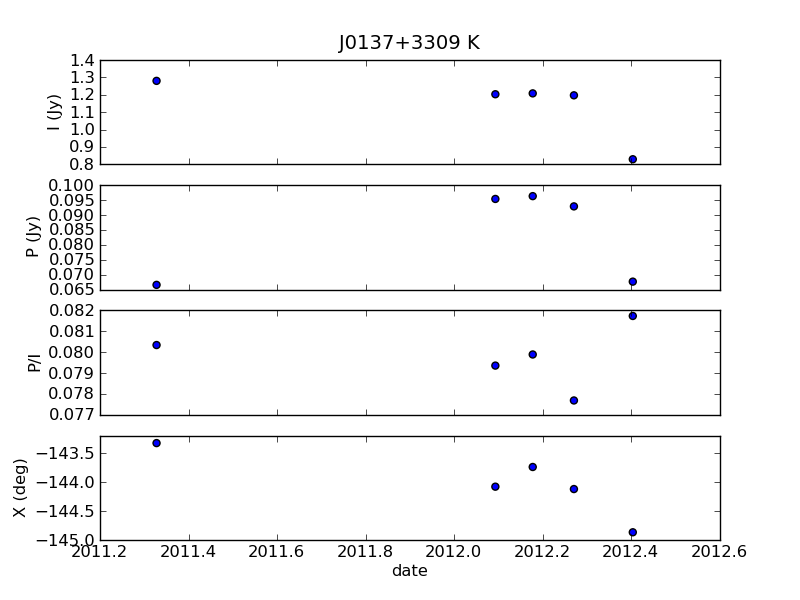

J0137+3309 C BAND
J0137+3309 X BAND
J0137+3309 U BAND
J0137+3309 K BAND
J0137+3309 Ka BAND

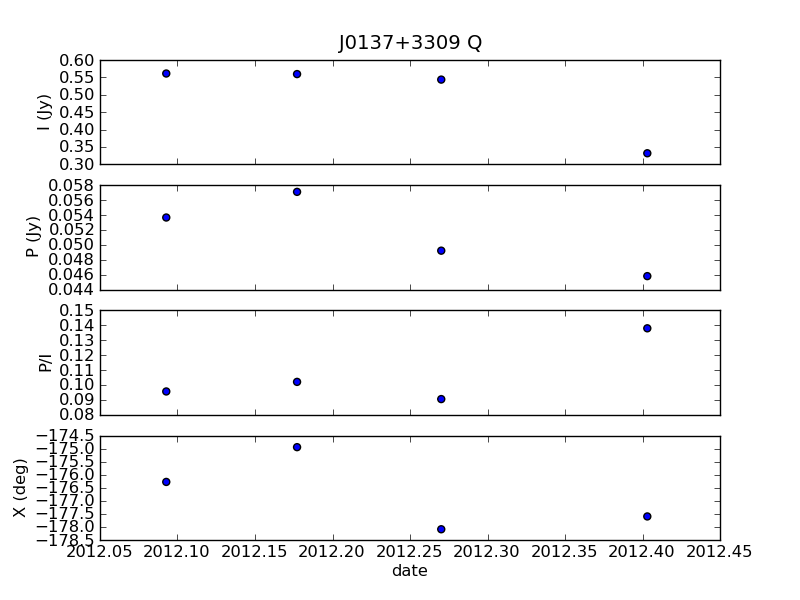

J0137+3309 Q BAND
J0137+3309 B 20110430 B 5.0232 0.2145 0.0430 -147.121 20110430 B 2.3367 0.1094 0.0470 -128.275 20110430 B N/A N/A N/A N/A 20110430 B 1.2800* 0.0666 0.0803 -143.328 20110430 B N/A N/A N/A N/A 20110430 B N/A N/A N/A N/A
J0137+3309 D 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A 20111122 B 1.8379 0.1228 0.0668 -128.822 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A
J0137+3309 C 20120203 B 5.4080 0.2298 0.0431 -145.230 20120203 B 3.1862 0.1775 0.0558 -128.292 20120203 B 1.8683 0.1285 0.0688 -128.594 20120203 B 1.2031 0.0954 0.0794 -144.080 20120203 B 0.8543 0.0698 0.0817 -155.013 20120203 B 0.5612 0.0537 0.0956 -176.274
J0137+3309 C 20120305 B 5.4010 0.2284 0.0425 -145.180 20120305 B 3.1920 0.1748 0.0548 -128.361 20120305 B 1.8529 0.1277 0.0689 -128.647 20120305 B 1.2081 0.0963 0.0799 -143.741 20120305 B 0.8567 0.0673 0.0786 -155.103 20120305 B 0.5595 0.0571 0.1021 -174.941
J0137+3309 C 20120408 B 5.3987 0.2275 0.0421 -145.264 20120408 B 3.1704 0.1742 0.0550 -128.243 20120408 B 1.8212 0.1229 0.0675 -128.407 20120408 B 1.1969 0.0929 0.0777 -144.121 20120408 B 0.8470 0.0721 0.0852 -157.642 20120408 B 0.5436 0.0492 0.0905 -178.088
J0137+3309 B 20120527 B 5.0621 0.2139 0.0423 -147.145 20120527 B 2.3744 0.1239 0.0522 -128.614 20120527 B 1.4043 0.0963 0.0686 -129.400 20120527 B 0.8293 0.0677 0.0817 -144.867 20120527 B N/A N/A N/A N/A 20120527 B 0.3319 0.0458 0.1380 -177.597

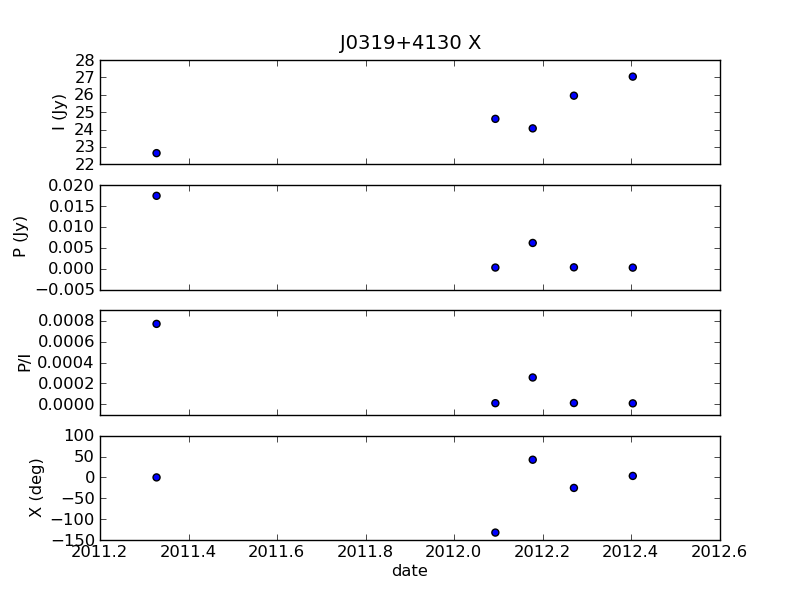

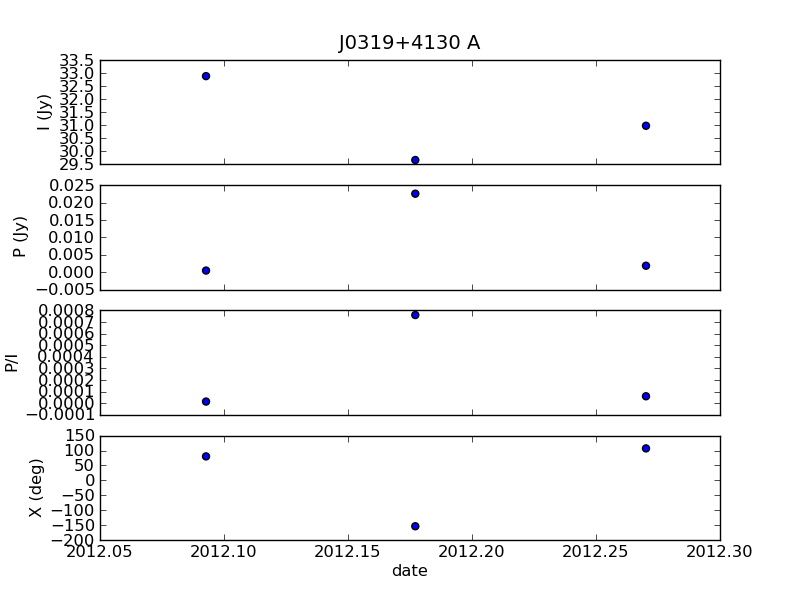

J0319+4130 C BAND
J0319+4130 X BAND

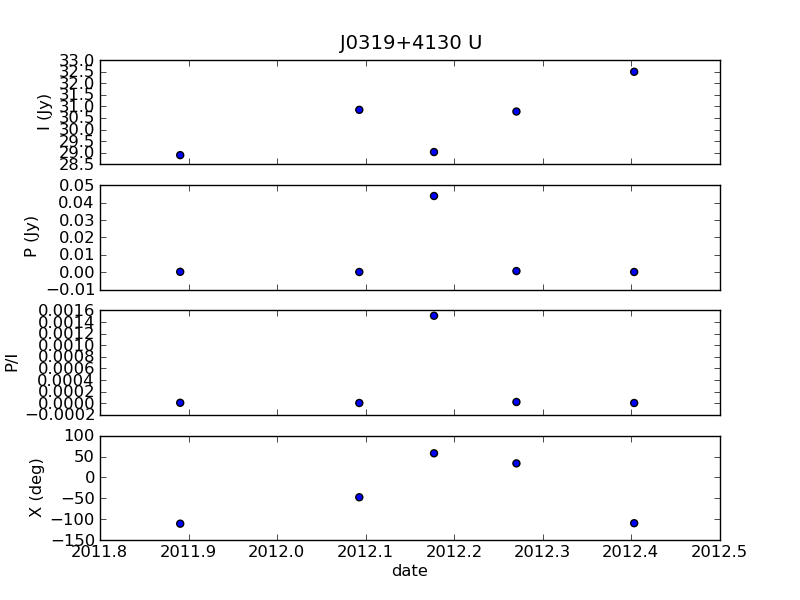

J0319+4130 U BAND
J0319+4130 K BAND
J0319+4130 Ka BAND
J0319+4130 Q BAND
J0319+4130 B 20110430 B 15.0916 0.0152 0.0010 -7.312 20110430 B 22.6450 0.0175 0.0008 -0.028 20110430 B N/A N/A N/A N/A 20110430 B 24.7220* 0.0348 0.0014 -78.941 20110430 B N/A N/A N/A N/A 20110430 B N/A N/A N/A N/A
J0319+4130 D 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A 20111122 B 28.8974 0.0002 0.0000 -110.874 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A
J0319+4130 C 20120203 B 15.5384 0.0001 0.0000 84.602 20120203 B 24.6157 0.0003 0.0000 -132.209 20120203 B 30.8508 0.0001 0.0000 -47.602 20120203 B 32.1111 0.0005 0.0000 131.120 20120203 B 32.8815 0.0005 0.0000 80.384 20120203 B 40.5439 0.0010 0.0000 143.899
J0319+4130 C 20120305 B 15.6304 0.0002 0.0000 -76.706 20120305 B 24.0684 0.0062 0.0003 42.317 20120305 B 29.0305 0.0438 0.0015 57.720 20120305 B 28.7384 0.0191 0.0007 -167.765 20120305 B 29.6655 0.0226 0.0008 -153.903 20120305 B 33.0175 0.0465 0.0014 94.773
J0319+4130 C 20120408 B 16.4805 0.0001 0.0000 -163.805 20120408 B 25.9482 0.0003 0.0000 -25.252 20120408 B 30.7778 0.0006 0.0000 33.556 20120408 B 30.0350 0.0016 0.0001 24.462 20120408 B 30.9788 0.0019 0.0001 107.222 20120408 B 27.1929 0.0013 0.0000 -2.410
J0319+4130 B 20120527 B 16.2627 0.0011 0.0001 87.011 20120527 B 27.0444 0.0003 0.0000 3.507 20120527 B 32.4915 0.0001 0.0000 -109.750 20120527 B 31.3854 0.0009 0.0000 100.417 20120527 B N/A N/A N/A N/A 20120527 B 23.4269 0.0034 0.0001 -112.956

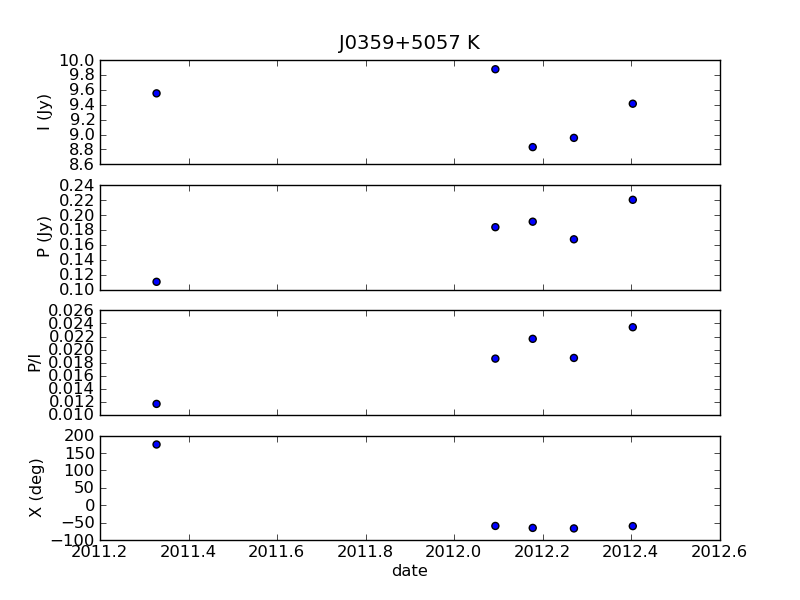

J0359+5057 C BAND
J0359+5057 X BAND

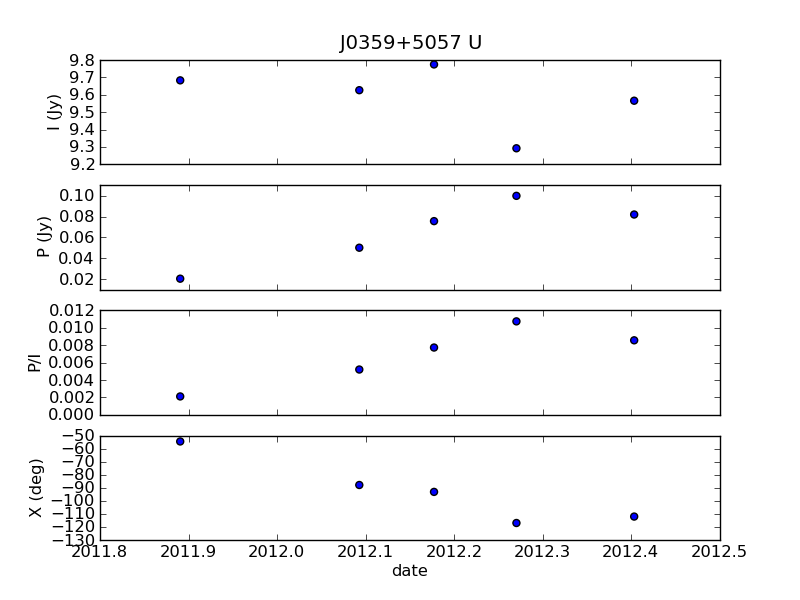

J0359+5057 U BAND
J0359+5057 K BAND

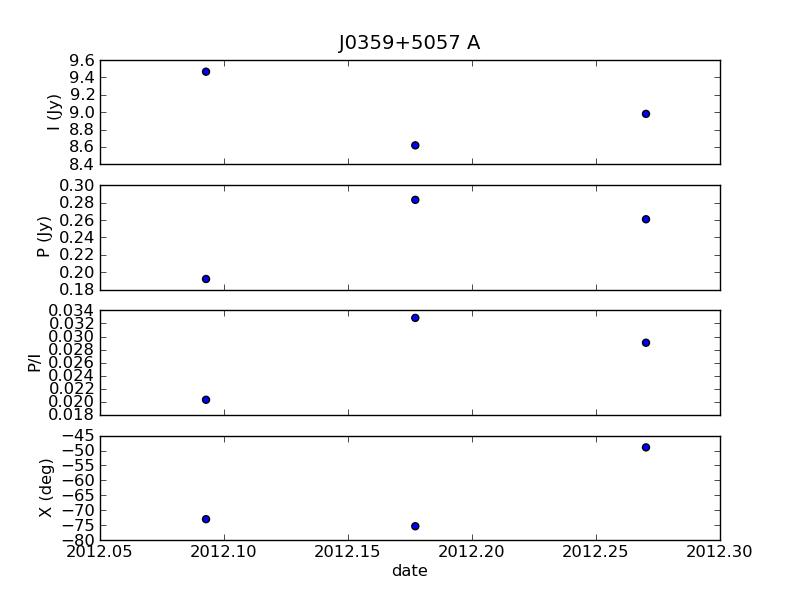

J0359+5057 Ka BAND
J0359+5057 Q BAND
J0359+5057 B 20110430 B 7.7693 0.1368 0.0178 -138.148 20110430 B 9.4623 0.1115 0.0118 172.272 20110430 B N/A N/A N/A N/A 20110430 B 9.5525* 0.1104 0.0117 174.553 20110430 B N/A N/A N/A N/A 20110430 B N/A N/A N/A N/A
J0359+5057 D 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A 20111122 B 9.6830 0.0204 0.0021 -54.459 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A
J0359+5057 C 20120203 B 7.7409 0.1322 0.0171 -156.191 20120203 B 9.3028 0.0922 0.0100 -176.784 20120203 B 9.6264 0.0501 0.0052 -87.827 20120203 B 9.8761 0.1837 0.0186 -59.570 20120203 B 9.4654 0.1922 0.0203 -73.017 20120203 B 10.5097 0.2785 0.0265 -48.760
J0359+5057 C 20120305 B 7.9571 0.1313 0.0168 -153.872 20120305 B 8.9308 0.0949 0.0107 -163.963 20120305 B 9.7744 0.0756 0.0077 -93.119 20120305 B 8.8312 0.1911 0.0216 -65.250 20120305 B 8.6185 0.2832 0.0329 -75.382 20120305 B 8.1291 0.2666 0.0328 -53.321
J0359+5057 C 20120408 B 7.6917 0.1313 0.0171 -154.847 20120408 B 8.6947 0.1157 0.0133 -151.303 20120408 B 9.2924 0.0998 0.0107 -116.968 20120408 B 8.9550 0.1674 0.0187 -66.711 20120408 B 8.9803 0.2609 0.0290 -48.933 20120408 B 6.9622 0.2131 0.0306 -45.619
J0359+5057 B 20120527 B 7.5314 0.1388 0.0184 -155.307 20120527 B 8.8564 0.1181 0.0133 -158.788 20120527 B 9.5659 0.0819 0.0086 -112.034 20120527 B 9.4136 0.2204 0.0234 -60.100 20120527 B N/A N/A N/A N/A 20120527 B 6.7936 0.2320 0.0342 -31.757

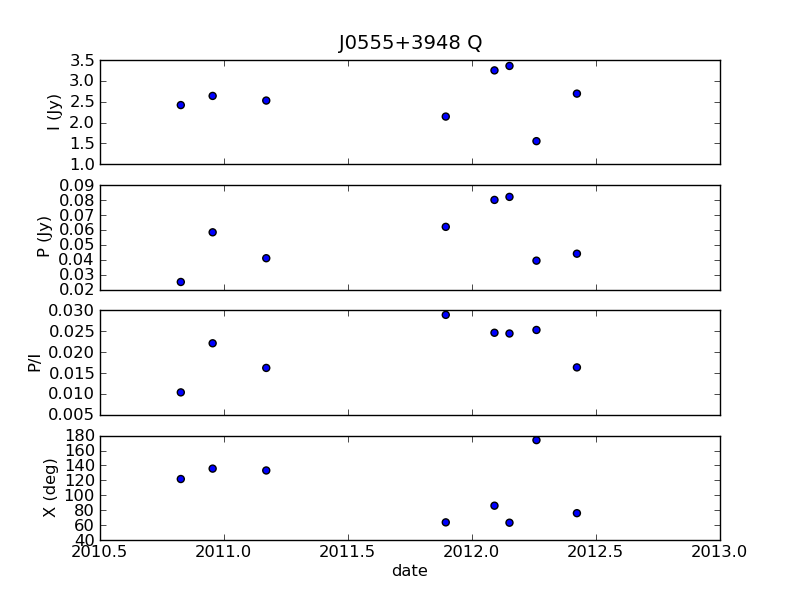

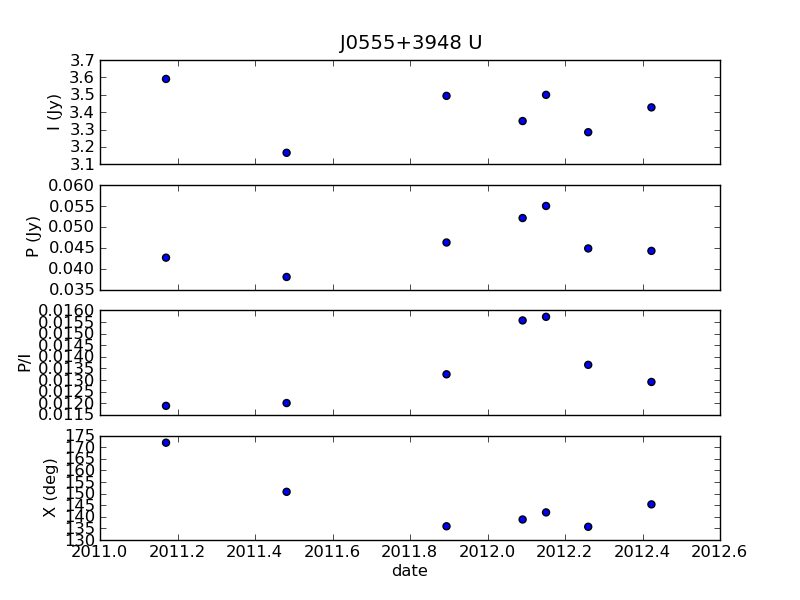

J0555+3948 C BAND
J0555+3948 X BAND
J0555+3948 U BAND

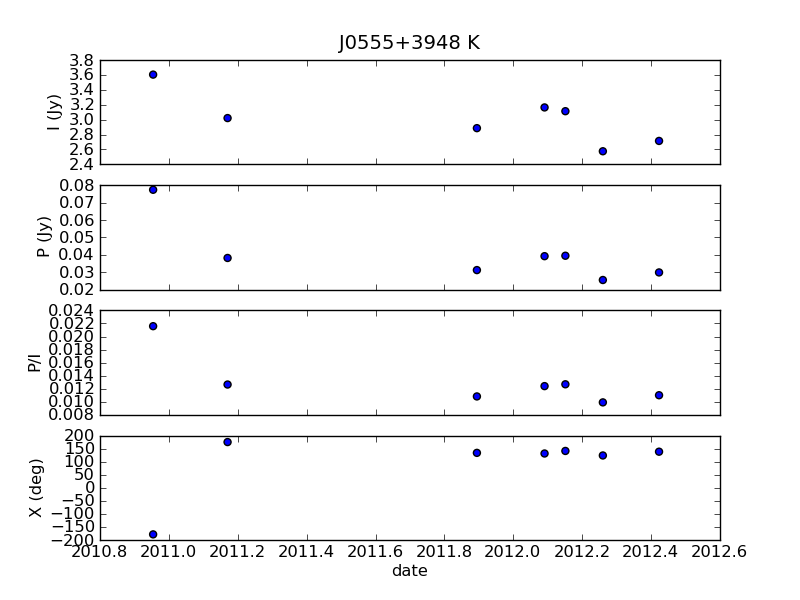

J0555+3948 K BAND
J0555+3948 Ka BAND
J0555+3948 Q BAND
J0555+3948 D 20100530 A 5.2226 0.0003 0.0001 57.944 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A
J0555+3948 C 20100828 A 5.3033 0.0003 0.0001 16.262 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A
J0555+3948 C 20101029 A 5.2869* 0.0236 0.0045 -97.303 20101029 A 4.8272* 0.0426 0.0088 -173.932 20101029 A N/A N/A N/A N/A 20101029 A N/A N/A N/A N/A 20101029 A 2.5231* 0.0963 0.0380 -168.299 20101029 A 2.4149* 0.0251 0.0104 121.819
J0555+3948 C 20101215 A 5.3386 0.0220 0.0041 -105.354 20101215 A 4.8359 0.0492 0.0102 -173.023 20101215 A N/A N/A N/A N/A 20101215 A 3.6040 0.0774 0.0216 -178.460 20101215 A 2.6811 0.1010 0.0377 178.979 20101215 A 2.6394 0.0584 0.0221 135.781
J0555+3948 B 20110304 A 5.1005 0.0199 0.0039 -103.572 20110304 A 4.7457 0.0452 0.0095 -175.202 20110304 A 3.5911 0.0426 0.0119 171.963 20110304 A 3.0208 0.0382 0.0126 175.400 20110304 A 2.4436 0.0233 0.0096 -166.837 20110304 A 2.5283 0.0410 0.0162 133.279
J0555+3948 A 20110625 A 5.2568 0.0312 0.0059 -138.696 20110625 A N/A N/A N/A N/A 20110625 A 3.1665 0.0380 0.0120 150.779 20110625 A N/A N/A N/A N/A 20110625 A 2.5837 0.0411 0.0159 135.749 20110625 A N/A N/A N/A N/A
J0555+3948 D 20111123 A 5.1916 0.0324 0.0062 -142.870 20111123 A 4.5884 0.0609 0.0133 161.376 20111123 A 3.4937 0.0463 0.0132 135.920 20111123 A 2.8857 0.0312 0.0108 134.001 20111123 A 2.3109 0.0370 0.0160 129.303 20111123 A 2.1448 0.0621 0.0289 63.672
J0555+3948 C 20120203 A 5.1657 0.0359 0.0070 -154.505 20120203 A 4.6256 0.0686 0.0148 162.023 20120203 A 3.3490 0.0521 0.0156 138.846 20120203 A 3.1635 0.0392 0.0124 131.595 20120203 A 2.5982 0.0404 0.0155 149.701 20120203 A 3.2511 0.0801 0.0247 86.039
J0555+3948 C 20120225 A 5.0848 0.0344 0.0068 -148.486 20120225 A 4.4591 0.0733 0.0164 160.916 20120225 A 3.4996 0.0550 0.0157 141.900 20120225 A 3.1132 0.0395 0.0127 141.357 20120225 A 2.6485 0.0503 0.0190 140.713 20120225 A 3.3577 0.0822 0.0245 63.199
J0555+3948 C 20120405 A 5.0484 0.0304 0.0060 -156.462 20120405 A 4.4889 0.0638 0.0142 157.185 20120405 A 3.2848 0.0448 0.0137 135.698 20120405 A 2.5756 0.0255 0.0099 124.034 20120405 A 2.6372 0.0088 0.0033 -11.855 20120405 A 1.5557 0.0394 0.0253 174.002
J0555+3948 B 20120603 A 5.1772 0.0349 0.0068 -146.700 20120603 A 4.4973 0.0623 0.0139 159.818 20120603 A 3.4275 0.0443 0.0129 145.364 20120603 A 2.7142 0.0299 0.0110 138.526 20120603 A 2.4200 0.0404 0.0167 140.839 20120603 A 2.6946 0.0441 0.0164 76.004

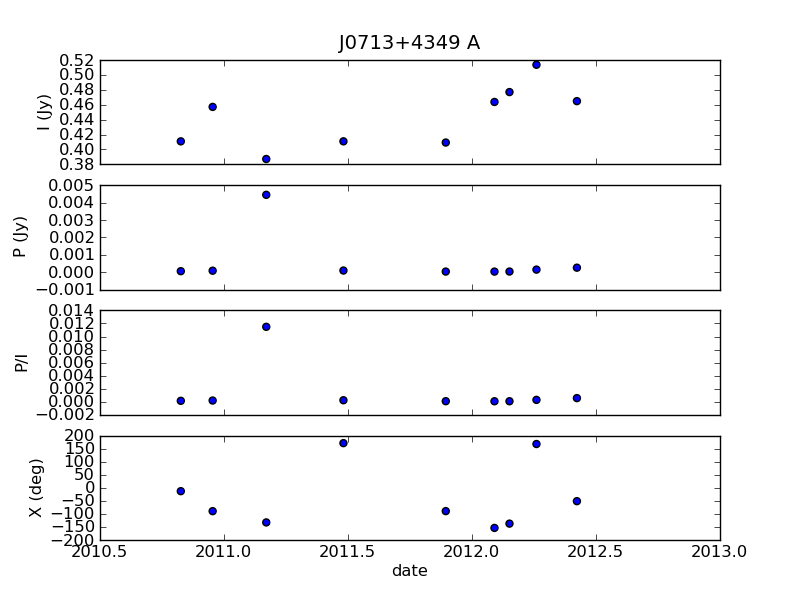

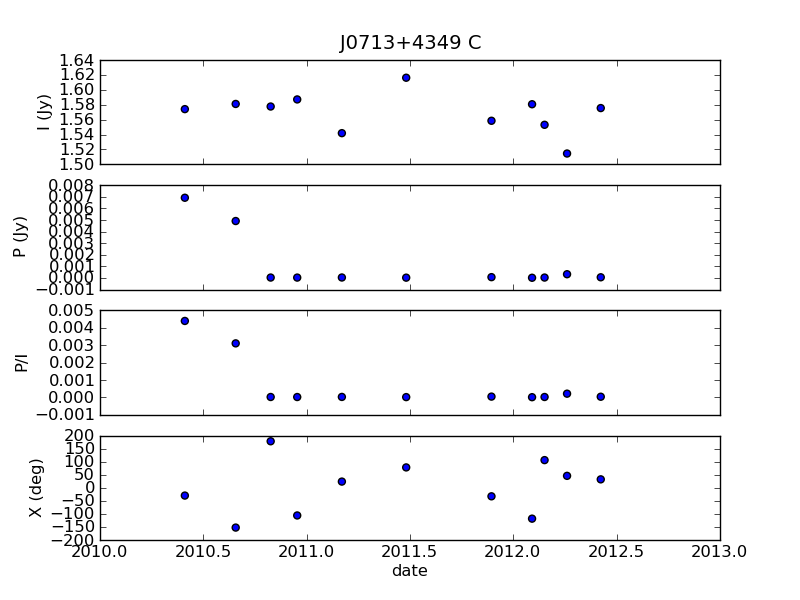

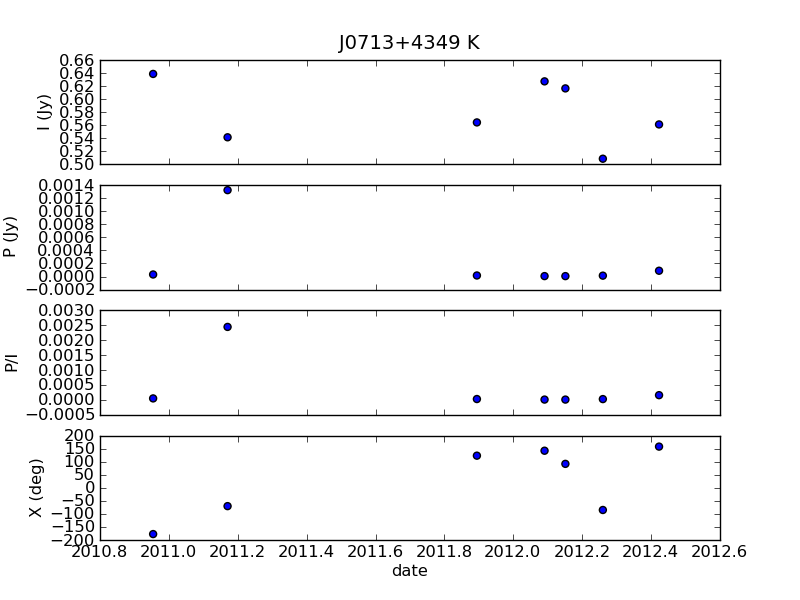

J0713+4349 C BAND
J0713+4349 X BAND
J0713+4349 U BAND
J0713+4349 K BAND
J0713+4349 Ka BAND
J0713+4349 Q BAND
J0713+4349 D 20100530 A 1.5741 0.0069 0.0044 -29.669 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A
J0713+4349 C 20100828 A 1.5810 0.0049 0.0031 -152.374 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A
J0713+4349 C 20101029 A 1.5776* 0.0000 0.0000 178.472 20101029 A 1.1231* 0.0000 0.0000 -36.027 20101029 A N/A N/A N/A N/A 20101029 A N/A N/A N/A N/A 20101029 A 0.4093* 0.0001 0.0001 -12.814 20101029 A 0.3801* 0.0003 0.0009 121.254
J0713+4349 C 20101215 A 1.5871 0.0000 0.0000 -105.930 20101215 A 1.1325 0.0000 0.0000 -72.618 20101215 A N/A N/A N/A N/A 20101215 A 0.6386 0.0000 0.0000 -177.286 20101215 A 0.4571 0.0001 0.0002 -89.394 20101215 A 0.4331 0.0007 0.0016 -28.133
J0713+4349 B 20110304 A 1.5419 0.0000 0.0000 23.928 20110304 A 1.1235 0.0000 0.0000 -4.420 20110304 A 0.7269 0.0000 0.0000 112.114 20110304 A 0.5415 0.0013 0.0024 -70.161 20110304 A 0.3872 0.0044 0.0115 -132.625 20110304 A 0.3491 0.0094 0.0269 101.099
J0713+4349 A 20110625 A 1.6162 0.0000 0.0000 78.234 20110625 A N/A N/A N/A N/A 20110625 A 0.7406 0.0000 0.0001 -146.242 20110625 A N/A N/A N/A N/A 20110625 A 0.4109 0.0001 0.0002 171.304 20110625 A N/A N/A N/A N/A
J0713+4349 D 20111123 A 1.5585 0.0001 0.0000 -32.548 20111123 A 1.1385 0.0000 0.0000 39.412 20111123 A 0.7664 0.0000 0.0000 -162.576 20111123 A 0.5643 0.0000 0.0000 123.276 20111123 A 0.4093 0.0000 0.0001 -89.280 20111123 A 0.3783 0.0002 0.0006 14.125
J0713+4349 C 20120203 A 1.5806 0.0000 0.0000 -118.164 20120203 A 1.1557 0.0000 0.0000 179.480 20120203 A 0.7381 0.0000 0.0000 29.349 20120203 A 0.6272 0.0000 0.0000 142.243 20120203 A 0.4637 0.0000 0.0001 -153.700 20120203 A 0.5542 0.0001 0.0002 -145.920
J0713+4349 C 20120225 A 1.5531 0.0000 0.0000 106.243 20120225 A 1.1481 0.0000 0.0000 -86.959 20120225 A 0.7650 0.0000 0.0000 4.592 20120225 A 0.6165 0.0000 0.0000 91.849 20120225 A 0.4770 0.0000 0.0001 -137.203 20120225 A 0.5967 0.0001 0.0002 -113.807
J0713+4349 C 20120405 A 1.5145 0.0003 0.0002 45.921 20120405 A 1.1054 0.0002 0.0002 -9.059 20120405 A 0.7158 0.0002 0.0002 -3.001 20120405 A 0.5086 0.0000 0.0000 -84.936 20120405 A 0.5136 0.0001 0.0003 167.942 20120405 A 0.3939 0.0013 0.0032 65.178
J0713+4349 B 20120603 A 1.5755 0.0001 0.0000 32.484 20120603 A 1.1232 0.0000 0.0000 35.811 20120603 A 0.7604 0.0000 0.0001 -8.411 20120603 A 0.5612 0.0001 0.0002 158.026 20120603 A 0.4648 0.0003 0.0006 -51.169 20120603 A 0.5100 0.0002 0.0004 -73.822

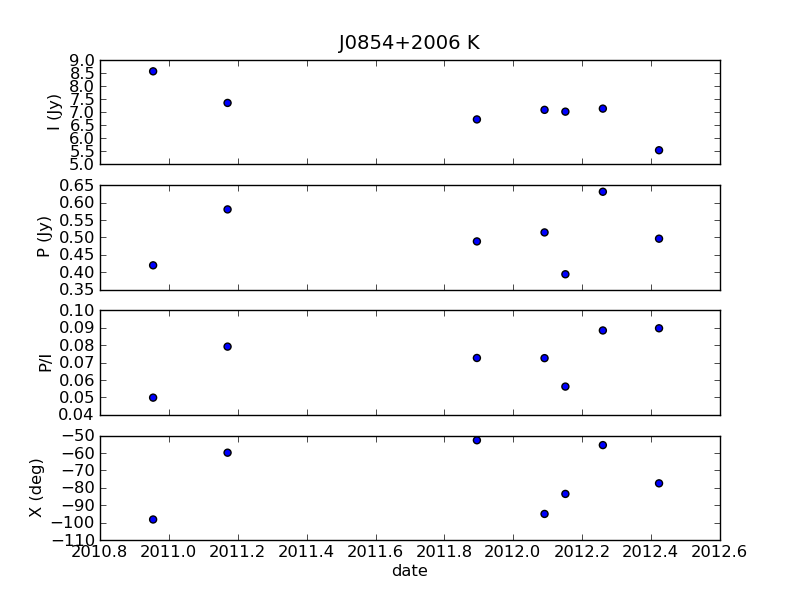

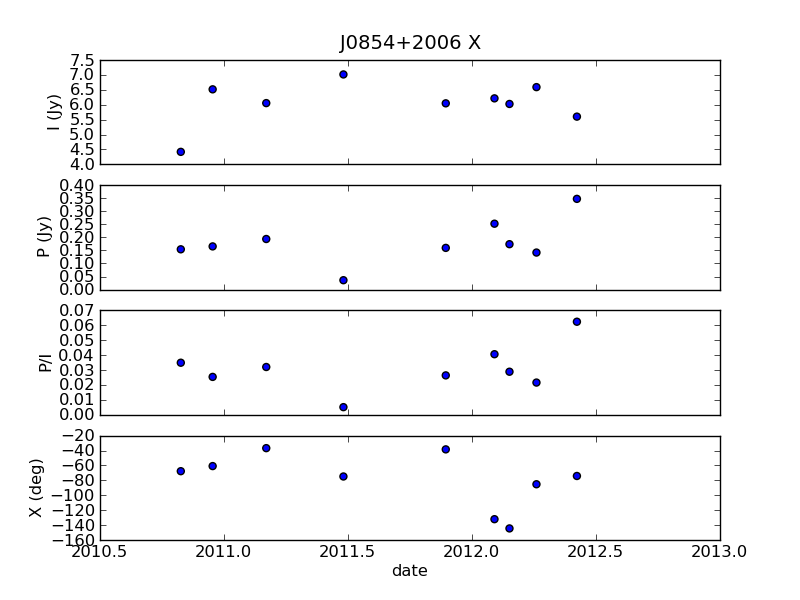

J0854+2006 C BAND
J0854+2006 X BAND
J0854+2006 U BAND
J0854+2006 K BAND
J0854+2006 Ka BAND

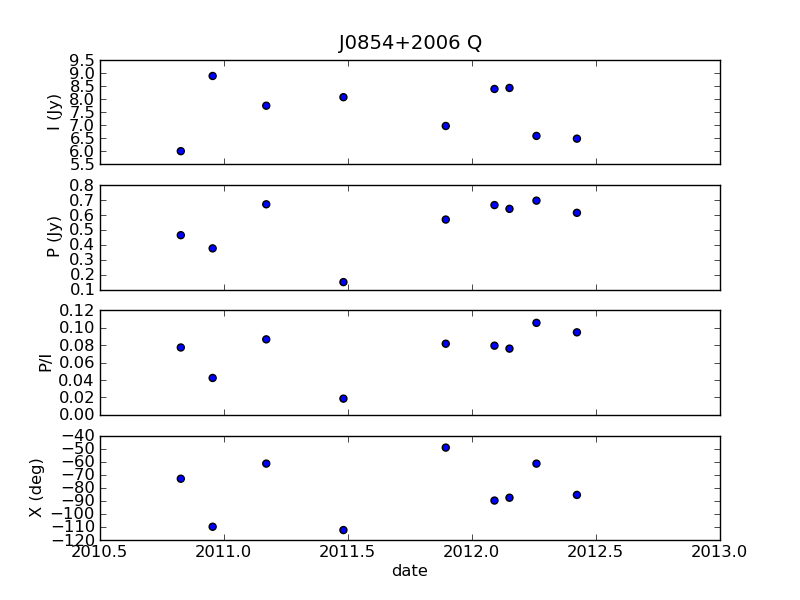

J0854+2006 Q BAND
J0854+2006 D 20100530 A 3.6703 0.0774 0.0211 23.262 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A
J0854+2006 C 20100828 A 3.1693 0.1025 0.0324 -14.352 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A
J0854+2006 C 20101029 A 3.5223* 0.1075 0.0304 -42.219 20101029 A 4.4190* 0.1543 0.0349 -67.679 20101029 A N/A N/A N/A N/A 20101029 A N/A N/A N/A N/A 20101029 A 5.6312* 0.5275 0.0934 -82.259 20101029 A 6.0560* 0.4648 0.0774 -73.021
J0854+2006 C 20101215 A 4.9367 0.1560 0.0316 -28.024 20101215 A 6.5162 0.1654 0.0254 -60.837 20101215 A N/A N/A N/A N/A 20101215 A 8.5659 0.4197 0.0499 -98.206 20101215 A 8.0191 0.4312 0.0538 -96.484 20101215 A 8.8877 0.3763 0.0423 -109.852
J0854+2006 B 20110304 A 4.6114 0.1034 0.0225 7.015 20110304 A 6.0541 0.1938 0.0321 -36.761 20110304 A 6.9875 0.4493 0.0645 -57.850 20110304 A 7.3546 0.5804 0.0792 -59.797 20110304 A 7.2286 0.6309 0.0873 -61.975 20110304 A 7.7477 0.6721 0.0867 -61.420
J0854+2006 A 20110625 A 5.8709 0.0210 0.0036 17.395 20110625 A 7.0155 0.0359 0.0051 -74.789 20110625 A 7.5291 0.5280 0.0701 -71.475 20110625 A N/A N/A N/A N/A 20110625 A 7.1539 0.6709 0.0938 -83.622 20110625 A 8.0745 0.1500 0.0186 -112.388
J0854+2006 D 20111123 A 5.0177 0.0675 0.0135 -39.843 20111123 A 6.0465 0.1598 0.0264 -38.405 20111123 A 6.5517 0.3559 0.0543 -48.767 20111123 A 6.7220 0.4884 0.0727 -52.646 20111123 A 6.7145 0.5601 0.0834 -56.233 20111123 A 6.9710 0.5697 0.0817 -49.152
J0854+2006 C 20120203 A 5.3342 0.1756 0.0330 -160.309 20120203 A 6.2134 0.2525 0.0406 -132.068 20120203 A 6.6906 0.3983 0.0595 -103.761 20120203 A 7.0892 0.5143 0.0726 -95.013 20120203 A 6.8424 0.5681 0.0830 -90.493 20120203 A 8.3898 0.6668 0.0795 -89.756
J0854+2006 C 20120225 A 5.1658 0.1716 0.0332 -161.870 20120225 A 6.0255 0.1740 0.0289 -144.467 20120225 A 6.5561 0.2340 0.0357 -100.385 20120225 A 7.0198 0.3940 0.0562 -83.502 20120225 A 7.0864 0.5165 0.0729 -92.579 20120225 A 8.4288 0.6414 0.0761 -87.594
J0854+2006 C 20120405 A 5.2499 0.1650 0.0315 -173.785 20120405 A 6.5902 0.1419 0.0216 -85.201 20120405 A 7.1197 0.4697 0.0660 -46.282 20120405 A 7.1365 0.6312 0.0885 -55.431 20120405 A 8.1048 0.8195 0.1011 -44.994 20120405 A 6.5896 0.6966 0.1057 -61.441
J0854+2006 B 20120603 A 5.3078 0.1845 0.0350 -74.599 20120603 A 5.6007 0.3477 0.0624 -74.108 20120603 A 5.7847 0.4568 0.0790 -72.916 20120603 A 5.5409 0.4963 0.0897 -77.419 20120603 A 6.0321 0.5917 0.0981 -91.611 20120603 A 6.4851 0.6149 0.0948 -85.441

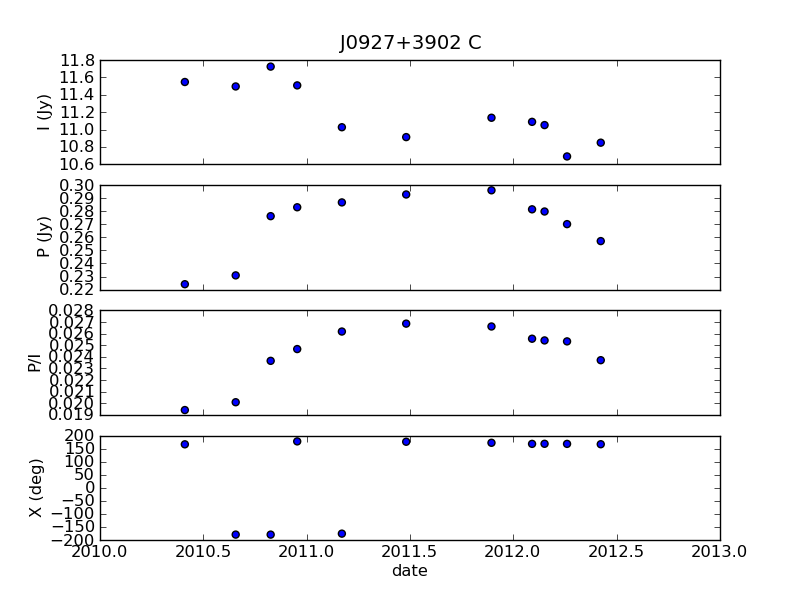

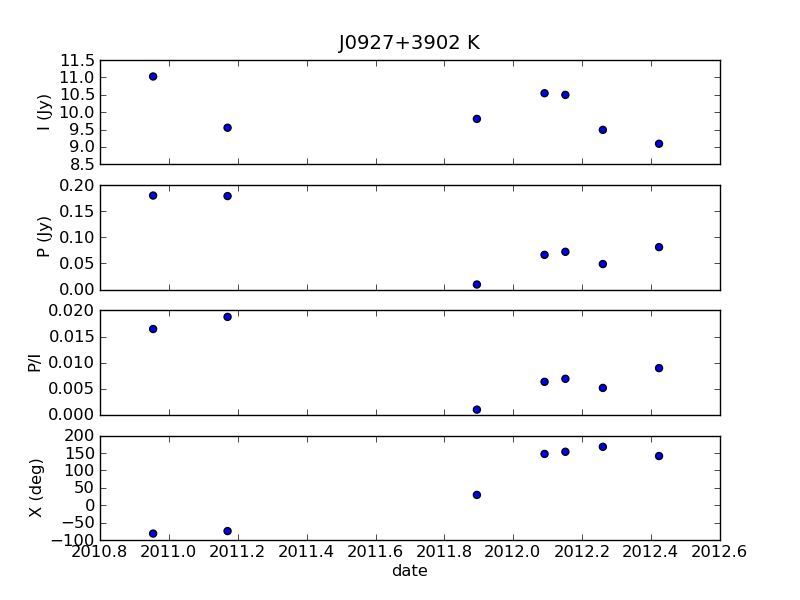

J0927+3902 C BAND

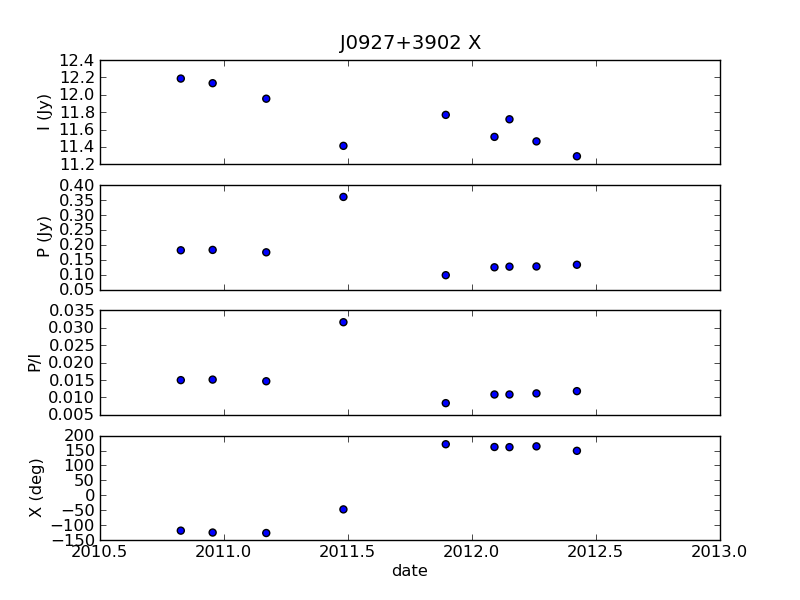

J0927+3902 X BAND

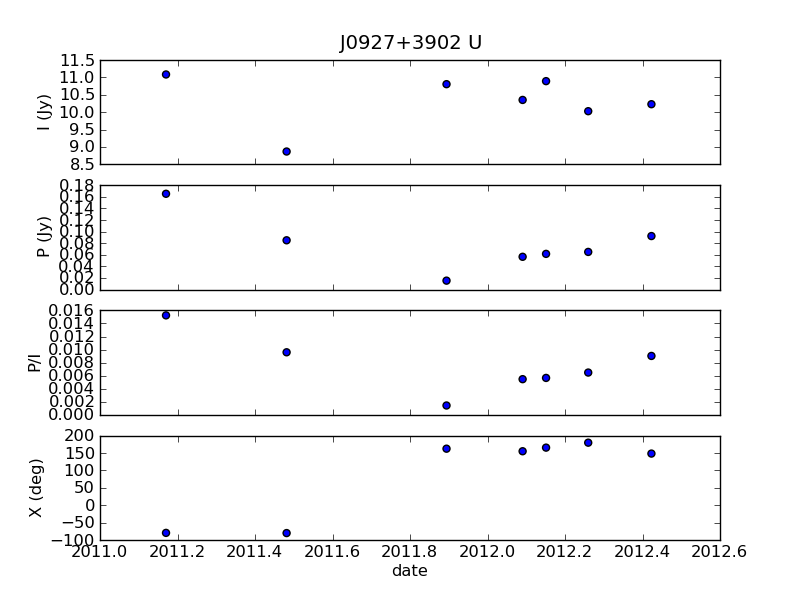

J0927+3902 U BAND
J0927+3902 K BAND
J0927+3902 Ka BAND

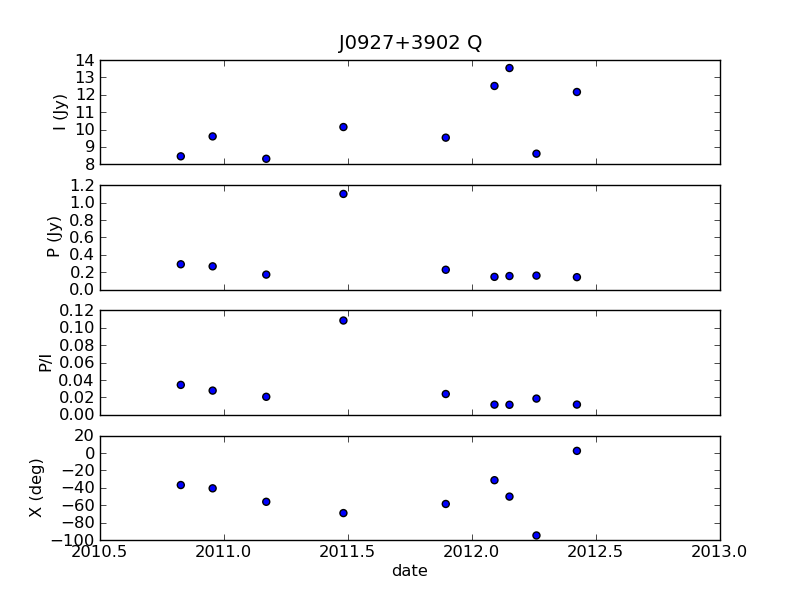

J0927+3902 Q BAND
J0927+3902 D 20100530 A 11.5470 0.2241 0.0194 166.780 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A
J0927+3902 C 20100828 A 11.4958 0.2309 0.0201 -179.257 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A
J0927+3902 C 20101029 A 11.7240* 0.2763 0.0237 -179.338 20101029 A 12.1864* 0.1818 0.0150 -118.616 20101029 A N/A N/A N/A N/A 20101029 A N/A N/A N/A N/A 20101029 A 8.5585* 0.1065 0.0124 -89.638 20101029 A 8.4663* 0.2908 0.0344 -36.789
J0927+3902 C 20101215 A 11.5080 0.2831 0.0247 178.015 20101215 A 12.1333 0.1830 0.0151 -124.964 20101215 A N/A N/A N/A N/A 20101215 A 11.0259 0.1802 0.0164 -81.474 20101215 A 9.1579 0.1215 0.0133 -81.406 20101215 A 9.6070 0.2673 0.0278 -40.579
J0927+3902 B 20110304 A 11.0268 0.2868 0.0262 -175.615 20110304 A 11.9549 0.1750 0.0146 -126.595 20110304 A 11.0839 0.1652 0.0152 -79.551 20110304 A 9.5530 0.1792 0.0188 -74.328 20110304 A 8.2927 0.1614 0.0195 -65.361 20110304 A 8.3209 0.1721 0.0207 -56.067
J0927+3902 A 20110625 A 10.9134 0.2929 0.0269 176.645 20110625 A 11.4128 0.3607 0.0316 -47.321 20110625 A 8.8687 0.0850 0.0096 -80.111 20110625 A N/A N/A N/A N/A 20110625 A 8.6982 0.1202 0.0138 37.784 20110625 A 10.1455 1.0999 0.1084 -69.049
J0927+3902 D 20111123 A 11.1359 0.2961 0.0266 172.652 20111123 A 11.7689 0.0982 0.0083 171.201 20111123 A 10.8051 0.0154 0.0014 162.535 20111123 A 9.8070 0.0097 0.0010 29.610 20111123 A 8.6729 0.1113 0.0128 50.489 20111123 A 9.5348 0.2278 0.0239 -58.557
J0927+3902 C 20120203 A 11.0887 0.2815 0.0256 168.506 20120203 A 11.5159 0.1247 0.0108 161.957 20120203 A 10.3520 0.0565 0.0055 155.177 20120203 A 10.5442 0.0665 0.0063 147.469 20120203 A 9.5982 0.1405 0.0146 124.142 20120203 A 12.5062 0.1462 0.0117 -31.233
J0927+3902 C 20120225 A 11.0515 0.2798 0.0254 168.802 20120225 A 11.7183 0.1269 0.0108 161.432 20120225 A 10.8923 0.0616 0.0057 165.576 20120225 A 10.4975 0.0724 0.0069 153.662 20120225 A 10.2015 0.1706 0.0167 113.701 20120225 A 13.5378 0.1557 0.0115 -50.088
J0927+3902 C 20120405 A 10.6909 0.2702 0.0253 168.466 20120405 A 11.4640 0.1275 0.0111 164.119 20120405 A 10.0282 0.0649 0.0065 179.804 20120405 A 9.4914 0.0489 0.0052 167.940 20120405 A 9.2144 0.0085 0.0009 140.851 20120405 A 8.6138 0.1605 0.0186 -94.786
J0927+3902 B 20120603 A 10.8493 0.2572 0.0237 167.125 20120603 A 11.2928 0.1332 0.0118 149.121 20120603 A 10.2289 0.0923 0.0090 148.467 20120603 A 9.0924 0.0813 0.0089 141.399 20120603 A 9.6854 0.1570 0.0162 112.282 20120603 A 12.1603 0.1427 0.0117 2.497

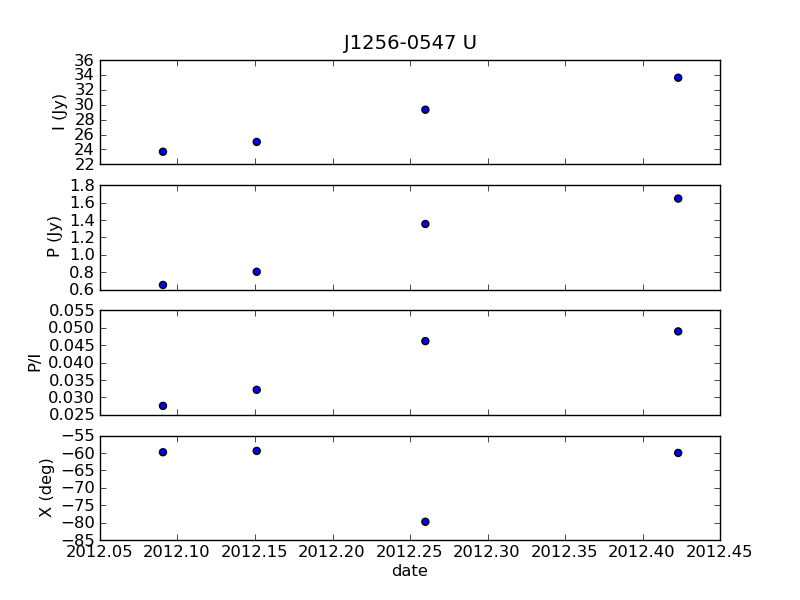

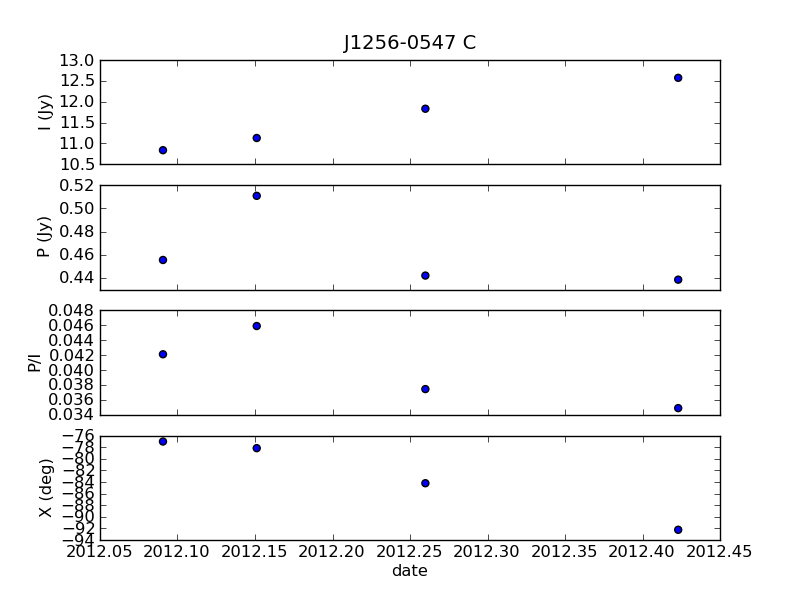

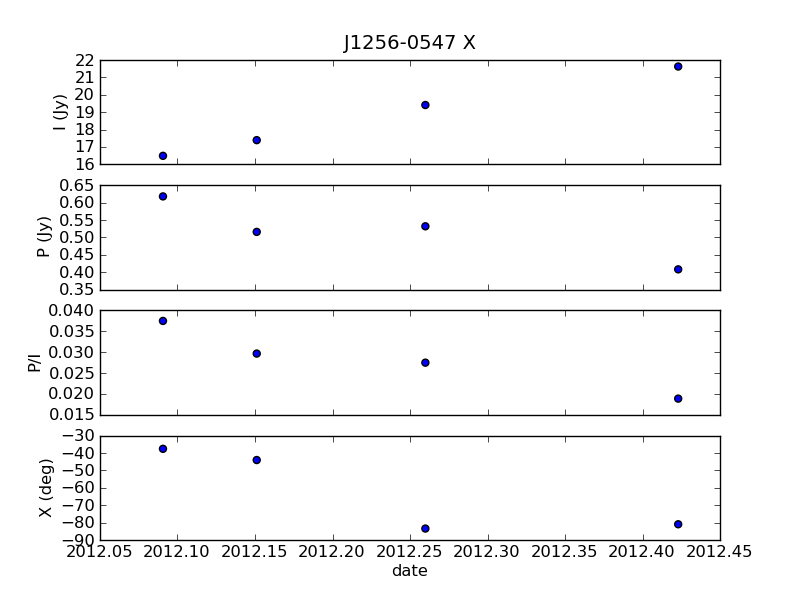

J1256-0547 C BAND
J1256-0547 X BAND
J1256-0547 U BAND

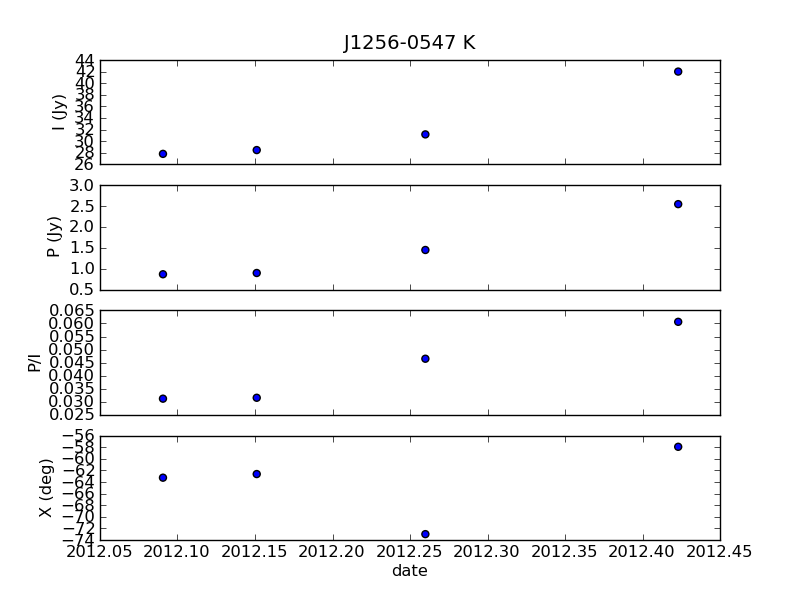

J1256-0547 K BAND
J1256-0547 Ka BAND
J1256-0547 Q BAND
J1256-0547 C 20120203 A 10.8391 0.4555 0.0421 -77.014 20120203 A 16.4898 0.6178 0.0375 -37.573 20120203 A 23.6939 0.6529 0.0276 -59.768 20120203 A 27.8091 0.8667 0.0312 -63.251 20120203 A 28.9273 0.8615 0.0298 -54.046 20120203 A 28.0964 0.2840 0.0101 2.563
J1256-0547 C 20120225 A 11.1313 0.5108 0.0459 -78.157 20120225 A 17.3914 0.5158 0.0297 -44.020 20120225 A 25.0070 0.8046 0.0322 -59.386 20120225 A 28.4617 0.8970 0.0315 -62.625 20120225 A 28.3867 0.7647 0.0269 -79.717 20120225 A 26.7071 0.3435 0.0129 -11.138
J1256-0547 C 20120405 A 11.8324 0.4421 0.0374 -84.207 20120405 A 19.4115 0.5319 0.0275 -83.418 20120405 A 29.3278 1.3543 0.0462 -79.760 20120405 A 31.1670 1.4483 0.0465 -72.989 20120405 A 31.6689 1.0436 0.0330 -73.898 20120405 A 24.1570 1.3406 0.0555 -72.484
J1256-0547 B 20120603 A 12.5728 0.4385 0.0349 -92.237 20120603 A 21.6251 0.4081 0.0189 -80.953 20120603 A 33.6226 1.6465 0.0490 -59.973 20120603 A 42.0030 2.5466 0.0606 -57.922 20120603 A 40.6788 2.7961 0.0687 -70.353 20120603 A 37.7620 1.9970 0.0529 -59.759

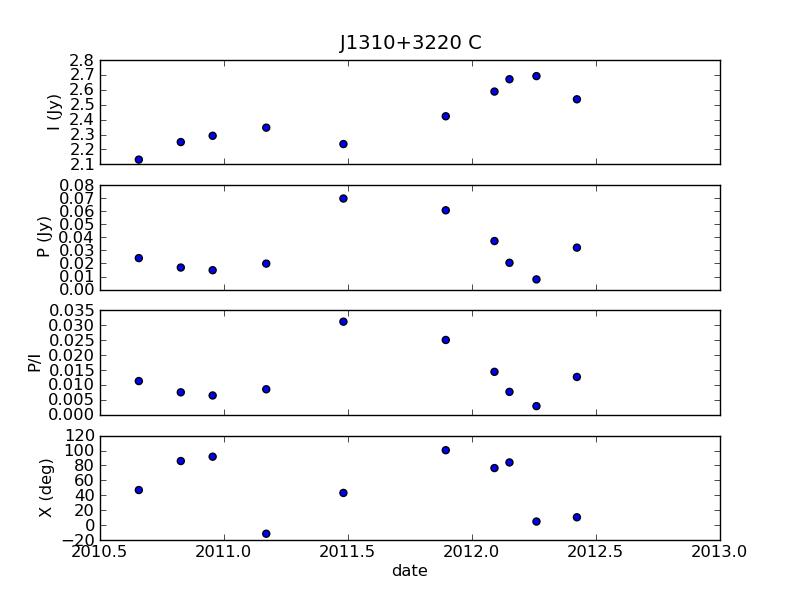

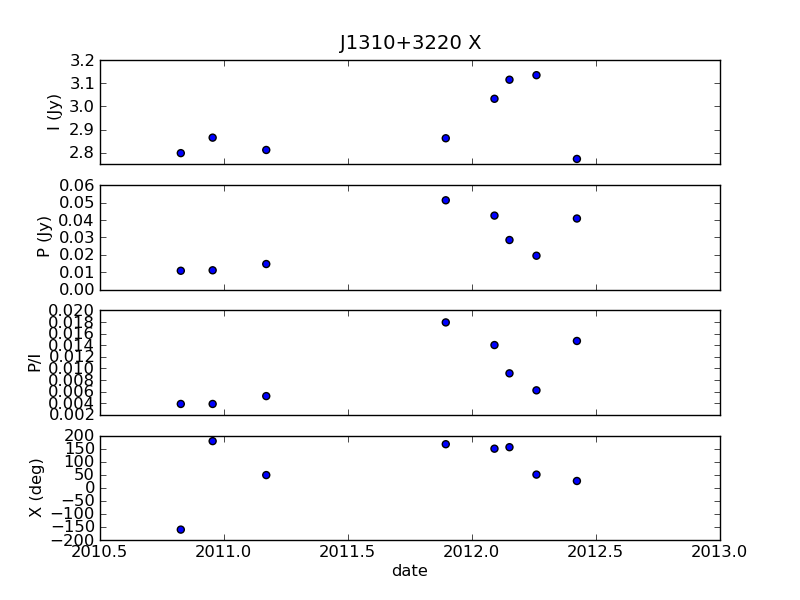

J1310+3220 C BAND
J1310+3220 X BAND
J1310+3220 U BAND

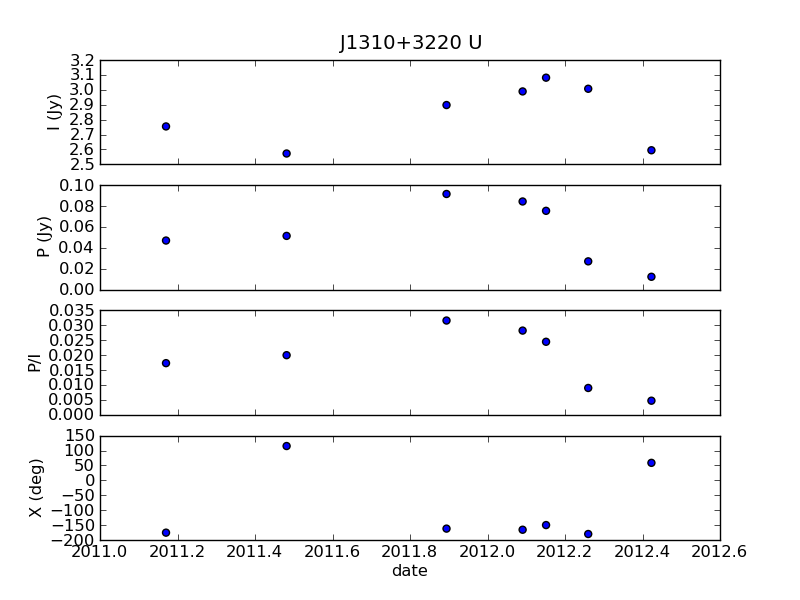

J1310+3220 K BAND
J1310+3220 Ka BAND
J1310+3220 Q BAND
J1310+3220 C 20100828 A 2.1318 0.0241 0.0113 47.025 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A
J1310+3220 C 20101029 A 2.2495* 0.0169 0.0075 85.959 20101029 A 2.7984* 0.0108 0.0039 -160.181 20101029 A N/A N/A N/A N/A 20101029 A N/A N/A N/A N/A 20101029 A 2.6660* 0.1263 0.0470 -169.017 20101029 A 2.4693* 0.1117 0.0451 170.508
J1310+3220 C 20101215 A 2.2917 0.0148 0.0065 91.800 20101215 A 2.8652 0.0111 0.0039 179.055 20101215 A N/A N/A N/A N/A 20101215 A 2.8740 0.1128 0.0394 -163.532 20101215 A 2.5125 0.1232 0.0490 -164.232 20101215 A 2.3294 0.1166 0.0500 177.573
J1310+3220 B 20110304 A 2.3462 0.0199 0.0086 -11.591 20110304 A 2.8120 0.0147 0.0052 48.826 20110304 A 2.7543 0.0470 0.0173 -175.360 20110304 A 2.5075 0.0647 0.0258 -166.949 20110304 A 2.2751 0.0740 0.0325 178.390 20110304 A 2.1930 0.0725 0.0331 167.045
J1310+3220 A 20110625 A 2.2361 0.0698 0.0312 43.163 20110625 A N/A N/A N/A N/A 20110625 A 2.5727 0.0514 0.0200 115.181 20110625 A N/A N/A N/A N/A 20110625 A 2.0432 0.0836 0.0409 157.413 20110625 A N/A N/A N/A N/A
J1310+3220 D 20111123 A 2.4226 0.0608 0.0251 100.488 20111123 A 2.8625 0.0513 0.0179 167.192 20111123 A 2.8978 0.0916 0.0316 -161.800 20111123 A 2.7682 0.1211 0.0437 -152.702 20111123 A 2.5129 0.1391 0.0554 -151.057 20111123 A 2.3161 0.0963 0.0416 -148.882
J1310+3220 C 20120203 A 2.5882 0.0372 0.0144 76.506 20120203 A 3.0327 0.0425 0.0140 150.056 20120203 A 2.9891 0.0844 0.0282 -165.549 20120203 A 2.8678 0.1241 0.0433 -157.525 20120203 A 2.5944 0.1516 0.0584 -149.761 20120203 A 2.5211 0.1149 0.0456 -164.465
J1310+3220 C 20120225 A 2.6711 0.0205 0.0077 84.056 20120225 A 3.1150 0.0285 0.0091 155.755 20120225 A 3.0814 0.0755 0.0245 -149.924 20120225 A 2.9035 0.1072 0.0369 -146.580 20120225 A 2.6100 0.1272 0.0488 -151.560 20120225 A 2.4373 0.0745 0.0306 -139.595
J1310+3220 C 20120405 A 2.6920 0.0078 0.0029 4.774 20120405 A 3.1345 0.0195 0.0062 50.709 20120405 A 3.0070 0.0270 0.0090 -179.901 20120405 A 2.8061 0.0487 0.0174 -163.092 20120405 A 2.5842 0.0341 0.0132 -141.204 20120405 A 2.1323 0.0857 0.0402 -163.717
J1310+3220 B 20120603 A 2.5364 0.0321 0.0127 10.481 20120603 A 2.7733 0.0409 0.0147 26.212 20120603 A 2.5946 0.0123 0.0047 58.783 20120603 A 2.4851 0.0178 0.0072 150.959 20120603 A 2.2168 0.0490 0.0221 154.696 20120603 A 1.9808 0.0474 0.0239 105.832

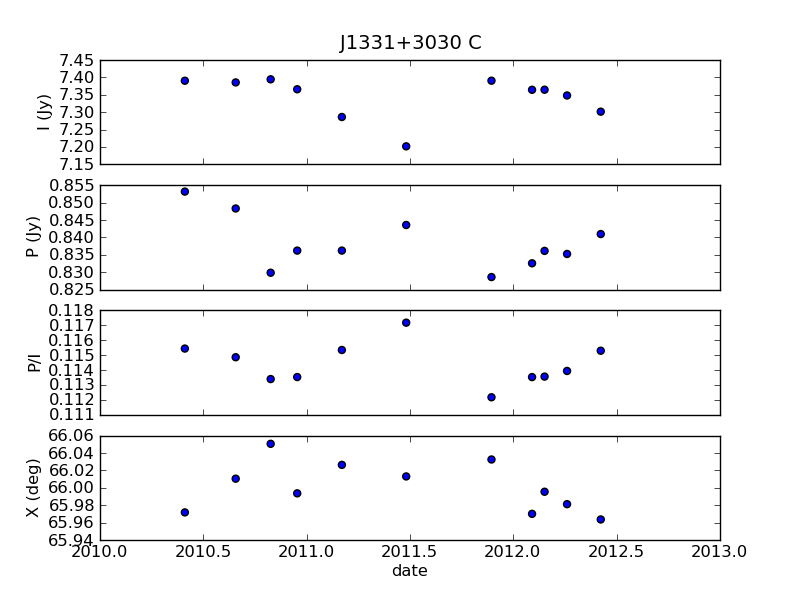

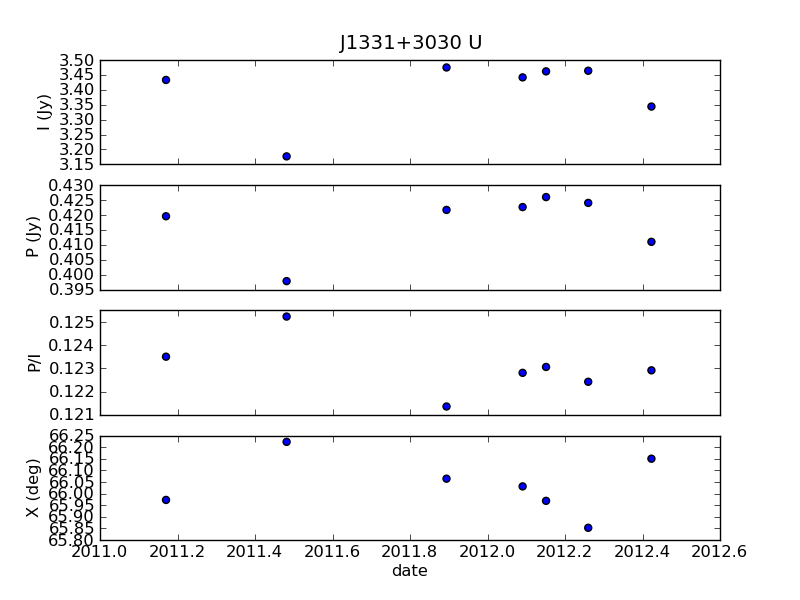

J1331+3030 C BAND
J1331+3030 X BAND
J1331+3030 U BAND

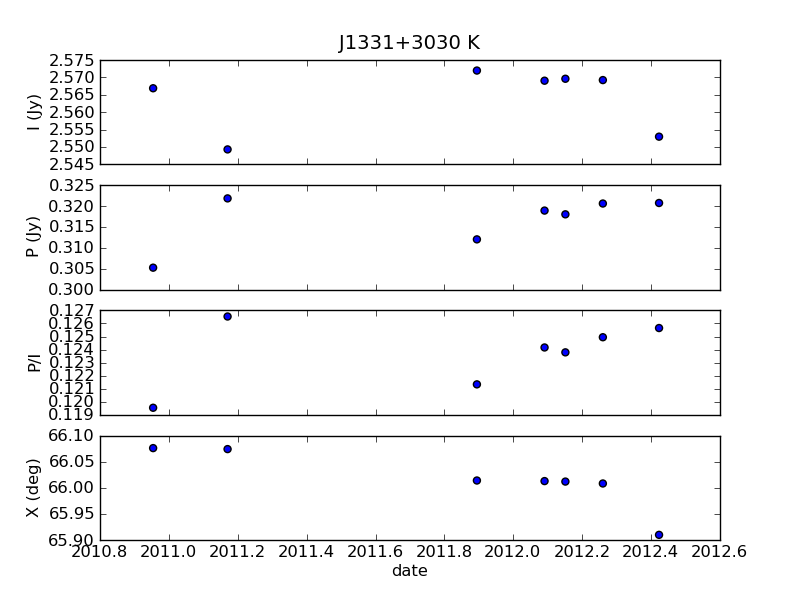

J1331+3030 K BAND
J1331+3030 Ka BAND
J1331+3030 Q BAND
J1331+3030 D 20100530 A 7.3904 0.8532 0.1154 65.972 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A 20100530 A N/A N/A N/A N/A
J1331+3030 C 20100828 A 7.3855 0.8483 0.1149 66.011 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A 20100828 A N/A N/A N/A N/A
J1331+3030 C 20101029 A 7.3945* 0.8298 0.1134 66.051 20101029 A 5.1986* 0.6178 0.1197 65.933 20101029 A N/A N/A N/A N/A 20101029 A N/A N/A N/A N/A 20101029 A 1.8834* 0.2145 0.1141 64.439 20101029 A 1.5379* 0.2109 0.1370 65.573
J1331+3030 C 20101215 A 7.3659 0.8362 0.1135 65.994 20101215 A 5.1594 0.6183 0.1198 65.971 20101215 A N/A N/A N/A N/A 20101215 A 2.5669 0.3052 0.1195 66.076 20101215 A 1.8684 0.2254 0.1206 63.851 20101215 A 1.5376 0.2145 0.1395 66.009
J1331+3030 B 20110304 A 7.2861 0.8362 0.1153 66.026 20110304 A 5.0470 0.6046 0.1201 65.985 20110304 A 3.4331 0.4196 0.1235 65.973 20110304 A 2.5493 0.3218 0.1265 66.074 20110304 A 1.8869 0.2487 0.1318 66.390 20110304 A 1.5167 0.2118 0.1396 66.190
J1331+3030 A 20110625 A 7.2018 0.8436 0.1172 66.013 20110625 A 4.7005 0.7322 0.1560 66.057 20110625 A 3.1767 0.3978 0.1252 66.223 20110625 A N/A N/A N/A N/A 20110625 A 1.8728 0.2317 0.1237 65.012 20110625 A 1.3863 0.3178 0.2293 63.539
J1331+3030 D 20111123 A 7.3905 0.8286 0.1122 66.033 20111123 A 5.1986 0.6158 0.1185 65.986 20111123 A 3.4750 0.4217 0.1214 66.064 20111123 A 2.5720 0.3120 0.1213 66.014 20111123 A 1.8897 0.2279 0.1206 65.465 20111123 A 1.5490 0.2158 0.1393 66.635
J1331+3030 C 20120203 A 7.3644 0.8326 0.1135 65.970 20120203 A 5.1588 0.6177 0.1198 65.948 20120203 A 3.4417 0.4227 0.1228 66.031 20120203 A 2.5690 0.3189 0.1242 66.013 20120203 A 1.8821 0.2289 0.1216 65.176 20120203 A 1.5391 0.2254 0.1465 66.002
J1331+3030 C 20120225 A 7.3646 0.8361 0.1136 65.995 20120225 A 5.1587 0.6187 0.1200 65.954 20120225 A 3.4618 0.4260 0.1231 65.969 20120225 A 2.5696 0.3180 0.1238 66.012 20120225 A 1.8875 0.2352 0.1246 65.738 20120225 A 1.5444 0.2178 0.1411 65.967
J1331+3030 C 20120405 A 7.3480 0.8352 0.1139 65.981 20120405 A 5.1491 0.6139 0.1192 65.916 20120405 A 3.4639 0.4241 0.1224 65.853 20120405 A 2.5692 0.3206 0.1249 66.008 20120405 A 1.8932 0.2507 0.1324 65.972 20120405 A 1.5376 0.1749 0.1138 65.463
J1331+3030 B 20120603 A 7.3014 0.8410 0.1153 65.964 20120603 A 5.0877 0.6125 0.1205 65.989 20120603 A 3.3438 0.4110 0.1229 66.151 20120603 A 2.5530 0.3207 0.1257 65.910 20120603 A 1.8881 0.2367 0.1254 65.697 20120603 A 1.5250 0.2219 0.1455 66.079


J2136+0041 C BAND

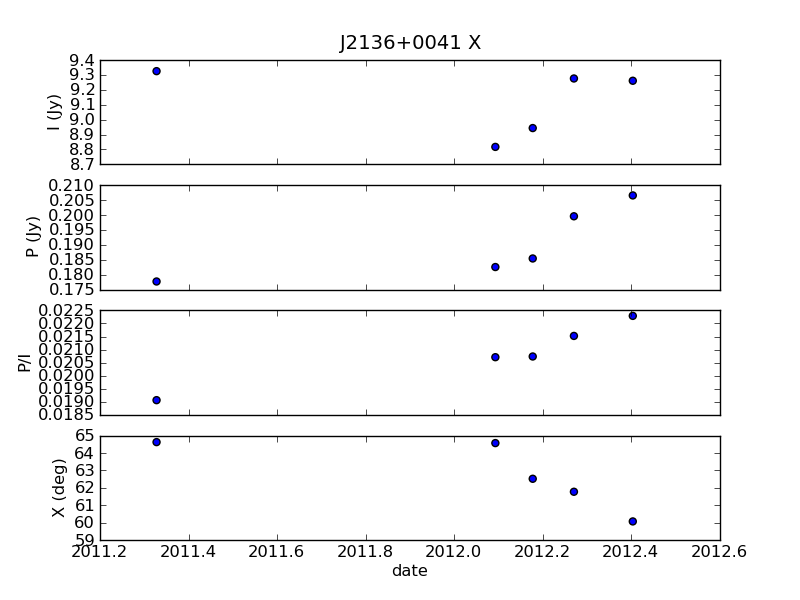

J2136+0041 X BAND
J2136+0041 U BAND

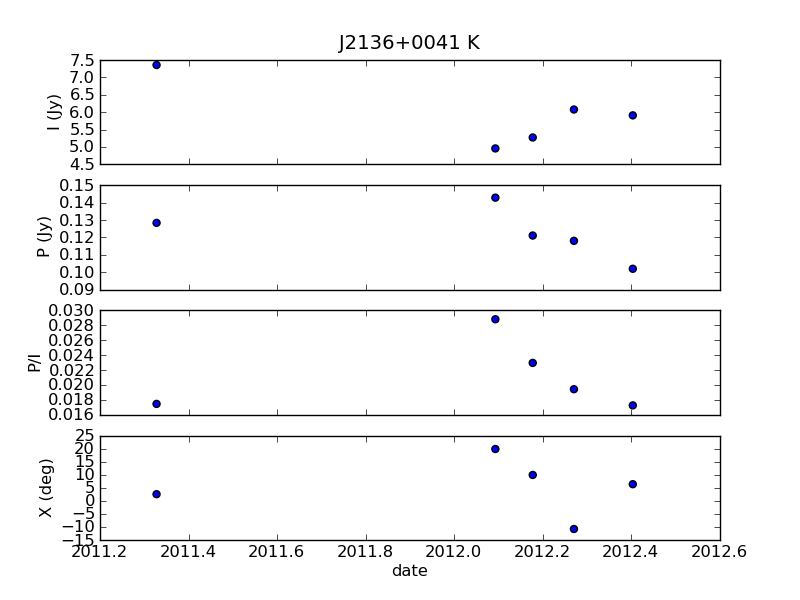

J2136+0041 K BAND
J2136+0041 Ka BAND

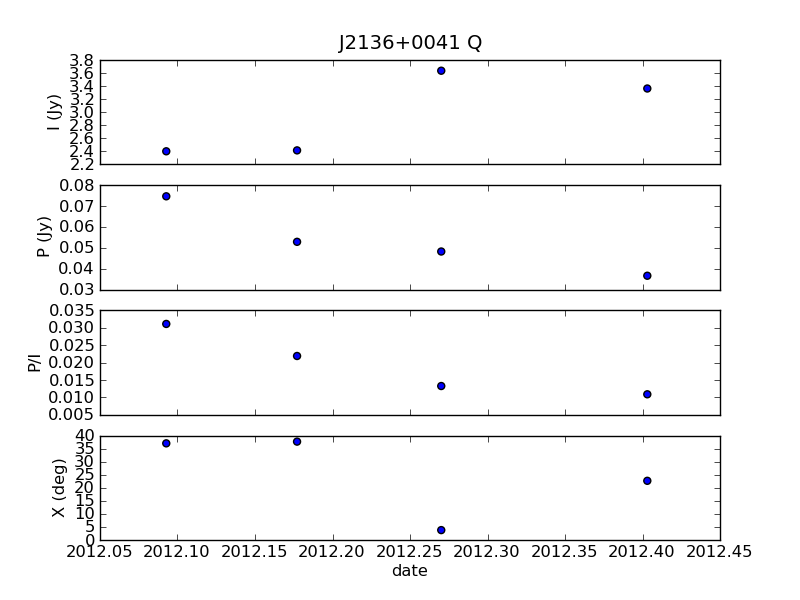

J2136+0041 Q BAND
J2136+0041 B 20110430 B 9.8354 0.1768 0.0181 -168.037 20110430 B 9.3252 0.1777 0.0191 64.628 20110430 B N/A N/A N/A N/A 20110430 B 7.3556* 0.1283 0.0175 2.555 20110430 B N/A N/A N/A N/A 20110430 B N/A N/A N/A N/A
J2136+0041 C 20120203 B 9.3666 0.1806 0.0193 -178.781 20120203 B 8.8171 0.1826 0.0207 64.572 20120203 B 6.6665 0.1595 0.0239 24.081 20120203 B 4.9575 0.1428 0.0288 19.888 20120203 B 3.8522 0.0895 0.0232 -4.097 20120203 B 2.4001 0.0747 0.0311 37.049
J2136+0041 C 20120305 B 9.7828 0.1799 0.0184 -176.691 20120305 B 8.9434 0.1854 0.0207 62.521 20120305 B 7.2799 0.1743 0.0239 26.461 20120305 B 5.2726 0.1211 0.0230 9.938 20120305 B 4.0559 0.0768 0.0189 -28.147 20120305 B 2.4141 0.0529 0.0219 37.713
J2136+0041 C 20120408 B 10.0443 0.2032 0.0203 179.015 20120408 B 9.2760 0.1996 0.0215 61.774 20120408 B 7.6066 0.1661 0.0218 14.272 20120408 B 6.0766 0.1180 0.0194 -10.787 20120408 B 4.7479 0.0748 0.0158 -0.379 20120408 B 3.6355 0.0482 0.0133 3.793
J2136+0041 B 20120527 B 10.0719 0.2129 0.0211 178.726 20120527 B 9.2608 0.2066 0.0223 60.068 20120527 B 7.5778 0.1607 0.0212 12.027 20120527 B 5.9081 0.1020 0.0173 6.393 20120527 B N/A N/A N/A N/A 20120527 B 3.3629 0.0366 0.0109 22.690

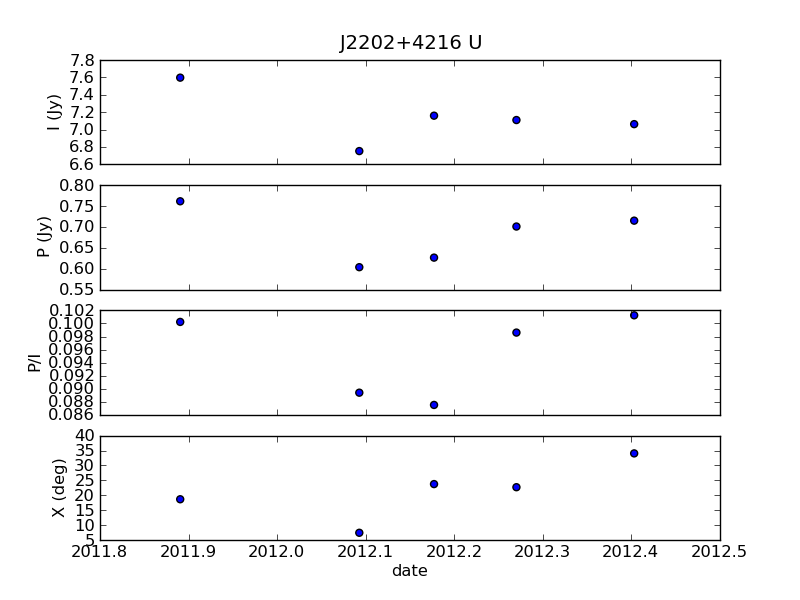

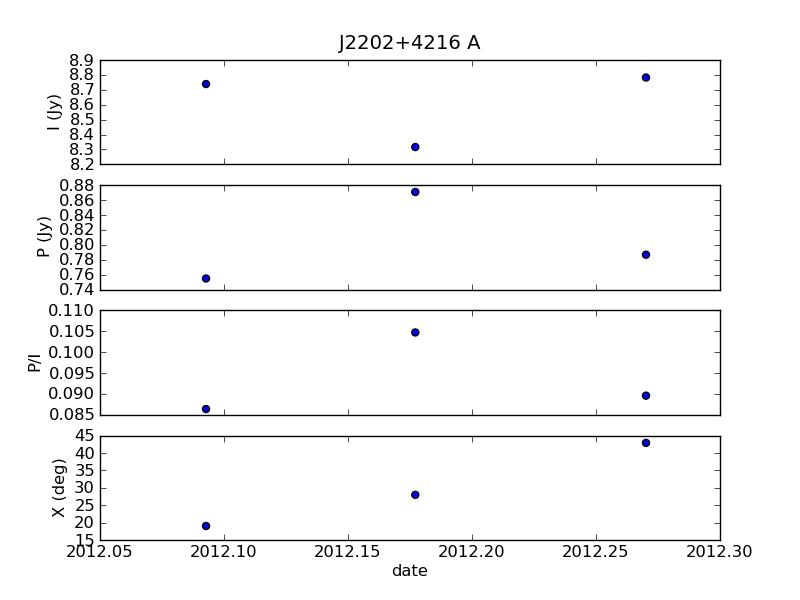

J2202+4216 C BAND

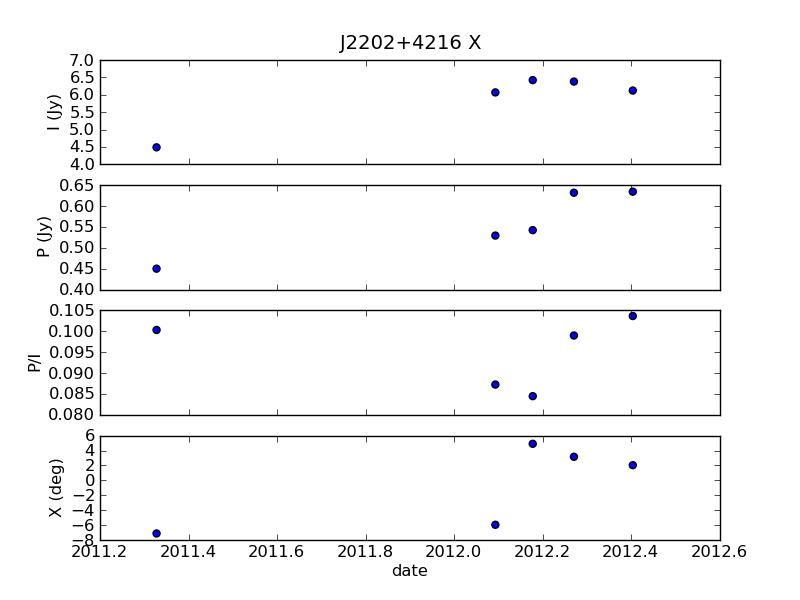

J2202+4216 X BAND
J2202+4216 U BAND
J2202+4216 K BAND
J2202+4216 Ka BAND

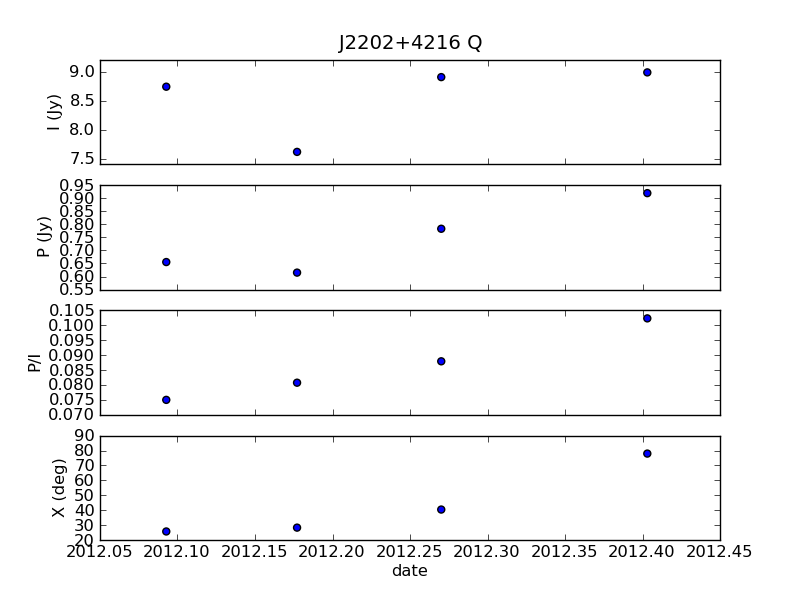

J2202+4216 Q BAND
J2202+4216 B 20110430 B 4.0975 0.4176 0.1023 -60.425 20110430 B 4.4889 0.4501 0.1003 -7.122 20110430 B N/A N/A N/A N/A 20110430 B 5.5518* 0.3097 0.0558 0.154 20110430 B N/A N/A N/A N/A 20110430 B N/A N/A N/A N/A
J2202+4216 D 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A 20111122 B 7.5970 0.7615 0.1002 18.666 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A 20111122 B N/A N/A N/A N/A
J2202+4216 C 20120203 B 4.9252 0.4035 0.0828 -64.981 20120203 B 6.0682 0.5294 0.0872 -5.957 20120203 B 6.7526 0.6036 0.0894 7.421 20120203 B 7.5090 0.4969 0.0662 29.224 20120203 B 8.7387 0.7548 0.0864 19.027 20120203 B 8.7394 0.6555 0.0750 25.717
J2202+4216 C 20120305 B 5.4454 0.4322 0.0796 -60.999 20120305 B 6.4217 0.5423 0.0845 4.907 20120305 B 7.1597 0.6265 0.0875 23.755 20120305 B 7.3841 0.5486 0.0744 39.425 20120305 B 8.3162 0.8709 0.1047 27.988 20120305 B 7.6149 0.6150 0.0808 28.297
J2202+4216 C 20120408 B 5.4838 0.4979 0.0908 -65.329 20120408 B 6.3801 0.6320 0.0990 3.163 20120408 B 7.1095 0.7010 0.0986 22.710 20120408 B 7.9451 0.6376 0.0803 22.326 20120408 B 8.7824 0.7867 0.0896 42.915 20120408 B 8.9049 0.7831 0.0879 40.429
J2202+4216 B 20120527 B 5.3251 0.5451 0.1025 -60.635 20120527 B 6.1225 0.6345 0.1037 2.040 20120527 B 7.0624 0.7151 0.1013 34.048 20120527 B 7.5898 0.6727 0.0887 50.257 20120527 B N/A N/A N/A N/A 20120527 B 8.9863 0.9196 0.1023 77.975

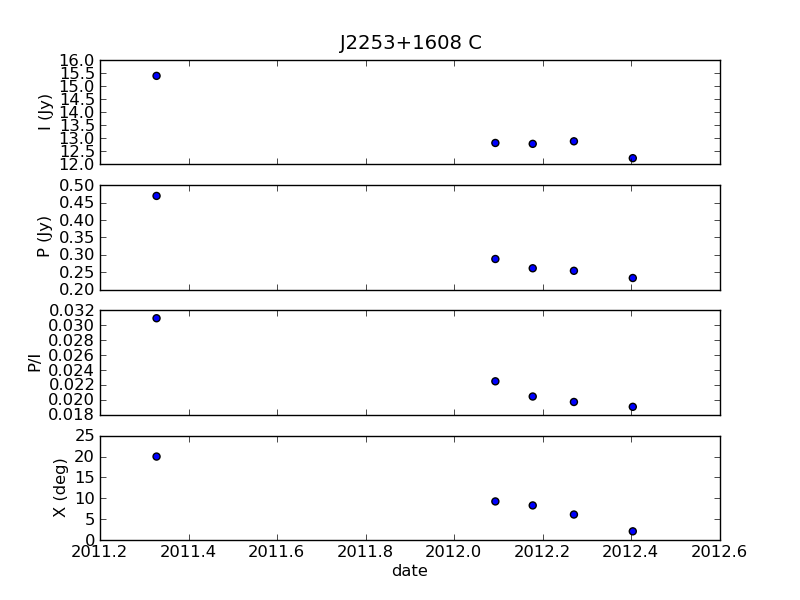

J2253+1608 C BAND
J2253+1608 X BAND

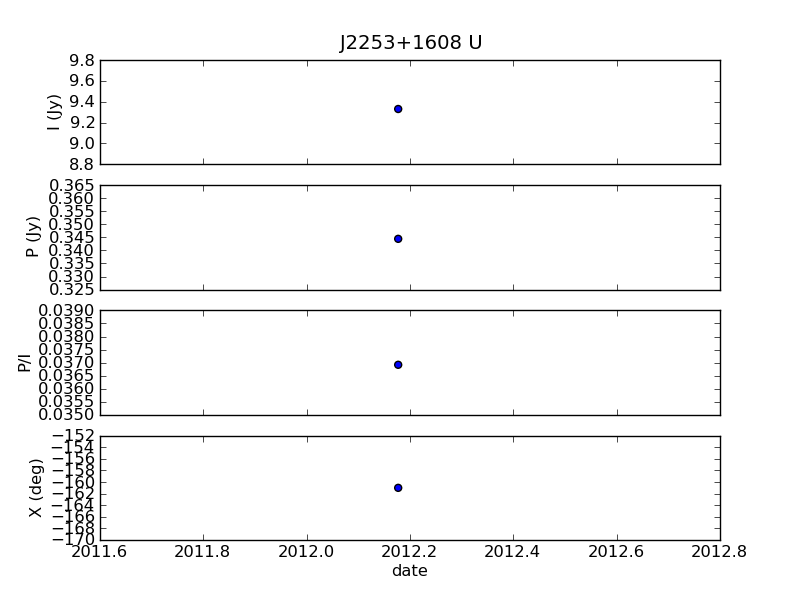

J2253+1608 U BAND
J2253+1608 K BAND
J2253+1608 Ka BAND
J2253+1608 Q BAND
J2253+1608 B 20110430 B 15.3919 0.4692 0.0310 19.990 20110430 B N/A N/A N/A N/A 20110430 B N/A N/A N/A N/A 20110430 B 25.3280* 0.6441 0.0256 173.618 20110430 B N/A N/A N/A N/A 20110430 B N/A N/A N/A N/A
J2253+1608 C 20120203 B 12.8198 0.2879 0.0225 9.238 20120203 B N/A N/A N/A N/A 20120203 B N/A N/A N/A N/A 20120203 B N/A N/A N/A N/A 20120203 B N/A N/A N/A N/A 20120203 B N/A N/A N/A N/A
J2253+1608 C 20120305 B 12.7858 0.2612 0.0205 8.284 20120305 B N/A N/A N/A N/A 20120305 B 9.3304 0.3444 0.0369 -161.004 20120305 B N/A N/A N/A N/A 20120305 B N/A N/A N/A N/A 20120305 B N/A N/A N/A N/A
J2253+1608 C 20120408 B 12.8836 0.2539 0.0197 6.103 20120408 B N/A N/A N/A N/A 20120408 B N/A N/A N/A N/A 20120408 B N/A N/A N/A N/A 20120408 B N/A N/A N/A N/A 20120408 B N/A N/A N/A N/A
J2253+1608 B 20120527 B 12.2364 0.2332 0.0191 2.079 20120527 B N/A N/A N/A N/A 20120527 B N/A N/A N/A N/A 20120527 B 6.9552 0.3170 0.0456 -146.675 20120527 B N/A N/A N/A N/A 20120527 B 4.5633 0.2228 0.0488 -120.773

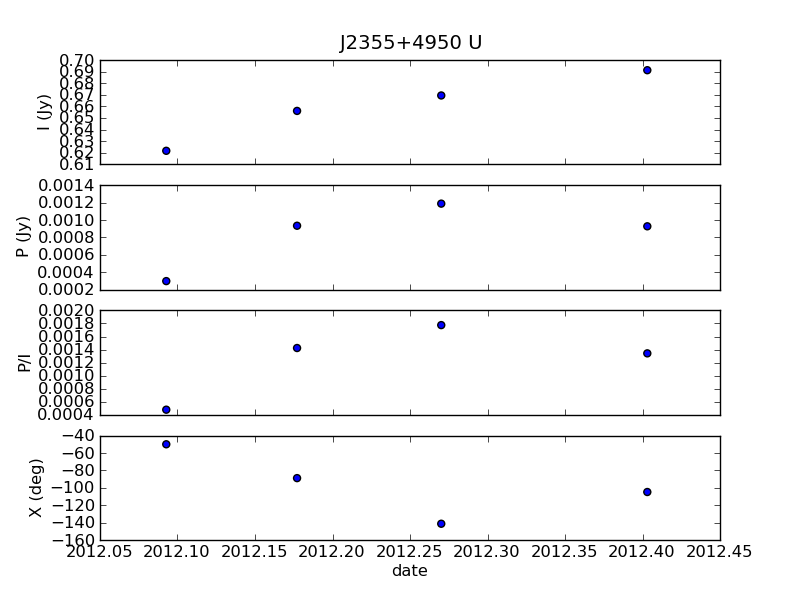

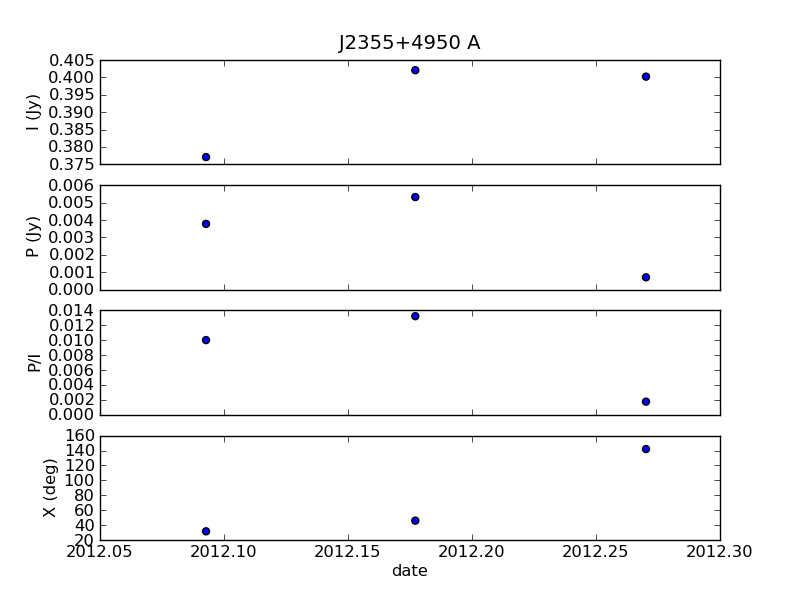

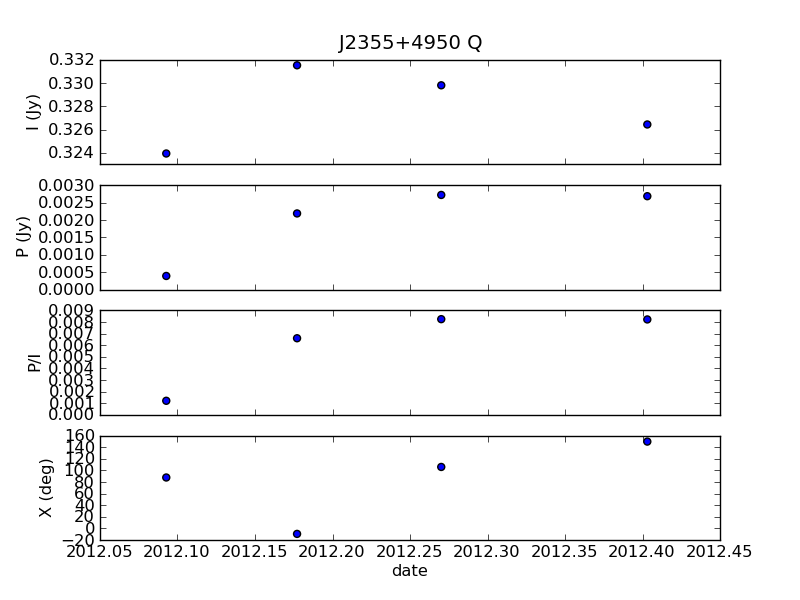

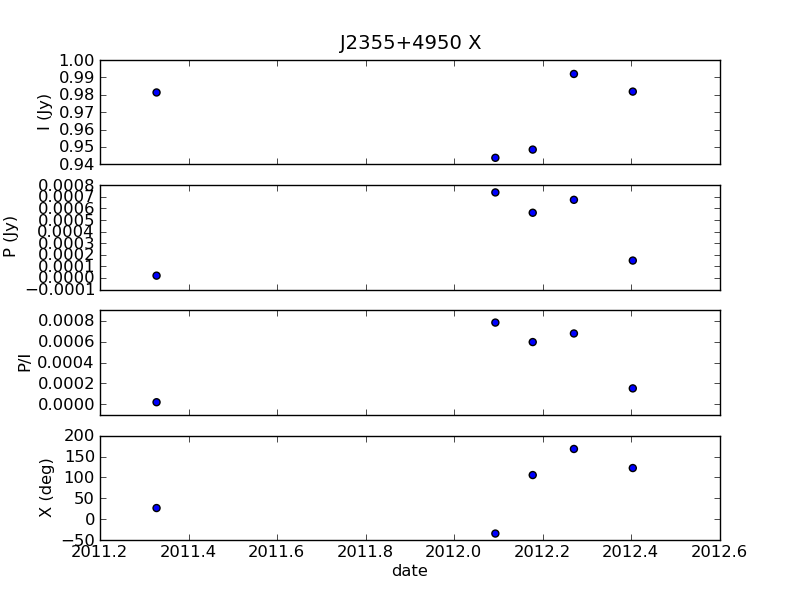

J2355+4950 C BAND
J2355+4950 X BAND
J2355+4950 U BAND
J2355+4950 K BAND
J2355+4950 Ka BAND
J2355+4950 Q BAND
J2355+4950 B 20110430 B 1.3406 0.0000 0.0000 -173.674 20110430 B 0.9813 0.0000 0.0000 26.554 20110430 B N/A N/A N/A N/A 20110430 B 0.5532* 0.0000 0.0000 -134.670 20110430 B N/A N/A N/A N/A 20110430 B N/A N/A N/A N/A
J2355+4950 C 20120203 B 1.3117 0.0005 0.0004 -28.528 20120203 B 0.9438 0.0007 0.0008 -34.559 20120203 B 0.6217 0.0003 0.0005 -49.916 20120203 B 0.4819 0.0012 0.0025 -116.767 20120203 B 0.3771 0.0038 0.0100 31.646 20120203 B 0.3239 0.0004 0.0012 87.825
J2355+4950 C 20120305 B 1.3425 0.0004 0.0003 -135.420 20120305 B 0.9485 0.0006 0.0006 105.596 20120305 B 0.6561 0.0009 0.0014 -88.840 20120305 B 0.4921 0.0011 0.0023 -12.809 20120305 B 0.4021 0.0053 0.0132 45.935 20120305 B 0.3315 0.0022 0.0066 -9.486
J2355+4950 C 20120408 B 1.3819 0.0016 0.0012 -112.814 20120408 B 0.9920 0.0007 0.0007 168.095 20120408 B 0.6694 0.0012 0.0018 -141.306 20120408 B 0.5128 0.0009 0.0018 -119.859 20120408 B 0.4002 0.0007 0.0018 141.999 20120408 B 0.3298 0.0027 0.0082 106.000
J2355+4950 B 20120527 B 1.3496 0.0001 0.0001 173.905 20120527 B 0.9818 0.0002 0.0002 122.392 20120527 B 0.6912 0.0009 0.0013 -104.810 20120527 B 0.5246 0.0011 0.0020 -110.372 20120527 B N/A N/A N/A N/A 20120527 B 0.3264 0.0027 0.0082 149.765

Table Notes:

This file automatically generated on 2012-10-23T17:16:47.766962
