This group of plots considers the uv coverage for a hypopthetical configuration of the New Mexico Array - the extra antennas to be added to the VLA and VLBA as part of the EVLA completion project.  The NMA configuration is an early one and will be replaced after additional study.

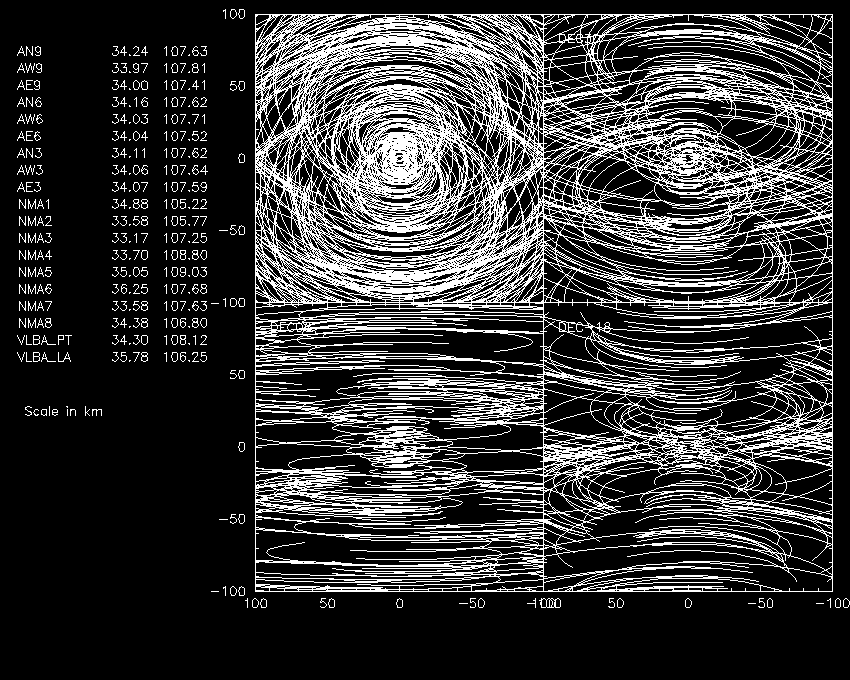

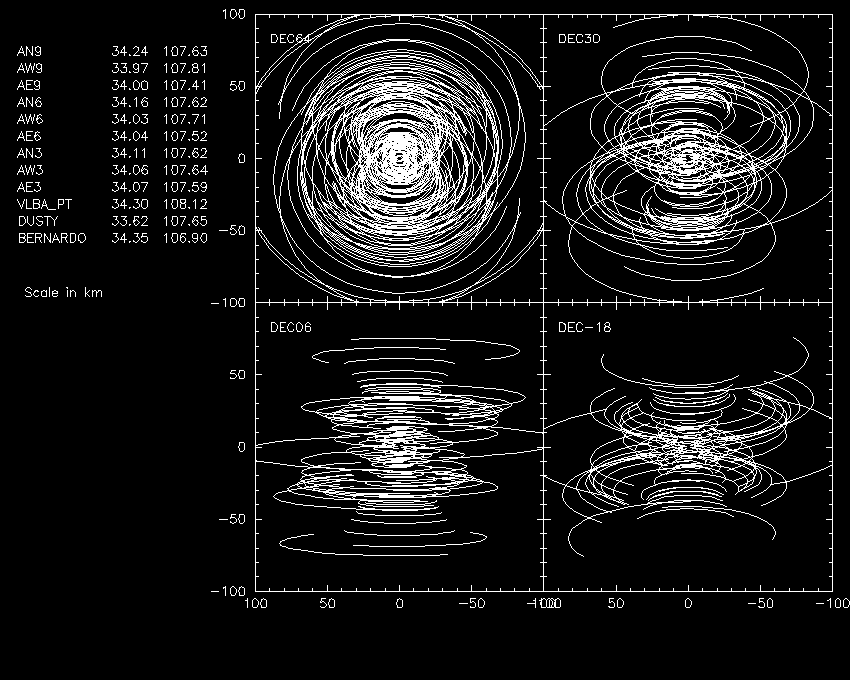

The VLA + Pie Town, Bernardo, and Dusty (a possible set of inner NMA stations) on a scale of 100 km.

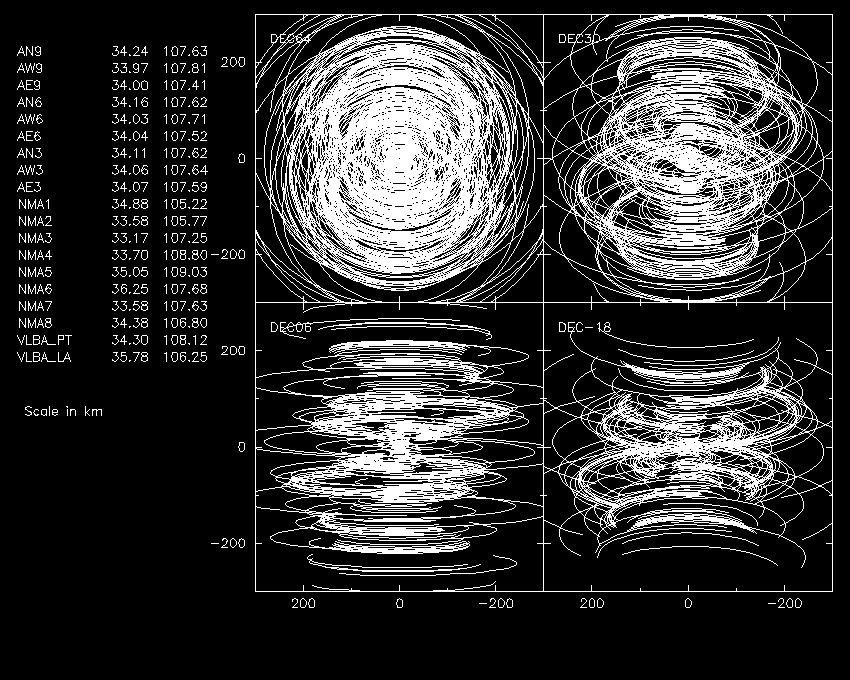

The VLA + NMA on a scale of 100 km.

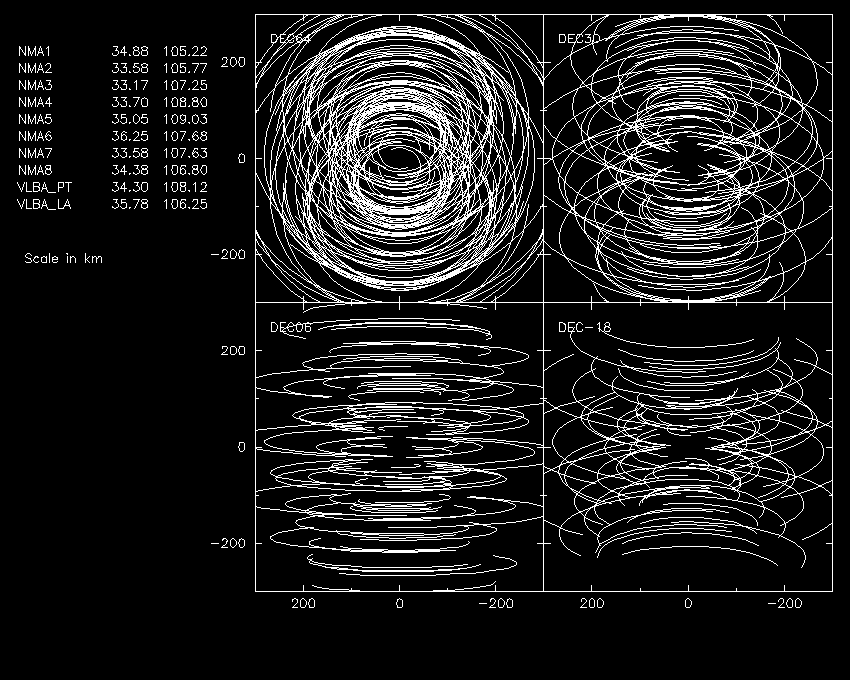

The VLA + NMA on a scale of 300 km.

The NMA with Pie Town and Los Alamos on a scale of 300 km.

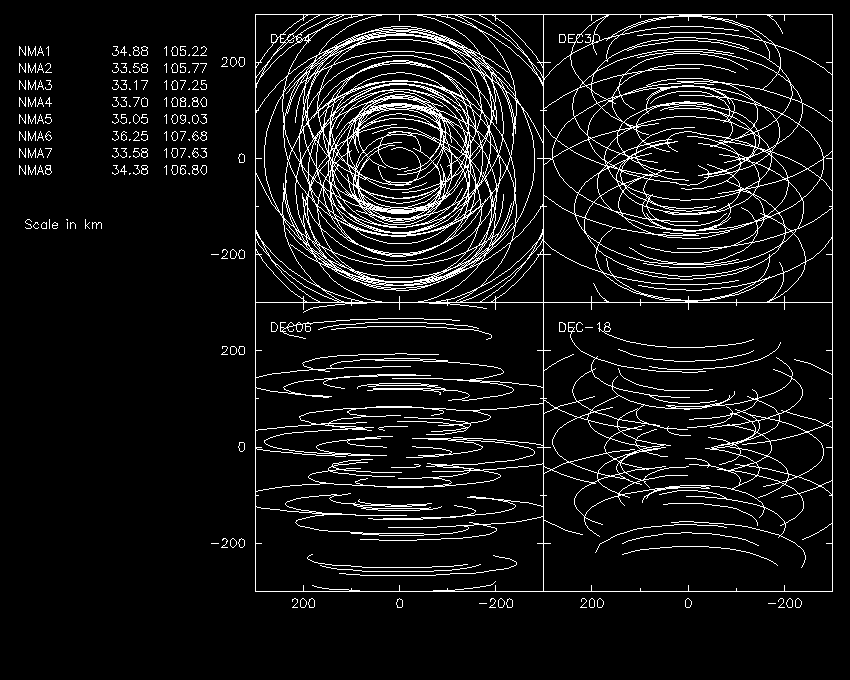

The NMA without Pie Town and Los Alamos on a scale of 300 km.

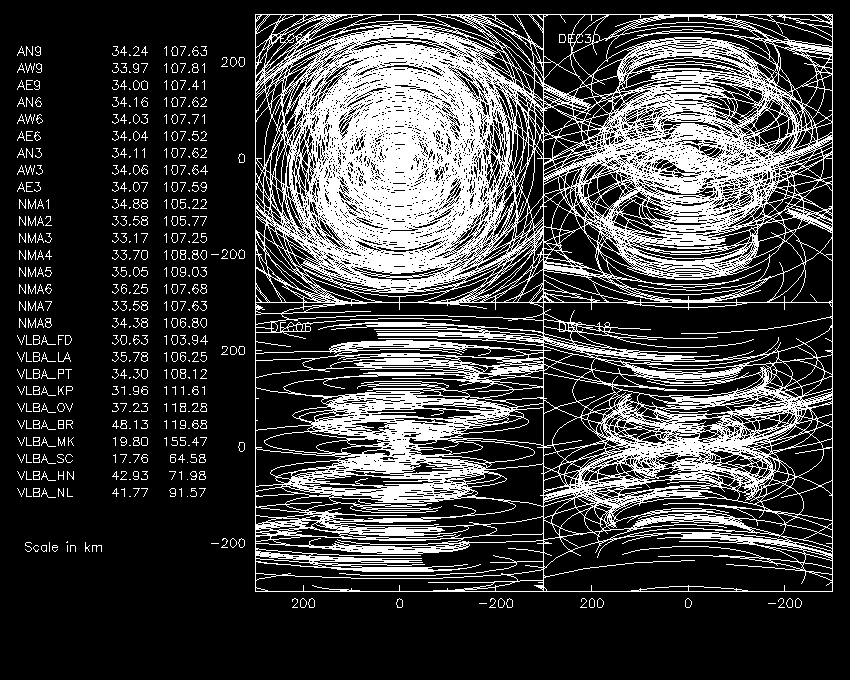

The VLA + NMA + VLBA on a scale of 300 km.

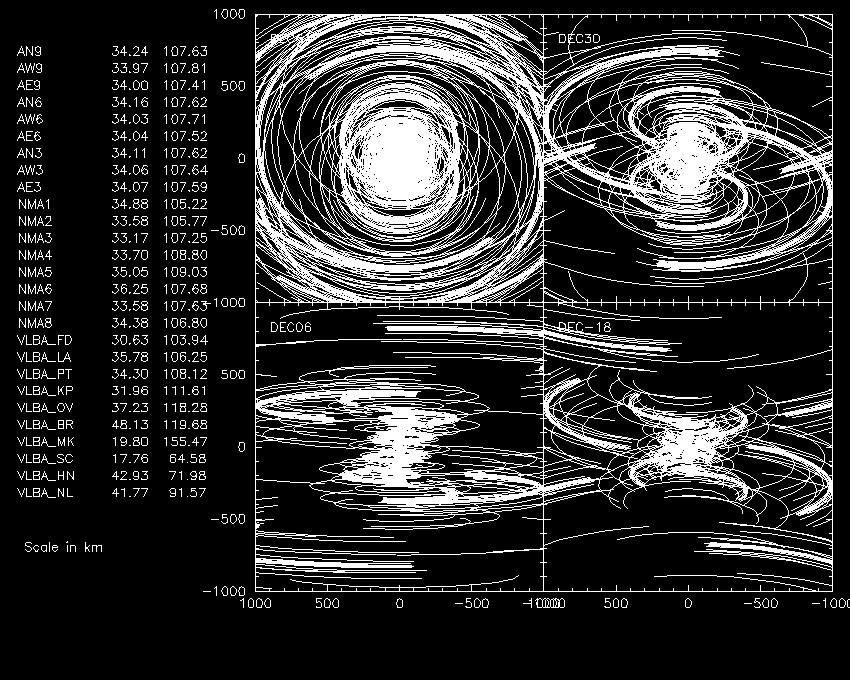

The VLA + NMA + VLBA on a scale of 1000 km.

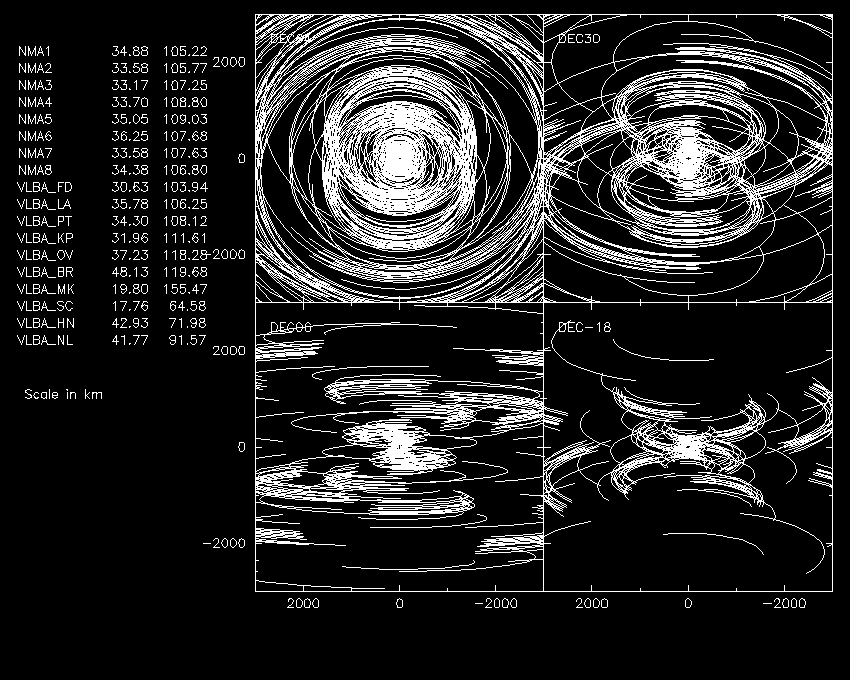

The NMA + VLBA on a scale of 3000 km.
