Schema vciStbSwitchedPowerTable.xsd


schema location:  \\filehost\asg\www\widar\schemata\vci\3.21\vciStbSwitchedPowerTable.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified

Elements
switchedPowerTable


element switchedPowerTable
diagram vciStbSwitchedPowerTable_diagrams/vciStbSwitchedPowerTable_p1.png
properties
content complex
children swBaseband
annotation
documentation
sub band based noise tube switched power measurements
source <xs:element name="switchedPowerTable">
  <xs:annotation>
    <xs:documentation>sub band based noise tube switched power measurements</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="swBaseband" minOccurs="0" maxOccurs="2">
        <xs:annotation>
          <xs:documentation>power measurements from a single spectral window (filter)</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="swPower" maxOccurs="18">
              <xs:complexType>
                <xs:attribute name="swIndex" use="required">
                  <xs:annotation>
                    <xs:documentation>spectral window index</xs:documentation>
                  </xs:annotation>
                  <xs:simpleType>
                    <xs:restriction base="xs:int">
                      <xs:minInclusive value="0"/>
                      <xs:maxInclusive value="17"/>
                    </xs:restriction>
                  </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="pSum" type="xs:float" use="required">
                  <xs:annotation>
                    <xs:documentation>sum of power with noise diode on/off</xs:documentation>
                  </xs:annotation>
                </xs:attribute>
                <xs:attribute name="pDiff" type="xs:float" use="required">
                  <xs:annotation>
                    <xs:documentation>difference of power with noise diode on/off</xs:documentation>
                  </xs:annotation>
                </xs:attribute>
                <xs:attribute name="gain" type="xs:int" use="required">
                  <xs:annotation>
                    <xs:documentation>gain</xs:documentation>
                  </xs:annotation>
                </xs:attribute>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
          <xs:attribute name="stationId" type="xs:int" use="required">
            <xs:annotation>
              <xs:documentation>Station identification number</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="swbbName" use="required">
            <xs:annotation>
              <xs:documentation>spectral window baseband name</xs:documentation>
            </xs:annotation>
            <xs:simpleType>
              <xs:restriction base="xs:string">
                <xs:enumeration value="A1C1_3BIT"/>
                <xs:enumeration value="A2C2_3BIT"/>
                <xs:enumeration value="AC_8BIT"/>
                <xs:enumeration value="B1D1_3BIT"/>
                <xs:enumeration value="B2D2_3BIT"/>
                <xs:enumeration value="BD_8BIT"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:attribute>
          <xs:attribute name="startTime" type="xs:dateTime" use="required">
            <xs:annotation>
              <xs:documentation>start time of this integration (ISO 8601)</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="duration" type="xs:float" use="required">
            <xs:annotation>
              <xs:documentation>Duration of this integration in seconds.</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="polarization" use="required">
            <xs:annotation>
              <xs:documentation>Identifier for base band polarization</xs:documentation>
            </xs:annotation>
            <xs:simpleType>
              <xs:restriction base="xs:string">
                <xs:enumeration value="R"/>
                <xs:enumeration value="L"/>
                <xs:enumeration value="X"/>
                <xs:enumeration value="Y"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:attribute>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

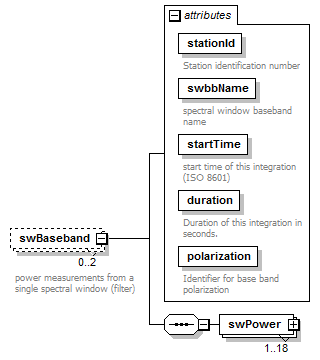

element switchedPowerTable/swBaseband
diagram vciStbSwitchedPowerTable_diagrams/vciStbSwitchedPowerTable_p2.png
properties
minOcc 0
maxOcc 2
content complex
children swPower
attributes
Name  Type  Use  Default  Fixed  Annotation
stationId  xs:int  required
documentation
Station identification number
swbbName  derived by: xs:string  required
documentation
spectral window baseband name
startTime  xs:dateTime  required
documentation
start time of this integration (ISO 8601)
duration  xs:float  required
documentation
Duration of this integration in seconds.
polarization  derived by: xs:string  required
documentation
Identifier for base band polarization
annotation
documentation
power measurements from a single spectral window (filter)
source <xs:element name="swBaseband" minOccurs="0" maxOccurs="2">
  <xs:annotation>
    <xs:documentation>power measurements from a single spectral window (filter)</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="swPower" maxOccurs="18">
        <xs:complexType>
          <xs:attribute name="swIndex" use="required">
            <xs:annotation>
              <xs:documentation>spectral window index</xs:documentation>
            </xs:annotation>
            <xs:simpleType>
              <xs:restriction base="xs:int">
                <xs:minInclusive value="0"/>
                <xs:maxInclusive value="17"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:attribute>
          <xs:attribute name="pSum" type="xs:float" use="required">
            <xs:annotation>
              <xs:documentation>sum of power with noise diode on/off</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="pDiff" type="xs:float" use="required">
            <xs:annotation>
              <xs:documentation>difference of power with noise diode on/off</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="gain" type="xs:int" use="required">
            <xs:annotation>
              <xs:documentation>gain</xs:documentation>
            </xs:annotation>
          </xs:attribute>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="stationId" type="xs:int" use="required">
      <xs:annotation>
        <xs:documentation>Station identification number</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="swbbName" use="required">
      <xs:annotation>
        <xs:documentation>spectral window baseband name</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="A1C1_3BIT"/>
          <xs:enumeration value="A2C2_3BIT"/>
          <xs:enumeration value="AC_8BIT"/>
          <xs:enumeration value="B1D1_3BIT"/>
          <xs:enumeration value="B2D2_3BIT"/>
          <xs:enumeration value="BD_8BIT"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="startTime" type="xs:dateTime" use="required">
      <xs:annotation>
        <xs:documentation>start time of this integration (ISO 8601)</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="duration" type="xs:float" use="required">
      <xs:annotation>
        <xs:documentation>Duration of this integration in seconds.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="polarization" use="required">
      <xs:annotation>
        <xs:documentation>Identifier for base band polarization</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="R"/>
          <xs:enumeration value="L"/>
          <xs:enumeration value="X"/>
          <xs:enumeration value="Y"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>

attribute switchedPowerTable/swBaseband/@stationId
type xs:int
properties
use required
annotation
documentation
Station identification number
source <xs:attribute name="stationId" type="xs:int" use="required">
  <xs:annotation>
    <xs:documentation>Station identification number</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute switchedPowerTable/swBaseband/@swbbName
type restriction of xs:string
properties
use required
facets
Kind Value Annotation
enumeration A1C1_3BIT
enumeration A2C2_3BIT
enumeration AC_8BIT
enumeration B1D1_3BIT
enumeration B2D2_3BIT
enumeration BD_8BIT
annotation
documentation
spectral window baseband name
source <xs:attribute name="swbbName" use="required">
  <xs:annotation>
    <xs:documentation>spectral window baseband name</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="A1C1_3BIT"/>
      <xs:enumeration value="A2C2_3BIT"/>
      <xs:enumeration value="AC_8BIT"/>
      <xs:enumeration value="B1D1_3BIT"/>
      <xs:enumeration value="B2D2_3BIT"/>
      <xs:enumeration value="BD_8BIT"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute switchedPowerTable/swBaseband/@startTime
type xs:dateTime
properties
use required
annotation
documentation
start time of this integration (ISO 8601)
source <xs:attribute name="startTime" type="xs:dateTime" use="required">
  <xs:annotation>
    <xs:documentation>start time of this integration (ISO 8601)</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute switchedPowerTable/swBaseband/@duration
type xs:float
properties
use required
annotation
documentation
Duration of this integration in seconds.
source <xs:attribute name="duration" type="xs:float" use="required">
  <xs:annotation>
    <xs:documentation>Duration of this integration in seconds.</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute switchedPowerTable/swBaseband/@polarization
type restriction of xs:string
properties
use required
facets
Kind Value Annotation
enumeration R
enumeration L
enumeration X
enumeration Y
annotation
documentation
Identifier for base band polarization
source <xs:attribute name="polarization" use="required">
  <xs:annotation>
    <xs:documentation>Identifier for base band polarization</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="R"/>
      <xs:enumeration value="L"/>
      <xs:enumeration value="X"/>
      <xs:enumeration value="Y"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

element switchedPowerTable/swBaseband/swPower
diagram vciStbSwitchedPowerTable_diagrams/vciStbSwitchedPowerTable_p3.png
properties
minOcc 1
maxOcc 18
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
swIndex  derived by: xs:int  required
documentation
spectral window index
pSum  xs:float  required
documentation
sum of power with noise diode on/off
pDiff  xs:float  required
documentation
difference of power with noise diode on/off
gain  xs:int  required
documentation
gain
source <xs:element name="swPower" maxOccurs="18">
  <xs:complexType>
    <xs:attribute name="swIndex" use="required">
      <xs:annotation>
        <xs:documentation>spectral window index</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="17"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="pSum" type="xs:float" use="required">
      <xs:annotation>
        <xs:documentation>sum of power with noise diode on/off</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="pDiff" type="xs:float" use="required">
      <xs:annotation>
        <xs:documentation>difference of power with noise diode on/off</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="gain" type="xs:int" use="required">
      <xs:annotation>
        <xs:documentation>gain</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

attribute switchedPowerTable/swBaseband/swPower/@swIndex
type restriction of xs:int
properties
use required
facets
Kind Value Annotation
minInclusive 0
maxInclusive 17
annotation
documentation
spectral window index
source <xs:attribute name="swIndex" use="required">
  <xs:annotation>
    <xs:documentation>spectral window index</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="17"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute switchedPowerTable/swBaseband/swPower/@pSum
type xs:float
properties
use required
annotation
documentation
sum of power with noise diode on/off
source <xs:attribute name="pSum" type="xs:float" use="required">
  <xs:annotation>
    <xs:documentation>sum of power with noise diode on/off</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute switchedPowerTable/swBaseband/swPower/@pDiff
type xs:float
properties
use required
annotation
documentation
difference of power with noise diode on/off
source <xs:attribute name="pDiff" type="xs:float" use="required">
  <xs:annotation>
    <xs:documentation>difference of power with noise diode on/off</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute switchedPowerTable/swBaseband/swPower/@gain
type xs:int
properties
use required
annotation
documentation
gain
source <xs:attribute name="gain" type="xs:int" use="required">
  <xs:annotation>
    <xs:documentation>gain</xs:documentation>
  </xs:annotation>
</xs:attribute>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
