Schema vciStbBbSlopeTable.xsd


schema location:  \\filehost\asg\www\widar\schemata\vci\3.21\vciStbBbSlopeTable.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified

Elements
bbSlopeTable


element bbSlopeTable
diagram vciStbBbSlopeTable_diagrams/vciStbBbSlopeTable_p1.png
properties
content complex
children bbSlope
annotation
documentation
base band slope measurements
source <xs:element name="bbSlopeTable">
  <xs:annotation>
    <xs:documentation>base band slope measurements</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="bbSlope" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>slope measurements from a single wideband input</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:attribute name="time" type="xs:dateTime" use="optional">
            <xs:annotation>
              <xs:documentation>start time of this integration (ISO 8601)</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="stationId" type="xs:int" use="required">
            <xs:annotation>
              <xs:documentation>Station identification number</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="basebandId" use="required">
            <xs:annotation>
              <xs:documentation>CM baseband id applied to this data path</xs:documentation>
            </xs:annotation>
            <xs:simpleType>
              <xs:restriction base="xs:int">
                <xs:minInclusive value="0"/>
                <xs:maxInclusive value="7"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:attribute>
          <xs:attribute name="swbbName" use="required">
            <xs:annotation>
              <xs:documentation>spectral window baseband name</xs:documentation>
            </xs:annotation>
            <xs:simpleType>
              <xs:restriction base="xs:string">
                <xs:enumeration value="A1C1_3BIT"/>
                <xs:enumeration value="A2C2_3BIT"/>
                <xs:enumeration value="AC_8BIT"/>
                <xs:enumeration value="B1D1_3BIT"/>
                <xs:enumeration value="B2D2_3BIT"/>
                <xs:enumeration value="BD_8BIT"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:attribute>
          <xs:attribute name="slope" type="xs:double" use="required">
            <xs:annotation>
              <xs:documentation>Slope of least squares fit in units of dB per band width. Fit is performed on center 7/8ths of spectrum.</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="lag0" type="xs:double" use="required">
            <xs:annotation>
              <xs:documentation>raw value of lag 0 from autocorrelation, normalized by data valid count. </xs:documentation>
            </xs:annotation>
          </xs:attribute>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

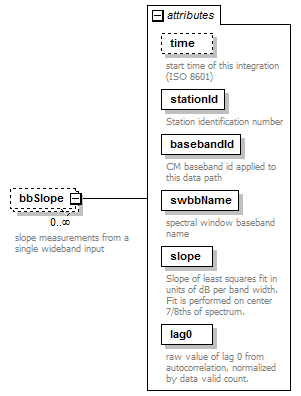

element bbSlopeTable/bbSlope
diagram vciStbBbSlopeTable_diagrams/vciStbBbSlopeTable_p2.png
properties
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
time  xs:dateTime  optional
documentation
start time of this integration (ISO 8601)
stationId  xs:int  required
documentation
Station identification number
basebandId  derived by: xs:int  required
documentation
CM baseband id applied to this data path
swbbName  derived by: xs:string  required
documentation
spectral window baseband name
slope  xs:double  required
documentation
Slope of least squares fit in units of dB per band width. Fit is performed on center 7/8ths of spectrum.
lag0  xs:double  required
documentation
raw value of lag 0 from autocorrelation, normalized by data valid count.
annotation
documentation
slope measurements from a single wideband input
source <xs:element name="bbSlope" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>slope measurements from a single wideband input</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute name="time" type="xs:dateTime" use="optional">
      <xs:annotation>
        <xs:documentation>start time of this integration (ISO 8601)</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="stationId" type="xs:int" use="required">
      <xs:annotation>
        <xs:documentation>Station identification number</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="basebandId" use="required">
      <xs:annotation>
        <xs:documentation>CM baseband id applied to this data path</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="7"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="swbbName" use="required">
      <xs:annotation>
        <xs:documentation>spectral window baseband name</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="A1C1_3BIT"/>
          <xs:enumeration value="A2C2_3BIT"/>
          <xs:enumeration value="AC_8BIT"/>
          <xs:enumeration value="B1D1_3BIT"/>
          <xs:enumeration value="B2D2_3BIT"/>
          <xs:enumeration value="BD_8BIT"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="slope" type="xs:double" use="required">
      <xs:annotation>
        <xs:documentation>Slope of least squares fit in units of dB per band width. Fit is performed on center 7/8ths of spectrum.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="lag0" type="xs:double" use="required">
      <xs:annotation>
        <xs:documentation>raw value of lag 0 from autocorrelation, normalized by data valid count. </xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

attribute bbSlopeTable/bbSlope/@time
type xs:dateTime
properties
use optional
annotation
documentation
start time of this integration (ISO 8601)
source <xs:attribute name="time" type="xs:dateTime" use="optional">
  <xs:annotation>
    <xs:documentation>start time of this integration (ISO 8601)</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute bbSlopeTable/bbSlope/@stationId
type xs:int
properties
use required
annotation
documentation
Station identification number
source <xs:attribute name="stationId" type="xs:int" use="required">
  <xs:annotation>
    <xs:documentation>Station identification number</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute bbSlopeTable/bbSlope/@basebandId
type restriction of xs:int
properties
use required
facets
Kind Value Annotation
minInclusive 0
maxInclusive 7
annotation
documentation
CM baseband id applied to this data path
source <xs:attribute name="basebandId" use="required">
  <xs:annotation>
    <xs:documentation>CM baseband id applied to this data path</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="7"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute bbSlopeTable/bbSlope/@swbbName
type restriction of xs:string
properties
use required
facets
Kind Value Annotation
enumeration A1C1_3BIT
enumeration A2C2_3BIT
enumeration AC_8BIT
enumeration B1D1_3BIT
enumeration B2D2_3BIT
enumeration BD_8BIT
annotation
documentation
spectral window baseband name
source <xs:attribute name="swbbName" use="required">
  <xs:annotation>
    <xs:documentation>spectral window baseband name</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="A1C1_3BIT"/>
      <xs:enumeration value="A2C2_3BIT"/>
      <xs:enumeration value="AC_8BIT"/>
      <xs:enumeration value="B1D1_3BIT"/>
      <xs:enumeration value="B2D2_3BIT"/>
      <xs:enumeration value="BD_8BIT"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute bbSlopeTable/bbSlope/@slope
type xs:double
properties
use required
annotation
documentation
Slope of least squares fit in units of dB per band width. Fit is performed on center 7/8ths of spectrum.
source <xs:attribute name="slope" type="xs:double" use="required">
  <xs:annotation>
    <xs:documentation>Slope of least squares fit in units of dB per band width. Fit is performed on center 7/8ths of spectrum.</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute bbSlopeTable/bbSlope/@lag0
type xs:double
properties
use required
annotation
documentation
raw value of lag 0 from autocorrelation, normalized by data valid count.
source <xs:attribute name="lag0" type="xs:double" use="required">
  <xs:annotation>
    <xs:documentation>raw value of lag 0 from autocorrelation, normalized by data valid count. </xs:documentation>
  </xs:annotation>
</xs:attribute>
