Schema stationBoard.xsd

schema location:	\\filehost\kryan\work\widar\schema\internal\stationBoard.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements

crossBar

delay

fanout

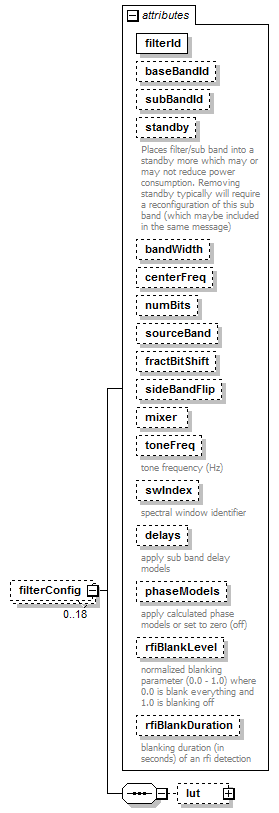

firFilter

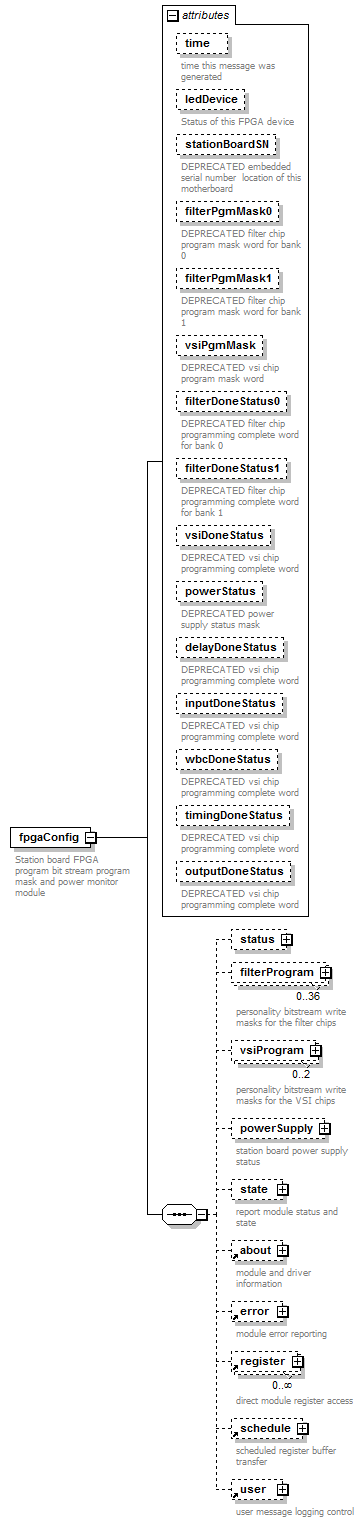

fpgaConfig

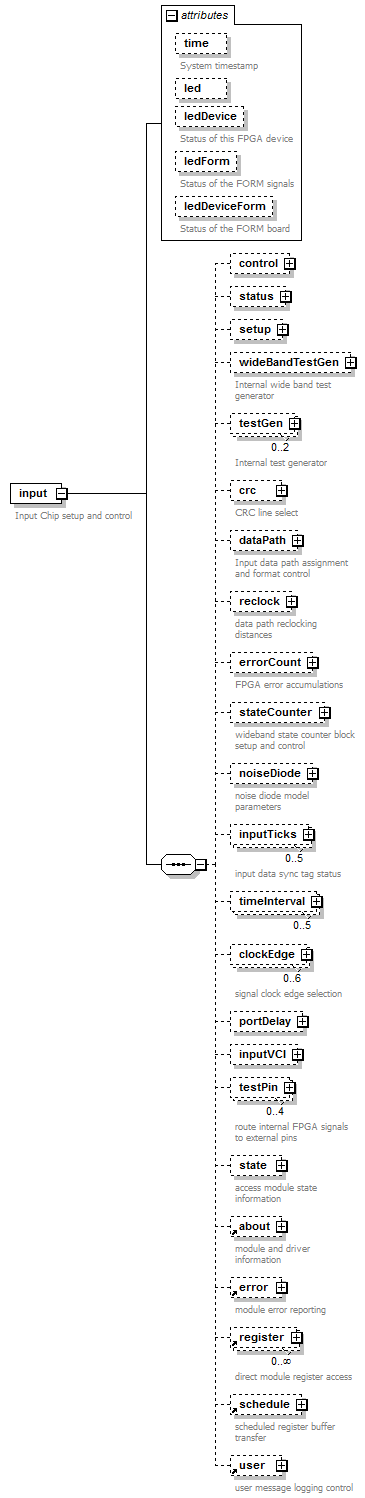

input

output

timing

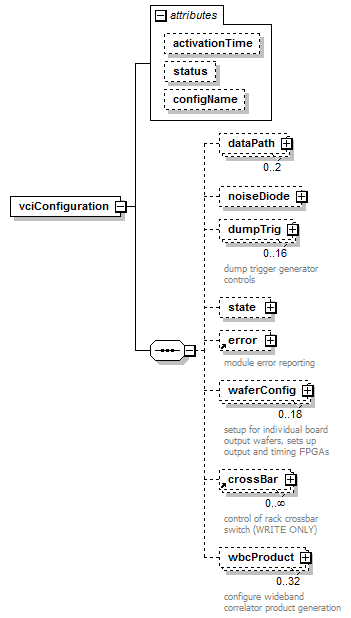

vciConfiguration

vsi

wbc

schema location:	\\filehost\kryan\work\widar\schema\internal\cmibCommon.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements	Simple types

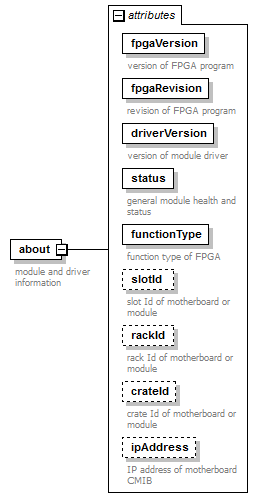

about	ledType
error

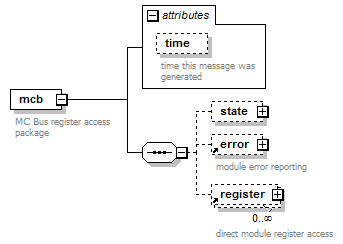

mcb
register
user

schema location:	\\filehost\kryan\work\widar\schema\internal\supervisor.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements

clipMonitor

crcMonitor

errorCountMonitor

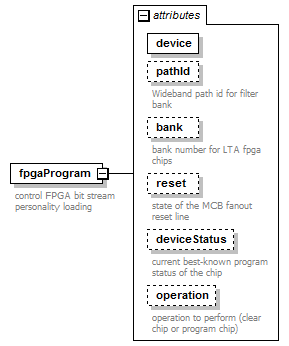

fpgaProgram

inputStateMonitor

intervalMonitor

outputStateMonitor

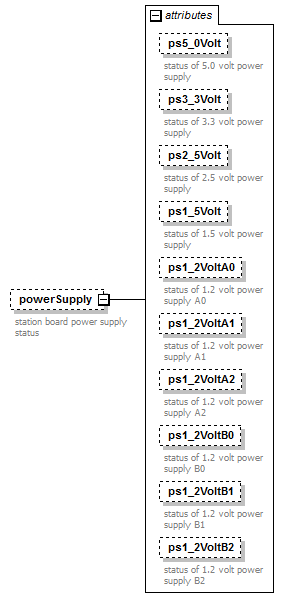

powerMonitor

quantizerMonitor

rfiMonitor

schedule

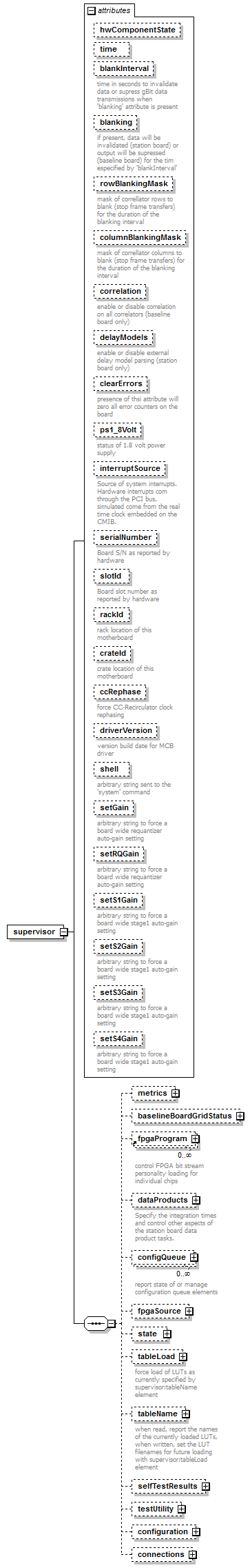

supervisor

toneExtract

wbcMonitor

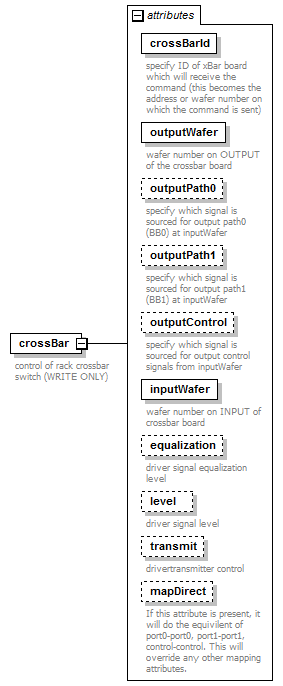

element crossBar

diagram
properties	content  complex
used by	elements  timing vciConfiguration
attributes	Name   Type   Use   Default   Fixed   Annotation crossBarId   derived by: xs:int   required         documentation specify ID of xBar board which will receive the command (this becomes the address or wafer number on which the command is sent) outputWafer   derived by: xs:int   required         documentation wafer number on OUTPUT of the crossbar board outputPath0   derived by: xs:string            documentation specify which signal is sourced for output path0 (BB0) at inputWafer outputPath1   derived by: xs:string            documentation specify which signal is sourced for output path1 (BB1) at inputWafer outputControl   derived by: xs:string            documentation specify which signal is sourced for output control signals from inputWafer inputWafer   derived by: xs:int   required         documentation wafer number on INPUT of crossbar board equalization   derived by: xs:string            documentation driver signal equalization level level   derived by: xs:string            documentation driver signal level transmit   derived by: xs:string            documentation drivertransmitter control mapDirect   xs:string            documentation If this attribute is present, it will do the equivilent of port0-port0, port1-port1, control-control. This will override any other mapping attributes.
annotation	documentation control of rack crossbar switch (WRITE ONLY)
source	<xs:element name="crossBar">   <xs:annotation>     <xs:documentation>control of rack crossbar switch (WRITE ONLY)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="crossBarId" use="required">       <xs:annotation>         <xs:documentation>specify ID of xBar board which will receive the command (this becomes the address or wafer number on which the command is sent)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outputWafer" use="required">       <xs:annotation>         <xs:documentation>wafer number on OUTPUT of the crossbar board</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outputPath0">       <xs:annotation>         <xs:documentation>specify which signal is sourced for output path0 (BB0) at inputWafer</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="inputPath0"/>           <xs:enumeration value="inputPath1"/>           <xs:enumeration value="inputControl"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outputPath1">       <xs:annotation>         <xs:documentation>specify which signal is sourced for output path1 (BB1) at inputWafer</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="inputPath0"/>           <xs:enumeration value="inputPath1"/>           <xs:enumeration value="inputControl"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outputControl">       <xs:annotation>         <xs:documentation>specify which signal is sourced for output control signals from inputWafer</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="inputPath0"/>           <xs:enumeration value="inputPath1"/>           <xs:enumeration value="inputControl"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputWafer" use="required">       <xs:annotation>         <xs:documentation>wafer number on INPUT of crossbar board</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="equalization">       <xs:annotation>         <xs:documentation>driver signal equalization level</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="low"/>           <xs:enumeration value="medium"/>           <xs:enumeration value="high"/>           <xs:enumeration value="maximum"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="level">       <xs:annotation>         <xs:documentation>driver signal level</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="low"/>           <xs:enumeration value="high"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="transmit">       <xs:annotation>         <xs:documentation>drivertransmitter control</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="mapDirect" type="xs:string">       <xs:annotation>         <xs:documentation>If this attribute is present, it will do the equivilent of port0-port0, port1-port1, control-control. This will override any other mapping attributes.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute crossBar/@crossBarId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation specify ID of xBar board which will receive the command (this becomes the address or wafer number on which the command is sent)
source	<xs:attribute name="crossBarId" use="required">   <xs:annotation>     <xs:documentation>specify ID of xBar board which will receive the command (this becomes the address or wafer number on which the command is sent)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@outputWafer

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation wafer number on OUTPUT of the crossbar board
source	<xs:attribute name="outputWafer" use="required">   <xs:annotation>     <xs:documentation>wafer number on OUTPUT of the crossbar board</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@outputPath0

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  inputPath0 enumeration  inputPath1 enumeration  inputControl
annotation	documentation specify which signal is sourced for output path0 (BB0) at inputWafer
source	<xs:attribute name="outputPath0">   <xs:annotation>     <xs:documentation>specify which signal is sourced for output path0 (BB0) at inputWafer</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="inputPath0"/>       <xs:enumeration value="inputPath1"/>       <xs:enumeration value="inputControl"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@outputPath1

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  inputPath0 enumeration  inputPath1 enumeration  inputControl
annotation	documentation specify which signal is sourced for output path1 (BB1) at inputWafer
source	<xs:attribute name="outputPath1">   <xs:annotation>     <xs:documentation>specify which signal is sourced for output path1 (BB1) at inputWafer</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="inputPath0"/>       <xs:enumeration value="inputPath1"/>       <xs:enumeration value="inputControl"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@outputControl

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  inputPath0 enumeration  inputPath1 enumeration  inputControl
annotation	documentation specify which signal is sourced for output control signals from inputWafer
source	<xs:attribute name="outputControl">   <xs:annotation>     <xs:documentation>specify which signal is sourced for output control signals from inputWafer</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="inputPath0"/>       <xs:enumeration value="inputPath1"/>       <xs:enumeration value="inputControl"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@inputWafer

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation wafer number on INPUT of crossbar board
source	<xs:attribute name="inputWafer" use="required">   <xs:annotation>     <xs:documentation>wafer number on INPUT of crossbar board</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@equalization

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  low enumeration  medium enumeration  high enumeration  maximum
annotation	documentation driver signal equalization level
source	<xs:attribute name="equalization">   <xs:annotation>     <xs:documentation>driver signal equalization level</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="low"/>       <xs:enumeration value="medium"/>       <xs:enumeration value="high"/>       <xs:enumeration value="maximum"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@level

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  low enumeration  high
annotation	documentation driver signal level
source	<xs:attribute name="level">   <xs:annotation>     <xs:documentation>driver signal level</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="low"/>       <xs:enumeration value="high"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@transmit

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation drivertransmitter control
source	<xs:attribute name="transmit">   <xs:annotation>     <xs:documentation>drivertransmitter control</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crossBar/@mapDirect

type	xs:string
annotation	documentation If this attribute is present, it will do the equivilent of port0-port0, port1-port1, control-control. This will override any other mapping attributes.
source	<xs:attribute name="mapDirect" type="xs:string">   <xs:annotation>     <xs:documentation>If this attribute is present, it will do the equivilent of port0-port0, port1-port1, control-control. This will override any other mapping attributes.</xs:documentation>   </xs:annotation> </xs:attribute>

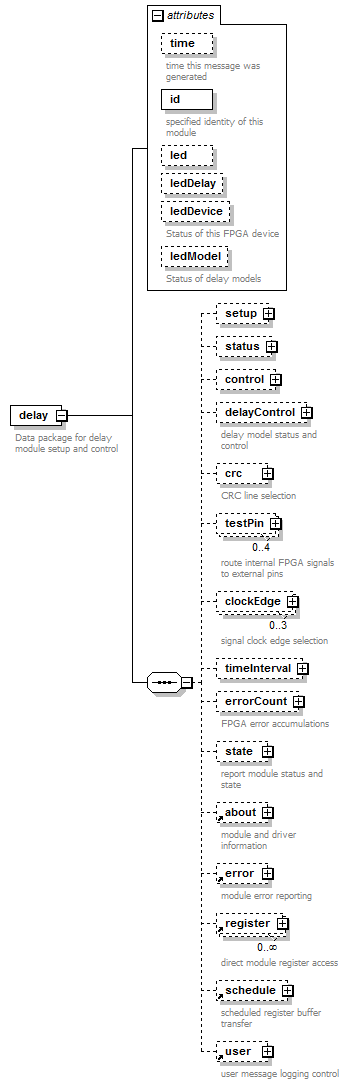

element delay

diagram
properties	content  complex

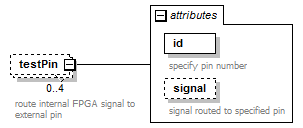

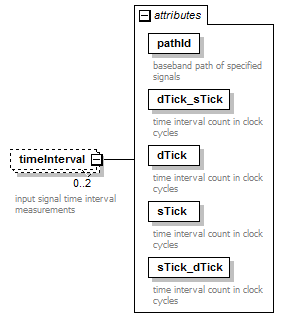

children	setup status control delayControl crc testPin clockEdge timeInterval errorCount state about error register schedule user
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         documentation time this message was generated id   derived by: xs:int   required         documentation specified identity of this module led   ledType            ledDelay   ledType            ledDevice   ledType            documentation Status of this FPGA device ledModel   ledType            documentation Status of delay models
annotation	documentation Data package for delay module setup and control
source	<xs:element name="delay">   <xs:annotation>     <xs:documentation>Data package for delay module setup and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="setup" minOccurs="0">         <xs:complexType>           <xs:attribute name="standby">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sysTickDelay" type="xs:int">             <xs:annotation>               <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="models">             <xs:annotation>               <xs:documentation>activate or disable automatic model updating by driver</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="active"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="mode">             <xs:annotation>               <xs:documentation>operation mode of this module</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="idle"/>                 <xs:enumeration value="test"/>                 <xs:enumeration value="active"/>                 <xs:enumeration value="load"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="modelFreeRun">             <xs:annotation>               <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="fineTracking">             <xs:annotation>               <xs:documentation>Specify the bounds of the delay error</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="244ps"/>                 <xs:enumeration value="488ps"/>                 <xs:enumeration value="976ps"/>                 <xs:enumeration value="1952ps"/>                 <xs:enumeration value="3904ps"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="delayRate" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>delay model rate</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayFraction" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>fractional delay</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayInteger" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>integer delay</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="status" minOccurs="0">         <xs:complexType>           <xs:attribute name="vectorLoad">             <xs:annotation>               <xs:documentation>state of the vector load</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLoaded"/>                 <xs:enumeration value="loadVerified"/>                 <xs:enumeration value="loadFailed"/>                 <xs:enumeration value="loaded"/>                 <xs:enumeration value="loading"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="boardId" type="xs:string">             <xs:annotation>               <xs:documentation>physical board identifier</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="leakCount" type="xs:int">             <xs:annotation>               <xs:documentation>results stored in LBC leaky bucket counter.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="parityErrorMask" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>mask of parity bits from all 18 RAM blocks</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pointerDelay" type="xs:nonNegativeInteger">             <xs:annotation>               <xs:documentation>module current delay interpetation</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="measuredDelay" type="xs:int">             <xs:annotation>               <xs:documentation>measured delay based on PPS signal delay</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="modelAccept">             <xs:annotation>               <xs:documentation>Indicate if delay model was accepted</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="fifoDepth" type="xs:int">             <xs:annotation>               <xs:documentation>SDRAM pointer spread</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="control" minOccurs="0">         <xs:complexType>           <xs:attribute name="reset" type="xs:string">             <xs:annotation>               <xs:documentation>assert module reset</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="delayControl" minOccurs="0">         <xs:annotation>           <xs:documentation>delay model status and control</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="pointerDelay" type="xs:nonNegativeInteger">             <xs:annotation>               <xs:documentation>module current delay interpetation</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="measuredDelay" type="xs:int">             <xs:annotation>               <xs:documentation>measured delay based on PPS signal delay</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="modelFreeRun">             <xs:annotation>               <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="fineTracking">             <xs:annotation>               <xs:documentation>Specify the bounds of the delay error</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="244ps"/>                 <xs:enumeration value="488ps"/>                 <xs:enumeration value="976ps"/>                 <xs:enumeration value="1952ps"/>                 <xs:enumeration value="3904ps"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="delayRate" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>delay model rate</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayFraction" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>fractional delay</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayInteger" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>integer delay</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="modelAccept">             <xs:annotation>               <xs:documentation>Indicate if delay model was accepted</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="fifoDepth" type="xs:int">             <xs:annotation>               <xs:documentation>SDRAM pointer spread</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="crc" minOccurs="0">         <xs:annotation>           <xs:documentation>CRC line selection </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="ledCrcInternal" type="ledType">             <xs:annotation>               <xs:documentation>status of Internal module CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledCrcInput" type="ledType">             <xs:annotation>               <xs:documentation>status of Input to Delay CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="scan" use="optional">             <xs:annotation>               <xs:documentation>(deprecated) CRC error checking mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="single"/>                 <xs:enumeration value="auto"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireInternal" use="optional">             <xs:annotation>               <xs:documentation>internal wire to check CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireOutput" use="optional">             <xs:annotation>               <xs:documentation>output wire to check CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="delayError"/>                 <xs:enumeration value="delayFrame"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireInput" use="optional">             <xs:annotation>               <xs:documentation>input wire to check CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="antPps"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testPin" minOccurs="0" maxOccurs="4">         <xs:annotation>           <xs:documentation>route internal FPGA signals to external pins</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify pin to map</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="4"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="signal">             <xs:annotation>               <xs:documentation>specify signal id</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="255"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="clockEdge" minOccurs="0" maxOccurs="3">         <xs:annotation>           <xs:documentation>signal clock edge selection</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="sTick"/>                 <xs:enumeration value="data"/>                 <xs:enumeration value="memory"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="edge" use="required">             <xs:annotation>               <xs:documentation>clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="timeInterval" minOccurs="0">         <xs:complexType>           <xs:attribute name="dataTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>data to system tick count</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="errorCount" minOccurs="0">         <xs:annotation>           <xs:documentation>FPGA error accumulations</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="ppsWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of system pps pulses > 4ns </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pps100Width" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of system 100pps pulses > 4ns</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sysClkLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of dcm out of lock errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sdramLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of SDRAM lock errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="syncFault" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count out-of-sync conditions</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dataInvalid" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count data invalids from FPGA errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="errorRange" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>delay error exceeds range</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayRange" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>delay exceeds range</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="parity" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of parity errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="fifoFault" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of fifo faults</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pointerRange" type="xs:int">             <xs:annotation>               <xs:documentation>pointer controller maximum distance violation</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:annotation>           <xs:documentation>report module status and state</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="delayControl" type="xs:string">             <xs:annotation>               <xs:documentation>report delay system status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="crc" type="xs:string">             <xs:annotation>               <xs:documentation>report CRC status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="testPin" type="xs:string">             <xs:annotation>               <xs:documentation>report test pin mappings</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="timeInterval" type="xs:string">             <xs:annotation>               <xs:documentation>report time interval counts</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="errorCount" type="xs:string">             <xs:annotation>               <xs:documentation>return error counts</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="setup" type="xs:string">             <xs:annotation>               <xs:documentation>return setup parameters</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string">             <xs:annotation>               <xs:documentation>return status element</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="register" type="xs:string">             <xs:annotation>               <xs:documentation>report specified register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="user" type="xs:string">             <xs:annotation>               <xs:documentation>report user logging configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="about" type="xs:string">             <xs:annotation>               <xs:documentation>report general module information</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="error" type="xs:string">             <xs:annotation>               <xs:documentation>report errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="clockEdge" type="xs:string"/>           <xs:attribute name="all" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="schedule" minOccurs="0"/>       <xs:element ref="user" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime" use="optional">       <xs:annotation>         <xs:documentation>time this message was generated</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specified identity of this module</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="led" type="ledType"/>     <xs:attribute name="ledDelay" type="ledType"/>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledModel" type="ledType">       <xs:annotation>         <xs:documentation>Status of delay models</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/@time

type	xs:dateTime
properties	use  optional
annotation	documentation time this message was generated
source	<xs:attribute name="time" type="xs:dateTime" use="optional">   <xs:annotation>     <xs:documentation>time this message was generated</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation specified identity of this module
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specified identity of this module</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/@led

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="led" type="ledType"/>

attribute delay/@ledDelay

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="ledDelay" type="ledType"/>

attribute delay/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/@ledModel

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of delay models
source	<xs:attribute name="ledModel" type="ledType">   <xs:annotation>     <xs:documentation>Status of delay models</xs:documentation>   </xs:annotation> </xs:attribute>

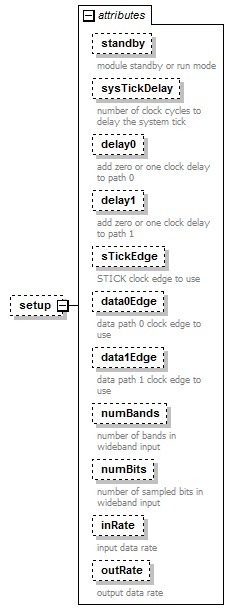

element delay/setup

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation standby   derived by: xs:string            sysTickDelay   xs:int            documentation number of clock cycles to delay the system tick models   derived by: xs:string            documentation activate or disable automatic model updating by driver mode   derived by: xs:string            documentation operation mode of this module modelFreeRun   derived by: xs:string            documentation allow module to freewheel without fresh delay updates fineTracking   derived by: xs:string            documentation Specify the bounds of the delay error delayRate   xs:string   optional         documentation delay model rate delayFraction   xs:string   optional         documentation fractional delay delayInteger   xs:string   optional         documentation integer delay
source	<xs:element name="setup" minOccurs="0">   <xs:complexType>     <xs:attribute name="standby">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sysTickDelay" type="xs:int">       <xs:annotation>         <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="models">       <xs:annotation>         <xs:documentation>activate or disable automatic model updating by driver</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="active"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="mode">       <xs:annotation>         <xs:documentation>operation mode of this module</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="idle"/>           <xs:enumeration value="test"/>           <xs:enumeration value="active"/>           <xs:enumeration value="load"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="modelFreeRun">       <xs:annotation>         <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="fineTracking">       <xs:annotation>         <xs:documentation>Specify the bounds of the delay error</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="244ps"/>           <xs:enumeration value="488ps"/>           <xs:enumeration value="976ps"/>           <xs:enumeration value="1952ps"/>           <xs:enumeration value="3904ps"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="delayRate" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>delay model rate</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayFraction" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>fractional delay</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayInteger" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>integer delay</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/setup/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="standby">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/setup/@sysTickDelay

type	xs:int
annotation	documentation number of clock cycles to delay the system tick
source	<xs:attribute name="sysTickDelay" type="xs:int">   <xs:annotation>     <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/setup/@models

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  active
annotation	documentation activate or disable automatic model updating by driver
source	<xs:attribute name="models">   <xs:annotation>     <xs:documentation>activate or disable automatic model updating by driver</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="active"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/setup/@mode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  idle enumeration  test enumeration  active enumeration  load
annotation	documentation operation mode of this module
source	<xs:attribute name="mode">   <xs:annotation>     <xs:documentation>operation mode of this module</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="idle"/>       <xs:enumeration value="test"/>       <xs:enumeration value="active"/>       <xs:enumeration value="load"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/setup/@modelFreeRun

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation allow module to freewheel without fresh delay updates
source	<xs:attribute name="modelFreeRun">   <xs:annotation>     <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/setup/@fineTracking

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  244ps enumeration  488ps enumeration  976ps enumeration  1952ps enumeration  3904ps
annotation	documentation Specify the bounds of the delay error
source	<xs:attribute name="fineTracking">   <xs:annotation>     <xs:documentation>Specify the bounds of the delay error</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="244ps"/>       <xs:enumeration value="488ps"/>       <xs:enumeration value="976ps"/>       <xs:enumeration value="1952ps"/>       <xs:enumeration value="3904ps"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/setup/@delayRate

type	xs:string
properties	use  optional
annotation	documentation delay model rate
source	<xs:attribute name="delayRate" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>delay model rate</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/setup/@delayFraction

type	xs:string
properties	use  optional
annotation	documentation fractional delay
source	<xs:attribute name="delayFraction" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>fractional delay</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/setup/@delayInteger

type	xs:string
properties	use  optional
annotation	documentation integer delay
source	<xs:attribute name="delayInteger" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>integer delay</xs:documentation>   </xs:annotation> </xs:attribute>

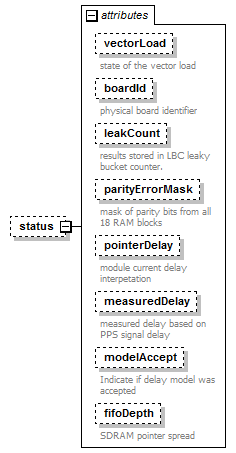

element delay/status

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation vectorLoad   derived by: xs:string            documentation state of the vector load boardId   xs:string            documentation physical board identifier leakCount   xs:int            documentation results stored in LBC leaky bucket counter. parityErrorMask   xs:string   optional         documentation mask of parity bits from all 18 RAM blocks pointerDelay   xs:nonNegativeInteger            documentation module current delay interpetation measuredDelay   xs:int            documentation measured delay based on PPS signal delay modelAccept   derived by: xs:string            documentation Indicate if delay model was accepted fifoDepth   xs:int            documentation SDRAM pointer spread
source	<xs:element name="status" minOccurs="0">   <xs:complexType>     <xs:attribute name="vectorLoad">       <xs:annotation>         <xs:documentation>state of the vector load</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLoaded"/>           <xs:enumeration value="loadVerified"/>           <xs:enumeration value="loadFailed"/>           <xs:enumeration value="loaded"/>           <xs:enumeration value="loading"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="boardId" type="xs:string">       <xs:annotation>         <xs:documentation>physical board identifier</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="leakCount" type="xs:int">       <xs:annotation>         <xs:documentation>results stored in LBC leaky bucket counter.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="parityErrorMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>mask of parity bits from all 18 RAM blocks</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pointerDelay" type="xs:nonNegativeInteger">       <xs:annotation>         <xs:documentation>module current delay interpetation</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="measuredDelay" type="xs:int">       <xs:annotation>         <xs:documentation>measured delay based on PPS signal delay</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="modelAccept">       <xs:annotation>         <xs:documentation>Indicate if delay model was accepted</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="fifoDepth" type="xs:int">       <xs:annotation>         <xs:documentation>SDRAM pointer spread</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/status/@vectorLoad

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  notLoaded enumeration  loadVerified enumeration  loadFailed enumeration  loaded enumeration  loading
annotation	documentation state of the vector load
source	<xs:attribute name="vectorLoad">   <xs:annotation>     <xs:documentation>state of the vector load</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLoaded"/>       <xs:enumeration value="loadVerified"/>       <xs:enumeration value="loadFailed"/>       <xs:enumeration value="loaded"/>       <xs:enumeration value="loading"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/status/@boardId

type	xs:string
annotation	documentation physical board identifier
source	<xs:attribute name="boardId" type="xs:string">   <xs:annotation>     <xs:documentation>physical board identifier</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/status/@leakCount

type	xs:int
annotation	documentation results stored in LBC leaky bucket counter.
source	<xs:attribute name="leakCount" type="xs:int">   <xs:annotation>     <xs:documentation>results stored in LBC leaky bucket counter.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/status/@parityErrorMask

type	xs:string
properties	use  optional
annotation	documentation mask of parity bits from all 18 RAM blocks
source	<xs:attribute name="parityErrorMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>mask of parity bits from all 18 RAM blocks</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/status/@pointerDelay

type	xs:nonNegativeInteger
annotation	documentation module current delay interpetation
source	<xs:attribute name="pointerDelay" type="xs:nonNegativeInteger">   <xs:annotation>     <xs:documentation>module current delay interpetation</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/status/@measuredDelay

type	xs:int
annotation	documentation measured delay based on PPS signal delay
source	<xs:attribute name="measuredDelay" type="xs:int">   <xs:annotation>     <xs:documentation>measured delay based on PPS signal delay</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/status/@modelAccept

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation Indicate if delay model was accepted
source	<xs:attribute name="modelAccept">   <xs:annotation>     <xs:documentation>Indicate if delay model was accepted</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/status/@fifoDepth

type	xs:int
annotation	documentation SDRAM pointer spread
source	<xs:attribute name="fifoDepth" type="xs:int">   <xs:annotation>     <xs:documentation>SDRAM pointer spread</xs:documentation>   </xs:annotation> </xs:attribute>

element delay/control

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation reset   xs:string            documentation assert module reset
source	<xs:element name="control" minOccurs="0">   <xs:complexType>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>assert module reset</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/control/@reset

type	xs:string
annotation	documentation assert module reset
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>assert module reset</xs:documentation>   </xs:annotation> </xs:attribute>

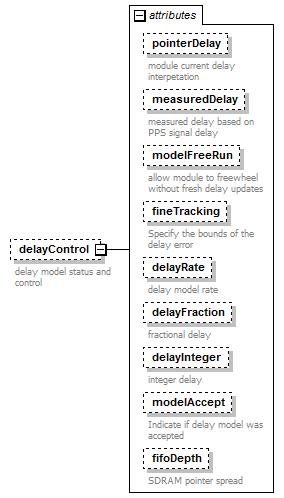

element delay/delayControl

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation pointerDelay   xs:nonNegativeInteger            documentation module current delay interpetation measuredDelay   xs:int            documentation measured delay based on PPS signal delay modelFreeRun   derived by: xs:string            documentation allow module to freewheel without fresh delay updates fineTracking   derived by: xs:string            documentation Specify the bounds of the delay error delayRate   xs:string   optional         documentation delay model rate delayFraction   xs:string   optional         documentation fractional delay delayInteger   xs:string   optional         documentation integer delay modelAccept   derived by: xs:string            documentation Indicate if delay model was accepted fifoDepth   xs:int            documentation SDRAM pointer spread
annotation	documentation delay model status and control
source	<xs:element name="delayControl" minOccurs="0">   <xs:annotation>     <xs:documentation>delay model status and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="pointerDelay" type="xs:nonNegativeInteger">       <xs:annotation>         <xs:documentation>module current delay interpetation</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="measuredDelay" type="xs:int">       <xs:annotation>         <xs:documentation>measured delay based on PPS signal delay</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="modelFreeRun">       <xs:annotation>         <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="fineTracking">       <xs:annotation>         <xs:documentation>Specify the bounds of the delay error</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="244ps"/>           <xs:enumeration value="488ps"/>           <xs:enumeration value="976ps"/>           <xs:enumeration value="1952ps"/>           <xs:enumeration value="3904ps"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="delayRate" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>delay model rate</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayFraction" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>fractional delay</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayInteger" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>integer delay</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="modelAccept">       <xs:annotation>         <xs:documentation>Indicate if delay model was accepted</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="fifoDepth" type="xs:int">       <xs:annotation>         <xs:documentation>SDRAM pointer spread</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/delayControl/@pointerDelay

type	xs:nonNegativeInteger
annotation	documentation module current delay interpetation
source	<xs:attribute name="pointerDelay" type="xs:nonNegativeInteger">   <xs:annotation>     <xs:documentation>module current delay interpetation</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/delayControl/@measuredDelay

type	xs:int
annotation	documentation measured delay based on PPS signal delay
source	<xs:attribute name="measuredDelay" type="xs:int">   <xs:annotation>     <xs:documentation>measured delay based on PPS signal delay</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/delayControl/@modelFreeRun

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation allow module to freewheel without fresh delay updates
source	<xs:attribute name="modelFreeRun">   <xs:annotation>     <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/delayControl/@fineTracking

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  244ps enumeration  488ps enumeration  976ps enumeration  1952ps enumeration  3904ps
annotation	documentation Specify the bounds of the delay error
source	<xs:attribute name="fineTracking">   <xs:annotation>     <xs:documentation>Specify the bounds of the delay error</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="244ps"/>       <xs:enumeration value="488ps"/>       <xs:enumeration value="976ps"/>       <xs:enumeration value="1952ps"/>       <xs:enumeration value="3904ps"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/delayControl/@delayRate

type	xs:string
properties	use  optional
annotation	documentation delay model rate
source	<xs:attribute name="delayRate" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>delay model rate</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/delayControl/@delayFraction

type	xs:string
properties	use  optional
annotation	documentation fractional delay
source	<xs:attribute name="delayFraction" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>fractional delay</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/delayControl/@delayInteger

type	xs:string
properties	use  optional
annotation	documentation integer delay
source	<xs:attribute name="delayInteger" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>integer delay</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/delayControl/@modelAccept

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation Indicate if delay model was accepted
source	<xs:attribute name="modelAccept">   <xs:annotation>     <xs:documentation>Indicate if delay model was accepted</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/delayControl/@fifoDepth

type	xs:int
annotation	documentation SDRAM pointer spread
source	<xs:attribute name="fifoDepth" type="xs:int">   <xs:annotation>     <xs:documentation>SDRAM pointer spread</xs:documentation>   </xs:annotation> </xs:attribute>

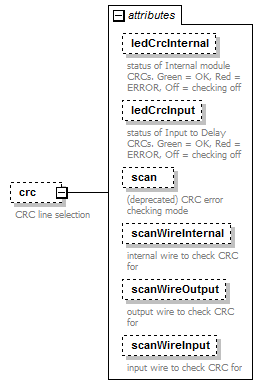

element delay/crc

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ledCrcInternal   ledType            documentation status of Internal module CRCs. Green = OK, Red = ERROR, Off = checking off ledCrcInput   ledType            documentation status of Input to Delay CRCs. Green = OK, Red = ERROR, Off = checking off scan   derived by: xs:string   optional         documentation (deprecated) CRC error checking mode scanWireInternal   derived by: xs:string   optional         documentation internal wire to check CRC for scanWireOutput   derived by: xs:string   optional         documentation output wire to check CRC for scanWireInput   derived by: xs:string   optional         documentation input wire to check CRC for
annotation	documentation CRC line selection
source	<xs:element name="crc" minOccurs="0">   <xs:annotation>     <xs:documentation>CRC line selection </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="ledCrcInternal" type="ledType">       <xs:annotation>         <xs:documentation>status of Internal module CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledCrcInput" type="ledType">       <xs:annotation>         <xs:documentation>status of Input to Delay CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="scan" use="optional">       <xs:annotation>         <xs:documentation>(deprecated) CRC error checking mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="single"/>           <xs:enumeration value="auto"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireInternal" use="optional">       <xs:annotation>         <xs:documentation>internal wire to check CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireOutput" use="optional">       <xs:annotation>         <xs:documentation>output wire to check CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="delayError"/>           <xs:enumeration value="delayFrame"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireInput" use="optional">       <xs:annotation>         <xs:documentation>input wire to check CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="antPps"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/crc/@ledCrcInternal

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of Internal module CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInternal" type="ledType">   <xs:annotation>     <xs:documentation>status of Internal module CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/crc/@ledCrcInput

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of Input to Delay CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInput" type="ledType">   <xs:annotation>     <xs:documentation>status of Input to Delay CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/crc/@scan

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  single enumeration  auto
annotation	documentation (deprecated) CRC error checking mode
source	<xs:attribute name="scan" use="optional">   <xs:annotation>     <xs:documentation>(deprecated) CRC error checking mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="single"/>       <xs:enumeration value="auto"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/crc/@scanWireInternal

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63
annotation	documentation internal wire to check CRC for
source	<xs:attribute name="scanWireInternal" use="optional">   <xs:annotation>     <xs:documentation>internal wire to check CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/crc/@scanWireOutput

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  delayError enumeration  delayFrame enumeration  dataClock
annotation	documentation output wire to check CRC for
source	<xs:attribute name="scanWireOutput" use="optional">   <xs:annotation>     <xs:documentation>output wire to check CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="delayError"/>       <xs:enumeration value="delayFrame"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/crc/@scanWireInput

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  antPps enumeration  dataClock
annotation	documentation input wire to check CRC for
source	<xs:attribute name="scanWireInput" use="optional">   <xs:annotation>     <xs:documentation>input wire to check CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="antPps"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element delay/testPin

diagram
properties	minOcc  0 maxOcc  4 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         documentation specify pin to map signal   derived by: xs:int            documentation specify signal id
annotation	documentation route internal FPGA signals to external pins
source	<xs:element name="testPin" minOccurs="0" maxOccurs="4">   <xs:annotation>     <xs:documentation>route internal FPGA signals to external pins</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify pin to map</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="4"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="signal">       <xs:annotation>         <xs:documentation>specify signal id</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="255"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/testPin/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4
annotation	documentation specify pin to map
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify pin to map</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/testPin/@signal

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
annotation	documentation specify signal id
source	<xs:attribute name="signal">   <xs:annotation>     <xs:documentation>specify signal id</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element delay/clockEdge

diagram
properties	minOcc  0 maxOcc  3 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:string   required         documentation specify signal edge   derived by: xs:string   required         documentation clock edge to use
annotation	documentation signal clock edge selection
source	<xs:element name="clockEdge" minOccurs="0" maxOccurs="3">   <xs:annotation>     <xs:documentation>signal clock edge selection</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="sTick"/>           <xs:enumeration value="data"/>           <xs:enumeration value="memory"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="edge" use="required">       <xs:annotation>         <xs:documentation>clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/clockEdge/@id

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  sTick enumeration  data enumeration  memory
annotation	documentation specify signal
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="sTick"/>       <xs:enumeration value="data"/>       <xs:enumeration value="memory"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute delay/clockEdge/@edge

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation clock edge to use
source	<xs:attribute name="edge" use="required">   <xs:annotation>     <xs:documentation>clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element delay/timeInterval

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation dataTick   xs:int   required         documentation data to system tick count
source	<xs:element name="timeInterval" minOccurs="0">   <xs:complexType>     <xs:attribute name="dataTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>data to system tick count</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/timeInterval/@dataTick

type	xs:int
properties	use  required
annotation	documentation data to system tick count
source	<xs:attribute name="dataTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>data to system tick count</xs:documentation>   </xs:annotation> </xs:attribute>

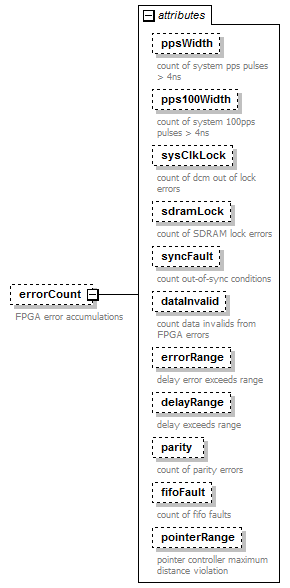

element delay/errorCount

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ppsWidth   xs:int   optional         documentation count of system pps pulses > 4ns pps100Width   xs:int   optional         documentation count of system 100pps pulses > 4ns sysClkLock   xs:int   optional         documentation count of dcm out of lock errors sdramLock   xs:int   optional         documentation count of SDRAM lock errors syncFault   xs:int   optional         documentation count out-of-sync conditions dataInvalid   xs:int   optional         documentation count data invalids from FPGA errors errorRange   xs:int   optional         documentation delay error exceeds range delayRange   xs:int   optional         documentation delay exceeds range parity   xs:int   optional         documentation count of parity errors fifoFault   xs:int   optional         documentation count of fifo faults pointerRange   xs:int            documentation pointer controller maximum distance violation
annotation	documentation FPGA error accumulations
source	<xs:element name="errorCount" minOccurs="0">   <xs:annotation>     <xs:documentation>FPGA error accumulations</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="ppsWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of system pps pulses > 4ns </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pps100Width" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of system 100pps pulses > 4ns</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sysClkLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of dcm out of lock errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sdramLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of SDRAM lock errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="syncFault" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count out-of-sync conditions</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dataInvalid" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count data invalids from FPGA errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="errorRange" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>delay error exceeds range</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayRange" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>delay exceeds range</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="parity" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of parity errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="fifoFault" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of fifo faults</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pointerRange" type="xs:int">       <xs:annotation>         <xs:documentation>pointer controller maximum distance violation</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute delay/errorCount/@ppsWidth

type	xs:int
properties	use  optional
annotation	documentation count of system pps pulses > 4ns
source	<xs:attribute name="ppsWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of system pps pulses > 4ns </xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@pps100Width

type	xs:int
properties	use  optional
annotation	documentation count of system 100pps pulses > 4ns
source	<xs:attribute name="pps100Width" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of system 100pps pulses > 4ns</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@sysClkLock

type	xs:int
properties	use  optional
annotation	documentation count of dcm out of lock errors
source	<xs:attribute name="sysClkLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of dcm out of lock errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@sdramLock

type	xs:int
properties	use  optional
annotation	documentation count of SDRAM lock errors
source	<xs:attribute name="sdramLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of SDRAM lock errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@syncFault

type	xs:int
properties	use  optional
annotation	documentation count out-of-sync conditions
source	<xs:attribute name="syncFault" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count out-of-sync conditions</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@dataInvalid

type	xs:int
properties	use  optional
annotation	documentation count data invalids from FPGA errors
source	<xs:attribute name="dataInvalid" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count data invalids from FPGA errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@errorRange

type	xs:int
properties	use  optional
annotation	documentation delay error exceeds range
source	<xs:attribute name="errorRange" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>delay error exceeds range</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@delayRange

type	xs:int
properties	use  optional
annotation	documentation delay exceeds range
source	<xs:attribute name="delayRange" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>delay exceeds range</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@parity

type	xs:int
properties	use  optional
annotation	documentation count of parity errors
source	<xs:attribute name="parity" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of parity errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@fifoFault

type	xs:int
properties	use  optional
annotation	documentation count of fifo faults
source	<xs:attribute name="fifoFault" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of fifo faults</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/errorCount/@pointerRange

type	xs:int
annotation	documentation pointer controller maximum distance violation
source	<xs:attribute name="pointerRange" type="xs:int">   <xs:annotation>     <xs:documentation>pointer controller maximum distance violation</xs:documentation>   </xs:annotation> </xs:attribute>

element delay/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation delayControl   xs:string            documentation report delay system status crc   xs:string            documentation report CRC status testPin   xs:string            documentation report test pin mappings timeInterval   xs:string            documentation report time interval counts errorCount   xs:string            documentation return error counts setup   xs:string            documentation return setup parameters status   xs:string            documentation return status element register   xs:string            documentation report specified register contents user   xs:string            documentation report user logging configuration about   xs:string            documentation report general module information error   xs:string            documentation report errors clockEdge   xs:string            all   xs:string
annotation	documentation report module status and state
source	<xs:element name="state" minOccurs="0">   <xs:annotation>     <xs:documentation>report module status and state</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="delayControl" type="xs:string">       <xs:annotation>         <xs:documentation>report delay system status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="crc" type="xs:string">       <xs:annotation>         <xs:documentation>report CRC status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="testPin" type="xs:string">       <xs:annotation>         <xs:documentation>report test pin mappings</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timeInterval" type="xs:string">       <xs:annotation>         <xs:documentation>report time interval counts</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="errorCount" type="xs:string">       <xs:annotation>         <xs:documentation>return error counts</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setup" type="xs:string">       <xs:annotation>         <xs:documentation>return setup parameters</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string">       <xs:annotation>         <xs:documentation>return status element</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="register" type="xs:string">       <xs:annotation>         <xs:documentation>report specified register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="user" type="xs:string">       <xs:annotation>         <xs:documentation>report user logging configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="about" type="xs:string">       <xs:annotation>         <xs:documentation>report general module information</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="error" type="xs:string">       <xs:annotation>         <xs:documentation>report errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clockEdge" type="xs:string"/>     <xs:attribute name="all" type="xs:string"/>   </xs:complexType> </xs:element>

attribute delay/state/@delayControl

type	xs:string
annotation	documentation report delay system status
source	<xs:attribute name="delayControl" type="xs:string">   <xs:annotation>     <xs:documentation>report delay system status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@crc

type	xs:string
annotation	documentation report CRC status
source	<xs:attribute name="crc" type="xs:string">   <xs:annotation>     <xs:documentation>report CRC status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@testPin

type	xs:string
annotation	documentation report test pin mappings
source	<xs:attribute name="testPin" type="xs:string">   <xs:annotation>     <xs:documentation>report test pin mappings</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@timeInterval

type	xs:string
annotation	documentation report time interval counts
source	<xs:attribute name="timeInterval" type="xs:string">   <xs:annotation>     <xs:documentation>report time interval counts</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@errorCount

type	xs:string
annotation	documentation return error counts
source	<xs:attribute name="errorCount" type="xs:string">   <xs:annotation>     <xs:documentation>return error counts</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@setup

type	xs:string
annotation	documentation return setup parameters
source	<xs:attribute name="setup" type="xs:string">   <xs:annotation>     <xs:documentation>return setup parameters</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@status

type	xs:string
annotation	documentation return status element
source	<xs:attribute name="status" type="xs:string">   <xs:annotation>     <xs:documentation>return status element</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@register

type	xs:string
annotation	documentation report specified register contents
source	<xs:attribute name="register" type="xs:string">   <xs:annotation>     <xs:documentation>report specified register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@user

type	xs:string
annotation	documentation report user logging configuration
source	<xs:attribute name="user" type="xs:string">   <xs:annotation>     <xs:documentation>report user logging configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@about

type	xs:string
annotation	documentation report general module information
source	<xs:attribute name="about" type="xs:string">   <xs:annotation>     <xs:documentation>report general module information</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@error

type	xs:string
annotation	documentation report errors
source	<xs:attribute name="error" type="xs:string">   <xs:annotation>     <xs:documentation>report errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute delay/state/@clockEdge

type	xs:string
source	<xs:attribute name="clockEdge" type="xs:string"/>

attribute delay/state/@all

type	xs:string
source	<xs:attribute name="all" type="xs:string"/>

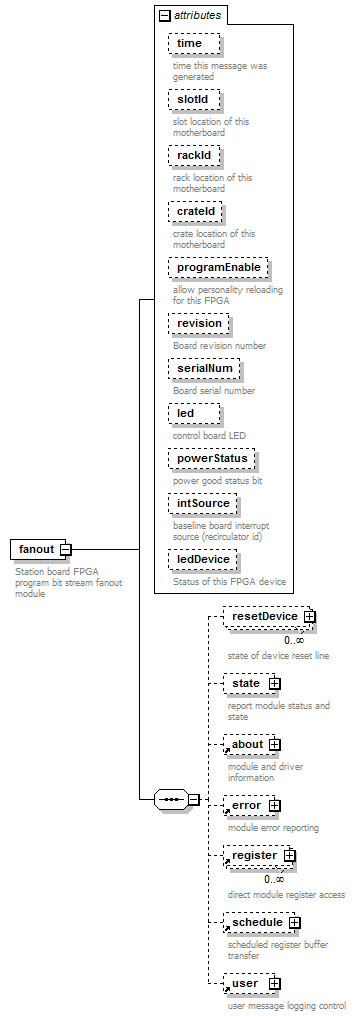

element fanout

diagram
properties	content  complex
children	resetDevice state about error register schedule user
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         documentation time this message was generated slotId   xs:int   optional         documentation slot location of this motherboard rackId   xs:int   optional         documentation rack location of this motherboard crateId   xs:int   optional         documentation crate location of this motherboard programEnable   derived by: xs:string            documentation allow personality reloading for this FPGA revision   xs:int            documentation Board revision number serialNum   xs:int            documentation Board serial number led   derived by: xs:string            documentation control board LED powerStatus   derived by: xs:string            documentation power good status bit intSource   derived by: xs:string            documentation baseline board interrupt source (recirculator id) ledDevice   ledType            documentation Status of this FPGA device
annotation	documentation Station board FPGA program bit stream fanout module
source	<xs:element name="fanout">   <xs:annotation>     <xs:documentation>Station board FPGA program bit stream fanout module</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="resetDevice" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>state of device reset line</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="deviceType" use="required">             <xs:annotation>               <xs:documentation>module type</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="lta"/>                 <xs:enumeration value="recirculatorX"/>                 <xs:enumeration value="recirculatorY"/>                 <xs:enumeration value="ethernet"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="deviceId">             <xs:annotation>               <xs:documentation>module location</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="63"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="resetState" use="required">             <xs:annotation>               <xs:documentation>state of the reset line</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="normal"/>                 <xs:enumeration value="reset"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:annotation>           <xs:documentation>report module status and state</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="register" type="xs:string">             <xs:annotation>               <xs:documentation>report specified register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="user" type="xs:string">             <xs:annotation>               <xs:documentation>report user logging configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="about" type="xs:string">             <xs:annotation>               <xs:documentation>report general module information</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="error" type="xs:string">             <xs:annotation>               <xs:documentation>report errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="resetDevice" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="schedule" minOccurs="0"/>       <xs:element ref="user" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime" use="optional">       <xs:annotation>         <xs:documentation>time this message was generated</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="slotId" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>slot location of this motherboard</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="rackId" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>rack location of this motherboard</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="crateId" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>crate location of this motherboard</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="programEnable">       <xs:annotation>         <xs:documentation>allow personality reloading for this FPGA</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="yes"/>           <xs:enumeration value="no"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="revision" type="xs:int">       <xs:annotation>         <xs:documentation>Board revision number</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="serialNum" type="xs:int">       <xs:annotation>         <xs:documentation>Board serial number</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="led">       <xs:annotation>         <xs:documentation>control board LED</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="red"/>           <xs:enumeration value="green"/>           <xs:enumeration value="yellow"/>           <xs:enumeration value="redFlash"/>           <xs:enumeration value="greenFlash"/>           <xs:enumeration value="yellowFlash"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="powerStatus">       <xs:annotation>         <xs:documentation>power good status bit</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fail"/>           <xs:enumeration value="good"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="intSource">       <xs:annotation>         <xs:documentation>baseline board interrupt source (recirculator id)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="y0"/>           <xs:enumeration value="y1"/>           <xs:enumeration value="y2"/>           <xs:enumeration value="y3"/>           <xs:enumeration value="y4"/>           <xs:enumeration value="y5"/>           <xs:enumeration value="y6"/>           <xs:enumeration value="y7"/>           <xs:enumeration value="x0"/>           <xs:enumeration value="x1"/>           <xs:enumeration value="x2"/>           <xs:enumeration value="x3"/>           <xs:enumeration value="x4"/>           <xs:enumeration value="x5"/>           <xs:enumeration value="x6"/>           <xs:enumeration value="x7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fanout/@time

type	xs:dateTime
properties	use  optional
annotation	documentation time this message was generated
source	<xs:attribute name="time" type="xs:dateTime" use="optional">   <xs:annotation>     <xs:documentation>time this message was generated</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/@slotId

type	xs:int
properties	use  optional
annotation	documentation slot location of this motherboard
source	<xs:attribute name="slotId" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>slot location of this motherboard</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/@rackId

type	xs:int
properties	use  optional
annotation	documentation rack location of this motherboard
source	<xs:attribute name="rackId" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>rack location of this motherboard</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/@crateId

type	xs:int
properties	use  optional
annotation	documentation crate location of this motherboard
source	<xs:attribute name="crateId" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>crate location of this motherboard</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/@programEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  yes enumeration  no
annotation	documentation allow personality reloading for this FPGA
source	<xs:attribute name="programEnable">   <xs:annotation>     <xs:documentation>allow personality reloading for this FPGA</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="yes"/>       <xs:enumeration value="no"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fanout/@revision

type	xs:int
annotation	documentation Board revision number
source	<xs:attribute name="revision" type="xs:int">   <xs:annotation>     <xs:documentation>Board revision number</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/@serialNum

type	xs:int
annotation	documentation Board serial number
source	<xs:attribute name="serialNum" type="xs:int">   <xs:annotation>     <xs:documentation>Board serial number</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/@led

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  green enumeration  yellow enumeration  redFlash enumeration  greenFlash enumeration  yellowFlash
annotation	documentation control board LED
source	<xs:attribute name="led">   <xs:annotation>     <xs:documentation>control board LED</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="red"/>       <xs:enumeration value="green"/>       <xs:enumeration value="yellow"/>       <xs:enumeration value="redFlash"/>       <xs:enumeration value="greenFlash"/>       <xs:enumeration value="yellowFlash"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fanout/@powerStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  fail enumeration  good
annotation	documentation power good status bit
source	<xs:attribute name="powerStatus">   <xs:annotation>     <xs:documentation>power good status bit</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fail"/>       <xs:enumeration value="good"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fanout/@intSource

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  y0 enumeration  y1 enumeration  y2 enumeration  y3 enumeration  y4 enumeration  y5 enumeration  y6 enumeration  y7 enumeration  x0 enumeration  x1 enumeration  x2 enumeration  x3 enumeration  x4 enumeration  x5 enumeration  x6 enumeration  x7
annotation	documentation baseline board interrupt source (recirculator id)
source	<xs:attribute name="intSource">   <xs:annotation>     <xs:documentation>baseline board interrupt source (recirculator id)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="y0"/>       <xs:enumeration value="y1"/>       <xs:enumeration value="y2"/>       <xs:enumeration value="y3"/>       <xs:enumeration value="y4"/>       <xs:enumeration value="y5"/>       <xs:enumeration value="y6"/>       <xs:enumeration value="y7"/>       <xs:enumeration value="x0"/>       <xs:enumeration value="x1"/>       <xs:enumeration value="x2"/>       <xs:enumeration value="x3"/>       <xs:enumeration value="x4"/>       <xs:enumeration value="x5"/>       <xs:enumeration value="x6"/>       <xs:enumeration value="x7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fanout/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

element fanout/resetDevice

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation deviceType   derived by: xs:string   required         documentation module type deviceId   derived by: xs:int            documentation module location resetState   derived by: xs:string   required         documentation state of the reset line
annotation	documentation state of device reset line
source	<xs:element name="resetDevice" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>state of device reset line</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="deviceType" use="required">       <xs:annotation>         <xs:documentation>module type</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="lta"/>           <xs:enumeration value="recirculatorX"/>           <xs:enumeration value="recirculatorY"/>           <xs:enumeration value="ethernet"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="deviceId">       <xs:annotation>         <xs:documentation>module location</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="63"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="resetState" use="required">       <xs:annotation>         <xs:documentation>state of the reset line</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="normal"/>           <xs:enumeration value="reset"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fanout/resetDevice/@deviceType

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  lta enumeration  recirculatorX enumeration  recirculatorY enumeration  ethernet
annotation	documentation module type
source	<xs:attribute name="deviceType" use="required">   <xs:annotation>     <xs:documentation>module type</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="lta"/>       <xs:enumeration value="recirculatorX"/>       <xs:enumeration value="recirculatorY"/>       <xs:enumeration value="ethernet"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fanout/resetDevice/@deviceId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  63
annotation	documentation module location
source	<xs:attribute name="deviceId">   <xs:annotation>     <xs:documentation>module location</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="63"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fanout/resetDevice/@resetState

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  normal enumeration  reset
annotation	documentation state of the reset line
source	<xs:attribute name="resetState" use="required">   <xs:annotation>     <xs:documentation>state of the reset line</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="normal"/>       <xs:enumeration value="reset"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element fanout/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation register   xs:string            documentation report specified register contents user   xs:string            documentation report user logging configuration about   xs:string            documentation report general module information error   xs:string            documentation report errors resetDevice   xs:string
annotation	documentation report module status and state
source	<xs:element name="state" minOccurs="0">   <xs:annotation>     <xs:documentation>report module status and state</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="register" type="xs:string">       <xs:annotation>         <xs:documentation>report specified register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="user" type="xs:string">       <xs:annotation>         <xs:documentation>report user logging configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="about" type="xs:string">       <xs:annotation>         <xs:documentation>report general module information</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="error" type="xs:string">       <xs:annotation>         <xs:documentation>report errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="resetDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute fanout/state/@register

type	xs:string
annotation	documentation report specified register contents
source	<xs:attribute name="register" type="xs:string">   <xs:annotation>     <xs:documentation>report specified register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/state/@user

type	xs:string
annotation	documentation report user logging configuration
source	<xs:attribute name="user" type="xs:string">   <xs:annotation>     <xs:documentation>report user logging configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/state/@about

type	xs:string
annotation	documentation report general module information
source	<xs:attribute name="about" type="xs:string">   <xs:annotation>     <xs:documentation>report general module information</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/state/@error

type	xs:string
annotation	documentation report errors
source	<xs:attribute name="error" type="xs:string">   <xs:annotation>     <xs:documentation>report errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fanout/state/@resetDevice

type	xs:string
source	<xs:attribute name="resetDevice" type="xs:string"/>

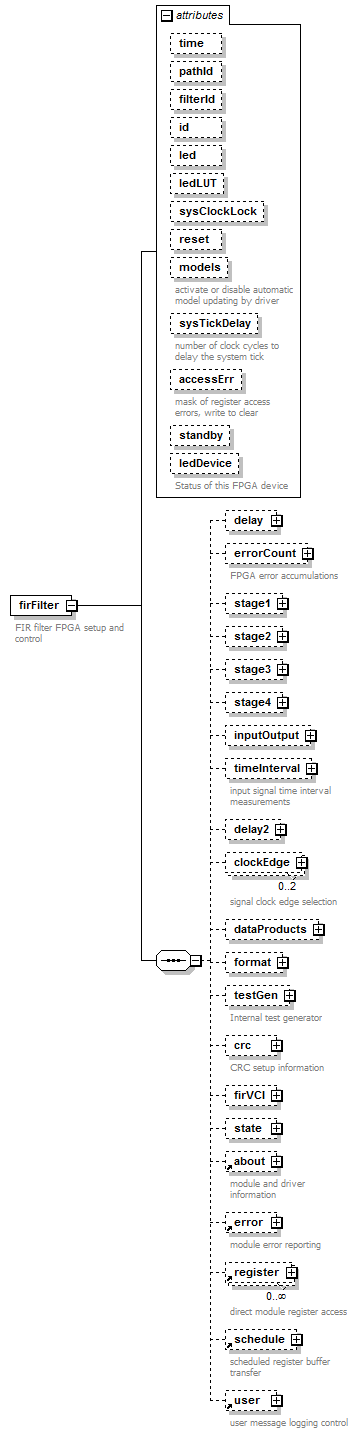

element firFilter

diagram
properties	content  complex
children	delay errorCount stage1 stage2 stage3 stage4 inputOutput timeInterval delay2 clockEdge dataProducts format testGen crc firVCI state about error register schedule user
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         pathId   derived by: xs:int   optional         filterId   derived by: xs:int   optional         id   xs:string            led   ledType            ledLUT   ledType            sysClockLock   derived by: xs:string            reset   xs:string            models   derived by: xs:string            documentation activate or disable automatic model updating by driver sysTickDelay   xs:int            documentation number of clock cycles to delay the system tick accessErr   xs:string            documentation mask of register access errors, write to clear standby   derived by: xs:string            ledDevice   ledType            documentation Status of this FPGA device
annotation	documentation FIR filter FPGA setup and control
source	<xs:element name="firFilter">   <xs:annotation>     <xs:documentation>FIR filter FPGA setup and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="delay" minOccurs="0">         <xs:complexType>           <xs:attribute name="delay" type="xs:string"/>           <xs:attribute name="delayDot" type="xs:string"/>           <xs:attribute name="delayErrFactor" type="xs:int"/>           <xs:attribute name="demuxFactor">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputRate">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="modelFreeRun">             <xs:annotation>               <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="errorCount" minOccurs="0">         <xs:annotation>           <xs:documentation>FPGA error accumulations</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="sysTickWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of system tick width errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sysClkLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of dcm out of lock errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayErrorPattern" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of delay error pattern errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayClockPhase" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of delay clock phase errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayFramePhase" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of delay frame phase errors</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="stage1" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="fir32" minOccurs="0" maxOccurs="16">               <xs:complexType>                 <xs:attribute name="id">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="15"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="input">                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="crossbar"/>                       <xs:enumeration value="previous"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="xbarAddress">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="15"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="numTaps" type="xs:int"/>           <xs:attribute name="outputRate">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="filterDelay">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1023"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="invalidStretch">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1023"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scaleFactor" type="xs:int"/>           <xs:attribute name="fractionalBits">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vlbiDelayMode">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="lutLoadStatus">             <xs:annotation>               <xs:documentation>loading status of stage 1 LUT</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLoaded"/>                 <xs:enumeration value="loadVerified"/>                 <xs:enumeration value="loadFailed"/>                 <xs:enumeration value="loaded"/>                 <xs:enumeration value="loading"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dcOffsetIn" type="xs:int">             <xs:annotation>               <xs:documentation>DC offset correction being applied on each interrupt</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dcOffsetOut" type="xs:int">             <xs:annotation>               <xs:documentation>measured and normalized DC offset out of stage 1</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dcOffsetInteg" type="xs:int">             <xs:annotation>               <xs:documentation>number of ticks to normalize and integrate stage 1 DC offsets before determining a solution </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dcOffsetEnable">             <xs:annotation>               <xs:documentation>turn the automatic DC offset correction on/off</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="lutFilename" type="xs:string">             <xs:annotation>               <xs:documentation>name of currently loaded LUT</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="stage2" minOccurs="0">         <xs:complexType>           <xs:attribute name="mixerPhase" type="xs:string"/>           <xs:attribute name="mixerPhaseDot" type="xs:string"/>           <xs:attribute name="outputRate">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="filterDelay">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1023"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="invalidStretch">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1023"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scaleFactor" type="xs:int"/>           <xs:attribute name="filterCalcRate">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numTaps">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="32"/>                 <xs:maxInclusive value="512"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="mixer">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="phaseErrorOff"/>                 <xs:enumeration value="phaseErrorOn"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="wadd" type="xs:int"/>           <xs:attribute name="lutLoadStatus">             <xs:annotation>               <xs:documentation>loading status of stage 2 LUT</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLoaded"/>                 <xs:enumeration value="loadVerified"/>                 <xs:enumeration value="loadFailed"/>                 <xs:enumeration value="loaded"/>                 <xs:enumeration value="loading"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="modelFreeRun">             <xs:annotation>               <xs:documentation>allow module to freewheel without fresh mixer model updates</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="lutFilename" type="xs:string">             <xs:annotation>               <xs:documentation>name of currently loaded LUT</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="stage3" minOccurs="0">         <xs:complexType>           <xs:attribute name="outputRate">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="filterDelay">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1023"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="invalidStretch">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1023"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scaleFactor" type="xs:int"/>           <xs:attribute name="filterCalcRate">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numTaps">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="64"/>                 <xs:enumeration value="128"/>                 <xs:enumeration value="256"/>                 <xs:enumeration value="512"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="wadd" type="xs:int"/>           <xs:attribute name="lutLoadStatus">             <xs:annotation>               <xs:documentation>loading status of stage 3 LUT</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLoaded"/>                 <xs:enumeration value="loadVerified"/>                 <xs:enumeration value="loadFailed"/>                 <xs:enumeration value="loaded"/>                 <xs:enumeration value="loading"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="lutFilename" type="xs:string">             <xs:annotation>               <xs:documentation>name of currently loaded LUT</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="stage4" minOccurs="0">         <xs:complexType>           <xs:attribute name="outputRate">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="filterDelay">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1023"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="invalidStretch">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1023"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scaleFactor" type="xs:int"/>           <xs:attribute name="filterCalcRate">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numTaps">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="64"/>                 <xs:enumeration value="128"/>                 <xs:enumeration value="256"/>                 <xs:enumeration value="512"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="wadd" type="xs:int"/>           <xs:attribute name="lutLoadStatus">             <xs:annotation>               <xs:documentation>loading status of stage 4 LUT</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLoaded"/>                 <xs:enumeration value="loadVerified"/>                 <xs:enumeration value="loadFailed"/>                 <xs:enumeration value="loaded"/>                 <xs:enumeration value="loading"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="lutFilename" type="xs:string">             <xs:annotation>               <xs:documentation>name of currently loaded LUT</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="inputOutput" minOccurs="0">         <xs:complexType>           <xs:attribute name="wideBandDelay">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="63"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputPort">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="outputPort0">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="outputPort1">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inBits">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="4bit"/>                 <xs:enumeration value="8bit"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="serialOut">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="4bit"/>                 <xs:enumeration value="8bit"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="acBalance">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bit7Valid">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="timeInterval" minOccurs="0">         <xs:annotation>           <xs:documentation>input signal time interval measurements</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="dTick_sTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTick_dTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="delay2" minOccurs="0">         <xs:complexType>           <xs:attribute name="outDataDelay">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="8190"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vsiDataDelay">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="8190"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pErrorDelay">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="8190"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="clockEdge" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>signal clock edge selection</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="sTick"/>                 <xs:enumeration value="data"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="edge" use="required">             <xs:annotation>               <xs:documentation>clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="dataProducts" minOccurs="0">         <xs:complexType>           <xs:attribute name="powerInteg">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="powerEnable">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="clipInteg">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="clipEnable">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="qStateInteg">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="qStateEnable">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="rfiInteg">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="rfiEnable">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="toneInteg">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="toneEnable">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="format" minOccurs="0">         <xs:complexType>           <xs:attribute name="primarySignal">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="stage1"/>                 <xs:enumeration value="stage2"/>                 <xs:enumeration value="stage3"/>                 <xs:enumeration value="stage4"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="secondarySignal">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="stage1"/>                 <xs:enumeration value="stage2"/>                 <xs:enumeration value="stage3"/>                 <xs:enumeration value="stage4"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ndOffValidCount">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="2560000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ndOnValidCount">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="2560000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ndOffPower" type="xs:string"/>           <xs:attribute name="ndOnPower" type="xs:string"/>           <xs:attribute name="toneModelPhase" type="xs:string"/>           <xs:attribute name="toneModelPhaseRate" type="xs:string"/>           <xs:attribute name="toneValidCount" type="xs:int"/>           <xs:attribute name="toneExtractorCos" type="xs:string"/>           <xs:attribute name="toneExtractorSin" type="xs:string"/>           <xs:attribute name="quantScale">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="65535"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="quantClipCount" type="xs:int"/>           <xs:attribute name="quantNumBits">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="8"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="quantOutState">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="-128"/>                 <xs:maxInclusive value="127"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="quantOutStateCount" type="xs:int"/>           <xs:attribute name="quantPower" type="xs:string"/>           <xs:attribute name="clipCount" type="xs:int"/>           <xs:attribute name="rfiDetectLevel" type="xs:int"/>           <xs:attribute name="rfiInvalidLength" type="xs:int"/>           <xs:attribute name="rfiDetectCount" type="xs:int"/>           <xs:attribute name="flipper">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="mixerLutLoadStatus">             <xs:annotation>               <xs:documentation>loading status of mixer LUT</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLoaded"/>                 <xs:enumeration value="loadVerified"/>                 <xs:enumeration value="loadFailed"/>                 <xs:enumeration value="loaded"/>                 <xs:enumeration value="loading"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="toneLutLoadStatus">             <xs:annotation>               <xs:documentation>loading status of tone extractor LUT</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLoaded"/>                 <xs:enumeration value="loadVerified"/>                 <xs:enumeration value="loadFailed"/>                 <xs:enumeration value="loaded"/>                 <xs:enumeration value="loading"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="modelFreeRun">             <xs:annotation>               <xs:documentation>allow module to freewheel without fresh tone model updates</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="texFilename" type="xs:string">             <xs:annotation>               <xs:documentation>name of currently loaded tone extractor LUT</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="mixerFilename" type="xs:string">             <xs:annotation>               <xs:documentation>name of currently loaded mixer LUT</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testGen" minOccurs="0">         <xs:annotation>           <xs:documentation>Internal test generator</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="mode">             <xs:annotation>               <xs:documentation>operational mode for test generator</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="random"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="seed" type="xs:string">             <xs:annotation>               <xs:documentation> data seed value for bit generator</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="crc" minOccurs="0">         <xs:annotation>           <xs:documentation>CRC setup information </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="scan" use="optional">             <xs:annotation>               <xs:documentation>CRC error checking mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="single"/>                 <xs:enumeration value="auto"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireIn" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)wire to scan if not in automatic scan mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="delayError"/>                 <xs:enumeration value="delayFrame"/>                 <xs:enumeration value="sysClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ledCrcInputB" type="ledType">             <xs:annotation>               <xs:documentation>status of 'B' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledCrcInputA" type="ledType">             <xs:annotation>               <xs:documentation>status of 'A' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="scanWireInput" use="optional">             <xs:annotation>               <xs:documentation>wire to check input CRC</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="auto"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="delayError"/>                 <xs:enumeration value="delayFrame"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireOut" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)wire to scan on all outputs if not in automatic scan mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireOutput" use="optional">             <xs:annotation>               <xs:documentation>wire to scan CRC on all outputs</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="auto"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceInputError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on an input wire</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="none"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceOutputError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on output port wire</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="none"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="firVCI" minOccurs="0">         <xs:complexType>           <xs:attribute name="inBands">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inBits">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:enumeration value="4"/>                 <xs:enumeration value="8"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inBandWidth">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="62500Hz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="512MHz"/>                 <xs:enumeration value="1024MHz"/>                 <xs:enumeration value="2048MHz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inBandSelect">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="outBits">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="8"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="outBandWidth">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="62500Hz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="512MHz"/>                 <xs:enumeration value="1024MHz"/>                 <xs:enumeration value="2048MHz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="outCenterFreq" type="xs:string"/>           <xs:attribute name="accumulation" type="xs:int"/>           <xs:attribute name="flipper">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="mixer">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:complexType>           <xs:attribute name="inputOutput" type="xs:string"/>           <xs:attribute name="dataProducts" type="xs:string"/>           <xs:attribute name="delay" type="xs:string"/>           <xs:attribute name="errorCount" type="xs:string"/>           <xs:attribute name="stage1" type="xs:string"/>           <xs:attribute name="register" type="xs:string"/>           <xs:attribute name="user" type="xs:string"/>           <xs:attribute name="about" type="xs:string"/>           <xs:attribute name="error" type="xs:string"/>           <xs:attribute name="stage2" type="xs:string"/>           <xs:attribute name="stage3" type="xs:string"/>           <xs:attribute name="stage4" type="xs:string"/>           <xs:attribute name="format" type="xs:string"/>           <xs:attribute name="delay2" type="xs:string"/>           <xs:attribute name="timeInterval" type="xs:string"/>           <xs:attribute name="testGen" type="xs:string"/>           <xs:attribute name="crc" type="xs:string"/>           <xs:attribute name="clockEdge" type="xs:string"/>           <xs:attribute name="firVCI" type="xs:string"/>           <xs:attribute name="all" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="schedule" minOccurs="0"/>       <xs:element ref="user" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime" use="optional"/>     <xs:attribute name="pathId" use="optional">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="filterId" use="optional">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="id" type="xs:string"/>     <xs:attribute name="led" type="ledType"/>     <xs:attribute name="ledLUT" type="ledType"/>     <xs:attribute name="sysClockLock">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="yes"/>           <xs:enumeration value="no"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="reset" type="xs:string"/>     <xs:attribute name="models">       <xs:annotation>         <xs:documentation>activate or disable automatic model updating by driver</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="active"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sysTickDelay" type="xs:int">       <xs:annotation>         <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="accessErr" type="xs:string">       <xs:annotation>         <xs:documentation>mask of register access errors, write to clear</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="standby">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/@time

type	xs:dateTime
properties	use  optional
source	<xs:attribute name="time" type="xs:dateTime" use="optional"/>

attribute firFilter/@pathId

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
source	<xs:attribute name="pathId" use="optional">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/@filterId

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
source	<xs:attribute name="filterId" use="optional">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/@id

type	xs:string
source	<xs:attribute name="id" type="xs:string"/>

attribute firFilter/@led

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="led" type="ledType"/>

attribute firFilter/@ledLUT

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="ledLUT" type="ledType"/>

attribute firFilter/@sysClockLock

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  yes enumeration  no
source	<xs:attribute name="sysClockLock">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="yes"/>       <xs:enumeration value="no"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/@reset

type	xs:string
source	<xs:attribute name="reset" type="xs:string"/>

attribute firFilter/@models

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  active
annotation	documentation activate or disable automatic model updating by driver
source	<xs:attribute name="models">   <xs:annotation>     <xs:documentation>activate or disable automatic model updating by driver</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="active"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/@sysTickDelay

type	xs:int
annotation	documentation number of clock cycles to delay the system tick
source	<xs:attribute name="sysTickDelay" type="xs:int">   <xs:annotation>     <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/@accessErr

type	xs:string
annotation	documentation mask of register access errors, write to clear
source	<xs:attribute name="accessErr" type="xs:string">   <xs:annotation>     <xs:documentation>mask of register access errors, write to clear</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="standby">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

element firFilter/delay

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation delay   xs:string            delayDot   xs:string            delayErrFactor   xs:int            demuxFactor   derived by: xs:string            inputRate   derived by: xs:string            modelFreeRun   derived by: xs:string            documentation allow module to freewheel without fresh delay updates
source	<xs:element name="delay" minOccurs="0">   <xs:complexType>     <xs:attribute name="delay" type="xs:string"/>     <xs:attribute name="delayDot" type="xs:string"/>     <xs:attribute name="delayErrFactor" type="xs:int"/>     <xs:attribute name="demuxFactor">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="4"/>           <xs:enumeration value="8"/>           <xs:enumeration value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputRate">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="modelFreeRun">       <xs:annotation>         <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/delay/@delay

type	xs:string
source	<xs:attribute name="delay" type="xs:string"/>

attribute firFilter/delay/@delayDot

type	xs:string
source	<xs:attribute name="delayDot" type="xs:string"/>

attribute firFilter/delay/@delayErrFactor

type	xs:int
source	<xs:attribute name="delayErrFactor" type="xs:int"/>

attribute firFilter/delay/@demuxFactor

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  1 enumeration  2 enumeration  4 enumeration  8 enumeration  16
source	<xs:attribute name="demuxFactor">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="4"/>       <xs:enumeration value="8"/>       <xs:enumeration value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/delay/@inputRate

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
source	<xs:attribute name="inputRate">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/delay/@modelFreeRun

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation allow module to freewheel without fresh delay updates
source	<xs:attribute name="modelFreeRun">   <xs:annotation>     <xs:documentation>allow module to freewheel without fresh delay updates</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

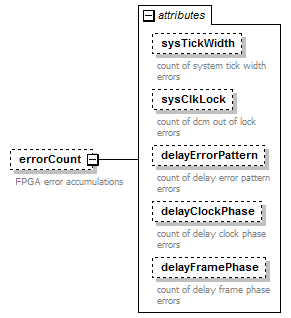

element firFilter/errorCount

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation sysTickWidth   xs:int   optional         documentation count of system tick width errors sysClkLock   xs:int   optional         documentation count of dcm out of lock errors delayErrorPattern   xs:int   optional         documentation count of delay error pattern errors delayClockPhase   xs:int   optional         documentation count of delay clock phase errors delayFramePhase   xs:int   optional         documentation count of delay frame phase errors
annotation	documentation FPGA error accumulations
source	<xs:element name="errorCount" minOccurs="0">   <xs:annotation>     <xs:documentation>FPGA error accumulations</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="sysTickWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of system tick width errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sysClkLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of dcm out of lock errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayErrorPattern" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of delay error pattern errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayClockPhase" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of delay clock phase errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayFramePhase" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of delay frame phase errors</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/errorCount/@sysTickWidth

type	xs:int
properties	use  optional
annotation	documentation count of system tick width errors
source	<xs:attribute name="sysTickWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of system tick width errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/errorCount/@sysClkLock

type	xs:int
properties	use  optional
annotation	documentation count of dcm out of lock errors
source	<xs:attribute name="sysClkLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of dcm out of lock errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/errorCount/@delayErrorPattern

type	xs:int
properties	use  optional
annotation	documentation count of delay error pattern errors
source	<xs:attribute name="delayErrorPattern" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of delay error pattern errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/errorCount/@delayClockPhase

type	xs:int
properties	use  optional
annotation	documentation count of delay clock phase errors
source	<xs:attribute name="delayClockPhase" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of delay clock phase errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/errorCount/@delayFramePhase

type	xs:int
properties	use  optional
annotation	documentation count of delay frame phase errors
source	<xs:attribute name="delayFramePhase" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of delay frame phase errors</xs:documentation>   </xs:annotation> </xs:attribute>

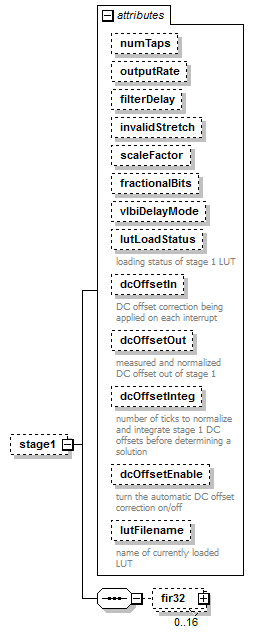

element firFilter/stage1

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	fir32
attributes	Name   Type   Use   Default   Fixed   Annotation numTaps   xs:int            outputRate   derived by: xs:string            filterDelay   derived by: xs:int            invalidStretch   derived by: xs:int            scaleFactor   xs:int            fractionalBits   derived by: xs:int            vlbiDelayMode   derived by: xs:string            lutLoadStatus   derived by: xs:string            documentation loading status of stage 1 LUT dcOffsetIn   xs:int            documentation DC offset correction being applied on each interrupt dcOffsetOut   xs:int            documentation measured and normalized DC offset out of stage 1 dcOffsetInteg   xs:int            documentation number of ticks to normalize and integrate stage 1 DC offsets before determining a solution dcOffsetEnable   derived by: xs:string            documentation turn the automatic DC offset correction on/off lutFilename   xs:string            documentation name of currently loaded LUT
source	<xs:element name="stage1" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="fir32" minOccurs="0" maxOccurs="16">         <xs:complexType>           <xs:attribute name="id">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="input">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="crossbar"/>                 <xs:enumeration value="previous"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="xbarAddress">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="numTaps" type="xs:int"/>     <xs:attribute name="outputRate">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="filterDelay">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1023"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="invalidStretch">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1023"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scaleFactor" type="xs:int"/>     <xs:attribute name="fractionalBits">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vlbiDelayMode">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="lutLoadStatus">       <xs:annotation>         <xs:documentation>loading status of stage 1 LUT</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLoaded"/>           <xs:enumeration value="loadVerified"/>           <xs:enumeration value="loadFailed"/>           <xs:enumeration value="loaded"/>           <xs:enumeration value="loading"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dcOffsetIn" type="xs:int">       <xs:annotation>         <xs:documentation>DC offset correction being applied on each interrupt</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dcOffsetOut" type="xs:int">       <xs:annotation>         <xs:documentation>measured and normalized DC offset out of stage 1</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dcOffsetInteg" type="xs:int">       <xs:annotation>         <xs:documentation>number of ticks to normalize and integrate stage 1 DC offsets before determining a solution </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dcOffsetEnable">       <xs:annotation>         <xs:documentation>turn the automatic DC offset correction on/off</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="lutFilename" type="xs:string">       <xs:annotation>         <xs:documentation>name of currently loaded LUT</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/stage1/@numTaps

type	xs:int
source	<xs:attribute name="numTaps" type="xs:int"/>

attribute firFilter/stage1/@outputRate

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
source	<xs:attribute name="outputRate">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/@filterDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1023
source	<xs:attribute name="filterDelay">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1023"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/@invalidStretch

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1023
source	<xs:attribute name="invalidStretch">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1023"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/@scaleFactor

type	xs:int
source	<xs:attribute name="scaleFactor" type="xs:int"/>

attribute firFilter/stage1/@fractionalBits

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  16
source	<xs:attribute name="fractionalBits">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/@vlbiDelayMode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="vlbiDelayMode">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/@lutLoadStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  notLoaded enumeration  loadVerified enumeration  loadFailed enumeration  loaded enumeration  loading
annotation	documentation loading status of stage 1 LUT
source	<xs:attribute name="lutLoadStatus">   <xs:annotation>     <xs:documentation>loading status of stage 1 LUT</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLoaded"/>       <xs:enumeration value="loadVerified"/>       <xs:enumeration value="loadFailed"/>       <xs:enumeration value="loaded"/>       <xs:enumeration value="loading"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/@dcOffsetIn

type	xs:int
annotation	documentation DC offset correction being applied on each interrupt
source	<xs:attribute name="dcOffsetIn" type="xs:int">   <xs:annotation>     <xs:documentation>DC offset correction being applied on each interrupt</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/stage1/@dcOffsetOut

type	xs:int
annotation	documentation measured and normalized DC offset out of stage 1
source	<xs:attribute name="dcOffsetOut" type="xs:int">   <xs:annotation>     <xs:documentation>measured and normalized DC offset out of stage 1</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/stage1/@dcOffsetInteg

type	xs:int
annotation	documentation number of ticks to normalize and integrate stage 1 DC offsets before determining a solution
source	<xs:attribute name="dcOffsetInteg" type="xs:int">   <xs:annotation>     <xs:documentation>number of ticks to normalize and integrate stage 1 DC offsets before determining a solution </xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/stage1/@dcOffsetEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation turn the automatic DC offset correction on/off
source	<xs:attribute name="dcOffsetEnable">   <xs:annotation>     <xs:documentation>turn the automatic DC offset correction on/off</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/@lutFilename

type	xs:string
annotation	documentation name of currently loaded LUT
source	<xs:attribute name="lutFilename" type="xs:string">   <xs:annotation>     <xs:documentation>name of currently loaded LUT</xs:documentation>   </xs:annotation> </xs:attribute>

element firFilter/stage1/fir32

diagram
properties	minOcc  0 maxOcc  16 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int            input   derived by: xs:string            xbarAddress   derived by: xs:int
source	<xs:element name="fir32" minOccurs="0" maxOccurs="16">   <xs:complexType>     <xs:attribute name="id">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="input">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="crossbar"/>           <xs:enumeration value="previous"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="xbarAddress">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/stage1/fir32/@id

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
source	<xs:attribute name="id">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/fir32/@input

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  crossbar enumeration  previous
source	<xs:attribute name="input">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="crossbar"/>       <xs:enumeration value="previous"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage1/fir32/@xbarAddress

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
source	<xs:attribute name="xbarAddress">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

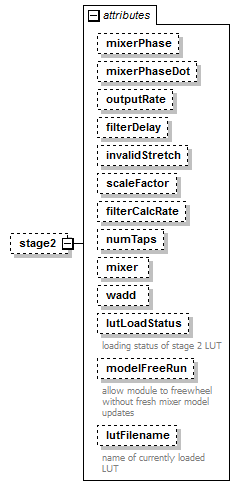

element firFilter/stage2

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation mixerPhase   xs:string            mixerPhaseDot   xs:string            outputRate   derived by: xs:string            filterDelay   derived by: xs:int            invalidStretch   derived by: xs:int            scaleFactor   xs:int            filterCalcRate   derived by: xs:string            numTaps   derived by: xs:int            mixer   derived by: xs:string            wadd   xs:int            lutLoadStatus   derived by: xs:string            documentation loading status of stage 2 LUT modelFreeRun   derived by: xs:string            documentation allow module to freewheel without fresh mixer model updates lutFilename   xs:string            documentation name of currently loaded LUT
source	<xs:element name="stage2" minOccurs="0">   <xs:complexType>     <xs:attribute name="mixerPhase" type="xs:string"/>     <xs:attribute name="mixerPhaseDot" type="xs:string"/>     <xs:attribute name="outputRate">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="filterDelay">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1023"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="invalidStretch">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1023"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scaleFactor" type="xs:int"/>     <xs:attribute name="filterCalcRate">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numTaps">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="32"/>           <xs:maxInclusive value="512"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="mixer">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="phaseErrorOff"/>           <xs:enumeration value="phaseErrorOn"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="wadd" type="xs:int"/>     <xs:attribute name="lutLoadStatus">       <xs:annotation>         <xs:documentation>loading status of stage 2 LUT</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLoaded"/>           <xs:enumeration value="loadVerified"/>           <xs:enumeration value="loadFailed"/>           <xs:enumeration value="loaded"/>           <xs:enumeration value="loading"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="modelFreeRun">       <xs:annotation>         <xs:documentation>allow module to freewheel without fresh mixer model updates</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="lutFilename" type="xs:string">       <xs:annotation>         <xs:documentation>name of currently loaded LUT</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/stage2/@mixerPhase

type	xs:string
source	<xs:attribute name="mixerPhase" type="xs:string"/>

attribute firFilter/stage2/@mixerPhaseDot

type	xs:string
source	<xs:attribute name="mixerPhaseDot" type="xs:string"/>

attribute firFilter/stage2/@outputRate

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
source	<xs:attribute name="outputRate">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage2/@filterDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1023
source	<xs:attribute name="filterDelay">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1023"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage2/@invalidStretch

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1023
source	<xs:attribute name="invalidStretch">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1023"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage2/@scaleFactor

type	xs:int
source	<xs:attribute name="scaleFactor" type="xs:int"/>

attribute firFilter/stage2/@filterCalcRate

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
source	<xs:attribute name="filterCalcRate">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage2/@numTaps

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  32 maxInclusive  512
source	<xs:attribute name="numTaps">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="32"/>       <xs:maxInclusive value="512"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage2/@mixer

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  phaseErrorOff enumeration  phaseErrorOn
source	<xs:attribute name="mixer">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="phaseErrorOff"/>       <xs:enumeration value="phaseErrorOn"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage2/@wadd

type	xs:int
source	<xs:attribute name="wadd" type="xs:int"/>

attribute firFilter/stage2/@lutLoadStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  notLoaded enumeration  loadVerified enumeration  loadFailed enumeration  loaded enumeration  loading
annotation	documentation loading status of stage 2 LUT
source	<xs:attribute name="lutLoadStatus">   <xs:annotation>     <xs:documentation>loading status of stage 2 LUT</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLoaded"/>       <xs:enumeration value="loadVerified"/>       <xs:enumeration value="loadFailed"/>       <xs:enumeration value="loaded"/>       <xs:enumeration value="loading"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage2/@modelFreeRun

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation allow module to freewheel without fresh mixer model updates
source	<xs:attribute name="modelFreeRun">   <xs:annotation>     <xs:documentation>allow module to freewheel without fresh mixer model updates</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage2/@lutFilename

type	xs:string
annotation	documentation name of currently loaded LUT
source	<xs:attribute name="lutFilename" type="xs:string">   <xs:annotation>     <xs:documentation>name of currently loaded LUT</xs:documentation>   </xs:annotation> </xs:attribute>

element firFilter/stage3

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation outputRate   derived by: xs:string            filterDelay   derived by: xs:int            invalidStretch   derived by: xs:int            scaleFactor   xs:int            filterCalcRate   derived by: xs:string            numTaps   derived by: xs:string            wadd   xs:int            lutLoadStatus   derived by: xs:string            documentation loading status of stage 3 LUT lutFilename   xs:string            documentation name of currently loaded LUT
source	<xs:element name="stage3" minOccurs="0">   <xs:complexType>     <xs:attribute name="outputRate">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="filterDelay">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1023"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="invalidStretch">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1023"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scaleFactor" type="xs:int"/>     <xs:attribute name="filterCalcRate">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numTaps">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="64"/>           <xs:enumeration value="128"/>           <xs:enumeration value="256"/>           <xs:enumeration value="512"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="wadd" type="xs:int"/>     <xs:attribute name="lutLoadStatus">       <xs:annotation>         <xs:documentation>loading status of stage 3 LUT</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLoaded"/>           <xs:enumeration value="loadVerified"/>           <xs:enumeration value="loadFailed"/>           <xs:enumeration value="loaded"/>           <xs:enumeration value="loading"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="lutFilename" type="xs:string">       <xs:annotation>         <xs:documentation>name of currently loaded LUT</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/stage3/@outputRate

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
source	<xs:attribute name="outputRate">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage3/@filterDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1023
source	<xs:attribute name="filterDelay">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1023"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage3/@invalidStretch

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1023
source	<xs:attribute name="invalidStretch">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1023"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage3/@scaleFactor

type	xs:int
source	<xs:attribute name="scaleFactor" type="xs:int"/>

attribute firFilter/stage3/@filterCalcRate

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
source	<xs:attribute name="filterCalcRate">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage3/@numTaps

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  64 enumeration  128 enumeration  256 enumeration  512
source	<xs:attribute name="numTaps">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="64"/>       <xs:enumeration value="128"/>       <xs:enumeration value="256"/>       <xs:enumeration value="512"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage3/@wadd

type	xs:int
source	<xs:attribute name="wadd" type="xs:int"/>

attribute firFilter/stage3/@lutLoadStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  notLoaded enumeration  loadVerified enumeration  loadFailed enumeration  loaded enumeration  loading
annotation	documentation loading status of stage 3 LUT
source	<xs:attribute name="lutLoadStatus">   <xs:annotation>     <xs:documentation>loading status of stage 3 LUT</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLoaded"/>       <xs:enumeration value="loadVerified"/>       <xs:enumeration value="loadFailed"/>       <xs:enumeration value="loaded"/>       <xs:enumeration value="loading"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage3/@lutFilename

type	xs:string
annotation	documentation name of currently loaded LUT
source	<xs:attribute name="lutFilename" type="xs:string">   <xs:annotation>     <xs:documentation>name of currently loaded LUT</xs:documentation>   </xs:annotation> </xs:attribute>

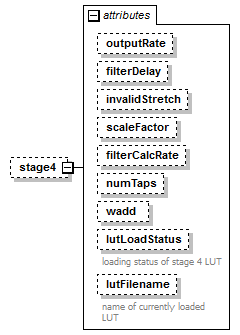

element firFilter/stage4

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation outputRate   derived by: xs:string            filterDelay   derived by: xs:int            invalidStretch   derived by: xs:int            scaleFactor   xs:int            filterCalcRate   derived by: xs:string            numTaps   derived by: xs:string            wadd   xs:int            lutLoadStatus   derived by: xs:string            documentation loading status of stage 4 LUT lutFilename   xs:string            documentation name of currently loaded LUT
source	<xs:element name="stage4" minOccurs="0">   <xs:complexType>     <xs:attribute name="outputRate">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="filterDelay">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1023"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="invalidStretch">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1023"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scaleFactor" type="xs:int"/>     <xs:attribute name="filterCalcRate">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numTaps">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="64"/>           <xs:enumeration value="128"/>           <xs:enumeration value="256"/>           <xs:enumeration value="512"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="wadd" type="xs:int"/>     <xs:attribute name="lutLoadStatus">       <xs:annotation>         <xs:documentation>loading status of stage 4 LUT</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLoaded"/>           <xs:enumeration value="loadVerified"/>           <xs:enumeration value="loadFailed"/>           <xs:enumeration value="loaded"/>           <xs:enumeration value="loading"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="lutFilename" type="xs:string">       <xs:annotation>         <xs:documentation>name of currently loaded LUT</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/stage4/@outputRate

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
source	<xs:attribute name="outputRate">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage4/@filterDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1023
source	<xs:attribute name="filterDelay">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1023"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage4/@invalidStretch

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1023
source	<xs:attribute name="invalidStretch">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1023"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage4/@scaleFactor

type	xs:int
source	<xs:attribute name="scaleFactor" type="xs:int"/>

attribute firFilter/stage4/@filterCalcRate

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
source	<xs:attribute name="filterCalcRate">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage4/@numTaps

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  64 enumeration  128 enumeration  256 enumeration  512
source	<xs:attribute name="numTaps">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="64"/>       <xs:enumeration value="128"/>       <xs:enumeration value="256"/>       <xs:enumeration value="512"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage4/@wadd

type	xs:int
source	<xs:attribute name="wadd" type="xs:int"/>

attribute firFilter/stage4/@lutLoadStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  notLoaded enumeration  loadVerified enumeration  loadFailed enumeration  loaded enumeration  loading
annotation	documentation loading status of stage 4 LUT
source	<xs:attribute name="lutLoadStatus">   <xs:annotation>     <xs:documentation>loading status of stage 4 LUT</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLoaded"/>       <xs:enumeration value="loadVerified"/>       <xs:enumeration value="loadFailed"/>       <xs:enumeration value="loaded"/>       <xs:enumeration value="loading"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/stage4/@lutFilename

type	xs:string
annotation	documentation name of currently loaded LUT
source	<xs:attribute name="lutFilename" type="xs:string">   <xs:annotation>     <xs:documentation>name of currently loaded LUT</xs:documentation>   </xs:annotation> </xs:attribute>

element firFilter/inputOutput

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation wideBandDelay   derived by: xs:int            inputPort   derived by: xs:string            outputPort0   derived by: xs:string            outputPort1   derived by: xs:string            inBits   derived by: xs:string            serialOut   derived by: xs:string            acBalance   derived by: xs:string            bit7Valid   derived by: xs:string
source	<xs:element name="inputOutput" minOccurs="0">   <xs:complexType>     <xs:attribute name="wideBandDelay">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="63"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputPort">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outputPort0">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outputPort1">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inBits">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="4bit"/>           <xs:enumeration value="8bit"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="serialOut">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="4bit"/>           <xs:enumeration value="8bit"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="acBalance">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bit7Valid">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/inputOutput/@wideBandDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  63
source	<xs:attribute name="wideBandDelay">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="63"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/inputOutput/@inputPort

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1
source	<xs:attribute name="inputPort">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/inputOutput/@outputPort0

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="outputPort0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/inputOutput/@outputPort1

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="outputPort1">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/inputOutput/@inBits

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  4bit enumeration  8bit
source	<xs:attribute name="inBits">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="4bit"/>       <xs:enumeration value="8bit"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/inputOutput/@serialOut

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  4bit enumeration  8bit
source	<xs:attribute name="serialOut">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="4bit"/>       <xs:enumeration value="8bit"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/inputOutput/@acBalance

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="acBalance">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/inputOutput/@bit7Valid

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="bit7Valid">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element firFilter/timeInterval

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation dTick_sTick   xs:int   required         documentation time interval count in clock cycles dTick   xs:int   required         documentation time interval count in clock cycles sTick   xs:int   required         documentation time interval count in clock cycles sTick_dTick   xs:int   required         documentation time interval count in clock cycles
annotation	documentation input signal time interval measurements
source	<xs:element name="timeInterval" minOccurs="0">   <xs:annotation>     <xs:documentation>input signal time interval measurements</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="dTick_sTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTick_dTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/timeInterval/@dTick_sTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles
source	<xs:attribute name="dTick_sTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/timeInterval/@dTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles
source	<xs:attribute name="dTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/timeInterval/@sTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles
source	<xs:attribute name="sTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/timeInterval/@sTick_dTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles
source	<xs:attribute name="sTick_dTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles</xs:documentation>   </xs:annotation> </xs:attribute>

element firFilter/delay2

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation outDataDelay   derived by: xs:int            vsiDataDelay   derived by: xs:int            pErrorDelay   derived by: xs:int
source	<xs:element name="delay2" minOccurs="0">   <xs:complexType>     <xs:attribute name="outDataDelay">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="8190"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vsiDataDelay">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="8190"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pErrorDelay">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="8190"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/delay2/@outDataDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  8190
source	<xs:attribute name="outDataDelay">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="8190"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/delay2/@vsiDataDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  8190
source	<xs:attribute name="vsiDataDelay">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="8190"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/delay2/@pErrorDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  8190
source	<xs:attribute name="pErrorDelay">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="8190"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element firFilter/clockEdge

diagram
properties	minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:string   required         documentation specify signal edge   derived by: xs:string   required         documentation clock edge to use
annotation	documentation signal clock edge selection
source	<xs:element name="clockEdge" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>signal clock edge selection</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="sTick"/>           <xs:enumeration value="data"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="edge" use="required">       <xs:annotation>         <xs:documentation>clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/clockEdge/@id

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  sTick enumeration  data
annotation	documentation specify signal
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="sTick"/>       <xs:enumeration value="data"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/clockEdge/@edge

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation clock edge to use
source	<xs:attribute name="edge" use="required">   <xs:annotation>     <xs:documentation>clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element firFilter/dataProducts

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation powerInteg   derived by: xs:int            powerEnable   derived by: xs:string            clipInteg   derived by: xs:int            clipEnable   derived by: xs:string            qStateInteg   derived by: xs:int            qStateEnable   derived by: xs:string            rfiInteg   derived by: xs:int            rfiEnable   derived by: xs:string            toneInteg   derived by: xs:int            toneEnable   derived by: xs:string
source	<xs:element name="dataProducts" minOccurs="0">   <xs:complexType>     <xs:attribute name="powerInteg">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="powerEnable">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="clipInteg">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="clipEnable">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="qStateInteg">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="qStateEnable">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="rfiInteg">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="rfiEnable">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="toneInteg">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="toneEnable">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/dataProducts/@powerInteg

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1
source	<xs:attribute name="powerInteg">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@powerEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="powerEnable">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@clipInteg

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1
source	<xs:attribute name="clipInteg">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@clipEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="clipEnable">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@qStateInteg

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1
source	<xs:attribute name="qStateInteg">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@qStateEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="qStateEnable">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@rfiInteg

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1
source	<xs:attribute name="rfiInteg">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@rfiEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="rfiEnable">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@toneInteg

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1
source	<xs:attribute name="toneInteg">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/dataProducts/@toneEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="toneEnable">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element firFilter/format

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation primarySignal   derived by: xs:string            secondarySignal   derived by: xs:string            ndOffValidCount   derived by: xs:int            ndOnValidCount   derived by: xs:int            ndOffPower   xs:string            ndOnPower   xs:string            toneModelPhase   xs:string            toneModelPhaseRate   xs:string            toneValidCount   xs:int            toneExtractorCos   xs:string            toneExtractorSin   xs:string            quantScale   derived by: xs:int            quantClipCount   xs:int            quantNumBits   derived by: xs:int            quantOutState   derived by: xs:int            quantOutStateCount   xs:int            quantPower   xs:string            clipCount   xs:int            rfiDetectLevel   xs:int            rfiInvalidLength   xs:int            rfiDetectCount   xs:int            flipper   derived by: xs:string            mixerLutLoadStatus   derived by: xs:string            documentation loading status of mixer LUT toneLutLoadStatus   derived by: xs:string            documentation loading status of tone extractor LUT modelFreeRun   derived by: xs:string            documentation allow module to freewheel without fresh tone model updates texFilename   xs:string            documentation name of currently loaded tone extractor LUT mixerFilename   xs:string            documentation name of currently loaded mixer LUT
source	<xs:element name="format" minOccurs="0">   <xs:complexType>     <xs:attribute name="primarySignal">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="stage1"/>           <xs:enumeration value="stage2"/>           <xs:enumeration value="stage3"/>           <xs:enumeration value="stage4"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="secondarySignal">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="stage1"/>           <xs:enumeration value="stage2"/>           <xs:enumeration value="stage3"/>           <xs:enumeration value="stage4"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ndOffValidCount">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="2560000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ndOnValidCount">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="2560000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ndOffPower" type="xs:string"/>     <xs:attribute name="ndOnPower" type="xs:string"/>     <xs:attribute name="toneModelPhase" type="xs:string"/>     <xs:attribute name="toneModelPhaseRate" type="xs:string"/>     <xs:attribute name="toneValidCount" type="xs:int"/>     <xs:attribute name="toneExtractorCos" type="xs:string"/>     <xs:attribute name="toneExtractorSin" type="xs:string"/>     <xs:attribute name="quantScale">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="65535"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="quantClipCount" type="xs:int"/>     <xs:attribute name="quantNumBits">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="8"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="quantOutState">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="-128"/>           <xs:maxInclusive value="127"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="quantOutStateCount" type="xs:int"/>     <xs:attribute name="quantPower" type="xs:string"/>     <xs:attribute name="clipCount" type="xs:int"/>     <xs:attribute name="rfiDetectLevel" type="xs:int"/>     <xs:attribute name="rfiInvalidLength" type="xs:int"/>     <xs:attribute name="rfiDetectCount" type="xs:int"/>     <xs:attribute name="flipper">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="mixerLutLoadStatus">       <xs:annotation>         <xs:documentation>loading status of mixer LUT</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLoaded"/>           <xs:enumeration value="loadVerified"/>           <xs:enumeration value="loadFailed"/>           <xs:enumeration value="loaded"/>           <xs:enumeration value="loading"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="toneLutLoadStatus">       <xs:annotation>         <xs:documentation>loading status of tone extractor LUT</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLoaded"/>           <xs:enumeration value="loadVerified"/>           <xs:enumeration value="loadFailed"/>           <xs:enumeration value="loaded"/>           <xs:enumeration value="loading"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="modelFreeRun">       <xs:annotation>         <xs:documentation>allow module to freewheel without fresh tone model updates</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="texFilename" type="xs:string">       <xs:annotation>         <xs:documentation>name of currently loaded tone extractor LUT</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="mixerFilename" type="xs:string">       <xs:annotation>         <xs:documentation>name of currently loaded mixer LUT</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/format/@primarySignal

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  stage1 enumeration  stage2 enumeration  stage3 enumeration  stage4
source	<xs:attribute name="primarySignal">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="stage1"/>       <xs:enumeration value="stage2"/>       <xs:enumeration value="stage3"/>       <xs:enumeration value="stage4"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@secondarySignal

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  stage1 enumeration  stage2 enumeration  stage3 enumeration  stage4
source	<xs:attribute name="secondarySignal">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="stage1"/>       <xs:enumeration value="stage2"/>       <xs:enumeration value="stage3"/>       <xs:enumeration value="stage4"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@ndOffValidCount

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  2560000
source	<xs:attribute name="ndOffValidCount">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="2560000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@ndOnValidCount

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  2560000
source	<xs:attribute name="ndOnValidCount">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="2560000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@ndOffPower

type	xs:string
source	<xs:attribute name="ndOffPower" type="xs:string"/>

attribute firFilter/format/@ndOnPower

type	xs:string
source	<xs:attribute name="ndOnPower" type="xs:string"/>

attribute firFilter/format/@toneModelPhase

type	xs:string
source	<xs:attribute name="toneModelPhase" type="xs:string"/>

attribute firFilter/format/@toneModelPhaseRate

type	xs:string
source	<xs:attribute name="toneModelPhaseRate" type="xs:string"/>

attribute firFilter/format/@toneValidCount

type	xs:int
source	<xs:attribute name="toneValidCount" type="xs:int"/>

attribute firFilter/format/@toneExtractorCos

type	xs:string
source	<xs:attribute name="toneExtractorCos" type="xs:string"/>

attribute firFilter/format/@toneExtractorSin

type	xs:string
source	<xs:attribute name="toneExtractorSin" type="xs:string"/>

attribute firFilter/format/@quantScale

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  65535
source	<xs:attribute name="quantScale">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="65535"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@quantClipCount

type	xs:int
source	<xs:attribute name="quantClipCount" type="xs:int"/>

attribute firFilter/format/@quantNumBits

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  8
source	<xs:attribute name="quantNumBits">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="8"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@quantOutState

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  -128 maxInclusive  127
source	<xs:attribute name="quantOutState">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="-128"/>       <xs:maxInclusive value="127"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@quantOutStateCount

type	xs:int
source	<xs:attribute name="quantOutStateCount" type="xs:int"/>

attribute firFilter/format/@quantPower

type	xs:string
source	<xs:attribute name="quantPower" type="xs:string"/>

attribute firFilter/format/@clipCount

type	xs:int
source	<xs:attribute name="clipCount" type="xs:int"/>

attribute firFilter/format/@rfiDetectLevel

type	xs:int
source	<xs:attribute name="rfiDetectLevel" type="xs:int"/>

attribute firFilter/format/@rfiInvalidLength

type	xs:int
source	<xs:attribute name="rfiInvalidLength" type="xs:int"/>

attribute firFilter/format/@rfiDetectCount

type	xs:int
source	<xs:attribute name="rfiDetectCount" type="xs:int"/>

attribute firFilter/format/@flipper

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="flipper">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@mixerLutLoadStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  notLoaded enumeration  loadVerified enumeration  loadFailed enumeration  loaded enumeration  loading
annotation	documentation loading status of mixer LUT
source	<xs:attribute name="mixerLutLoadStatus">   <xs:annotation>     <xs:documentation>loading status of mixer LUT</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLoaded"/>       <xs:enumeration value="loadVerified"/>       <xs:enumeration value="loadFailed"/>       <xs:enumeration value="loaded"/>       <xs:enumeration value="loading"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@toneLutLoadStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  notLoaded enumeration  loadVerified enumeration  loadFailed enumeration  loaded enumeration  loading
annotation	documentation loading status of tone extractor LUT
source	<xs:attribute name="toneLutLoadStatus">   <xs:annotation>     <xs:documentation>loading status of tone extractor LUT</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLoaded"/>       <xs:enumeration value="loadVerified"/>       <xs:enumeration value="loadFailed"/>       <xs:enumeration value="loaded"/>       <xs:enumeration value="loading"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@modelFreeRun

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation allow module to freewheel without fresh tone model updates
source	<xs:attribute name="modelFreeRun">   <xs:annotation>     <xs:documentation>allow module to freewheel without fresh tone model updates</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/format/@texFilename

type	xs:string
annotation	documentation name of currently loaded tone extractor LUT
source	<xs:attribute name="texFilename" type="xs:string">   <xs:annotation>     <xs:documentation>name of currently loaded tone extractor LUT</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/format/@mixerFilename

type	xs:string
annotation	documentation name of currently loaded mixer LUT
source	<xs:attribute name="mixerFilename" type="xs:string">   <xs:annotation>     <xs:documentation>name of currently loaded mixer LUT</xs:documentation>   </xs:annotation> </xs:attribute>

element firFilter/testGen

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation mode   derived by: xs:string            documentation operational mode for test generator seed   xs:string            documentation data seed value for bit generator
annotation	documentation Internal test generator
source	<xs:element name="testGen" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal test generator</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="mode">       <xs:annotation>         <xs:documentation>operational mode for test generator</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="random"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="seed" type="xs:string">       <xs:annotation>         <xs:documentation> data seed value for bit generator</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/testGen/@mode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  random
annotation	documentation operational mode for test generator
source	<xs:attribute name="mode">   <xs:annotation>     <xs:documentation>operational mode for test generator</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="random"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/testGen/@seed

type	xs:string
annotation	documentation data seed value for bit generator
source	<xs:attribute name="seed" type="xs:string">   <xs:annotation>     <xs:documentation> data seed value for bit generator</xs:documentation>   </xs:annotation> </xs:attribute>

element firFilter/crc

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation scan   derived by: xs:string   optional         documentation CRC error checking mode scanWireIn   derived by: xs:string   optional         documentation (deprecated)wire to scan if not in automatic scan mode ledCrcInputB   ledType            documentation status of 'B' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off ledCrcInputA   ledType            documentation status of 'A' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off scanWireInput   derived by: xs:string   optional         documentation wire to check input CRC scanWireOut   derived by: xs:string   optional         documentation (deprecated)wire to scan on all outputs if not in automatic scan mode scanWireOutput   derived by: xs:string   optional         documentation wire to scan CRC on all outputs forceInputError   derived by: xs:string   optional         documentation force a CRC error on an input wire forceOutputError   derived by: xs:string   optional         documentation force a CRC error on output port wire
annotation	documentation CRC setup information
source	<xs:element name="crc" minOccurs="0">   <xs:annotation>     <xs:documentation>CRC setup information </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="scan" use="optional">       <xs:annotation>         <xs:documentation>CRC error checking mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="single"/>           <xs:enumeration value="auto"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireIn" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)wire to scan if not in automatic scan mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="delayError"/>           <xs:enumeration value="delayFrame"/>           <xs:enumeration value="sysClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledCrcInputB" type="ledType">       <xs:annotation>         <xs:documentation>status of 'B' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledCrcInputA" type="ledType">       <xs:annotation>         <xs:documentation>status of 'A' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="scanWireInput" use="optional">       <xs:annotation>         <xs:documentation>wire to check input CRC</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="auto"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="delayError"/>           <xs:enumeration value="delayFrame"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireOut" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)wire to scan on all outputs if not in automatic scan mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireOutput" use="optional">       <xs:annotation>         <xs:documentation>wire to scan CRC on all outputs</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="auto"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceInputError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on an input wire</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="none"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceOutputError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on output port wire</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="none"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/crc/@scan

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  single enumeration  auto
annotation	documentation CRC error checking mode
source	<xs:attribute name="scan" use="optional">   <xs:annotation>     <xs:documentation>CRC error checking mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="single"/>       <xs:enumeration value="auto"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/crc/@scanWireIn

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  delayError enumeration  delayFrame enumeration  sysClock
annotation	documentation (deprecated)wire to scan if not in automatic scan mode
source	<xs:attribute name="scanWireIn" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)wire to scan if not in automatic scan mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="delayError"/>       <xs:enumeration value="delayFrame"/>       <xs:enumeration value="sysClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/crc/@ledCrcInputB

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of 'B' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInputB" type="ledType">   <xs:annotation>     <xs:documentation>status of 'B' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/crc/@ledCrcInputA

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of 'A' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInputA" type="ledType">   <xs:annotation>     <xs:documentation>status of 'A' Input to Filter CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute firFilter/crc/@scanWireInput

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  auto enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  delayError enumeration  delayFrame enumeration  dataClock
annotation	documentation wire to check input CRC
source	<xs:attribute name="scanWireInput" use="optional">   <xs:annotation>     <xs:documentation>wire to check input CRC</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="auto"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="delayError"/>       <xs:enumeration value="delayFrame"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/crc/@scanWireOut

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation (deprecated)wire to scan on all outputs if not in automatic scan mode
source	<xs:attribute name="scanWireOut" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)wire to scan on all outputs if not in automatic scan mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/crc/@scanWireOutput

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  auto enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation wire to scan CRC on all outputs
source	<xs:attribute name="scanWireOutput" use="optional">   <xs:annotation>     <xs:documentation>wire to scan CRC on all outputs</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="auto"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/crc/@forceInputError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  none enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63
annotation	documentation force a CRC error on an input wire
source	<xs:attribute name="forceInputError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on an input wire</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="none"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/crc/@forceOutputError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  none enumeration  0 enumeration  1 enumeration  2 enumeration  3
annotation	documentation force a CRC error on output port wire
source	<xs:attribute name="forceOutputError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on output port wire</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="none"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element firFilter/firVCI

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation inBands   derived by: xs:int            inBits   derived by: xs:int            inBandWidth   derived by: xs:string            inBandSelect   derived by: xs:int            outBits   derived by: xs:int            outBandWidth   derived by: xs:string            outCenterFreq   xs:string            accumulation   xs:int            flipper   derived by: xs:string            mixer   derived by: xs:string
source	<xs:element name="firVCI" minOccurs="0">   <xs:complexType>     <xs:attribute name="inBands">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inBits">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:enumeration value="4"/>           <xs:enumeration value="8"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inBandWidth">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="62500Hz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="256MHz"/>           <xs:enumeration value="512MHz"/>           <xs:enumeration value="1024MHz"/>           <xs:enumeration value="2048MHz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inBandSelect">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outBits">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="8"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outBandWidth">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="62500Hz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="256MHz"/>           <xs:enumeration value="512MHz"/>           <xs:enumeration value="1024MHz"/>           <xs:enumeration value="2048MHz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outCenterFreq" type="xs:string"/>     <xs:attribute name="accumulation" type="xs:int"/>     <xs:attribute name="flipper">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="mixer">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute firFilter/firVCI/@inBands

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  16
source	<xs:attribute name="inBands">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/firVCI/@inBits

type	restriction of xs:int
facets	Kind  Value  Annotation enumeration  4 enumeration  8
source	<xs:attribute name="inBits">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:enumeration value="4"/>       <xs:enumeration value="8"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/firVCI/@inBandWidth

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  62500Hz enumeration  125KHz enumeration  250KHz enumeration  500KHz enumeration  1MHz enumeration  2MHz enumeration  4MHz enumeration  8MHz enumeration  16MHz enumeration  32MHz enumeration  64MHz enumeration  128MHz enumeration  256MHz enumeration  512MHz enumeration  1024MHz enumeration  2048MHz
source	<xs:attribute name="inBandWidth">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="62500Hz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="256MHz"/>       <xs:enumeration value="512MHz"/>       <xs:enumeration value="1024MHz"/>       <xs:enumeration value="2048MHz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/firVCI/@inBandSelect

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  16
source	<xs:attribute name="inBandSelect">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/firVCI/@outBits

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  8
source	<xs:attribute name="outBits">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="8"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/firVCI/@outBandWidth

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  62500Hz enumeration  125KHz enumeration  250KHz enumeration  500KHz enumeration  1MHz enumeration  2MHz enumeration  4MHz enumeration  8MHz enumeration  16MHz enumeration  32MHz enumeration  64MHz enumeration  128MHz enumeration  256MHz enumeration  512MHz enumeration  1024MHz enumeration  2048MHz
source	<xs:attribute name="outBandWidth">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="62500Hz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="256MHz"/>       <xs:enumeration value="512MHz"/>       <xs:enumeration value="1024MHz"/>       <xs:enumeration value="2048MHz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/firVCI/@outCenterFreq

type	xs:string
source	<xs:attribute name="outCenterFreq" type="xs:string"/>

attribute firFilter/firVCI/@accumulation

type	xs:int
source	<xs:attribute name="accumulation" type="xs:int"/>

attribute firFilter/firVCI/@flipper

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="flipper">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute firFilter/firVCI/@mixer

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="mixer">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element firFilter/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation inputOutput   xs:string            dataProducts   xs:string            delay   xs:string            errorCount   xs:string            stage1   xs:string            register   xs:string            user   xs:string            about   xs:string            error   xs:string            stage2   xs:string            stage3   xs:string            stage4   xs:string            format   xs:string            delay2   xs:string            timeInterval   xs:string            testGen   xs:string            crc   xs:string            clockEdge   xs:string            firVCI   xs:string            all   xs:string
source	<xs:element name="state" minOccurs="0">   <xs:complexType>     <xs:attribute name="inputOutput" type="xs:string"/>     <xs:attribute name="dataProducts" type="xs:string"/>     <xs:attribute name="delay" type="xs:string"/>     <xs:attribute name="errorCount" type="xs:string"/>     <xs:attribute name="stage1" type="xs:string"/>     <xs:attribute name="register" type="xs:string"/>     <xs:attribute name="user" type="xs:string"/>     <xs:attribute name="about" type="xs:string"/>     <xs:attribute name="error" type="xs:string"/>     <xs:attribute name="stage2" type="xs:string"/>     <xs:attribute name="stage3" type="xs:string"/>     <xs:attribute name="stage4" type="xs:string"/>     <xs:attribute name="format" type="xs:string"/>     <xs:attribute name="delay2" type="xs:string"/>     <xs:attribute name="timeInterval" type="xs:string"/>     <xs:attribute name="testGen" type="xs:string"/>     <xs:attribute name="crc" type="xs:string"/>     <xs:attribute name="clockEdge" type="xs:string"/>     <xs:attribute name="firVCI" type="xs:string"/>     <xs:attribute name="all" type="xs:string"/>   </xs:complexType> </xs:element>

attribute firFilter/state/@inputOutput

type	xs:string
source	<xs:attribute name="inputOutput" type="xs:string"/>

attribute firFilter/state/@dataProducts

type	xs:string
source	<xs:attribute name="dataProducts" type="xs:string"/>

attribute firFilter/state/@delay

type	xs:string
source	<xs:attribute name="delay" type="xs:string"/>

attribute firFilter/state/@errorCount

type	xs:string
source	<xs:attribute name="errorCount" type="xs:string"/>

attribute firFilter/state/@stage1

type	xs:string
source	<xs:attribute name="stage1" type="xs:string"/>

attribute firFilter/state/@register

type	xs:string
source	<xs:attribute name="register" type="xs:string"/>

attribute firFilter/state/@user

type	xs:string
source	<xs:attribute name="user" type="xs:string"/>

attribute firFilter/state/@about

type	xs:string
source	<xs:attribute name="about" type="xs:string"/>

attribute firFilter/state/@error

type	xs:string
source	<xs:attribute name="error" type="xs:string"/>

attribute firFilter/state/@stage2

type	xs:string
source	<xs:attribute name="stage2" type="xs:string"/>

attribute firFilter/state/@stage3

type	xs:string
source	<xs:attribute name="stage3" type="xs:string"/>

attribute firFilter/state/@stage4

type	xs:string
source	<xs:attribute name="stage4" type="xs:string"/>

attribute firFilter/state/@format

type	xs:string
source	<xs:attribute name="format" type="xs:string"/>

attribute firFilter/state/@delay2

type	xs:string
source	<xs:attribute name="delay2" type="xs:string"/>

attribute firFilter/state/@timeInterval

type	xs:string
source	<xs:attribute name="timeInterval" type="xs:string"/>

attribute firFilter/state/@testGen

type	xs:string
source	<xs:attribute name="testGen" type="xs:string"/>

attribute firFilter/state/@crc

type	xs:string
source	<xs:attribute name="crc" type="xs:string"/>

attribute firFilter/state/@clockEdge

type	xs:string
source	<xs:attribute name="clockEdge" type="xs:string"/>

attribute firFilter/state/@firVCI

type	xs:string
source	<xs:attribute name="firVCI" type="xs:string"/>

attribute firFilter/state/@all

type	xs:string
source	<xs:attribute name="all" type="xs:string"/>

element fpgaConfig

diagram
properties	content  complex
children	status filterProgram vsiProgram powerSupply state about error register schedule user
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         documentation time this message was generated ledDevice   ledType            documentation Status of this FPGA device stationBoardSN   xs:string   optional         documentation DEPRECATED embedded serial number  location of this motherboard filterPgmMask0   xs:string   optional         documentation DEPRECATED filter chip program mask word for bank 0 filterPgmMask1   xs:string   optional         documentation DEPRECATED filter chip program mask word for bank 1 vsiPgmMask   xs:string   optional         documentation DEPRECATED vsi chip program mask word filterDoneStatus0   xs:string   optional         documentation DEPRECATED filter chip programming complete word for bank 0 filterDoneStatus1   xs:string   optional         documentation DEPRECATED filter chip programming complete word for bank 1 vsiDoneStatus   xs:string   optional         documentation DEPRECATED vsi chip programming complete word powerStatus   xs:string   optional         documentation DEPRECATED power supply status mask delayDoneStatus   xs:string   optional         documentation DEPRECATED vsi chip programming complete word inputDoneStatus   xs:string   optional         documentation DEPRECATED vsi chip programming complete word wbcDoneStatus   xs:string   optional         documentation DEPRECATED vsi chip programming complete word timingDoneStatus   xs:string   optional         documentation DEPRECATED vsi chip programming complete word outputDoneStatus   xs:string   optional         documentation DEPRECATED vsi chip programming complete word
annotation	documentation Station board FPGA program bit stream program mask and power monitor module
source	<xs:element name="fpgaConfig">   <xs:annotation>     <xs:documentation>Station board FPGA program bit stream program mask and power monitor module</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="status" minOccurs="0">         <xs:complexType>           <xs:attribute name="stationBoardSN" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>embedded serial number  location of this motherboard</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="filterPgmMask0" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>filter chip program mask word for bank 0 </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="filterPgmMask1" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>filter chip program mask word for bank 1 </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vsiPgmMask" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>vsi chip program mask word </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="filterDoneStatus0" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>filter chip programming complete word for bank 0 </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="filterDoneStatus1" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>filter chip programming complete word for bank 1 </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vsiDoneStatus" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>vsi chip programming complete word </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="powerStatus" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>power supply status mask </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayDoneStatus" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>vsi chip programming complete word </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="inputDoneStatus" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>vsi chip programming complete word </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="wbcDoneStatus" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>vsi chip programming complete word </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="timingDoneStatus" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>vsi chip programming complete word </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="outputDoneStatus" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>vsi chip programming complete word </xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="filterProgram" minOccurs="0" maxOccurs="36">         <xs:annotation>           <xs:documentation>personality bitstream write masks for the filter chips </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="bankId" use="required">             <xs:annotation>               <xs:documentation>specify which filter bank the chip is a member of</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="filterId" use="required">             <xs:annotation>               <xs:documentation>specify which filter chip</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="writeProtect" use="required">             <xs:annotation>               <xs:documentation>enable or disable chip reprogramming</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="enable"/>                 <xs:enumeration value="disable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="vsiProgram" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>personality bitstream write masks for the VSI chips </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify which VSI chip</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="writeProtect" use="required">             <xs:annotation>               <xs:documentation>enable or disable chip reprogramming</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="enable"/>                 <xs:enumeration value="disable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="powerSupply" minOccurs="0">         <xs:annotation>           <xs:documentation>station board power supply status </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="ps5_0Volt" use="optional">             <xs:annotation>               <xs:documentation>status of 5.0 volt power supply</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps3_3Volt" use="optional">             <xs:annotation>               <xs:documentation>status of 3.3 volt power supply</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps2_5Volt" use="optional">             <xs:annotation>               <xs:documentation>status of 2.5 volt power supply</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps1_5Volt" use="optional">             <xs:annotation>               <xs:documentation>status of 1.5 volt power supply</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps1_2VoltA0" use="optional">             <xs:annotation>               <xs:documentation>status of 1.2 volt power supply A0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps1_2VoltA1" use="optional">             <xs:annotation>               <xs:documentation>status of 1.2 volt power supply A1</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps1_2VoltA2" use="optional">             <xs:annotation>               <xs:documentation>status of 1.2 volt power supply A2</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps1_2VoltB0" use="optional">             <xs:annotation>               <xs:documentation>status of 1.2 volt power supply B0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps1_2VoltB1" use="optional">             <xs:annotation>               <xs:documentation>status of 1.2 volt power supply B1</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ps1_2VoltB2" use="optional">             <xs:annotation>               <xs:documentation>status of 1.2 volt power supply B2</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="fault"/>                 <xs:enumeration value="ok"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:annotation>           <xs:documentation>report module status and state</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="status" type="xs:string">             <xs:annotation>               <xs:documentation>report status attributes</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="filterProgram" type="xs:string">             <xs:annotation>               <xs:documentation>report filter chip programming mask state</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vsiProgram" type="xs:string">             <xs:annotation>               <xs:documentation>report VSI chip programming mask state</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="powerSupply" type="xs:string">             <xs:annotation>               <xs:documentation>report station board power supply status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="register" type="xs:string">             <xs:annotation>               <xs:documentation>report specified register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="user" type="xs:string">             <xs:annotation>               <xs:documentation>report user logging configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="about" type="xs:string">             <xs:annotation>               <xs:documentation>report general module information</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="error" type="xs:string">             <xs:annotation>               <xs:documentation>report errors</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="schedule" minOccurs="0"/>       <xs:element ref="user" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime" use="optional">       <xs:annotation>         <xs:documentation>time this message was generated</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stationBoardSN" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED embedded serial number  location of this motherboard</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterPgmMask0" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED filter chip program mask word for bank 0 </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterPgmMask1" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED filter chip program mask word for bank 1 </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsiPgmMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED vsi chip program mask word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterDoneStatus0" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED filter chip programming complete word for bank 0 </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterDoneStatus1" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED filter chip programming complete word for bank 1 </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsiDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="powerStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED power supply status mask </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="inputDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="wbcDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timingDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="outputDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fpgaConfig/@time

type	xs:dateTime
properties	use  optional
annotation	documentation time this message was generated
source	<xs:attribute name="time" type="xs:dateTime" use="optional">   <xs:annotation>     <xs:documentation>time this message was generated</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@stationBoardSN

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED embedded serial number  location of this motherboard
source	<xs:attribute name="stationBoardSN" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED embedded serial number  location of this motherboard</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@filterPgmMask0

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED filter chip program mask word for bank 0
source	<xs:attribute name="filterPgmMask0" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED filter chip program mask word for bank 0 </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@filterPgmMask1

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED filter chip program mask word for bank 1
source	<xs:attribute name="filterPgmMask1" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED filter chip program mask word for bank 1 </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@vsiPgmMask

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED vsi chip program mask word
source	<xs:attribute name="vsiPgmMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED vsi chip program mask word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@filterDoneStatus0

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED filter chip programming complete word for bank 0
source	<xs:attribute name="filterDoneStatus0" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED filter chip programming complete word for bank 0 </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@filterDoneStatus1

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED filter chip programming complete word for bank 1
source	<xs:attribute name="filterDoneStatus1" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED filter chip programming complete word for bank 1 </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@vsiDoneStatus

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED vsi chip programming complete word
source	<xs:attribute name="vsiDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@powerStatus

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED power supply status mask
source	<xs:attribute name="powerStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED power supply status mask </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@delayDoneStatus

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED vsi chip programming complete word
source	<xs:attribute name="delayDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@inputDoneStatus

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED vsi chip programming complete word
source	<xs:attribute name="inputDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@wbcDoneStatus

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED vsi chip programming complete word
source	<xs:attribute name="wbcDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@timingDoneStatus

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED vsi chip programming complete word
source	<xs:attribute name="timingDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/@outputDoneStatus

type	xs:string
properties	use  optional
annotation	documentation DEPRECATED vsi chip programming complete word
source	<xs:attribute name="outputDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>DEPRECATED vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

element fpgaConfig/status

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation stationBoardSN   xs:string   optional         documentation embedded serial number  location of this motherboard filterPgmMask0   xs:string   optional         documentation filter chip program mask word for bank 0 filterPgmMask1   xs:string   optional         documentation filter chip program mask word for bank 1 vsiPgmMask   xs:string   optional         documentation vsi chip program mask word filterDoneStatus0   xs:string   optional         documentation filter chip programming complete word for bank 0 filterDoneStatus1   xs:string   optional         documentation filter chip programming complete word for bank 1 vsiDoneStatus   xs:string   optional         documentation vsi chip programming complete word powerStatus   xs:string   optional         documentation power supply status mask delayDoneStatus   xs:string   optional         documentation vsi chip programming complete word inputDoneStatus   xs:string   optional         documentation vsi chip programming complete word wbcDoneStatus   xs:string   optional         documentation vsi chip programming complete word timingDoneStatus   xs:string   optional         documentation vsi chip programming complete word outputDoneStatus   xs:string   optional         documentation vsi chip programming complete word
source	<xs:element name="status" minOccurs="0">   <xs:complexType>     <xs:attribute name="stationBoardSN" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>embedded serial number  location of this motherboard</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterPgmMask0" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>filter chip program mask word for bank 0 </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterPgmMask1" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>filter chip program mask word for bank 1 </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsiPgmMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>vsi chip program mask word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterDoneStatus0" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>filter chip programming complete word for bank 0 </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterDoneStatus1" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>filter chip programming complete word for bank 1 </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsiDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="powerStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>power supply status mask </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="inputDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="wbcDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timingDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="outputDoneStatus" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>vsi chip programming complete word </xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fpgaConfig/status/@stationBoardSN

type	xs:string
properties	use  optional
annotation	documentation embedded serial number  location of this motherboard
source	<xs:attribute name="stationBoardSN" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>embedded serial number  location of this motherboard</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@filterPgmMask0

type	xs:string
properties	use  optional
annotation	documentation filter chip program mask word for bank 0
source	<xs:attribute name="filterPgmMask0" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>filter chip program mask word for bank 0 </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@filterPgmMask1

type	xs:string
properties	use  optional
annotation	documentation filter chip program mask word for bank 1
source	<xs:attribute name="filterPgmMask1" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>filter chip program mask word for bank 1 </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@vsiPgmMask

type	xs:string
properties	use  optional
annotation	documentation vsi chip program mask word
source	<xs:attribute name="vsiPgmMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>vsi chip program mask word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@filterDoneStatus0

type	xs:string
properties	use  optional
annotation	documentation filter chip programming complete word for bank 0
source	<xs:attribute name="filterDoneStatus0" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>filter chip programming complete word for bank 0 </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@filterDoneStatus1

type	xs:string
properties	use  optional
annotation	documentation filter chip programming complete word for bank 1
source	<xs:attribute name="filterDoneStatus1" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>filter chip programming complete word for bank 1 </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@vsiDoneStatus

type	xs:string
properties	use  optional
annotation	documentation vsi chip programming complete word
source	<xs:attribute name="vsiDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@powerStatus

type	xs:string
properties	use  optional
annotation	documentation power supply status mask
source	<xs:attribute name="powerStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>power supply status mask </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@delayDoneStatus

type	xs:string
properties	use  optional
annotation	documentation vsi chip programming complete word
source	<xs:attribute name="delayDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@inputDoneStatus

type	xs:string
properties	use  optional
annotation	documentation vsi chip programming complete word
source	<xs:attribute name="inputDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@wbcDoneStatus

type	xs:string
properties	use  optional
annotation	documentation vsi chip programming complete word
source	<xs:attribute name="wbcDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@timingDoneStatus

type	xs:string
properties	use  optional
annotation	documentation vsi chip programming complete word
source	<xs:attribute name="timingDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/status/@outputDoneStatus

type	xs:string
properties	use  optional
annotation	documentation vsi chip programming complete word
source	<xs:attribute name="outputDoneStatus" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>vsi chip programming complete word </xs:documentation>   </xs:annotation> </xs:attribute>

element fpgaConfig/filterProgram

diagram
properties	minOcc  0 maxOcc  36 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation bankId   derived by: xs:int   required         documentation specify which filter bank the chip is a member of filterId   derived by: xs:int   required         documentation specify which filter chip writeProtect   derived by: xs:string   required         documentation enable or disable chip reprogramming
annotation	documentation personality bitstream write masks for the filter chips
source	<xs:element name="filterProgram" minOccurs="0" maxOccurs="36">   <xs:annotation>     <xs:documentation>personality bitstream write masks for the filter chips </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="bankId" use="required">       <xs:annotation>         <xs:documentation>specify which filter bank the chip is a member of</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="filterId" use="required">       <xs:annotation>         <xs:documentation>specify which filter chip</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="writeProtect" use="required">       <xs:annotation>         <xs:documentation>enable or disable chip reprogramming</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="enable"/>           <xs:enumeration value="disable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fpgaConfig/filterProgram/@bankId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation specify which filter bank the chip is a member of
source	<xs:attribute name="bankId" use="required">   <xs:annotation>     <xs:documentation>specify which filter bank the chip is a member of</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/filterProgram/@filterId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation specify which filter chip
source	<xs:attribute name="filterId" use="required">   <xs:annotation>     <xs:documentation>specify which filter chip</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/filterProgram/@writeProtect

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  enable enumeration  disable
annotation	documentation enable or disable chip reprogramming
source	<xs:attribute name="writeProtect" use="required">   <xs:annotation>     <xs:documentation>enable or disable chip reprogramming</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="enable"/>       <xs:enumeration value="disable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element fpgaConfig/vsiProgram

diagram
properties	minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         documentation specify which VSI chip writeProtect   derived by: xs:string   required         documentation enable or disable chip reprogramming
annotation	documentation personality bitstream write masks for the VSI chips
source	<xs:element name="vsiProgram" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>personality bitstream write masks for the VSI chips </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify which VSI chip</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="writeProtect" use="required">       <xs:annotation>         <xs:documentation>enable or disable chip reprogramming</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="enable"/>           <xs:enumeration value="disable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fpgaConfig/vsiProgram/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation specify which VSI chip
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify which VSI chip</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/vsiProgram/@writeProtect

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  enable enumeration  disable
annotation	documentation enable or disable chip reprogramming
source	<xs:attribute name="writeProtect" use="required">   <xs:annotation>     <xs:documentation>enable or disable chip reprogramming</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="enable"/>       <xs:enumeration value="disable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element fpgaConfig/powerSupply

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ps5_0Volt   derived by: xs:string   optional         documentation status of 5.0 volt power supply ps3_3Volt   derived by: xs:string   optional         documentation status of 3.3 volt power supply ps2_5Volt   derived by: xs:string   optional         documentation status of 2.5 volt power supply ps1_5Volt   derived by: xs:string   optional         documentation status of 1.5 volt power supply ps1_2VoltA0   derived by: xs:string   optional         documentation status of 1.2 volt power supply A0 ps1_2VoltA1   derived by: xs:string   optional         documentation status of 1.2 volt power supply A1 ps1_2VoltA2   derived by: xs:string   optional         documentation status of 1.2 volt power supply A2 ps1_2VoltB0   derived by: xs:string   optional         documentation status of 1.2 volt power supply B0 ps1_2VoltB1   derived by: xs:string   optional         documentation status of 1.2 volt power supply B1 ps1_2VoltB2   derived by: xs:string   optional         documentation status of 1.2 volt power supply B2
annotation	documentation station board power supply status
source	<xs:element name="powerSupply" minOccurs="0">   <xs:annotation>     <xs:documentation>station board power supply status </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="ps5_0Volt" use="optional">       <xs:annotation>         <xs:documentation>status of 5.0 volt power supply</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps3_3Volt" use="optional">       <xs:annotation>         <xs:documentation>status of 3.3 volt power supply</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps2_5Volt" use="optional">       <xs:annotation>         <xs:documentation>status of 2.5 volt power supply</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps1_5Volt" use="optional">       <xs:annotation>         <xs:documentation>status of 1.5 volt power supply</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps1_2VoltA0" use="optional">       <xs:annotation>         <xs:documentation>status of 1.2 volt power supply A0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps1_2VoltA1" use="optional">       <xs:annotation>         <xs:documentation>status of 1.2 volt power supply A1</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps1_2VoltA2" use="optional">       <xs:annotation>         <xs:documentation>status of 1.2 volt power supply A2</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps1_2VoltB0" use="optional">       <xs:annotation>         <xs:documentation>status of 1.2 volt power supply B0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps1_2VoltB1" use="optional">       <xs:annotation>         <xs:documentation>status of 1.2 volt power supply B1</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ps1_2VoltB2" use="optional">       <xs:annotation>         <xs:documentation>status of 1.2 volt power supply B2</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fpgaConfig/powerSupply/@ps5_0Volt

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 5.0 volt power supply
source	<xs:attribute name="ps5_0Volt" use="optional">   <xs:annotation>     <xs:documentation>status of 5.0 volt power supply</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps3_3Volt

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 3.3 volt power supply
source	<xs:attribute name="ps3_3Volt" use="optional">   <xs:annotation>     <xs:documentation>status of 3.3 volt power supply</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps2_5Volt

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 2.5 volt power supply
source	<xs:attribute name="ps2_5Volt" use="optional">   <xs:annotation>     <xs:documentation>status of 2.5 volt power supply</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps1_5Volt

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 1.5 volt power supply
source	<xs:attribute name="ps1_5Volt" use="optional">   <xs:annotation>     <xs:documentation>status of 1.5 volt power supply</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps1_2VoltA0

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 1.2 volt power supply A0
source	<xs:attribute name="ps1_2VoltA0" use="optional">   <xs:annotation>     <xs:documentation>status of 1.2 volt power supply A0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps1_2VoltA1

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 1.2 volt power supply A1
source	<xs:attribute name="ps1_2VoltA1" use="optional">   <xs:annotation>     <xs:documentation>status of 1.2 volt power supply A1</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps1_2VoltA2

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 1.2 volt power supply A2
source	<xs:attribute name="ps1_2VoltA2" use="optional">   <xs:annotation>     <xs:documentation>status of 1.2 volt power supply A2</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps1_2VoltB0

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 1.2 volt power supply B0
source	<xs:attribute name="ps1_2VoltB0" use="optional">   <xs:annotation>     <xs:documentation>status of 1.2 volt power supply B0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps1_2VoltB1

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 1.2 volt power supply B1
source	<xs:attribute name="ps1_2VoltB1" use="optional">   <xs:annotation>     <xs:documentation>status of 1.2 volt power supply B1</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaConfig/powerSupply/@ps1_2VoltB2

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 1.2 volt power supply B2
source	<xs:attribute name="ps1_2VoltB2" use="optional">   <xs:annotation>     <xs:documentation>status of 1.2 volt power supply B2</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element fpgaConfig/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation status   xs:string            documentation report status attributes filterProgram   xs:string            documentation report filter chip programming mask state vsiProgram   xs:string            documentation report VSI chip programming mask state powerSupply   xs:string            documentation report station board power supply status register   xs:string            documentation report specified register contents user   xs:string            documentation report user logging configuration about   xs:string            documentation report general module information error   xs:string            documentation report errors
annotation	documentation report module status and state
source	<xs:element name="state" minOccurs="0">   <xs:annotation>     <xs:documentation>report module status and state</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="status" type="xs:string">       <xs:annotation>         <xs:documentation>report status attributes</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterProgram" type="xs:string">       <xs:annotation>         <xs:documentation>report filter chip programming mask state</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsiProgram" type="xs:string">       <xs:annotation>         <xs:documentation>report VSI chip programming mask state</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="powerSupply" type="xs:string">       <xs:annotation>         <xs:documentation>report station board power supply status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="register" type="xs:string">       <xs:annotation>         <xs:documentation>report specified register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="user" type="xs:string">       <xs:annotation>         <xs:documentation>report user logging configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="about" type="xs:string">       <xs:annotation>         <xs:documentation>report general module information</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="error" type="xs:string">       <xs:annotation>         <xs:documentation>report errors</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fpgaConfig/state/@status

type	xs:string
annotation	documentation report status attributes
source	<xs:attribute name="status" type="xs:string">   <xs:annotation>     <xs:documentation>report status attributes</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/state/@filterProgram

type	xs:string
annotation	documentation report filter chip programming mask state
source	<xs:attribute name="filterProgram" type="xs:string">   <xs:annotation>     <xs:documentation>report filter chip programming mask state</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/state/@vsiProgram

type	xs:string
annotation	documentation report VSI chip programming mask state
source	<xs:attribute name="vsiProgram" type="xs:string">   <xs:annotation>     <xs:documentation>report VSI chip programming mask state</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/state/@powerSupply

type	xs:string
annotation	documentation report station board power supply status
source	<xs:attribute name="powerSupply" type="xs:string">   <xs:annotation>     <xs:documentation>report station board power supply status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/state/@register

type	xs:string
annotation	documentation report specified register contents
source	<xs:attribute name="register" type="xs:string">   <xs:annotation>     <xs:documentation>report specified register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/state/@user

type	xs:string
annotation	documentation report user logging configuration
source	<xs:attribute name="user" type="xs:string">   <xs:annotation>     <xs:documentation>report user logging configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/state/@about

type	xs:string
annotation	documentation report general module information
source	<xs:attribute name="about" type="xs:string">   <xs:annotation>     <xs:documentation>report general module information</xs:documentation>   </xs:annotation> </xs:attribute>

attribute fpgaConfig/state/@error

type	xs:string
annotation	documentation report errors
source	<xs:attribute name="error" type="xs:string">   <xs:annotation>     <xs:documentation>report errors</xs:documentation>   </xs:annotation> </xs:attribute>

element input

diagram
properties	content  complex
children	control status setup wideBandTestGen testGen crc dataPath reclock errorCount stateCounter noiseDiode inputTicks timeInterval clockEdge portDelay inputVCI testPin state about error register schedule user
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime            documentation System timestamp led   ledType            ledDevice   ledType            documentation Status of this FPGA device ledForm   ledType            documentation Status of the FORM signals ledDeviceForm   ledType            documentation Status of the FORM board
annotation	documentation Input Chip setup and control
source	<xs:element name="input">   <xs:annotation>     <xs:documentation>Input Chip setup and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="control" minOccurs="0">         <xs:complexType>           <xs:attribute name="reset" type="xs:string">             <xs:annotation>               <xs:documentation>assert module reset</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="status" minOccurs="0">         <xs:complexType>           <xs:attribute name="xtabLoadStatus">             <xs:annotation>               <xs:documentation>loading status of translator table</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLoaded"/>                 <xs:enumeration value="loadVerified"/>                 <xs:enumeration value="loadFailed"/>                 <xs:enumeration value="loaded"/>                 <xs:enumeration value="loading"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sysTickDelayForm" type="xs:int">             <xs:annotation>               <xs:documentation>number of clock cycles to delay the system tick for the FORM</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sysTickDelayVsi" type="xs:int">             <xs:annotation>               <xs:documentation>number of clock cycles to delay the system tick for the  VSI FPGAs</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="setup" minOccurs="0">         <xs:complexType>           <xs:attribute name="standby">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="counterEnable">             <xs:annotation>               <xs:documentation>Master enable for counter clocks</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="programEnable">             <xs:annotation>               <xs:documentation>Write protect FPGA device</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="yes"/>                 <xs:enumeration value="no"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="streamFormat" use="optional">             <xs:annotation>               <xs:documentation>source and format for input data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="4Bit"/>                 <xs:enumeration value="8Bit"/>                 <xs:enumeration value="vsi"/>                 <xs:enumeration value="wbTestGen"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="path0Source" use="optional">             <xs:annotation>               <xs:documentation>source of data for board path 0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="stream0"/>                 <xs:enumeration value="stream1"/>                 <xs:enumeration value="testGen0"/>                 <xs:enumeration value="testGen1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="path1Source" use="optional">             <xs:annotation>               <xs:documentation>source of data for board path 1</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="stream0"/>                 <xs:enumeration value="stream1"/>                 <xs:enumeration value="testGen0"/>                 <xs:enumeration value="testGen1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="wideBandTestGen" minOccurs="0">         <xs:annotation>           <xs:documentation>Internal wide band test generator</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="mode">             <xs:annotation>               <xs:documentation>operational mode for test generator (pseudo-random, pseudo-random with 10Hz noise diode, delta functions)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="random"/>                 <xs:enumeration value="randomND"/>                 <xs:enumeration value="delta"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="seed" type="xs:string">             <xs:annotation>               <xs:documentation> data seed value for bit generator</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="numBits">             <xs:annotation>               <xs:documentation>number of bits per sample in test data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="8"/>                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numBands">             <xs:annotation>               <xs:documentation>number of bands in test data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dataValid">             <xs:annotation>               <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="alwaysValid"/>                 <xs:enumeration value="oneInvalid"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testGen" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Internal test generator</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="pathId" use="required">             <xs:annotation>               <xs:documentation>path ID of test generator</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="mode">             <xs:annotation>               <xs:documentation>operational mode for test generator</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="random"/>                 <xs:enumeration value="delta"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="seed" type="xs:string">             <xs:annotation>               <xs:documentation>pseudo random data seed</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="numBits">             <xs:annotation>               <xs:documentation>number of bits per sample in test data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="8"/>                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numBands">             <xs:annotation>               <xs:documentation>number of bands in test data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dataValid">             <xs:annotation>               <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="alwaysValid"/>                 <xs:enumeration value="oneInvalid"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="crc" minOccurs="0">         <xs:annotation>           <xs:documentation>CRC line select</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="ledCrcInputA" type="ledType">             <xs:annotation>               <xs:documentation>status of FORM-A to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledCrcInputB" type="ledType">             <xs:annotation>               <xs:documentation>status of FORM-B to InputB CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledCrcInputC" type="ledType">             <xs:annotation>               <xs:documentation>status of FORM-C to InputC CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledCrcVsi0" type="ledType">             <xs:annotation>               <xs:documentation>status of VSI0 to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledCrcVsi1" type="ledType">             <xs:annotation>               <xs:documentation>status of VSI1 to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="scanWireInputA">             <xs:annotation>               <xs:documentation>specified wire to check CRC for FORM input A</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireInputB">             <xs:annotation>               <xs:documentation>specified wire to check CRC for FORM input B</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireInputC">             <xs:annotation>               <xs:documentation>specified wire to check CRC for FORM input C</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireOutput0">             <xs:annotation>               <xs:documentation>output wire to check CRC for data path 0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="antPps"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireOutput1">             <xs:annotation>               <xs:documentation>output wire to check CRC for data path 1</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="antPps"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireVsi0">             <xs:annotation>               <xs:documentation>wire to check CRC for VSI path 0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireVsi1">             <xs:annotation>               <xs:documentation>wire to check CRC for VSI path 1</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="out0">             <xs:annotation>               <xs:documentation>(deprecated) output stream 0 bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="pps"/>                 <xs:enumeration value="spare"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="out1">             <xs:annotation>               <xs:documentation>(deprecated) output stream 0 bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="pps"/>                 <xs:enumeration value="spare"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scan" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="single"/>                 <xs:enumeration value="auto"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="formA">             <xs:annotation>               <xs:documentation>(deprecated)fiber optic receiver module data stream A bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="31"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="formB">             <xs:annotation>               <xs:documentation>(deprecated)FORM data stream B bit select </xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="31"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="formC">             <xs:annotation>               <xs:documentation>(deprecated)FORM data stream C bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="31"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputA">             <xs:annotation>               <xs:documentation>(deprecated)Input chip data stream A bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="antPps"/>                 <xs:enumeration value="dataTick"/>                 <xs:enumeration value="spare"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputB">             <xs:annotation>               <xs:documentation>(deprecated)Input chip data stream B bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValidIn"/>                 <xs:enumeration value="antTime"/>                 <xs:enumeration value="dataTick"/>                 <xs:enumeration value="spare"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputC">             <xs:annotation>               <xs:documentation>(deprecated)Input chip data stream C bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="dataClock"/>                 <xs:enumeration value="dataTick"/>                 <xs:enumeration value="spare"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vsi0">             <xs:annotation>               <xs:documentation>(deprecated)VSI data stream 0 bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="pps"/>                 <xs:enumeration value="spare"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vsi1">             <xs:annotation>               <xs:documentation>(deprecated)VSI data stream 1 bit select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValidIn"/>                 <xs:enumeration value="pps"/>                 <xs:enumeration value="spare"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="dataPath" minOccurs="0">         <xs:annotation>           <xs:documentation>Input data path assignment and format control</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="format">             <xs:annotation>               <xs:documentation>input data bit format</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="4Bit"/>                 <xs:enumeration value="8Bit"/>                 <xs:enumeration value="vsi"/>                 <xs:enumeration value="forceZero"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="input0">             <xs:annotation>               <xs:documentation>input path 0 data source</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="stream0"/>                 <xs:enumeration value="stream1"/>                 <xs:enumeration value="test0"/>                 <xs:enumeration value="test1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="input1">             <xs:annotation>               <xs:documentation>input path 1 data source</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="stream0"/>                 <xs:enumeration value="stream1"/>                 <xs:enumeration value="test0"/>                 <xs:enumeration value="test1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="testEnable">             <xs:annotation>               <xs:documentation>input path test vector generation enable</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ramBlockId">             <xs:annotation>               <xs:documentation>translation RAM block select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="reclock" minOccurs="0">         <xs:annotation>           <xs:documentation>data path reclocking distances</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="inputA">             <xs:annotation>               <xs:documentation>input data path A reclocking distance</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputB">             <xs:annotation>               <xs:documentation>input data path B reclocking distance</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputC">             <xs:annotation>               <xs:documentation>input data path C reclocking distance</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vsi0">             <xs:annotation>               <xs:documentation>VSI input 0 reclocking distance</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vsi1">             <xs:annotation>               <xs:documentation>VSI input 1 reclocking distance</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="errorCount" minOccurs="0">         <xs:annotation>           <xs:documentation>FPGA error accumulations</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="ppsWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of system pps pulses > 4ns </xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pps100Width" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of system 100pps pulses > 4ns</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dcmLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of dcm out of lock errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portA10ms" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 10ms missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portB10ms" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 10ms missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portC10ms" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 10ms missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vsi0_10ms" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 10ms missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vsi1_10ms" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 10ms missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portA1sec" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 1 pps missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portB1sec" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 1 pps missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portC1sec" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 1 pps missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vsi0_1sec" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 1 pps missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vsi1_1sec" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 1 pps missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portA10sec" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portB10sec" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portC10sec" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="stateCounter" minOccurs="0">         <xs:annotation>           <xs:documentation>wideband state counter block setup and control</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="numBits" use="optional">             <xs:annotation>               <xs:documentation>wideband data input sample size</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="4bit"/>                 <xs:enumeration value="8bit"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numBands" use="optional">             <xs:annotation>               <xs:documentation>wideband data input band count</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="integEnable">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="integration" use="optional">             <xs:annotation>               <xs:documentation>number of integration cycles for all counts collected</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputBus">             <xs:annotation>               <xs:documentation>input data stream feeding this counter block</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="spread">             <xs:annotation>               <xs:documentation>window of states to count around peak sample</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="16"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="64"/>                 <xs:enumeration value="128"/>                 <xs:enumeration value="256"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="noiseDiode" minOccurs="0">         <xs:annotation>           <xs:documentation>noise diode model parameters</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="width" type="xs:int">             <xs:annotation>               <xs:documentation>value read from the ND width register</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="phase" type="xs:int">             <xs:annotation>               <xs:documentation>value read from the ND phase register</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="rate" type="xs:int">             <xs:annotation>               <xs:documentation>value read from the ND phase rate register</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="maximum" type="xs:int">             <xs:annotation>               <xs:documentation>noise diode maximum count</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="onCount" type="xs:int">             <xs:annotation>               <xs:documentation>last interrupts noise diode on count</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="offCount" type="xs:int">             <xs:annotation>               <xs:documentation>last interrupts noise diode off count</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="modelFreeRun">             <xs:annotation>               <xs:documentation>noise diode model self-run mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="inputTicks" minOccurs="0" maxOccurs="5">         <xs:annotation>           <xs:documentation>input data sync tag status</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>input data stream select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="a"/>                 <xs:enumeration value="b"/>                 <xs:enumeration value="c"/>                 <xs:enumeration value="vsi0"/>                 <xs:enumeration value="vsi1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pulse10msStatus">             <xs:annotation>               <xs:documentation>100 Hz pulse occured within previous 10ms</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="ok"/>                 <xs:enumeration value="error"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pulse1secStatus">             <xs:annotation>               <xs:documentation>1 Hz pulse occured within previous second</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="ok"/>                 <xs:enumeration value="error"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pulse10secStatus">             <xs:annotation>               <xs:documentation>0.1 Hz  pulse occured within previous 10 second interval</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="ok"/>                 <xs:enumeration value="error"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="timeInterval" minOccurs="0" maxOccurs="5">         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>path of measured signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="formA"/>                 <xs:enumeration value="formB"/>                 <xs:enumeration value="formC"/>                 <xs:enumeration value="vsi0"/>                 <xs:enumeration value="vsi1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dataTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>data to system tick count</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="antTick" type="xs:int">             <xs:annotation>               <xs:documentation>antenna to system tick count</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ppsTick" type="xs:int">             <xs:annotation>               <xs:documentation>pulse per second t to system tick</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="clockEdge" minOccurs="0" maxOccurs="6">         <xs:annotation>           <xs:documentation>signal clock edge selection</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="sTick"/>                 <xs:enumeration value="inputA"/>                 <xs:enumeration value="inputB"/>                 <xs:enumeration value="inputC"/>                 <xs:enumeration value="vsi0"/>                 <xs:enumeration value="vsi1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="edge" use="required">             <xs:annotation>               <xs:documentation>clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="portDelay" minOccurs="0">         <xs:complexType>           <xs:attribute name="portAStages">             <xs:annotation>               <xs:documentation>Number of pipeline stages for port A</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="3"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="portBStages">             <xs:annotation>               <xs:documentation>Number of pipeline stages for port B</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="3"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="portCStages">             <xs:annotation>               <xs:documentation>Number of pipeline stages for port c</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="3"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vsi0Stages">             <xs:annotation>               <xs:documentation>Number of pipeline stages for VSI port 0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="3"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vsi1Stages">             <xs:annotation>               <xs:documentation>Number of pipeline stages for VSI port 0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="3"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="inputVCI" minOccurs="0">         <xs:complexType>           <xs:attribute name="path0Source">             <xs:annotation>               <xs:documentation>input path 0 data source</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="FORM0"/>                 <xs:enumeration value="FORM1"/>                 <xs:enumeration value="vsi0"/>                 <xs:enumeration value="vsi1"/>                 <xs:enumeration value="test0"/>                 <xs:enumeration value="test1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="path1Source">             <xs:annotation>               <xs:documentation>input path 1 data source</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="FORM0"/>                 <xs:enumeration value="FORM1"/>                 <xs:enumeration value="vsi0"/>                 <xs:enumeration value="vsi1"/>                 <xs:enumeration value="test0"/>                 <xs:enumeration value="test1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bitsPerSample">             <xs:annotation>               <xs:documentation>number of bits per sample in input data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="8"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bandsPerInput">             <xs:annotation>               <xs:documentation>number of bands per input stream</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiode">             <xs:annotation>               <xs:documentation>enable/disable noise diode model function</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiodeDutyCycle">             <xs:annotation>               <xs:documentation>fraction of cycle that noise diode is ON</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:float">                 <xs:minInclusive value="0.0"/>                 <xs:maxInclusive value="1.0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiodePhase">             <xs:annotation>               <xs:documentation>ND offset from the provided epoch in seconds</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:float">                 <xs:minInclusive value="0.0"/>                 <xs:maxInclusive value="8.0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiodeFreq">             <xs:annotation>               <xs:documentation>frequency of noise diode in Hertz</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:float">                 <xs:maxInclusive value="50.0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiodeEpoch" type="xs:string">             <xs:annotation>               <xs:documentation>Epoch for T0 of the noise diode model (uses Obs clock)</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testPin" minOccurs="0" maxOccurs="4">         <xs:annotation>           <xs:documentation>route internal FPGA signals to external pins</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify pin to map</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="4"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="signal">             <xs:annotation>               <xs:documentation>specify signal id</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="255"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:annotation>           <xs:documentation>access module state information</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="crc" type="xs:string">             <xs:annotation>               <xs:documentation>return complete CRC state</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dataPath" type="xs:string">             <xs:annotation>               <xs:documentation>return data path configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="testGen" type="xs:string">             <xs:annotation>               <xs:documentation>return test generator configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="wideBandTestGen" type="xs:string">             <xs:annotation>               <xs:documentation>return wide band test generator configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="reclock" type="xs:string">             <xs:annotation>               <xs:documentation>return reclock counts</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="errorCount" type="xs:string">             <xs:annotation>               <xs:documentation>return error accumulations</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="stateCounter" type="xs:string">             <xs:annotation>               <xs:documentation>return all state counter setup  information</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="noiseDiode" type="xs:string">             <xs:annotation>               <xs:documentation>return noise diode model parameters</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="inputTicks" type="xs:string">             <xs:annotation>               <xs:documentation>return input sync pulse status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="portDelay" type="xs:string">             <xs:annotation>               <xs:documentation>return port pipeline delays</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="timeInterval">             <xs:annotation>               <xs:documentation>return time interval counters</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="formA"/>                 <xs:enumeration value="formB"/>                 <xs:enumeration value="formC"/>                 <xs:enumeration value="vsi0"/>                 <xs:enumeration value="vsi1"/>                 <xs:enumeration value=""/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputVCI" type="xs:string">             <xs:annotation>               <xs:documentation>return inputVCI formatted setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="clockEdge">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="sTick"/>                 <xs:enumeration value="inputA"/>                 <xs:enumeration value="inputB"/>                 <xs:enumeration value="inputC"/>                 <xs:enumeration value="vsi0"/>                 <xs:enumeration value="vsi1"/>                 <xs:enumeration value=""/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="register" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>return specified register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="user" type="xs:string">             <xs:annotation>               <xs:documentation>return user logging state</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="about" type="xs:string">             <xs:annotation>               <xs:documentation>return general module information and status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="error" type="xs:string">             <xs:annotation>               <xs:documentation>return module error messages</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="testPin" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>return specified test pin register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string"/>           <xs:attribute name="setup" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="schedule" minOccurs="0"/>       <xs:element ref="user" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime">       <xs:annotation>         <xs:documentation>System timestamp</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="led" type="ledType"/>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledForm" type="ledType">       <xs:annotation>         <xs:documentation>Status of the FORM signals</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDeviceForm" type="ledType">       <xs:annotation>         <xs:documentation>Status of the FORM board</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/@time

type	xs:dateTime
annotation	documentation System timestamp
source	<xs:attribute name="time" type="xs:dateTime">   <xs:annotation>     <xs:documentation>System timestamp</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/@led

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="led" type="ledType"/>

attribute input/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/@ledForm

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of the FORM signals
source	<xs:attribute name="ledForm" type="ledType">   <xs:annotation>     <xs:documentation>Status of the FORM signals</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/@ledDeviceForm

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of the FORM board
source	<xs:attribute name="ledDeviceForm" type="ledType">   <xs:annotation>     <xs:documentation>Status of the FORM board</xs:documentation>   </xs:annotation> </xs:attribute>

element input/control

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation reset   xs:string            documentation assert module reset
source	<xs:element name="control" minOccurs="0">   <xs:complexType>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>assert module reset</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/control/@reset

type	xs:string
annotation	documentation assert module reset
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>assert module reset</xs:documentation>   </xs:annotation> </xs:attribute>

element input/status

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation xtabLoadStatus   derived by: xs:string            documentation loading status of translator table sysTickDelayForm   xs:int            documentation number of clock cycles to delay the system tick for the FORM sysTickDelayVsi   xs:int            documentation number of clock cycles to delay the system tick for the  VSI FPGAs
source	<xs:element name="status" minOccurs="0">   <xs:complexType>     <xs:attribute name="xtabLoadStatus">       <xs:annotation>         <xs:documentation>loading status of translator table</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLoaded"/>           <xs:enumeration value="loadVerified"/>           <xs:enumeration value="loadFailed"/>           <xs:enumeration value="loaded"/>           <xs:enumeration value="loading"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sysTickDelayForm" type="xs:int">       <xs:annotation>         <xs:documentation>number of clock cycles to delay the system tick for the FORM</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sysTickDelayVsi" type="xs:int">       <xs:annotation>         <xs:documentation>number of clock cycles to delay the system tick for the  VSI FPGAs</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/status/@xtabLoadStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  notLoaded enumeration  loadVerified enumeration  loadFailed enumeration  loaded enumeration  loading
annotation	documentation loading status of translator table
source	<xs:attribute name="xtabLoadStatus">   <xs:annotation>     <xs:documentation>loading status of translator table</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLoaded"/>       <xs:enumeration value="loadVerified"/>       <xs:enumeration value="loadFailed"/>       <xs:enumeration value="loaded"/>       <xs:enumeration value="loading"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/status/@sysTickDelayForm

type	xs:int
annotation	documentation number of clock cycles to delay the system tick for the FORM
source	<xs:attribute name="sysTickDelayForm" type="xs:int">   <xs:annotation>     <xs:documentation>number of clock cycles to delay the system tick for the FORM</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/status/@sysTickDelayVsi

type	xs:int
annotation	documentation number of clock cycles to delay the system tick for the  VSI FPGAs
source	<xs:attribute name="sysTickDelayVsi" type="xs:int">   <xs:annotation>     <xs:documentation>number of clock cycles to delay the system tick for the  VSI FPGAs</xs:documentation>   </xs:annotation> </xs:attribute>

element input/setup

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation standby   derived by: xs:string            counterEnable   derived by: xs:string            documentation Master enable for counter clocks programEnable   derived by: xs:string            documentation Write protect FPGA device streamFormat   derived by: xs:string   optional         documentation source and format for input data path0Source   derived by: xs:string   optional         documentation source of data for board path 0 path1Source   derived by: xs:string   optional         documentation source of data for board path 1
source	<xs:element name="setup" minOccurs="0">   <xs:complexType>     <xs:attribute name="standby">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="counterEnable">       <xs:annotation>         <xs:documentation>Master enable for counter clocks</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="programEnable">       <xs:annotation>         <xs:documentation>Write protect FPGA device</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="yes"/>           <xs:enumeration value="no"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="streamFormat" use="optional">       <xs:annotation>         <xs:documentation>source and format for input data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="4Bit"/>           <xs:enumeration value="8Bit"/>           <xs:enumeration value="vsi"/>           <xs:enumeration value="wbTestGen"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="path0Source" use="optional">       <xs:annotation>         <xs:documentation>source of data for board path 0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="stream0"/>           <xs:enumeration value="stream1"/>           <xs:enumeration value="testGen0"/>           <xs:enumeration value="testGen1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="path1Source" use="optional">       <xs:annotation>         <xs:documentation>source of data for board path 1</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="stream0"/>           <xs:enumeration value="stream1"/>           <xs:enumeration value="testGen0"/>           <xs:enumeration value="testGen1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/setup/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="standby">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/setup/@counterEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation Master enable for counter clocks
source	<xs:attribute name="counterEnable">   <xs:annotation>     <xs:documentation>Master enable for counter clocks</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/setup/@programEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  yes enumeration  no
annotation	documentation Write protect FPGA device
source	<xs:attribute name="programEnable">   <xs:annotation>     <xs:documentation>Write protect FPGA device</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="yes"/>       <xs:enumeration value="no"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/setup/@streamFormat

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  4Bit enumeration  8Bit enumeration  vsi enumeration  wbTestGen
annotation	documentation source and format for input data
source	<xs:attribute name="streamFormat" use="optional">   <xs:annotation>     <xs:documentation>source and format for input data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="4Bit"/>       <xs:enumeration value="8Bit"/>       <xs:enumeration value="vsi"/>       <xs:enumeration value="wbTestGen"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/setup/@path0Source

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  stream0 enumeration  stream1 enumeration  testGen0 enumeration  testGen1
annotation	documentation source of data for board path 0
source	<xs:attribute name="path0Source" use="optional">   <xs:annotation>     <xs:documentation>source of data for board path 0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="stream0"/>       <xs:enumeration value="stream1"/>       <xs:enumeration value="testGen0"/>       <xs:enumeration value="testGen1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/setup/@path1Source

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  stream0 enumeration  stream1 enumeration  testGen0 enumeration  testGen1
annotation	documentation source of data for board path 1
source	<xs:attribute name="path1Source" use="optional">   <xs:annotation>     <xs:documentation>source of data for board path 1</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="stream0"/>       <xs:enumeration value="stream1"/>       <xs:enumeration value="testGen0"/>       <xs:enumeration value="testGen1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/wideBandTestGen

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation mode   derived by: xs:string            documentation operational mode for test generator (pseudo-random, pseudo-random with 10Hz noise diode, delta functions) seed   xs:string            documentation data seed value for bit generator numBits   derived by: xs:int            documentation number of bits per sample in test data numBands   derived by: xs:string            documentation number of bands in test data dataValid   derived by: xs:string            documentation Specify if test pattern has 100% data valid or one sample is marked invalid.
annotation	documentation Internal wide band test generator
source	<xs:element name="wideBandTestGen" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal wide band test generator</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="mode">       <xs:annotation>         <xs:documentation>operational mode for test generator (pseudo-random, pseudo-random with 10Hz noise diode, delta functions)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="random"/>           <xs:enumeration value="randomND"/>           <xs:enumeration value="delta"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="seed" type="xs:string">       <xs:annotation>         <xs:documentation> data seed value for bit generator</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="numBits">       <xs:annotation>         <xs:documentation>number of bits per sample in test data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="8"/>           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numBands">       <xs:annotation>         <xs:documentation>number of bands in test data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="4"/>           <xs:enumeration value="8"/>           <xs:enumeration value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dataValid">       <xs:annotation>         <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="alwaysValid"/>           <xs:enumeration value="oneInvalid"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/wideBandTestGen/@mode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  random enumeration  randomND enumeration  delta
annotation	documentation operational mode for test generator (pseudo-random, pseudo-random with 10Hz noise diode, delta functions)
source	<xs:attribute name="mode">   <xs:annotation>     <xs:documentation>operational mode for test generator (pseudo-random, pseudo-random with 10Hz noise diode, delta functions)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="random"/>       <xs:enumeration value="randomND"/>       <xs:enumeration value="delta"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/wideBandTestGen/@seed

type	xs:string
annotation	documentation data seed value for bit generator
source	<xs:attribute name="seed" type="xs:string">   <xs:annotation>     <xs:documentation> data seed value for bit generator</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/wideBandTestGen/@numBits

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  8
annotation	documentation number of bits per sample in test data
source	<xs:attribute name="numBits">   <xs:annotation>     <xs:documentation>number of bits per sample in test data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="8"/>       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/wideBandTestGen/@numBands

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  1 enumeration  2 enumeration  4 enumeration  8 enumeration  16
annotation	documentation number of bands in test data
source	<xs:attribute name="numBands">   <xs:annotation>     <xs:documentation>number of bands in test data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="4"/>       <xs:enumeration value="8"/>       <xs:enumeration value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/wideBandTestGen/@dataValid

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  alwaysValid enumeration  oneInvalid
annotation	documentation Specify if test pattern has 100% data valid or one sample is marked invalid.
source	<xs:attribute name="dataValid">   <xs:annotation>     <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="alwaysValid"/>       <xs:enumeration value="oneInvalid"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/testGen

diagram
properties	minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation pathId   derived by: xs:int   required         documentation path ID of test generator mode   derived by: xs:string            documentation operational mode for test generator seed   xs:string            documentation pseudo random data seed numBits   derived by: xs:int            documentation number of bits per sample in test data numBands   derived by: xs:string            documentation number of bands in test data dataValid   derived by: xs:string            documentation Specify if test pattern has 100% data valid or one sample is marked invalid.
annotation	documentation Internal test generator
source	<xs:element name="testGen" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Internal test generator</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="pathId" use="required">       <xs:annotation>         <xs:documentation>path ID of test generator</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="mode">       <xs:annotation>         <xs:documentation>operational mode for test generator</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="random"/>           <xs:enumeration value="delta"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="seed" type="xs:string">       <xs:annotation>         <xs:documentation>pseudo random data seed</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="numBits">       <xs:annotation>         <xs:documentation>number of bits per sample in test data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="8"/>           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numBands">       <xs:annotation>         <xs:documentation>number of bands in test data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="4"/>           <xs:enumeration value="8"/>           <xs:enumeration value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dataValid">       <xs:annotation>         <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="alwaysValid"/>           <xs:enumeration value="oneInvalid"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/testGen/@pathId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation path ID of test generator
source	<xs:attribute name="pathId" use="required">   <xs:annotation>     <xs:documentation>path ID of test generator</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/testGen/@mode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  random enumeration  delta
annotation	documentation operational mode for test generator
source	<xs:attribute name="mode">   <xs:annotation>     <xs:documentation>operational mode for test generator</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="random"/>       <xs:enumeration value="delta"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/testGen/@seed

type	xs:string
annotation	documentation pseudo random data seed
source	<xs:attribute name="seed" type="xs:string">   <xs:annotation>     <xs:documentation>pseudo random data seed</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/testGen/@numBits

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  8
annotation	documentation number of bits per sample in test data
source	<xs:attribute name="numBits">   <xs:annotation>     <xs:documentation>number of bits per sample in test data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="8"/>       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/testGen/@numBands

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  1 enumeration  2 enumeration  4 enumeration  8 enumeration  16
annotation	documentation number of bands in test data
source	<xs:attribute name="numBands">   <xs:annotation>     <xs:documentation>number of bands in test data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="4"/>       <xs:enumeration value="8"/>       <xs:enumeration value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/testGen/@dataValid

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  alwaysValid enumeration  oneInvalid
annotation	documentation Specify if test pattern has 100% data valid or one sample is marked invalid.
source	<xs:attribute name="dataValid">   <xs:annotation>     <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="alwaysValid"/>       <xs:enumeration value="oneInvalid"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/crc

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ledCrcInputA   ledType            documentation status of FORM-A to Input CRCs. Green = OK, Red = ERROR, Off = checking off ledCrcInputB   ledType            documentation status of FORM-B to InputB CRCs. Green = OK, Red = ERROR, Off = checking off ledCrcInputC   ledType            documentation status of FORM-C to InputC CRCs. Green = OK, Red = ERROR, Off = checking off ledCrcVsi0   ledType            documentation status of VSI0 to Input CRCs. Green = OK, Red = ERROR, Off = checking off ledCrcVsi1   ledType            documentation status of VSI1 to Input CRCs. Green = OK, Red = ERROR, Off = checking off scanWireInputA   derived by: xs:string            documentation specified wire to check CRC for FORM input A scanWireInputB   derived by: xs:string            documentation specified wire to check CRC for FORM input B scanWireInputC   derived by: xs:string            documentation specified wire to check CRC for FORM input C scanWireOutput0   derived by: xs:string            documentation output wire to check CRC for data path 0 scanWireOutput1   derived by: xs:string            documentation output wire to check CRC for data path 1 scanWireVsi0   derived by: xs:string            documentation wire to check CRC for VSI path 0 scanWireVsi1   derived by: xs:string            documentation wire to check CRC for VSI path 1 out0   derived by: xs:string            documentation (deprecated) output stream 0 bit select out1   derived by: xs:string            documentation (deprecated) output stream 0 bit select scan   derived by: xs:string   optional         documentation (deprecated)CRC error checking mode formA   derived by: xs:int            documentation (deprecated)fiber optic receiver module data stream A bit select formB   derived by: xs:int            documentation (deprecated)FORM data stream B bit select formC   derived by: xs:int            documentation (deprecated)FORM data stream C bit select inputA   derived by: xs:string            documentation (deprecated)Input chip data stream A bit select inputB   derived by: xs:string            documentation (deprecated)Input chip data stream B bit select inputC   derived by: xs:string            documentation (deprecated)Input chip data stream C bit select vsi0   derived by: xs:string            documentation (deprecated)VSI data stream 0 bit select vsi1   derived by: xs:string            documentation (deprecated)VSI data stream 1 bit select
annotation	documentation CRC line select
source	<xs:element name="crc" minOccurs="0">   <xs:annotation>     <xs:documentation>CRC line select</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="ledCrcInputA" type="ledType">       <xs:annotation>         <xs:documentation>status of FORM-A to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledCrcInputB" type="ledType">       <xs:annotation>         <xs:documentation>status of FORM-B to InputB CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledCrcInputC" type="ledType">       <xs:annotation>         <xs:documentation>status of FORM-C to InputC CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledCrcVsi0" type="ledType">       <xs:annotation>         <xs:documentation>status of VSI0 to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledCrcVsi1" type="ledType">       <xs:annotation>         <xs:documentation>status of VSI1 to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="scanWireInputA">       <xs:annotation>         <xs:documentation>specified wire to check CRC for FORM input A</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireInputB">       <xs:annotation>         <xs:documentation>specified wire to check CRC for FORM input B</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireInputC">       <xs:annotation>         <xs:documentation>specified wire to check CRC for FORM input C</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireOutput0">       <xs:annotation>         <xs:documentation>output wire to check CRC for data path 0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="antPps"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireOutput1">       <xs:annotation>         <xs:documentation>output wire to check CRC for data path 1</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="antPps"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireVsi0">       <xs:annotation>         <xs:documentation>wire to check CRC for VSI path 0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireVsi1">       <xs:annotation>         <xs:documentation>wire to check CRC for VSI path 1</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="out0">       <xs:annotation>         <xs:documentation>(deprecated) output stream 0 bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="pps"/>           <xs:enumeration value="spare"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="out1">       <xs:annotation>         <xs:documentation>(deprecated) output stream 0 bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="pps"/>           <xs:enumeration value="spare"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scan" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="single"/>           <xs:enumeration value="auto"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="formA">       <xs:annotation>         <xs:documentation>(deprecated)fiber optic receiver module data stream A bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="31"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="formB">       <xs:annotation>         <xs:documentation>(deprecated)FORM data stream B bit select </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="31"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="formC">       <xs:annotation>         <xs:documentation>(deprecated)FORM data stream C bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="31"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputA">       <xs:annotation>         <xs:documentation>(deprecated)Input chip data stream A bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="antPps"/>           <xs:enumeration value="dataTick"/>           <xs:enumeration value="spare"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputB">       <xs:annotation>         <xs:documentation>(deprecated)Input chip data stream B bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValidIn"/>           <xs:enumeration value="antTime"/>           <xs:enumeration value="dataTick"/>           <xs:enumeration value="spare"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputC">       <xs:annotation>         <xs:documentation>(deprecated)Input chip data stream C bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="dataClock"/>           <xs:enumeration value="dataTick"/>           <xs:enumeration value="spare"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vsi0">       <xs:annotation>         <xs:documentation>(deprecated)VSI data stream 0 bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="pps"/>           <xs:enumeration value="spare"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vsi1">       <xs:annotation>         <xs:documentation>(deprecated)VSI data stream 1 bit select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValidIn"/>           <xs:enumeration value="pps"/>           <xs:enumeration value="spare"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/crc/@ledCrcInputA

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of FORM-A to Input CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInputA" type="ledType">   <xs:annotation>     <xs:documentation>status of FORM-A to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/crc/@ledCrcInputB

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of FORM-B to InputB CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInputB" type="ledType">   <xs:annotation>     <xs:documentation>status of FORM-B to InputB CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/crc/@ledCrcInputC

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of FORM-C to InputC CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInputC" type="ledType">   <xs:annotation>     <xs:documentation>status of FORM-C to InputC CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/crc/@ledCrcVsi0

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of VSI0 to Input CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcVsi0" type="ledType">   <xs:annotation>     <xs:documentation>status of VSI0 to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/crc/@ledCrcVsi1

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of VSI1 to Input CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcVsi1" type="ledType">   <xs:annotation>     <xs:documentation>status of VSI1 to Input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/crc/@scanWireInputA

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  dataClock
annotation	documentation specified wire to check CRC for FORM input A
source	<xs:attribute name="scanWireInputA">   <xs:annotation>     <xs:documentation>specified wire to check CRC for FORM input A</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@scanWireInputB

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  dataClock
annotation	documentation specified wire to check CRC for FORM input B
source	<xs:attribute name="scanWireInputB">   <xs:annotation>     <xs:documentation>specified wire to check CRC for FORM input B</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@scanWireInputC

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  dataClock
annotation	documentation specified wire to check CRC for FORM input C
source	<xs:attribute name="scanWireInputC">   <xs:annotation>     <xs:documentation>specified wire to check CRC for FORM input C</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@scanWireOutput0

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  antPps enumeration  dataClock
annotation	documentation output wire to check CRC for data path 0
source	<xs:attribute name="scanWireOutput0">   <xs:annotation>     <xs:documentation>output wire to check CRC for data path 0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="antPps"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@scanWireOutput1

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  antPps enumeration  dataClock
annotation	documentation output wire to check CRC for data path 1
source	<xs:attribute name="scanWireOutput1">   <xs:annotation>     <xs:documentation>output wire to check CRC for data path 1</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="antPps"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@scanWireVsi0

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  dataClock
annotation	documentation wire to check CRC for VSI path 0
source	<xs:attribute name="scanWireVsi0">   <xs:annotation>     <xs:documentation>wire to check CRC for VSI path 0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@scanWireVsi1

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  dataClock
annotation	documentation wire to check CRC for VSI path 1
source	<xs:attribute name="scanWireVsi1">   <xs:annotation>     <xs:documentation>wire to check CRC for VSI path 1</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@out0

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  pps enumeration  spare
annotation	documentation (deprecated) output stream 0 bit select
source	<xs:attribute name="out0">   <xs:annotation>     <xs:documentation>(deprecated) output stream 0 bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="pps"/>       <xs:enumeration value="spare"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@out1

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  pps enumeration  spare
annotation	documentation (deprecated) output stream 0 bit select
source	<xs:attribute name="out1">   <xs:annotation>     <xs:documentation>(deprecated) output stream 0 bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="pps"/>       <xs:enumeration value="spare"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@scan

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  single enumeration  auto
annotation	documentation (deprecated)CRC error checking mode
source	<xs:attribute name="scan" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="single"/>       <xs:enumeration value="auto"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@formA

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  31
annotation	documentation (deprecated)fiber optic receiver module data stream A bit select
source	<xs:attribute name="formA">   <xs:annotation>     <xs:documentation>(deprecated)fiber optic receiver module data stream A bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="31"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@formB

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  31
annotation	documentation (deprecated)FORM data stream B bit select
source	<xs:attribute name="formB">   <xs:annotation>     <xs:documentation>(deprecated)FORM data stream B bit select </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="31"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@formC

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  31
annotation	documentation (deprecated)FORM data stream C bit select
source	<xs:attribute name="formC">   <xs:annotation>     <xs:documentation>(deprecated)FORM data stream C bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="31"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@inputA

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  antPps enumeration  dataTick enumeration  spare
annotation	documentation (deprecated)Input chip data stream A bit select
source	<xs:attribute name="inputA">   <xs:annotation>     <xs:documentation>(deprecated)Input chip data stream A bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="antPps"/>       <xs:enumeration value="dataTick"/>       <xs:enumeration value="spare"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@inputB

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValidIn enumeration  antTime enumeration  dataTick enumeration  spare
annotation	documentation (deprecated)Input chip data stream B bit select
source	<xs:attribute name="inputB">   <xs:annotation>     <xs:documentation>(deprecated)Input chip data stream B bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValidIn"/>       <xs:enumeration value="antTime"/>       <xs:enumeration value="dataTick"/>       <xs:enumeration value="spare"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@inputC

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  dataClock enumeration  dataTick enumeration  spare
annotation	documentation (deprecated)Input chip data stream C bit select
source	<xs:attribute name="inputC">   <xs:annotation>     <xs:documentation>(deprecated)Input chip data stream C bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="dataClock"/>       <xs:enumeration value="dataTick"/>       <xs:enumeration value="spare"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@vsi0

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  pps enumeration  spare
annotation	documentation (deprecated)VSI data stream 0 bit select
source	<xs:attribute name="vsi0">   <xs:annotation>     <xs:documentation>(deprecated)VSI data stream 0 bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="pps"/>       <xs:enumeration value="spare"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/crc/@vsi1

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValidIn enumeration  pps enumeration  spare
annotation	documentation (deprecated)VSI data stream 1 bit select
source	<xs:attribute name="vsi1">   <xs:annotation>     <xs:documentation>(deprecated)VSI data stream 1 bit select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValidIn"/>       <xs:enumeration value="pps"/>       <xs:enumeration value="spare"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/dataPath

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation format   derived by: xs:string            documentation input data bit format input0   derived by: xs:string            documentation input path 0 data source input1   derived by: xs:string            documentation input path 1 data source testEnable   derived by: xs:string            documentation input path test vector generation enable ramBlockId   derived by: xs:int            documentation translation RAM block select
annotation	documentation Input data path assignment and format control
source	<xs:element name="dataPath" minOccurs="0">   <xs:annotation>     <xs:documentation>Input data path assignment and format control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="format">       <xs:annotation>         <xs:documentation>input data bit format</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="4Bit"/>           <xs:enumeration value="8Bit"/>           <xs:enumeration value="vsi"/>           <xs:enumeration value="forceZero"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="input0">       <xs:annotation>         <xs:documentation>input path 0 data source</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="stream0"/>           <xs:enumeration value="stream1"/>           <xs:enumeration value="test0"/>           <xs:enumeration value="test1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="input1">       <xs:annotation>         <xs:documentation>input path 1 data source</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="stream0"/>           <xs:enumeration value="stream1"/>           <xs:enumeration value="test0"/>           <xs:enumeration value="test1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="testEnable">       <xs:annotation>         <xs:documentation>input path test vector generation enable</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ramBlockId">       <xs:annotation>         <xs:documentation>translation RAM block select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/dataPath/@format

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  4Bit enumeration  8Bit enumeration  vsi enumeration  forceZero
annotation	documentation input data bit format
source	<xs:attribute name="format">   <xs:annotation>     <xs:documentation>input data bit format</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="4Bit"/>       <xs:enumeration value="8Bit"/>       <xs:enumeration value="vsi"/>       <xs:enumeration value="forceZero"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/dataPath/@input0

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  stream0 enumeration  stream1 enumeration  test0 enumeration  test1
annotation	documentation input path 0 data source
source	<xs:attribute name="input0">   <xs:annotation>     <xs:documentation>input path 0 data source</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="stream0"/>       <xs:enumeration value="stream1"/>       <xs:enumeration value="test0"/>       <xs:enumeration value="test1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/dataPath/@input1

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  stream0 enumeration  stream1 enumeration  test0 enumeration  test1
annotation	documentation input path 1 data source
source	<xs:attribute name="input1">   <xs:annotation>     <xs:documentation>input path 1 data source</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="stream0"/>       <xs:enumeration value="stream1"/>       <xs:enumeration value="test0"/>       <xs:enumeration value="test1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/dataPath/@testEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation input path test vector generation enable
source	<xs:attribute name="testEnable">   <xs:annotation>     <xs:documentation>input path test vector generation enable</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/dataPath/@ramBlockId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation translation RAM block select
source	<xs:attribute name="ramBlockId">   <xs:annotation>     <xs:documentation>translation RAM block select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/reclock

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation inputA   derived by: xs:int            documentation input data path A reclocking distance inputB   derived by: xs:int            documentation input data path B reclocking distance inputC   derived by: xs:int            documentation input data path C reclocking distance vsi0   derived by: xs:int            documentation VSI input 0 reclocking distance vsi1   derived by: xs:int            documentation VSI input 1 reclocking distance
annotation	documentation data path reclocking distances
source	<xs:element name="reclock" minOccurs="0">   <xs:annotation>     <xs:documentation>data path reclocking distances</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="inputA">       <xs:annotation>         <xs:documentation>input data path A reclocking distance</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputB">       <xs:annotation>         <xs:documentation>input data path B reclocking distance</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputC">       <xs:annotation>         <xs:documentation>input data path C reclocking distance</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vsi0">       <xs:annotation>         <xs:documentation>VSI input 0 reclocking distance</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vsi1">       <xs:annotation>         <xs:documentation>VSI input 1 reclocking distance</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/reclock/@inputA

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation input data path A reclocking distance
source	<xs:attribute name="inputA">   <xs:annotation>     <xs:documentation>input data path A reclocking distance</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/reclock/@inputB

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation input data path B reclocking distance
source	<xs:attribute name="inputB">   <xs:annotation>     <xs:documentation>input data path B reclocking distance</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/reclock/@inputC

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation input data path C reclocking distance
source	<xs:attribute name="inputC">   <xs:annotation>     <xs:documentation>input data path C reclocking distance</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/reclock/@vsi0

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation VSI input 0 reclocking distance
source	<xs:attribute name="vsi0">   <xs:annotation>     <xs:documentation>VSI input 0 reclocking distance</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/reclock/@vsi1

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation VSI input 1 reclocking distance
source	<xs:attribute name="vsi1">   <xs:annotation>     <xs:documentation>VSI input 1 reclocking distance</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/errorCount

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ppsWidth   xs:int   optional         documentation count of system pps pulses > 4ns pps100Width   xs:int   optional         documentation count of system 100pps pulses > 4ns dcmLock   xs:int   optional         documentation count of dcm out of lock errors portA10ms   xs:int   optional         documentation count of port 10ms missing pulses portB10ms   xs:int   optional         documentation count of port 10ms missing pulses portC10ms   xs:int   optional         documentation count of port 10ms missing pulses vsi0_10ms   xs:int   optional         documentation count of port 10ms missing pulses vsi1_10ms   xs:int   optional         documentation count of port 10ms missing pulses portA1sec   xs:int   optional         documentation count of port 1 pps missing pulses portB1sec   xs:int   optional         documentation count of port 1 pps missing pulses portC1sec   xs:int   optional         documentation count of port 1 pps missing pulses vsi0_1sec   xs:int   optional         documentation count of port 1 pps missing pulses vsi1_1sec   xs:int   optional         documentation count of port 1 pps missing pulses portA10sec   xs:int   optional         documentation count of port 0.1 pps missing pulses portB10sec   xs:int   optional         documentation count of port 0.1 pps missing pulses portC10sec   xs:int   optional         documentation count of port 0.1 pps missing pulses
annotation	documentation FPGA error accumulations
source	<xs:element name="errorCount" minOccurs="0">   <xs:annotation>     <xs:documentation>FPGA error accumulations</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="ppsWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of system pps pulses > 4ns </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pps100Width" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of system 100pps pulses > 4ns</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dcmLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of dcm out of lock errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portA10ms" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 10ms missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portB10ms" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 10ms missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portC10ms" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 10ms missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsi0_10ms" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 10ms missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsi1_10ms" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 10ms missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portA1sec" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 1 pps missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portB1sec" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 1 pps missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portC1sec" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 1 pps missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsi0_1sec" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 1 pps missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsi1_1sec" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 1 pps missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portA10sec" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portB10sec" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portC10sec" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/errorCount/@ppsWidth

type	xs:int
properties	use  optional
annotation	documentation count of system pps pulses > 4ns
source	<xs:attribute name="ppsWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of system pps pulses > 4ns </xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@pps100Width

type	xs:int
properties	use  optional
annotation	documentation count of system 100pps pulses > 4ns
source	<xs:attribute name="pps100Width" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of system 100pps pulses > 4ns</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@dcmLock

type	xs:int
properties	use  optional
annotation	documentation count of dcm out of lock errors
source	<xs:attribute name="dcmLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of dcm out of lock errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portA10ms

type	xs:int
properties	use  optional
annotation	documentation count of port 10ms missing pulses
source	<xs:attribute name="portA10ms" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 10ms missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portB10ms

type	xs:int
properties	use  optional
annotation	documentation count of port 10ms missing pulses
source	<xs:attribute name="portB10ms" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 10ms missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portC10ms

type	xs:int
properties	use  optional
annotation	documentation count of port 10ms missing pulses
source	<xs:attribute name="portC10ms" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 10ms missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@vsi0_10ms

type	xs:int
properties	use  optional
annotation	documentation count of port 10ms missing pulses
source	<xs:attribute name="vsi0_10ms" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 10ms missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@vsi1_10ms

type	xs:int
properties	use  optional
annotation	documentation count of port 10ms missing pulses
source	<xs:attribute name="vsi1_10ms" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 10ms missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portA1sec

type	xs:int
properties	use  optional
annotation	documentation count of port 1 pps missing pulses
source	<xs:attribute name="portA1sec" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 1 pps missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portB1sec

type	xs:int
properties	use  optional
annotation	documentation count of port 1 pps missing pulses
source	<xs:attribute name="portB1sec" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 1 pps missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portC1sec

type	xs:int
properties	use  optional
annotation	documentation count of port 1 pps missing pulses
source	<xs:attribute name="portC1sec" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 1 pps missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@vsi0_1sec

type	xs:int
properties	use  optional
annotation	documentation count of port 1 pps missing pulses
source	<xs:attribute name="vsi0_1sec" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 1 pps missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@vsi1_1sec

type	xs:int
properties	use  optional
annotation	documentation count of port 1 pps missing pulses
source	<xs:attribute name="vsi1_1sec" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 1 pps missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portA10sec

type	xs:int
properties	use  optional
annotation	documentation count of port 0.1 pps missing pulses
source	<xs:attribute name="portA10sec" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portB10sec

type	xs:int
properties	use  optional
annotation	documentation count of port 0.1 pps missing pulses
source	<xs:attribute name="portB10sec" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/errorCount/@portC10sec

type	xs:int
properties	use  optional
annotation	documentation count of port 0.1 pps missing pulses
source	<xs:attribute name="portC10sec" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of port 0.1 pps missing pulses</xs:documentation>   </xs:annotation> </xs:attribute>

element input/stateCounter

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation numBits   derived by: xs:string   optional         documentation wideband data input sample size numBands   derived by: xs:string   optional         documentation wideband data input band count integEnable   derived by: xs:string            integration   derived by: xs:int   optional         documentation number of integration cycles for all counts collected inputBus   derived by: xs:int            documentation input data stream feeding this counter block spread   derived by: xs:string            documentation window of states to count around peak sample
annotation	documentation wideband state counter block setup and control
source	<xs:element name="stateCounter" minOccurs="0">   <xs:annotation>     <xs:documentation>wideband state counter block setup and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="numBits" use="optional">       <xs:annotation>         <xs:documentation>wideband data input sample size</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="4bit"/>           <xs:enumeration value="8bit"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numBands" use="optional">       <xs:annotation>         <xs:documentation>wideband data input band count</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="4"/>           <xs:enumeration value="8"/>           <xs:enumeration value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="integEnable">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="integration" use="optional">       <xs:annotation>         <xs:documentation>number of integration cycles for all counts collected</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputBus">       <xs:annotation>         <xs:documentation>input data stream feeding this counter block</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="spread">       <xs:annotation>         <xs:documentation>window of states to count around peak sample</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="16"/>           <xs:enumeration value="32"/>           <xs:enumeration value="64"/>           <xs:enumeration value="128"/>           <xs:enumeration value="256"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/stateCounter/@numBits

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  4bit enumeration  8bit
annotation	documentation wideband data input sample size
source	<xs:attribute name="numBits" use="optional">   <xs:annotation>     <xs:documentation>wideband data input sample size</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="4bit"/>       <xs:enumeration value="8bit"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/stateCounter/@numBands

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  1 enumeration  2 enumeration  4 enumeration  8 enumeration  16
annotation	documentation wideband data input band count
source	<xs:attribute name="numBands" use="optional">   <xs:annotation>     <xs:documentation>wideband data input band count</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="4"/>       <xs:enumeration value="8"/>       <xs:enumeration value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/stateCounter/@integEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="integEnable">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/stateCounter/@integration

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation number of integration cycles for all counts collected
source	<xs:attribute name="integration" use="optional">   <xs:annotation>     <xs:documentation>number of integration cycles for all counts collected</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/stateCounter/@inputBus

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation input data stream feeding this counter block
source	<xs:attribute name="inputBus">   <xs:annotation>     <xs:documentation>input data stream feeding this counter block</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/stateCounter/@spread

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  16 enumeration  32 enumeration  64 enumeration  128 enumeration  256
annotation	documentation window of states to count around peak sample
source	<xs:attribute name="spread">   <xs:annotation>     <xs:documentation>window of states to count around peak sample</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="16"/>       <xs:enumeration value="32"/>       <xs:enumeration value="64"/>       <xs:enumeration value="128"/>       <xs:enumeration value="256"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/noiseDiode

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation width   xs:int            documentation value read from the ND width register phase   xs:int            documentation value read from the ND phase register rate   xs:int            documentation value read from the ND phase rate register maximum   xs:int            documentation noise diode maximum count onCount   xs:int            documentation last interrupts noise diode on count offCount   xs:int            documentation last interrupts noise diode off count modelFreeRun   derived by: xs:string            documentation noise diode model self-run mode
annotation	documentation noise diode model parameters
source	<xs:element name="noiseDiode" minOccurs="0">   <xs:annotation>     <xs:documentation>noise diode model parameters</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="width" type="xs:int">       <xs:annotation>         <xs:documentation>value read from the ND width register</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="phase" type="xs:int">       <xs:annotation>         <xs:documentation>value read from the ND phase register</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="rate" type="xs:int">       <xs:annotation>         <xs:documentation>value read from the ND phase rate register</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="maximum" type="xs:int">       <xs:annotation>         <xs:documentation>noise diode maximum count</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="onCount" type="xs:int">       <xs:annotation>         <xs:documentation>last interrupts noise diode on count</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="offCount" type="xs:int">       <xs:annotation>         <xs:documentation>last interrupts noise diode off count</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="modelFreeRun">       <xs:annotation>         <xs:documentation>noise diode model self-run mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/noiseDiode/@width

type	xs:int
annotation	documentation value read from the ND width register
source	<xs:attribute name="width" type="xs:int">   <xs:annotation>     <xs:documentation>value read from the ND width register</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/noiseDiode/@phase

type	xs:int
annotation	documentation value read from the ND phase register
source	<xs:attribute name="phase" type="xs:int">   <xs:annotation>     <xs:documentation>value read from the ND phase register</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/noiseDiode/@rate

type	xs:int
annotation	documentation value read from the ND phase rate register
source	<xs:attribute name="rate" type="xs:int">   <xs:annotation>     <xs:documentation>value read from the ND phase rate register</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/noiseDiode/@maximum

type	xs:int
annotation	documentation noise diode maximum count
source	<xs:attribute name="maximum" type="xs:int">   <xs:annotation>     <xs:documentation>noise diode maximum count</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/noiseDiode/@onCount

type	xs:int
annotation	documentation last interrupts noise diode on count
source	<xs:attribute name="onCount" type="xs:int">   <xs:annotation>     <xs:documentation>last interrupts noise diode on count</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/noiseDiode/@offCount

type	xs:int
annotation	documentation last interrupts noise diode off count
source	<xs:attribute name="offCount" type="xs:int">   <xs:annotation>     <xs:documentation>last interrupts noise diode off count</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/noiseDiode/@modelFreeRun

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation noise diode model self-run mode
source	<xs:attribute name="modelFreeRun">   <xs:annotation>     <xs:documentation>noise diode model self-run mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/inputTicks

diagram
properties	minOcc  0 maxOcc  5 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:string   required         documentation input data stream select pulse10msStatus   derived by: xs:string            documentation 100 Hz pulse occured within previous 10ms pulse1secStatus   derived by: xs:string            documentation 1 Hz pulse occured within previous second pulse10secStatus   derived by: xs:string            documentation 0.1 Hz  pulse occured within previous 10 second interval
annotation	documentation input data sync tag status
source	<xs:element name="inputTicks" minOccurs="0" maxOccurs="5">   <xs:annotation>     <xs:documentation>input data sync tag status</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>input data stream select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="a"/>           <xs:enumeration value="b"/>           <xs:enumeration value="c"/>           <xs:enumeration value="vsi0"/>           <xs:enumeration value="vsi1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pulse10msStatus">       <xs:annotation>         <xs:documentation>100 Hz pulse occured within previous 10ms</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ok"/>           <xs:enumeration value="error"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pulse1secStatus">       <xs:annotation>         <xs:documentation>1 Hz pulse occured within previous second</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ok"/>           <xs:enumeration value="error"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pulse10secStatus">       <xs:annotation>         <xs:documentation>0.1 Hz  pulse occured within previous 10 second interval</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ok"/>           <xs:enumeration value="error"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/inputTicks/@id

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  a enumeration  b enumeration  c enumeration  vsi0 enumeration  vsi1
annotation	documentation input data stream select
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>input data stream select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="a"/>       <xs:enumeration value="b"/>       <xs:enumeration value="c"/>       <xs:enumeration value="vsi0"/>       <xs:enumeration value="vsi1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputTicks/@pulse10msStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  ok enumeration  error
annotation	documentation 100 Hz pulse occured within previous 10ms
source	<xs:attribute name="pulse10msStatus">   <xs:annotation>     <xs:documentation>100 Hz pulse occured within previous 10ms</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ok"/>       <xs:enumeration value="error"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputTicks/@pulse1secStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  ok enumeration  error
annotation	documentation 1 Hz pulse occured within previous second
source	<xs:attribute name="pulse1secStatus">   <xs:annotation>     <xs:documentation>1 Hz pulse occured within previous second</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ok"/>       <xs:enumeration value="error"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputTicks/@pulse10secStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  ok enumeration  error
annotation	documentation 0.1 Hz  pulse occured within previous 10 second interval
source	<xs:attribute name="pulse10secStatus">   <xs:annotation>     <xs:documentation>0.1 Hz  pulse occured within previous 10 second interval</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ok"/>       <xs:enumeration value="error"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/timeInterval

diagram
properties	minOcc  0 maxOcc  5 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:string   required         documentation path of measured signal dataTick   xs:int   required         documentation data to system tick count antTick   xs:int            documentation antenna to system tick count ppsTick   xs:int            documentation pulse per second t to system tick
source	<xs:element name="timeInterval" minOccurs="0" maxOccurs="5">   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>path of measured signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="formA"/>           <xs:enumeration value="formB"/>           <xs:enumeration value="formC"/>           <xs:enumeration value="vsi0"/>           <xs:enumeration value="vsi1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dataTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>data to system tick count</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="antTick" type="xs:int">       <xs:annotation>         <xs:documentation>antenna to system tick count</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ppsTick" type="xs:int">       <xs:annotation>         <xs:documentation>pulse per second t to system tick</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/timeInterval/@id

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  formA enumeration  formB enumeration  formC enumeration  vsi0 enumeration  vsi1
annotation	documentation path of measured signal
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>path of measured signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="formA"/>       <xs:enumeration value="formB"/>       <xs:enumeration value="formC"/>       <xs:enumeration value="vsi0"/>       <xs:enumeration value="vsi1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/timeInterval/@dataTick

type	xs:int
properties	use  required
annotation	documentation data to system tick count
source	<xs:attribute name="dataTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>data to system tick count</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/timeInterval/@antTick

type	xs:int
annotation	documentation antenna to system tick count
source	<xs:attribute name="antTick" type="xs:int">   <xs:annotation>     <xs:documentation>antenna to system tick count</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/timeInterval/@ppsTick

type	xs:int
annotation	documentation pulse per second t to system tick
source	<xs:attribute name="ppsTick" type="xs:int">   <xs:annotation>     <xs:documentation>pulse per second t to system tick</xs:documentation>   </xs:annotation> </xs:attribute>

element input/clockEdge

diagram
properties	minOcc  0 maxOcc  6 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:string   required         documentation specify signal edge   derived by: xs:string   required         documentation clock edge to use
annotation	documentation signal clock edge selection
source	<xs:element name="clockEdge" minOccurs="0" maxOccurs="6">   <xs:annotation>     <xs:documentation>signal clock edge selection</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="sTick"/>           <xs:enumeration value="inputA"/>           <xs:enumeration value="inputB"/>           <xs:enumeration value="inputC"/>           <xs:enumeration value="vsi0"/>           <xs:enumeration value="vsi1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="edge" use="required">       <xs:annotation>         <xs:documentation>clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/clockEdge/@id

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  sTick enumeration  inputA enumeration  inputB enumeration  inputC enumeration  vsi0 enumeration  vsi1
annotation	documentation specify signal
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="sTick"/>       <xs:enumeration value="inputA"/>       <xs:enumeration value="inputB"/>       <xs:enumeration value="inputC"/>       <xs:enumeration value="vsi0"/>       <xs:enumeration value="vsi1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/clockEdge/@edge

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation clock edge to use
source	<xs:attribute name="edge" use="required">   <xs:annotation>     <xs:documentation>clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/portDelay

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation portAStages   derived by: xs:int            documentation Number of pipeline stages for port A portBStages   derived by: xs:int            documentation Number of pipeline stages for port B portCStages   derived by: xs:int            documentation Number of pipeline stages for port c vsi0Stages   derived by: xs:int            documentation Number of pipeline stages for VSI port 0 vsi1Stages   derived by: xs:int            documentation Number of pipeline stages for VSI port 0
source	<xs:element name="portDelay" minOccurs="0">   <xs:complexType>     <xs:attribute name="portAStages">       <xs:annotation>         <xs:documentation>Number of pipeline stages for port A</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="portBStages">       <xs:annotation>         <xs:documentation>Number of pipeline stages for port B</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="portCStages">       <xs:annotation>         <xs:documentation>Number of pipeline stages for port c</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vsi0Stages">       <xs:annotation>         <xs:documentation>Number of pipeline stages for VSI port 0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vsi1Stages">       <xs:annotation>         <xs:documentation>Number of pipeline stages for VSI port 0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/portDelay/@portAStages

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  3
annotation	documentation Number of pipeline stages for port A
source	<xs:attribute name="portAStages">   <xs:annotation>     <xs:documentation>Number of pipeline stages for port A</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/portDelay/@portBStages

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  3
annotation	documentation Number of pipeline stages for port B
source	<xs:attribute name="portBStages">   <xs:annotation>     <xs:documentation>Number of pipeline stages for port B</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/portDelay/@portCStages

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  3
annotation	documentation Number of pipeline stages for port c
source	<xs:attribute name="portCStages">   <xs:annotation>     <xs:documentation>Number of pipeline stages for port c</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/portDelay/@vsi0Stages

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  3
annotation	documentation Number of pipeline stages for VSI port 0
source	<xs:attribute name="vsi0Stages">   <xs:annotation>     <xs:documentation>Number of pipeline stages for VSI port 0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/portDelay/@vsi1Stages

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  3
annotation	documentation Number of pipeline stages for VSI port 0
source	<xs:attribute name="vsi1Stages">   <xs:annotation>     <xs:documentation>Number of pipeline stages for VSI port 0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/inputVCI

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation path0Source   derived by: xs:string            documentation input path 0 data source path1Source   derived by: xs:string            documentation input path 1 data source bitsPerSample   derived by: xs:string            documentation number of bits per sample in input data bandsPerInput   derived by: xs:string            documentation number of bands per input stream noiseDiode   derived by: xs:string            documentation enable/disable noise diode model function noiseDiodeDutyCycle   derived by: xs:float            documentation fraction of cycle that noise diode is ON noiseDiodePhase   derived by: xs:float            documentation ND offset from the provided epoch in seconds noiseDiodeFreq   derived by: xs:float            documentation frequency of noise diode in Hertz noiseDiodeEpoch   xs:string            documentation Epoch for T0 of the noise diode model (uses Obs clock)
source	<xs:element name="inputVCI" minOccurs="0">   <xs:complexType>     <xs:attribute name="path0Source">       <xs:annotation>         <xs:documentation>input path 0 data source</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="FORM0"/>           <xs:enumeration value="FORM1"/>           <xs:enumeration value="vsi0"/>           <xs:enumeration value="vsi1"/>           <xs:enumeration value="test0"/>           <xs:enumeration value="test1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="path1Source">       <xs:annotation>         <xs:documentation>input path 1 data source</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="FORM0"/>           <xs:enumeration value="FORM1"/>           <xs:enumeration value="vsi0"/>           <xs:enumeration value="vsi1"/>           <xs:enumeration value="test0"/>           <xs:enumeration value="test1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bitsPerSample">       <xs:annotation>         <xs:documentation>number of bits per sample in input data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="8"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bandsPerInput">       <xs:annotation>         <xs:documentation>number of bands per input stream</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="4"/>           <xs:enumeration value="8"/>           <xs:enumeration value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiode">       <xs:annotation>         <xs:documentation>enable/disable noise diode model function</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiodeDutyCycle">       <xs:annotation>         <xs:documentation>fraction of cycle that noise diode is ON</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:float">           <xs:minInclusive value="0.0"/>           <xs:maxInclusive value="1.0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiodePhase">       <xs:annotation>         <xs:documentation>ND offset from the provided epoch in seconds</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:float">           <xs:minInclusive value="0.0"/>           <xs:maxInclusive value="8.0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiodeFreq">       <xs:annotation>         <xs:documentation>frequency of noise diode in Hertz</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:float">           <xs:maxInclusive value="50.0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiodeEpoch" type="xs:string">       <xs:annotation>         <xs:documentation>Epoch for T0 of the noise diode model (uses Obs clock)</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/inputVCI/@path0Source

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  FORM0 enumeration  FORM1 enumeration  vsi0 enumeration  vsi1 enumeration  test0 enumeration  test1
annotation	documentation input path 0 data source
source	<xs:attribute name="path0Source">   <xs:annotation>     <xs:documentation>input path 0 data source</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="FORM0"/>       <xs:enumeration value="FORM1"/>       <xs:enumeration value="vsi0"/>       <xs:enumeration value="vsi1"/>       <xs:enumeration value="test0"/>       <xs:enumeration value="test1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputVCI/@path1Source

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  FORM0 enumeration  FORM1 enumeration  vsi0 enumeration  vsi1 enumeration  test0 enumeration  test1
annotation	documentation input path 1 data source
source	<xs:attribute name="path1Source">   <xs:annotation>     <xs:documentation>input path 1 data source</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="FORM0"/>       <xs:enumeration value="FORM1"/>       <xs:enumeration value="vsi0"/>       <xs:enumeration value="vsi1"/>       <xs:enumeration value="test0"/>       <xs:enumeration value="test1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputVCI/@bitsPerSample

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  1 enumeration  2 enumeration  3 enumeration  8
annotation	documentation number of bits per sample in input data
source	<xs:attribute name="bitsPerSample">   <xs:annotation>     <xs:documentation>number of bits per sample in input data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="8"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputVCI/@bandsPerInput

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  1 enumeration  2 enumeration  4 enumeration  8 enumeration  16
annotation	documentation number of bands per input stream
source	<xs:attribute name="bandsPerInput">   <xs:annotation>     <xs:documentation>number of bands per input stream</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="4"/>       <xs:enumeration value="8"/>       <xs:enumeration value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputVCI/@noiseDiode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation enable/disable noise diode model function
source	<xs:attribute name="noiseDiode">   <xs:annotation>     <xs:documentation>enable/disable noise diode model function</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputVCI/@noiseDiodeDutyCycle

type	restriction of xs:float
facets	Kind  Value  Annotation minInclusive  0.0 maxInclusive  1.0
annotation	documentation fraction of cycle that noise diode is ON
source	<xs:attribute name="noiseDiodeDutyCycle">   <xs:annotation>     <xs:documentation>fraction of cycle that noise diode is ON</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:float">       <xs:minInclusive value="0.0"/>       <xs:maxInclusive value="1.0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputVCI/@noiseDiodePhase

type	restriction of xs:float
facets	Kind  Value  Annotation minInclusive  0.0 maxInclusive  8.0
annotation	documentation ND offset from the provided epoch in seconds
source	<xs:attribute name="noiseDiodePhase">   <xs:annotation>     <xs:documentation>ND offset from the provided epoch in seconds</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:float">       <xs:minInclusive value="0.0"/>       <xs:maxInclusive value="8.0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputVCI/@noiseDiodeFreq

type	restriction of xs:float
facets	Kind  Value  Annotation maxInclusive  50.0
annotation	documentation frequency of noise diode in Hertz
source	<xs:attribute name="noiseDiodeFreq">   <xs:annotation>     <xs:documentation>frequency of noise diode in Hertz</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:float">       <xs:maxInclusive value="50.0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/inputVCI/@noiseDiodeEpoch

type	xs:string
annotation	documentation Epoch for T0 of the noise diode model (uses Obs clock)
source	<xs:attribute name="noiseDiodeEpoch" type="xs:string">   <xs:annotation>     <xs:documentation>Epoch for T0 of the noise diode model (uses Obs clock)</xs:documentation>   </xs:annotation> </xs:attribute>

element input/testPin

diagram
properties	minOcc  0 maxOcc  4 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         documentation specify pin to map signal   derived by: xs:int            documentation specify signal id
annotation	documentation route internal FPGA signals to external pins
source	<xs:element name="testPin" minOccurs="0" maxOccurs="4">   <xs:annotation>     <xs:documentation>route internal FPGA signals to external pins</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify pin to map</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="4"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="signal">       <xs:annotation>         <xs:documentation>specify signal id</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="255"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute input/testPin/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4
annotation	documentation specify pin to map
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify pin to map</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/testPin/@signal

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
annotation	documentation specify signal id
source	<xs:attribute name="signal">   <xs:annotation>     <xs:documentation>specify signal id</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element input/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation crc   xs:string            documentation return complete CRC state dataPath   xs:string            documentation return data path configuration testGen   xs:string            documentation return test generator configuration wideBandTestGen   xs:string            documentation return wide band test generator configuration reclock   xs:string            documentation return reclock counts errorCount   xs:string            documentation return error accumulations stateCounter   xs:string            documentation return all state counter setup  information noiseDiode   xs:string            documentation return noise diode model parameters inputTicks   xs:string            documentation return input sync pulse status portDelay   xs:string            documentation return port pipeline delays timeInterval   derived by: xs:string            documentation return time interval counters inputVCI   xs:string            documentation return inputVCI formatted setup clockEdge   derived by: xs:string            register   xs:string   optional         documentation return specified register contents user   xs:string            documentation return user logging state about   xs:string            documentation return general module information and status error   xs:string            documentation return module error messages testPin   xs:string   optional         documentation return specified test pin register contents status   xs:string            setup   xs:string
annotation	documentation access module state information
source	<xs:element name="state" minOccurs="0">   <xs:annotation>     <xs:documentation>access module state information</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="crc" type="xs:string">       <xs:annotation>         <xs:documentation>return complete CRC state</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dataPath" type="xs:string">       <xs:annotation>         <xs:documentation>return data path configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="testGen" type="xs:string">       <xs:annotation>         <xs:documentation>return test generator configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="wideBandTestGen" type="xs:string">       <xs:annotation>         <xs:documentation>return wide band test generator configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="reclock" type="xs:string">       <xs:annotation>         <xs:documentation>return reclock counts</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="errorCount" type="xs:string">       <xs:annotation>         <xs:documentation>return error accumulations</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stateCounter" type="xs:string">       <xs:annotation>         <xs:documentation>return all state counter setup  information</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="noiseDiode" type="xs:string">       <xs:annotation>         <xs:documentation>return noise diode model parameters</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="inputTicks" type="xs:string">       <xs:annotation>         <xs:documentation>return input sync pulse status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="portDelay" type="xs:string">       <xs:annotation>         <xs:documentation>return port pipeline delays</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timeInterval">       <xs:annotation>         <xs:documentation>return time interval counters</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="formA"/>           <xs:enumeration value="formB"/>           <xs:enumeration value="formC"/>           <xs:enumeration value="vsi0"/>           <xs:enumeration value="vsi1"/>           <xs:enumeration value=""/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputVCI" type="xs:string">       <xs:annotation>         <xs:documentation>return inputVCI formatted setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clockEdge">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="sTick"/>           <xs:enumeration value="inputA"/>           <xs:enumeration value="inputB"/>           <xs:enumeration value="inputC"/>           <xs:enumeration value="vsi0"/>           <xs:enumeration value="vsi1"/>           <xs:enumeration value=""/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="register" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>return specified register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="user" type="xs:string">       <xs:annotation>         <xs:documentation>return user logging state</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="about" type="xs:string">       <xs:annotation>         <xs:documentation>return general module information and status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="error" type="xs:string">       <xs:annotation>         <xs:documentation>return module error messages</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="testPin" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>return specified test pin register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string"/>     <xs:attribute name="setup" type="xs:string"/>   </xs:complexType> </xs:element>

attribute input/state/@crc

type	xs:string
annotation	documentation return complete CRC state
source	<xs:attribute name="crc" type="xs:string">   <xs:annotation>     <xs:documentation>return complete CRC state</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@dataPath

type	xs:string
annotation	documentation return data path configuration
source	<xs:attribute name="dataPath" type="xs:string">   <xs:annotation>     <xs:documentation>return data path configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@testGen

type	xs:string
annotation	documentation return test generator configuration
source	<xs:attribute name="testGen" type="xs:string">   <xs:annotation>     <xs:documentation>return test generator configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@wideBandTestGen

type	xs:string
annotation	documentation return wide band test generator configuration
source	<xs:attribute name="wideBandTestGen" type="xs:string">   <xs:annotation>     <xs:documentation>return wide band test generator configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@reclock

type	xs:string
annotation	documentation return reclock counts
source	<xs:attribute name="reclock" type="xs:string">   <xs:annotation>     <xs:documentation>return reclock counts</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@errorCount

type	xs:string
annotation	documentation return error accumulations
source	<xs:attribute name="errorCount" type="xs:string">   <xs:annotation>     <xs:documentation>return error accumulations</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@stateCounter

type	xs:string
annotation	documentation return all state counter setup  information
source	<xs:attribute name="stateCounter" type="xs:string">   <xs:annotation>     <xs:documentation>return all state counter setup  information</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@noiseDiode

type	xs:string
annotation	documentation return noise diode model parameters
source	<xs:attribute name="noiseDiode" type="xs:string">   <xs:annotation>     <xs:documentation>return noise diode model parameters</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@inputTicks

type	xs:string
annotation	documentation return input sync pulse status
source	<xs:attribute name="inputTicks" type="xs:string">   <xs:annotation>     <xs:documentation>return input sync pulse status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@portDelay

type	xs:string
annotation	documentation return port pipeline delays
source	<xs:attribute name="portDelay" type="xs:string">   <xs:annotation>     <xs:documentation>return port pipeline delays</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@timeInterval

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  formA enumeration  formB enumeration  formC enumeration  vsi0 enumeration  vsi1 enumeration
annotation	documentation return time interval counters
source	<xs:attribute name="timeInterval">   <xs:annotation>     <xs:documentation>return time interval counters</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="formA"/>       <xs:enumeration value="formB"/>       <xs:enumeration value="formC"/>       <xs:enumeration value="vsi0"/>       <xs:enumeration value="vsi1"/>       <xs:enumeration value=""/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/state/@inputVCI

type	xs:string
annotation	documentation return inputVCI formatted setup
source	<xs:attribute name="inputVCI" type="xs:string">   <xs:annotation>     <xs:documentation>return inputVCI formatted setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@clockEdge

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  sTick enumeration  inputA enumeration  inputB enumeration  inputC enumeration  vsi0 enumeration  vsi1 enumeration
source	<xs:attribute name="clockEdge">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="sTick"/>       <xs:enumeration value="inputA"/>       <xs:enumeration value="inputB"/>       <xs:enumeration value="inputC"/>       <xs:enumeration value="vsi0"/>       <xs:enumeration value="vsi1"/>       <xs:enumeration value=""/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/state/@register

type	xs:string
properties	use  optional
annotation	documentation return specified register contents
source	<xs:attribute name="register" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>return specified register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@user

type	xs:string
annotation	documentation return user logging state
source	<xs:attribute name="user" type="xs:string">   <xs:annotation>     <xs:documentation>return user logging state</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@about

type	xs:string
annotation	documentation return general module information and status
source	<xs:attribute name="about" type="xs:string">   <xs:annotation>     <xs:documentation>return general module information and status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@error

type	xs:string
annotation	documentation return module error messages
source	<xs:attribute name="error" type="xs:string">   <xs:annotation>     <xs:documentation>return module error messages</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@testPin

type	xs:string
properties	use  optional
annotation	documentation return specified test pin register contents
source	<xs:attribute name="testPin" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>return specified test pin register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/state/@status

type	xs:string
source	<xs:attribute name="status" type="xs:string"/>

attribute input/state/@setup

type	xs:string
source	<xs:attribute name="setup" type="xs:string"/>

element output

diagram
properties	content  complex
children	setup status control pulsar radar phase crc outputSwitch dataInfo clockEdge timeInterval errorCount state about error register schedule user
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         documentation time this message was generated id   derived by: xs:int   required         documentation Chip id led   ledType            programEnable   derived by: xs:string            documentation enable module personality reloading(DEPRECATED) modelFreeRun   derived by: xs:string            documentation allow internal locking during pulsar gating (DEPRECATED-moved to setup) gateControl   derived by: xs:string            documentation Control gating of the module(DEPRECATED-moved to setup) headerInsertion   derived by: xs:string            documentation allow/deny data embedding in lieu of the timing chip(DEPRECATED-moved to setup) pllLock   derived by: xs:string            documentation lock status of the system PLL (DEPRECATED-moved to status) outSwitchError   derived by: xs:string            documentation Configuration status of output switch (validity) (DEPRECATED-moved to status) radarSwitchError   derived by: xs:string            documentation configuration status of radar mode (validity) (DEPRECATED-moved to statue) gateDuration   derived by: xs:int            documentation specify gate duration for fine control of data invalid flagging (system clocks)(DEPRECATED-moved to setup) reset   xs:string            documentation assert module reset (DEPRECATED-moved to control) tickCounter   derived by: xs:string            documentation (DEPRECATED-moved to setup@TICounters) sysTickDelay   derived by: xs:int            documentation specify delay for the system tick (system clocks)(DEPRECATED-moved to setup) ledDevice   ledType            documentation Status of this FPGA device
annotation	documentation Data package for output module setup and control
source	<xs:element name="output">   <xs:annotation>     <xs:documentation>Data package for output module setup and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="setup" minOccurs="0">         <xs:complexType>           <xs:attribute name="modelFreeRun">             <xs:annotation>               <xs:documentation>allow internal locking during pulsar gating</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="yes"/>                 <xs:enumeration value="no"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="gateControl">             <xs:annotation>               <xs:documentation>Control gating of the module</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="gateMode"/>                 <xs:enumeration value="pulsar"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="headerInsertion">             <xs:annotation>               <xs:documentation>allow/deny data embedding in lieu of the timing chip</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="gateDuration">             <xs:annotation>               <xs:documentation>specify gate duration for fine control of data invalid flagging (system clocks)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="64000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sysTickDelay">             <xs:annotation>               <xs:documentation>specify delay for the system tick (system clocks)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="65535"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pulsarGateWidth">             <xs:annotation>               <xs:documentation>pulse width (microseconds)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="4194303"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pulsarGatePeriod">             <xs:annotation>               <xs:documentation>pulse period (microseconds)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="4194303"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="TICounters">             <xs:annotation>               <xs:documentation>enable/disable time interval counters</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="chopperSeedRoot" type="xs:string">             <xs:annotation>               <xs:documentation>chopper seed value. This number is applied directly to register 0x5f, lower byte.</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="status" minOccurs="0">         <xs:complexType>           <xs:attribute name="pllLock">             <xs:annotation>               <xs:documentation>lock status of the system PLL</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="free"/>                 <xs:enumeration value="lock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="outSwitchError">             <xs:annotation>               <xs:documentation>Configuration status of output switch (validity)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="ok"/>                 <xs:enumeration value="error"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="radarSwitchError">             <xs:annotation>               <xs:documentation>configuration status of radar mode (validity)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="ok"/>                 <xs:enumeration value="error"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="control" minOccurs="0">         <xs:complexType>           <xs:attribute name="reset" type="xs:string">             <xs:annotation>               <xs:documentation>assert module reset</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="pulsar" minOccurs="0">         <xs:annotation>           <xs:documentation>pulsar gating control parameters (DEPRECATED moved to setup)</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="width">             <xs:annotation>               <xs:documentation>pulse width (microseconds)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="4194303"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="period">             <xs:annotation>               <xs:documentation>pulse period (microseconds)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="4194303"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="radar" minOccurs="0">         <xs:annotation>           <xs:documentation>radar mode control parameters</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="channelId" use="optional">             <xs:annotation>               <xs:documentation>specify subband channel</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="writeEnable">             <xs:annotation>               <xs:documentation>allow writes to internal data RAM</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="enable"/>                 <xs:enumeration value="disable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sampleSize">             <xs:annotation>               <xs:documentation>basically the number of words to read out of the buffer</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="16384"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="time" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>start time (UTC) to begin readout</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="numSamples" type="xs:int">             <xs:annotation>               <xs:documentation>numer of interrupts to collect data for (duration of capture)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="startNow" type="xs:string">             <xs:annotation>               <xs:documentation>presence of this attribute will override the time attribute and force capture to begin.</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="phase" minOccurs="0" maxOccurs="18">         <xs:annotation>           <xs:documentation>phase model control parameters</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="channelId" use="required">             <xs:annotation>               <xs:documentation>specify channel</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="phaseValue">             <xs:annotation>               <xs:documentation>specify zero phase value for pulsar modes</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="4194303"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceInvalid" use="optional">             <xs:annotation>               <xs:documentation>mark all data through this port as invalid</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="crc" minOccurs="0" maxOccurs="18">         <xs:annotation>           <xs:documentation>CRC setup information </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="portId" use="required">             <xs:annotation>               <xs:documentation>specify input port number for parameters</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scan" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="single"/>                 <xs:enumeration value="auto"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireOut" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)output bit (all ports) to generate CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="3"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ledCrcInput" type="ledType">             <xs:annotation>               <xs:documentation>status of Filter to Output CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="scanWireOutput" use="optional">             <xs:annotation>               <xs:documentation>output bit (all ports) to generate CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireInput" use="optional">             <xs:annotation>               <xs:documentation>input bit (all ports) to generate CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireIn" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)input bit (all ports) to generate CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceOutputError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on output port</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="outputSwitch" minOccurs="0" maxOccurs="18">         <xs:annotation>           <xs:documentation>output mux signal routing</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="outputPortId" use="required">             <xs:annotation>               <xs:documentation>specify output port number for parameters</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inputPortId" use="required">             <xs:annotation>               <xs:documentation>data path to route to this port</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="dataInfo" minOccurs="0" maxOccurs="18">         <xs:annotation>           <xs:documentation>report stream identifier data</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="inputPortId" use="required">             <xs:annotation>               <xs:documentation>port that the data applies to</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="stationId" use="required">             <xs:annotation>               <xs:documentation>station id on this port</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="254"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="subBandId" use="required">             <xs:annotation>               <xs:documentation>sub band id on this port</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="baseBandId" use="required">             <xs:annotation>               <xs:documentation>baseband id on this port</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="clockEdge" minOccurs="0" maxOccurs="19">         <xs:annotation>           <xs:documentation>clock phase selection from filter PERR or timecode</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="sourceId" use="required">             <xs:annotation>               <xs:documentation>specify input port id</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="sTick"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="edge" use="required">             <xs:annotation>               <xs:documentation>clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="falling"/>                 <xs:enumeration value="rising"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="timeInterval" minOccurs="0" maxOccurs="18">         <xs:annotation>           <xs:documentation>input signal time interval measurements</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="portId" use="required">             <xs:annotation>               <xs:documentation>port to measure</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dataTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles for the data line</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sIndTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles for the SIND line</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="errorCount" minOccurs="0">         <xs:annotation>           <xs:documentation>status register counters</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="pllLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of pll not-locked errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="outputSwitch" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of output multiplexer selection errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="radarSwitch" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of improper rader multiplexer switch configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTickWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>Width of sTicks is not correct</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:annotation>           <xs:documentation>report module status and state</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="pulsar" type="xs:string">             <xs:annotation>               <xs:documentation>report pulsar status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="radar" type="xs:string">             <xs:annotation>               <xs:documentation>report radar status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="phase" type="xs:string">             <xs:annotation>               <xs:documentation>report phase status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="outputSwitch" type="xs:string">             <xs:annotation>               <xs:documentation>report output switch status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dataInfo" type="xs:string">             <xs:annotation>               <xs:documentation>report data info status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="crc" type="xs:string">             <xs:annotation>               <xs:documentation>report CRC status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="errorCount" type="xs:string">             <xs:annotation>               <xs:documentation>report error counters</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="register" type="xs:string">             <xs:annotation>               <xs:documentation>report specified register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="user" type="xs:string">             <xs:annotation>               <xs:documentation>report user logging configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="about" type="xs:string">             <xs:annotation>               <xs:documentation>report general module information</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="error" type="xs:string">             <xs:annotation>               <xs:documentation>report errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="clockEdge" type="xs:string"/>           <xs:attribute name="timeInterval" type="xs:string"/>           <xs:attribute name="status" type="xs:string"/>           <xs:attribute name="setup" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="schedule" minOccurs="0"/>       <xs:element ref="user" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime" use="optional">       <xs:annotation>         <xs:documentation>time this message was generated</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>Chip id</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="led" type="ledType"/>     <xs:attribute name="programEnable">       <xs:annotation>         <xs:documentation>enable module personality reloading(DEPRECATED)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="yes"/>           <xs:enumeration value="no"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="modelFreeRun">       <xs:annotation>         <xs:documentation>allow internal locking during pulsar gating (DEPRECATED-moved to setup)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="yes"/>           <xs:enumeration value="no"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="gateControl">       <xs:annotation>         <xs:documentation>Control gating of the module(DEPRECATED-moved to setup)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="gateMode"/>           <xs:enumeration value="pulsar"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="headerInsertion">       <xs:annotation>         <xs:documentation>allow/deny data embedding in lieu of the timing chip(DEPRECATED-moved to setup)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pllLock">       <xs:annotation>         <xs:documentation>lock status of the system PLL (DEPRECATED-moved to status)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="free"/>           <xs:enumeration value="lock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outSwitchError">       <xs:annotation>         <xs:documentation>Configuration status of output switch (validity) (DEPRECATED-moved to status)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ok"/>           <xs:enumeration value="error"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="radarSwitchError">       <xs:annotation>         <xs:documentation>configuration status of radar mode (validity) (DEPRECATED-moved to statue)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ok"/>           <xs:enumeration value="error"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="gateDuration">       <xs:annotation>         <xs:documentation>specify gate duration for fine control of data invalid flagging (system clocks)(DEPRECATED-moved to setup)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="64000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>assert module reset (DEPRECATED-moved to control)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="tickCounter">       <xs:annotation>         <xs:documentation>(DEPRECATED-moved to setup@TICounters)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sysTickDelay">       <xs:annotation>         <xs:documentation>specify delay for the system tick (system clocks)(DEPRECATED-moved to setup)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="65535"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/@time

type	xs:dateTime
properties	use  optional
annotation	documentation time this message was generated
source	<xs:attribute name="time" type="xs:dateTime" use="optional">   <xs:annotation>     <xs:documentation>time this message was generated</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation Chip id
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>Chip id</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@led

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="led" type="ledType"/>

attribute output/@programEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  yes enumeration  no
annotation	documentation enable module personality reloading(DEPRECATED)
source	<xs:attribute name="programEnable">   <xs:annotation>     <xs:documentation>enable module personality reloading(DEPRECATED)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="yes"/>       <xs:enumeration value="no"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@modelFreeRun

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  yes enumeration  no
annotation	documentation allow internal locking during pulsar gating (DEPRECATED-moved to setup)
source	<xs:attribute name="modelFreeRun">   <xs:annotation>     <xs:documentation>allow internal locking during pulsar gating (DEPRECATED-moved to setup)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="yes"/>       <xs:enumeration value="no"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@gateControl

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  gateMode enumeration  pulsar
annotation	documentation Control gating of the module(DEPRECATED-moved to setup)
source	<xs:attribute name="gateControl">   <xs:annotation>     <xs:documentation>Control gating of the module(DEPRECATED-moved to setup)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="gateMode"/>       <xs:enumeration value="pulsar"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@headerInsertion

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation allow/deny data embedding in lieu of the timing chip(DEPRECATED-moved to setup)
source	<xs:attribute name="headerInsertion">   <xs:annotation>     <xs:documentation>allow/deny data embedding in lieu of the timing chip(DEPRECATED-moved to setup)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@pllLock

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  free enumeration  lock
annotation	documentation lock status of the system PLL (DEPRECATED-moved to status)
source	<xs:attribute name="pllLock">   <xs:annotation>     <xs:documentation>lock status of the system PLL (DEPRECATED-moved to status)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="free"/>       <xs:enumeration value="lock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@outSwitchError

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  ok enumeration  error
annotation	documentation Configuration status of output switch (validity) (DEPRECATED-moved to status)
source	<xs:attribute name="outSwitchError">   <xs:annotation>     <xs:documentation>Configuration status of output switch (validity) (DEPRECATED-moved to status)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ok"/>       <xs:enumeration value="error"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@radarSwitchError

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  ok enumeration  error
annotation	documentation configuration status of radar mode (validity) (DEPRECATED-moved to statue)
source	<xs:attribute name="radarSwitchError">   <xs:annotation>     <xs:documentation>configuration status of radar mode (validity) (DEPRECATED-moved to statue)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ok"/>       <xs:enumeration value="error"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@gateDuration

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  64000
annotation	documentation specify gate duration for fine control of data invalid flagging (system clocks)(DEPRECATED-moved to setup)
source	<xs:attribute name="gateDuration">   <xs:annotation>     <xs:documentation>specify gate duration for fine control of data invalid flagging (system clocks)(DEPRECATED-moved to setup)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="64000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@reset

type	xs:string
annotation	documentation assert module reset (DEPRECATED-moved to control)
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>assert module reset (DEPRECATED-moved to control)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/@tickCounter

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation (DEPRECATED-moved to setup@TICounters)
source	<xs:attribute name="tickCounter">   <xs:annotation>     <xs:documentation>(DEPRECATED-moved to setup@TICounters)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@sysTickDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  65535
annotation	documentation specify delay for the system tick (system clocks)(DEPRECATED-moved to setup)
source	<xs:attribute name="sysTickDelay">   <xs:annotation>     <xs:documentation>specify delay for the system tick (system clocks)(DEPRECATED-moved to setup)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="65535"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

element output/setup

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation modelFreeRun   derived by: xs:string            documentation allow internal locking during pulsar gating gateControl   derived by: xs:string            documentation Control gating of the module headerInsertion   derived by: xs:string            documentation allow/deny data embedding in lieu of the timing chip gateDuration   derived by: xs:int            documentation specify gate duration for fine control of data invalid flagging (system clocks) sysTickDelay   derived by: xs:int            documentation specify delay for the system tick (system clocks) pulsarGateWidth   derived by: xs:int            documentation pulse width (microseconds) pulsarGatePeriod   derived by: xs:int            documentation pulse period (microseconds) TICounters   derived by: xs:string            documentation enable/disable time interval counters chopperSeedRoot   xs:string            documentation chopper seed value. This number is applied directly to register 0x5f, lower byte.
source	<xs:element name="setup" minOccurs="0">   <xs:complexType>     <xs:attribute name="modelFreeRun">       <xs:annotation>         <xs:documentation>allow internal locking during pulsar gating</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="yes"/>           <xs:enumeration value="no"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="gateControl">       <xs:annotation>         <xs:documentation>Control gating of the module</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="gateMode"/>           <xs:enumeration value="pulsar"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="headerInsertion">       <xs:annotation>         <xs:documentation>allow/deny data embedding in lieu of the timing chip</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="gateDuration">       <xs:annotation>         <xs:documentation>specify gate duration for fine control of data invalid flagging (system clocks)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="64000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sysTickDelay">       <xs:annotation>         <xs:documentation>specify delay for the system tick (system clocks)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="65535"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pulsarGateWidth">       <xs:annotation>         <xs:documentation>pulse width (microseconds)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="4194303"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pulsarGatePeriod">       <xs:annotation>         <xs:documentation>pulse period (microseconds)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="4194303"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="TICounters">       <xs:annotation>         <xs:documentation>enable/disable time interval counters</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="chopperSeedRoot" type="xs:string">       <xs:annotation>         <xs:documentation>chopper seed value. This number is applied directly to register 0x5f, lower byte.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/setup/@modelFreeRun

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  yes enumeration  no
annotation	documentation allow internal locking during pulsar gating
source	<xs:attribute name="modelFreeRun">   <xs:annotation>     <xs:documentation>allow internal locking during pulsar gating</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="yes"/>       <xs:enumeration value="no"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/setup/@gateControl

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  gateMode enumeration  pulsar
annotation	documentation Control gating of the module
source	<xs:attribute name="gateControl">   <xs:annotation>     <xs:documentation>Control gating of the module</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="gateMode"/>       <xs:enumeration value="pulsar"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/setup/@headerInsertion

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation allow/deny data embedding in lieu of the timing chip
source	<xs:attribute name="headerInsertion">   <xs:annotation>     <xs:documentation>allow/deny data embedding in lieu of the timing chip</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/setup/@gateDuration

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  64000
annotation	documentation specify gate duration for fine control of data invalid flagging (system clocks)
source	<xs:attribute name="gateDuration">   <xs:annotation>     <xs:documentation>specify gate duration for fine control of data invalid flagging (system clocks)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="64000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/setup/@sysTickDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  65535
annotation	documentation specify delay for the system tick (system clocks)
source	<xs:attribute name="sysTickDelay">   <xs:annotation>     <xs:documentation>specify delay for the system tick (system clocks)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="65535"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/setup/@pulsarGateWidth

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4194303
annotation	documentation pulse width (microseconds)
source	<xs:attribute name="pulsarGateWidth">   <xs:annotation>     <xs:documentation>pulse width (microseconds)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4194303"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/setup/@pulsarGatePeriod

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4194303
annotation	documentation pulse period (microseconds)
source	<xs:attribute name="pulsarGatePeriod">   <xs:annotation>     <xs:documentation>pulse period (microseconds)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4194303"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/setup/@TICounters

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable/disable time interval counters
source	<xs:attribute name="TICounters">   <xs:annotation>     <xs:documentation>enable/disable time interval counters</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/setup/@chopperSeedRoot

type	xs:string
annotation	documentation chopper seed value. This number is applied directly to register 0x5f, lower byte.
source	<xs:attribute name="chopperSeedRoot" type="xs:string">   <xs:annotation>     <xs:documentation>chopper seed value. This number is applied directly to register 0x5f, lower byte.</xs:documentation>   </xs:annotation> </xs:attribute>

element output/status

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation pllLock   derived by: xs:string            documentation lock status of the system PLL outSwitchError   derived by: xs:string            documentation Configuration status of output switch (validity) radarSwitchError   derived by: xs:string            documentation configuration status of radar mode (validity)
source	<xs:element name="status" minOccurs="0">   <xs:complexType>     <xs:attribute name="pllLock">       <xs:annotation>         <xs:documentation>lock status of the system PLL</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="free"/>           <xs:enumeration value="lock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outSwitchError">       <xs:annotation>         <xs:documentation>Configuration status of output switch (validity)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ok"/>           <xs:enumeration value="error"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="radarSwitchError">       <xs:annotation>         <xs:documentation>configuration status of radar mode (validity)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ok"/>           <xs:enumeration value="error"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/status/@pllLock

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  free enumeration  lock
annotation	documentation lock status of the system PLL
source	<xs:attribute name="pllLock">   <xs:annotation>     <xs:documentation>lock status of the system PLL</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="free"/>       <xs:enumeration value="lock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/status/@outSwitchError

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  ok enumeration  error
annotation	documentation Configuration status of output switch (validity)
source	<xs:attribute name="outSwitchError">   <xs:annotation>     <xs:documentation>Configuration status of output switch (validity)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ok"/>       <xs:enumeration value="error"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/status/@radarSwitchError

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  ok enumeration  error
annotation	documentation configuration status of radar mode (validity)
source	<xs:attribute name="radarSwitchError">   <xs:annotation>     <xs:documentation>configuration status of radar mode (validity)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ok"/>       <xs:enumeration value="error"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element output/control

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation reset   xs:string            documentation assert module reset
source	<xs:element name="control" minOccurs="0">   <xs:complexType>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>assert module reset</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/control/@reset

type	xs:string
annotation	documentation assert module reset
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>assert module reset</xs:documentation>   </xs:annotation> </xs:attribute>

element output/pulsar

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation width   derived by: xs:int            documentation pulse width (microseconds) period   derived by: xs:int            documentation pulse period (microseconds)
annotation	documentation pulsar gating control parameters (DEPRECATED moved to setup)
source	<xs:element name="pulsar" minOccurs="0">   <xs:annotation>     <xs:documentation>pulsar gating control parameters (DEPRECATED moved to setup)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="width">       <xs:annotation>         <xs:documentation>pulse width (microseconds)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="4194303"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="period">       <xs:annotation>         <xs:documentation>pulse period (microseconds)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="4194303"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/pulsar/@width

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4194303
annotation	documentation pulse width (microseconds)
source	<xs:attribute name="width">   <xs:annotation>     <xs:documentation>pulse width (microseconds)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4194303"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/pulsar/@period

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4194303
annotation	documentation pulse period (microseconds)
source	<xs:attribute name="period">   <xs:annotation>     <xs:documentation>pulse period (microseconds)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4194303"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element output/radar

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation channelId   derived by: xs:int   optional         documentation specify subband channel writeEnable   derived by: xs:string            documentation allow writes to internal data RAM sampleSize   derived by: xs:int            documentation basically the number of words to read out of the buffer time   xs:string   optional         documentation start time (UTC) to begin readout numSamples   xs:int            documentation numer of interrupts to collect data for (duration of capture) startNow   xs:string            documentation presence of this attribute will override the time attribute and force capture to begin.
annotation	documentation radar mode control parameters
source	<xs:element name="radar" minOccurs="0">   <xs:annotation>     <xs:documentation>radar mode control parameters</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="channelId" use="optional">       <xs:annotation>         <xs:documentation>specify subband channel</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="writeEnable">       <xs:annotation>         <xs:documentation>allow writes to internal data RAM</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="enable"/>           <xs:enumeration value="disable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sampleSize">       <xs:annotation>         <xs:documentation>basically the number of words to read out of the buffer</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="16384"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="time" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>start time (UTC) to begin readout</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="numSamples" type="xs:int">       <xs:annotation>         <xs:documentation>numer of interrupts to collect data for (duration of capture)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="startNow" type="xs:string">       <xs:annotation>         <xs:documentation>presence of this attribute will override the time attribute and force capture to begin.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/radar/@channelId

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation specify subband channel
source	<xs:attribute name="channelId" use="optional">   <xs:annotation>     <xs:documentation>specify subband channel</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/radar/@writeEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  enable enumeration  disable
annotation	documentation allow writes to internal data RAM
source	<xs:attribute name="writeEnable">   <xs:annotation>     <xs:documentation>allow writes to internal data RAM</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="enable"/>       <xs:enumeration value="disable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/radar/@sampleSize

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  16384
annotation	documentation basically the number of words to read out of the buffer
source	<xs:attribute name="sampleSize">   <xs:annotation>     <xs:documentation>basically the number of words to read out of the buffer</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="16384"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/radar/@time

type	xs:string
properties	use  optional
annotation	documentation start time (UTC) to begin readout
source	<xs:attribute name="time" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>start time (UTC) to begin readout</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/radar/@numSamples

type	xs:int
annotation	documentation numer of interrupts to collect data for (duration of capture)
source	<xs:attribute name="numSamples" type="xs:int">   <xs:annotation>     <xs:documentation>numer of interrupts to collect data for (duration of capture)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/radar/@startNow

type	xs:string
annotation	documentation presence of this attribute will override the time attribute and force capture to begin.
source	<xs:attribute name="startNow" type="xs:string">   <xs:annotation>     <xs:documentation>presence of this attribute will override the time attribute and force capture to begin.</xs:documentation>   </xs:annotation> </xs:attribute>

element output/phase

diagram
properties	minOcc  0 maxOcc  18 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation channelId   derived by: xs:int   required         documentation specify channel phaseValue   derived by: xs:int            documentation specify zero phase value for pulsar modes forceInvalid   derived by: xs:string   optional         documentation mark all data through this port as invalid
annotation	documentation phase model control parameters
source	<xs:element name="phase" minOccurs="0" maxOccurs="18">   <xs:annotation>     <xs:documentation>phase model control parameters</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="channelId" use="required">       <xs:annotation>         <xs:documentation>specify channel</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="phaseValue">       <xs:annotation>         <xs:documentation>specify zero phase value for pulsar modes</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="4194303"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceInvalid" use="optional">       <xs:annotation>         <xs:documentation>mark all data through this port as invalid</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/phase/@channelId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation specify channel
source	<xs:attribute name="channelId" use="required">   <xs:annotation>     <xs:documentation>specify channel</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/phase/@phaseValue

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4194303
annotation	documentation specify zero phase value for pulsar modes
source	<xs:attribute name="phaseValue">   <xs:annotation>     <xs:documentation>specify zero phase value for pulsar modes</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4194303"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/phase/@forceInvalid

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation mark all data through this port as invalid
source	<xs:attribute name="forceInvalid" use="optional">   <xs:annotation>     <xs:documentation>mark all data through this port as invalid</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element output/crc

diagram
properties	minOcc  0 maxOcc  18 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation portId   derived by: xs:int   required         documentation specify input port number for parameters scan   derived by: xs:string   optional         documentation (deprecated)CRC error checking mode scanWireOut   derived by: xs:int   optional         documentation (deprecated)output bit (all ports) to generate CRC for ledCrcInput   ledType            documentation status of Filter to Output CRCs. Green = OK, Red = ERROR, Off = checking off scanWireOutput   derived by: xs:string   optional         documentation output bit (all ports) to generate CRC for scanWireInput   derived by: xs:string   optional         documentation input bit (all ports) to generate CRC for scanWireIn   derived by: xs:string   optional         documentation (deprecated)input bit (all ports) to generate CRC for forceOutputError   derived by: xs:string   optional         documentation force a CRC error on output port
annotation	documentation CRC setup information
source	<xs:element name="crc" minOccurs="0" maxOccurs="18">   <xs:annotation>     <xs:documentation>CRC setup information </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="portId" use="required">       <xs:annotation>         <xs:documentation>specify input port number for parameters</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scan" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="single"/>           <xs:enumeration value="auto"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireOut" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)output bit (all ports) to generate CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledCrcInput" type="ledType">       <xs:annotation>         <xs:documentation>status of Filter to Output CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="scanWireOutput" use="optional">       <xs:annotation>         <xs:documentation>output bit (all ports) to generate CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireInput" use="optional">       <xs:annotation>         <xs:documentation>input bit (all ports) to generate CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireIn" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)input bit (all ports) to generate CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceOutputError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on output port</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/crc/@portId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation specify input port number for parameters
source	<xs:attribute name="portId" use="required">   <xs:annotation>     <xs:documentation>specify input port number for parameters</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/crc/@scan

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  single enumeration  auto
annotation	documentation (deprecated)CRC error checking mode
source	<xs:attribute name="scan" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="single"/>       <xs:enumeration value="auto"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/crc/@scanWireOut

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  3
annotation	documentation (deprecated)output bit (all ports) to generate CRC for
source	<xs:attribute name="scanWireOut" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)output bit (all ports) to generate CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/crc/@ledCrcInput

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of Filter to Output CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInput" type="ledType">   <xs:annotation>     <xs:documentation>status of Filter to Output CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/crc/@scanWireOutput

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3
annotation	documentation output bit (all ports) to generate CRC for
source	<xs:attribute name="scanWireOutput" use="optional">   <xs:annotation>     <xs:documentation>output bit (all ports) to generate CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/crc/@scanWireInput

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation input bit (all ports) to generate CRC for
source	<xs:attribute name="scanWireInput" use="optional">   <xs:annotation>     <xs:documentation>input bit (all ports) to generate CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/crc/@scanWireIn

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation (deprecated)input bit (all ports) to generate CRC for
source	<xs:attribute name="scanWireIn" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)input bit (all ports) to generate CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/crc/@forceOutputError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation force a CRC error on output port
source	<xs:attribute name="forceOutputError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on output port</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element output/outputSwitch

diagram
properties	minOcc  0 maxOcc  18 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation outputPortId   derived by: xs:int   required         documentation specify output port number for parameters inputPortId   derived by: xs:int   required         documentation data path to route to this port
annotation	documentation output mux signal routing
source	<xs:element name="outputSwitch" minOccurs="0" maxOccurs="18">   <xs:annotation>     <xs:documentation>output mux signal routing</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="outputPortId" use="required">       <xs:annotation>         <xs:documentation>specify output port number for parameters</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputPortId" use="required">       <xs:annotation>         <xs:documentation>data path to route to this port</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/outputSwitch/@outputPortId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation specify output port number for parameters
source	<xs:attribute name="outputPortId" use="required">   <xs:annotation>     <xs:documentation>specify output port number for parameters</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/outputSwitch/@inputPortId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation data path to route to this port
source	<xs:attribute name="inputPortId" use="required">   <xs:annotation>     <xs:documentation>data path to route to this port</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element output/dataInfo

diagram
properties	minOcc  0 maxOcc  18 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation inputPortId   derived by: xs:int   required         documentation port that the data applies to stationId   derived by: xs:int   required         documentation station id on this port subBandId   derived by: xs:int   required         documentation sub band id on this port baseBandId   derived by: xs:int   required         documentation baseband id on this port
annotation	documentation report stream identifier data
source	<xs:element name="dataInfo" minOccurs="0" maxOccurs="18">   <xs:annotation>     <xs:documentation>report stream identifier data</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="inputPortId" use="required">       <xs:annotation>         <xs:documentation>port that the data applies to</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="stationId" use="required">       <xs:annotation>         <xs:documentation>station id on this port</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="254"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="subBandId" use="required">       <xs:annotation>         <xs:documentation>sub band id on this port</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="baseBandId" use="required">       <xs:annotation>         <xs:documentation>baseband id on this port</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/dataInfo/@inputPortId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation port that the data applies to
source	<xs:attribute name="inputPortId" use="required">   <xs:annotation>     <xs:documentation>port that the data applies to</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/dataInfo/@stationId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  254
annotation	documentation station id on this port
source	<xs:attribute name="stationId" use="required">   <xs:annotation>     <xs:documentation>station id on this port</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="254"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/dataInfo/@subBandId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation sub band id on this port
source	<xs:attribute name="subBandId" use="required">   <xs:annotation>     <xs:documentation>sub band id on this port</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/dataInfo/@baseBandId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation baseband id on this port
source	<xs:attribute name="baseBandId" use="required">   <xs:annotation>     <xs:documentation>baseband id on this port</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element output/clockEdge

diagram
properties	minOcc  0 maxOcc  19 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation sourceId   derived by: xs:string   required         documentation specify input port id edge   derived by: xs:string   required         documentation clock edge to use
annotation	documentation clock phase selection from filter PERR or timecode
source	<xs:element name="clockEdge" minOccurs="0" maxOccurs="19">   <xs:annotation>     <xs:documentation>clock phase selection from filter PERR or timecode</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="sourceId" use="required">       <xs:annotation>         <xs:documentation>specify input port id</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="sTick"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="edge" use="required">       <xs:annotation>         <xs:documentation>clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="falling"/>           <xs:enumeration value="rising"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/clockEdge/@sourceId

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  sTick
annotation	documentation specify input port id
source	<xs:attribute name="sourceId" use="required">   <xs:annotation>     <xs:documentation>specify input port id</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="sTick"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/clockEdge/@edge

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  falling enumeration  rising
annotation	documentation clock edge to use
source	<xs:attribute name="edge" use="required">   <xs:annotation>     <xs:documentation>clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="falling"/>       <xs:enumeration value="rising"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element output/timeInterval

diagram
properties	minOcc  0 maxOcc  18 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation portId   derived by: xs:int   required         documentation port to measure dataTick   xs:int   required         documentation time interval count in clock cycles for the data line sIndTick   xs:int   required         documentation time interval count in clock cycles for the SIND line
annotation	documentation input signal time interval measurements
source	<xs:element name="timeInterval" minOccurs="0" maxOccurs="18">   <xs:annotation>     <xs:documentation>input signal time interval measurements</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="portId" use="required">       <xs:annotation>         <xs:documentation>port to measure</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dataTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles for the data line</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sIndTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles for the SIND line</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/timeInterval/@portId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation port to measure
source	<xs:attribute name="portId" use="required">   <xs:annotation>     <xs:documentation>port to measure</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute output/timeInterval/@dataTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles for the data line
source	<xs:attribute name="dataTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles for the data line</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/timeInterval/@sIndTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles for the SIND line
source	<xs:attribute name="sIndTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles for the SIND line</xs:documentation>   </xs:annotation> </xs:attribute>

element output/errorCount

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation pllLock   xs:int   optional         documentation count of pll not-locked errors outputSwitch   xs:int   optional         documentation count of output multiplexer selection errors radarSwitch   xs:int   optional         documentation count of improper rader multiplexer switch configuration sTickWidth   xs:int   optional         documentation Width of sTicks is not correct
annotation	documentation status register counters
source	<xs:element name="errorCount" minOccurs="0">   <xs:annotation>     <xs:documentation>status register counters</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="pllLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of pll not-locked errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="outputSwitch" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of output multiplexer selection errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="radarSwitch" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of improper rader multiplexer switch configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTickWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>Width of sTicks is not correct</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute output/errorCount/@pllLock

type	xs:int
properties	use  optional
annotation	documentation count of pll not-locked errors
source	<xs:attribute name="pllLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of pll not-locked errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/errorCount/@outputSwitch

type	xs:int
properties	use  optional
annotation	documentation count of output multiplexer selection errors
source	<xs:attribute name="outputSwitch" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of output multiplexer selection errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/errorCount/@radarSwitch

type	xs:int
properties	use  optional
annotation	documentation count of improper rader multiplexer switch configuration
source	<xs:attribute name="radarSwitch" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of improper rader multiplexer switch configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/errorCount/@sTickWidth

type	xs:int
properties	use  optional
annotation	documentation Width of sTicks is not correct
source	<xs:attribute name="sTickWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>Width of sTicks is not correct</xs:documentation>   </xs:annotation> </xs:attribute>

element output/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation pulsar   xs:string            documentation report pulsar status radar   xs:string            documentation report radar status phase   xs:string            documentation report phase status outputSwitch   xs:string            documentation report output switch status dataInfo   xs:string            documentation report data info status crc   xs:string            documentation report CRC status errorCount   xs:string            documentation report error counters register   xs:string            documentation report specified register contents user   xs:string            documentation report user logging configuration about   xs:string            documentation report general module information error   xs:string            documentation report errors clockEdge   xs:string            timeInterval   xs:string            status   xs:string            setup   xs:string
annotation	documentation report module status and state
source	<xs:element name="state" minOccurs="0">   <xs:annotation>     <xs:documentation>report module status and state</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="pulsar" type="xs:string">       <xs:annotation>         <xs:documentation>report pulsar status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="radar" type="xs:string">       <xs:annotation>         <xs:documentation>report radar status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="phase" type="xs:string">       <xs:annotation>         <xs:documentation>report phase status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="outputSwitch" type="xs:string">       <xs:annotation>         <xs:documentation>report output switch status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dataInfo" type="xs:string">       <xs:annotation>         <xs:documentation>report data info status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="crc" type="xs:string">       <xs:annotation>         <xs:documentation>report CRC status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="errorCount" type="xs:string">       <xs:annotation>         <xs:documentation>report error counters</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="register" type="xs:string">       <xs:annotation>         <xs:documentation>report specified register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="user" type="xs:string">       <xs:annotation>         <xs:documentation>report user logging configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="about" type="xs:string">       <xs:annotation>         <xs:documentation>report general module information</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="error" type="xs:string">       <xs:annotation>         <xs:documentation>report errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clockEdge" type="xs:string"/>     <xs:attribute name="timeInterval" type="xs:string"/>     <xs:attribute name="status" type="xs:string"/>     <xs:attribute name="setup" type="xs:string"/>   </xs:complexType> </xs:element>

attribute output/state/@pulsar

type	xs:string
annotation	documentation report pulsar status
source	<xs:attribute name="pulsar" type="xs:string">   <xs:annotation>     <xs:documentation>report pulsar status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@radar

type	xs:string
annotation	documentation report radar status
source	<xs:attribute name="radar" type="xs:string">   <xs:annotation>     <xs:documentation>report radar status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@phase

type	xs:string
annotation	documentation report phase status
source	<xs:attribute name="phase" type="xs:string">   <xs:annotation>     <xs:documentation>report phase status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@outputSwitch

type	xs:string
annotation	documentation report output switch status
source	<xs:attribute name="outputSwitch" type="xs:string">   <xs:annotation>     <xs:documentation>report output switch status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@dataInfo

type	xs:string
annotation	documentation report data info status
source	<xs:attribute name="dataInfo" type="xs:string">   <xs:annotation>     <xs:documentation>report data info status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@crc

type	xs:string
annotation	documentation report CRC status
source	<xs:attribute name="crc" type="xs:string">   <xs:annotation>     <xs:documentation>report CRC status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@errorCount

type	xs:string
annotation	documentation report error counters
source	<xs:attribute name="errorCount" type="xs:string">   <xs:annotation>     <xs:documentation>report error counters</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@register

type	xs:string
annotation	documentation report specified register contents
source	<xs:attribute name="register" type="xs:string">   <xs:annotation>     <xs:documentation>report specified register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@user

type	xs:string
annotation	documentation report user logging configuration
source	<xs:attribute name="user" type="xs:string">   <xs:annotation>     <xs:documentation>report user logging configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@about

type	xs:string
annotation	documentation report general module information
source	<xs:attribute name="about" type="xs:string">   <xs:annotation>     <xs:documentation>report general module information</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@error

type	xs:string
annotation	documentation report errors
source	<xs:attribute name="error" type="xs:string">   <xs:annotation>     <xs:documentation>report errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute output/state/@clockEdge

type	xs:string
source	<xs:attribute name="clockEdge" type="xs:string"/>

attribute output/state/@timeInterval

type	xs:string
source	<xs:attribute name="timeInterval" type="xs:string"/>

attribute output/state/@status

type	xs:string
source	<xs:attribute name="status" type="xs:string"/>

attribute output/state/@setup

type	xs:string
source	<xs:attribute name="setup" type="xs:string"/>

element timing

diagram
properties	content  complex
children	setup control crc clockEdge timeInterval status errorCount dumpTrig testPin pErrorOut state about error register schedule user crossBar
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         documentation time this message was generated obsTime   xs:string            documentation obs clock time as read from the chips registers or the value to set the obs clock vith led   ledType            interrupt   derived by: xs:string            documentation CMIB interrupt generation control pciInterrupt   derived by: xs:string            documentation PCI bus interrupt generation control ledTiming   ledType            documentation General timing FPGA health indication ledDevice   ledType            documentation Status of this FPGA device
annotation	documentation Timing Chip setup and control
source	<xs:element name="timing">   <xs:annotation>     <xs:documentation>Timing Chip setup and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="setup" minOccurs="0">         <xs:complexType>           <xs:attribute name="timeCodeSource">             <xs:annotation>               <xs:documentation>(deprecated) pick source of time code data stream</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A"/>                 <xs:enumeration value="B"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ppsCodeSelect">             <xs:annotation>               <xs:documentation>(deprecated)pick source of time code data stream</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A"/>                 <xs:enumeration value="B"/>                 <xs:enumeration value="off"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="clockSource">             <xs:annotation>               <xs:documentation>(deprecated)pick source of the 128MHz clock</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="timeCode"/>                 <xs:enumeration value="external"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="extPllClockSelect">             <xs:annotation>               <xs:documentation>(deprecated)pick source of the 128MHz clock</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A"/>                 <xs:enumeration value="B"/>                 <xs:enumeration value="external"/>                 <xs:enumeration value="off"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ppsOperation">             <xs:annotation>               <xs:documentation>(deprecated)control of timecode input sources</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="manual"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pllControl">             <xs:annotation>               <xs:documentation>Phase Locked Loop control</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="freeRun"/>                 <xs:enumeration value="lock"/>                 <xs:enumeration value="reset"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sysTickDelay">             <xs:annotation>               <xs:documentation>amount of time to delay system tick (clock units). This data goes directly into register 0x15</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="67108863"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ppsDelay">             <xs:annotation>               <xs:documentation>PPS delay (clock units). This data is modified by hop count before being applied</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="67108863"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="intDelay">             <xs:annotation>               <xs:documentation>amount of time to delay system interrupt (clock units). This data goes directly into register 0x16</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1048575"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="headerInsertion">             <xs:annotation>               <xs:documentation>allow crc/ID insertion in time stamp</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="epoch">             <xs:annotation>               <xs:documentation>specify the timestamp epoch</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="standby">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pModelSource">             <xs:annotation>               <xs:documentation>Selects source of  baseline board phase models. Internal  models are forced to 0, external are source from the user space model generator.</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="internal"/>                 <xs:enumeration value="external"/>                 <xs:enumeration value="disabled"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="obsClockTCLock">             <xs:annotation>               <xs:documentation>if enabled, the observation clock (and hence, the timestamps) will lock to the second count provided by the incomming EVLA timecode. if not, obsClock will only lock to the timecode PPS and will otherwise align with the CPU clock.</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="tx">             <xs:annotation>               <xs:documentation>state of control register TX bit. Should normally be enabled to allow baseline board to byte align</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="chopperSeedRoot0" type="xs:string">             <xs:annotation>               <xs:documentation>chopper seed value for data path 0. This number is applied directly to register 0x54, lower byte.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="chopperSeedRoot1" type="xs:string">             <xs:annotation>               <xs:documentation>chopper seed value for data path 1. This number is applied directly to register 0x54, upper byte.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hopPpsCountSource">             <xs:annotation>               <xs:documentation>Select the timeCode source for the hop_pps register (0x1a). Note that changing this will cause the obsClock to track a different time code and may cause a hiccup in system timing.  </xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A"/>                 <xs:enumeration value="B"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="control" minOccurs="0">         <xs:annotation>           <xs:documentation>Momentary module commands, resets, etc.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="reset" type="xs:string">             <xs:annotation>               <xs:documentation>reset the chip to defaults</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ppsReset" type="xs:string">             <xs:annotation>               <xs:documentation>force the PPS code source reset</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="clearStats" type="xs:string">             <xs:annotation>               <xs:documentation>clears the flags accumulated within the 'status' element.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="clearErrors" type="xs:string">             <xs:annotation>               <xs:documentation>clears all accumulated errors and status indicators.</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="crc" minOccurs="0">         <xs:annotation>           <xs:documentation>CRC setup information </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ledCrcInput" minOccurs="0" maxOccurs="36">               <xs:annotation>                 <xs:documentation>status LEDs for each filters port connection</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:attribute name="filterId" use="required">                   <xs:annotation>                     <xs:documentation>source filter ID for this LED</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:maxInclusive value="17"/>                       <xs:minInclusive value="0"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="dataPath" use="required">                   <xs:annotation>                     <xs:documentation>data path ID for this LED</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:maxInclusive value="1"/>                       <xs:minInclusive value="0"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="led" type="ledType" use="required">                   <xs:annotation>                     <xs:documentation>status of filter to timing CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="scan" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="single"/>                 <xs:enumeration value="auto"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWire" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)when scan type is in 'single' mode, specify the wire to scan here</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireInput0" use="optional">             <xs:annotation>               <xs:documentation>CRC wire check for Filter bank 0 to Timing</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireInput1" use="optional">             <xs:annotation>               <xs:documentation>CRC wire check for Filter bank 1 to Timing</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forcePhaseErrorError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on output port</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceDumpTrigError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on dumpTrig signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forcePhaseModError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on phaseMod signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceTimecodeError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on timecode signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceXbarCommandError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on crossbar commands</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="clockEdge" minOccurs="0" maxOccurs="41">         <xs:annotation>           <xs:documentation>clock phase selection from filter PERR or timecode</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="sourceId" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>specify path/filter id OR timecode id OR sTick OR output0 OR output1</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="edge" use="required">             <xs:annotation>               <xs:documentation>clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="timeInterval" minOccurs="0" maxOccurs="36">         <xs:annotation>           <xs:documentation>phase tick time interval counts</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="filterId" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>the counts belong to this filter</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pTick" type="xs:int">             <xs:annotation>               <xs:documentation>pTick to sTick delay value</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="status" minOccurs="0">         <xs:annotation>           <xs:documentation>status register flags</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="dataClock0" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>mask of data clock status bits for filter bank 0</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dataClock1" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>mask of data clock status bits for filter bank 1</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ppsCount" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>seconds count as derived by the timing chip from the selected time code stream.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ppsCountA" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>seconds count as derived by the timing chip from the selected time code A stream.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ppsCountB" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>seconds count as derived by the timing chip from the time code B stream.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hopCount" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>number of hops the selected timecode has been through to get to this board</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hopCountA" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>number of hops timecode A has been through to get to this board</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hopCountB" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>number of hops timecode B has been through to get to this board</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="statusReg" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>status register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ppsTimeInterval" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>Contents of registers 0x55 and 0x56. This is the number of clocks between the external PPS coming into the station board and the PPS received at the timing FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="out0TimeInterval" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>Contents of registers 0x49 and 0x4a. This is the number of clocks between the 'tick' at the output FPGA 0 and same 'tick' inside the timing FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="out1TimeInterval" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>Contents of registers 0x4b and 0x4c. This is the number of clocks between the 'tick' at the output FPGA 1 and same 'tick' inside the timing FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledPllAlarm" type="ledType" use="required">             <xs:annotation>               <xs:documentation>PLL has lost reference or lock</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledPllFreeRun" type="ledType" use="required">             <xs:annotation>               <xs:documentation>PLL is either in free run or not</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledTimecodeCrc" type="ledType" use="required">             <xs:annotation>               <xs:documentation>timeCode CRC status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledTimecodeCrcA" type="ledType" use="required">             <xs:annotation>               <xs:documentation>timeCode A CRC status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledTimecodeCrcB" type="ledType" use="required">             <xs:annotation>               <xs:documentation>timeCode B CRC status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledTimecodePps" type="ledType" use="required">             <xs:annotation>               <xs:documentation>timeCode PPS interval status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledTimecodeInputPpsA" type="ledType" use="required">             <xs:annotation>               <xs:documentation>timeCode A PPS input clock interval status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledTimecodeInputPpsB" type="ledType" use="required">             <xs:annotation>               <xs:documentation>timeCode B PPS input clock interval status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledTimecodeSystemPpsA" type="ledType" use="required">             <xs:annotation>               <xs:documentation>timeCode A PPS board clock interval status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledTimecodeSystemPpsB" type="ledType" use="required">             <xs:annotation>               <xs:documentation>timeCode B PPS board clock interval status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledPModCommand" type="ledType" use="required">             <xs:annotation>               <xs:documentation>indicate if a phase mod command error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledPModFrame" type="ledType" use="required">             <xs:annotation>               <xs:documentation>indicate if a phase mod frame error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledPModStartBit" type="ledType" use="required">             <xs:annotation>               <xs:documentation>indicate if a phase mod start bit error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledPModRam" type="ledType" use="required">             <xs:annotation>               <xs:documentation>indicate if a phase mod RAM error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledDTrigCommand" type="ledType" use="required">             <xs:annotation>               <xs:documentation>indicate if a dump trigger command error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledDTrigTrigger" type="ledType" use="required">             <xs:annotation>               <xs:documentation>indicate if a dump trigger trigger error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledClockToggle" type="ledType" use="required">             <xs:annotation>               <xs:documentation>toggle status of the selected clock (timecode AB or external)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledDTrigStartBit" type="ledType" use="required">             <xs:annotation>               <xs:documentation>indicate if a dump trigger start bit error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledDTrigRam" type="ledType" use="required">             <xs:annotation>               <xs:documentation>indicate if a dump trigger RAM error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledExtClkToggle" type="ledType" use="required">             <xs:annotation>               <xs:documentation>external clock toggle status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledSClkLock" type="ledType" use="required">             <xs:annotation>               <xs:documentation>SCLK PLL lock status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledGBitTxLock" type="ledType" use="required">             <xs:annotation>               <xs:documentation>gigabit transmitter PLL lock status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledClockAToggle" type="ledType" use="required">             <xs:annotation>               <xs:documentation>64MHz line A clock is toggling</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledClockBToggle" type="ledType" use="required">             <xs:annotation>               <xs:documentation>64MHz line B clock is toggling</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledSTickInterval" type="ledType" use="required">             <xs:annotation>               <xs:documentation>if time between sTicks is not 10ms, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledSPpsInterval" type="ledType" use="required">             <xs:annotation>               <xs:documentation>if time between sPPS is not 10ms, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledSTickWidth" type="ledType" use="required">             <xs:annotation>               <xs:documentation>if width of sTick is incorrect, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledSPpsWidth" type="ledType" use="required">             <xs:annotation>               <xs:documentation>if width of sPPS is incorrect, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledSTickAlign" type="ledType" use="required">             <xs:annotation>               <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledHopCountOverflow" type="ledType" use="required">             <xs:annotation>               <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledHopCountAOverflow" type="ledType" use="required">             <xs:annotation>               <xs:documentation>if the A timecode hop count overflowed, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledHopCountBOverflow" type="ledType" use="required">             <xs:annotation>               <xs:documentation>if the B timecode hop count overflowed, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledDataClock" type="ledType" use="required">             <xs:annotation>               <xs:documentation>composite status of all data clocks</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ppsCodeSource" use="required">             <xs:annotation>               <xs:documentation>source of time code data stream</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A"/>                 <xs:enumeration value="B"/>                 <xs:enumeration value="off"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="extPllClockSource" use="required">             <xs:annotation>               <xs:documentation>source of the 128MHz clock</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A"/>                 <xs:enumeration value="B"/>                 <xs:enumeration value="external"/>                 <xs:enumeration value="off"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="errorCount" minOccurs="0">         <xs:annotation>           <xs:documentation>status register counters</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="pllAlarm" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>PLL has lost reference or lock</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="timeCodeCRC" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>timeCode CRC status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="timeCodePPS" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>timeCode PPS interval status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pModCommand" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>indicate if a phase mod command error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pModFrame" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>indicate if a phase mod frame error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pModStartBit" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>indicate if a phase mod start bit error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pModRAM" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>indicate if a phase mod RAM error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dumpTrigCommand" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>indicate if a dump trigger command error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dumpTrigTrigger" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>indicate if a dump trigger trigger error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dumpTrigStartBit" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>indicate if a dump trigger start bit error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dumpTrigRAM" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>indicate if a dump trigger RAM error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="c64Lock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>CLK64 PLL lock status (deprecated)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="extClkToggle" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>external clock toggle status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sClkLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>SCLK PLL lock status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="gBitTxLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>gigabit transmitter PLL lock status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTickInterval" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>if time between sTicks is not 10ms, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sPpsInterval" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>if time between sPPS is not 10ms, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTickWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>if sTick width is inclrrect, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sPpsWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>if sPPS width is incorrect, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTickAlignment" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dataClock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of data clock errors from all inputs</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="c64AToggle" type="xs:int">             <xs:annotation>               <xs:documentation>64MHz line A clock is toggling</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="c64BToggle" type="xs:int">             <xs:annotation>               <xs:documentation>64MHz line B clock is toggling</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hopCountOverflow" type="xs:int">             <xs:annotation>               <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="dumpTrig" minOccurs="0" maxOccurs="16">         <xs:annotation>           <xs:documentation>dump trigger generator controls </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>dump trig generation buffer ID</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="epoch" type="xs:string">             <xs:annotation>               <xs:documentation>obsClock time dump trigger sequence is referenced from. If time is in the future, this becomes the activation time</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="operation" use="optional">             <xs:annotation>               <xs:documentation>enable or disable the dump trig generator</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="recircFactor" type="xs:int">             <xs:annotation>               <xs:documentation>recirculation factor to use when enabled</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ltaIntegTime" type="xs:int">             <xs:annotation>               <xs:documentation>integration time for the LTA (microSeconds)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hwIntegTime">             <xs:annotation>               <xs:documentation>integration time for the correlator chip (microSeconds)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="500"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numPhaseBins">             <xs:annotation>               <xs:documentation>number of LTA phase bins to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="2000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bbId0SubBandMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands with baseband ID 0 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bbId1SubBandMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands with baseband ID 1 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bbId2SubBandMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands with baseband ID 2 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bbId3SubBandMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands with baseband ID 3 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bbId4SubBandMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands with baseband ID 4 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bbId5SubBandMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands with baseband ID 5 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bbId6SubBandMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands with baseband ID 6 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bbId7SubBandMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands with baseband ID 7 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testPin" minOccurs="0" maxOccurs="4">         <xs:annotation>           <xs:documentation>route internal FPGA signals to external pins</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify pin to map</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="4"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="signal">             <xs:annotation>               <xs:documentation>specify signal id</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="255"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="pErrorOut" minOccurs="0" maxOccurs="18">         <xs:annotation>           <xs:documentation>filter phase error model selection for each output</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="outputId" use="required">             <xs:annotation>               <xs:documentation>specify the output line for these attributes</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pError0Select" use="optional">             <xs:annotation>               <xs:documentation>phase error from filter bank 0 to select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pError1Select" use="optional">             <xs:annotation>               <xs:documentation>phase error from filter bank 1 to select</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dtGenSelect">             <xs:annotation>               <xs:documentation>specify which dump trigger generator to connect to this output</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:annotation>           <xs:documentation>report module status and state</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="crc" type="xs:string">             <xs:annotation>               <xs:documentation>report CRC status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="clockEdge" type="xs:string">             <xs:annotation>               <xs:documentation>clock edge setups</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="timeInterval" type="xs:string">             <xs:annotation>               <xs:documentation>report phase tick  time interval status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string">             <xs:annotation>               <xs:documentation>report functional contents of status register</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="errorCount" type="xs:string">             <xs:annotation>               <xs:documentation>report status register error counters</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dumpTrig" type="xs:string">             <xs:annotation>               <xs:documentation>report dumpTrig status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pErrorOut" type="xs:string">             <xs:annotation>               <xs:documentation>report phase error output selection status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="testPin" type="xs:string">             <xs:annotation>               <xs:documentation>report testPin status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="register" type="xs:string">             <xs:annotation>               <xs:documentation>report specified register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="user" type="xs:string">             <xs:annotation>               <xs:documentation>report user logging configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="about" type="xs:string">             <xs:annotation>               <xs:documentation>report general module information</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="error" type="xs:string">             <xs:annotation>               <xs:documentation>report errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="crossBar" type="xs:string">             <xs:annotation>               <xs:documentation>report assumed state of crossbar connections</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="setup" type="xs:string">             <xs:annotation>               <xs:documentation>general setup parameters, confgiurations, and data source selection</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="schedule" minOccurs="0"/>       <xs:element ref="user" minOccurs="0"/>       <xs:element ref="crossBar" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>control of rack crossbar switch (WRITE ONLY)</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime" use="optional">       <xs:annotation>         <xs:documentation>time this message was generated</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="obsTime" type="xs:string">       <xs:annotation>         <xs:documentation>obs clock time as read from the chips registers or the value to set the obs clock vith</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="led" type="ledType"/>     <xs:attribute name="interrupt">       <xs:annotation>         <xs:documentation>CMIB interrupt generation control</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pciInterrupt">       <xs:annotation>         <xs:documentation>PCI bus interrupt generation control</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledTiming" type="ledType">       <xs:annotation>         <xs:documentation>General timing FPGA health indication</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/@time

type	xs:dateTime
properties	use  optional
annotation	documentation time this message was generated
source	<xs:attribute name="time" type="xs:dateTime" use="optional">   <xs:annotation>     <xs:documentation>time this message was generated</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/@obsTime

type	xs:string
annotation	documentation obs clock time as read from the chips registers or the value to set the obs clock vith
source	<xs:attribute name="obsTime" type="xs:string">   <xs:annotation>     <xs:documentation>obs clock time as read from the chips registers or the value to set the obs clock vith</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/@led

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="led" type="ledType"/>

attribute timing/@interrupt

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation CMIB interrupt generation control
source	<xs:attribute name="interrupt">   <xs:annotation>     <xs:documentation>CMIB interrupt generation control</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/@pciInterrupt

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation PCI bus interrupt generation control
source	<xs:attribute name="pciInterrupt">   <xs:annotation>     <xs:documentation>PCI bus interrupt generation control</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/@ledTiming

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation General timing FPGA health indication
source	<xs:attribute name="ledTiming" type="ledType">   <xs:annotation>     <xs:documentation>General timing FPGA health indication</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

element timing/setup

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation timeCodeSource   derived by: xs:string            documentation (deprecated) pick source of time code data stream ppsCodeSelect   derived by: xs:string            documentation (deprecated)pick source of time code data stream clockSource   derived by: xs:string            documentation (deprecated)pick source of the 128MHz clock extPllClockSelect   derived by: xs:string            documentation (deprecated)pick source of the 128MHz clock ppsOperation   derived by: xs:string            documentation (deprecated)control of timecode input sources pllControl   derived by: xs:string            documentation Phase Locked Loop control sysTickDelay   derived by: xs:int            documentation amount of time to delay system tick (clock units). This data goes directly into register 0x15 ppsDelay   derived by: xs:int            documentation PPS delay (clock units). This data is modified by hop count before being applied intDelay   derived by: xs:int            documentation amount of time to delay system interrupt (clock units). This data goes directly into register 0x16 headerInsertion   derived by: xs:string            documentation allow crc/ID insertion in time stamp epoch   derived by: xs:int            documentation specify the timestamp epoch standby   derived by: xs:string            pModelSource   derived by: xs:string            documentation Selects source of  baseline board phase models. Internal  models are forced to 0, external are source from the user space model generator. obsClockTCLock   derived by: xs:string            documentation if enabled, the observation clock (and hence, the timestamps) will lock to the second count provided by the incomming EVLA timecode. if not, obsClock will only lock to the timecode PPS and will otherwise align with the CPU clock. tx   derived by: xs:string            documentation state of control register TX bit. Should normally be enabled to allow baseline board to byte align chopperSeedRoot0   xs:string            documentation chopper seed value for data path 0. This number is applied directly to register 0x54, lower byte. chopperSeedRoot1   xs:string            documentation chopper seed value for data path 1. This number is applied directly to register 0x54, upper byte. hopPpsCountSource   derived by: xs:string            documentation Select the timeCode source for the hop_pps register (0x1a). Note that changing this will cause the obsClock to track a different time code and may cause a hiccup in system timing.
source	<xs:element name="setup" minOccurs="0">   <xs:complexType>     <xs:attribute name="timeCodeSource">       <xs:annotation>         <xs:documentation>(deprecated) pick source of time code data stream</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A"/>           <xs:enumeration value="B"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ppsCodeSelect">       <xs:annotation>         <xs:documentation>(deprecated)pick source of time code data stream</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A"/>           <xs:enumeration value="B"/>           <xs:enumeration value="off"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="clockSource">       <xs:annotation>         <xs:documentation>(deprecated)pick source of the 128MHz clock</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="timeCode"/>           <xs:enumeration value="external"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="extPllClockSelect">       <xs:annotation>         <xs:documentation>(deprecated)pick source of the 128MHz clock</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A"/>           <xs:enumeration value="B"/>           <xs:enumeration value="external"/>           <xs:enumeration value="off"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ppsOperation">       <xs:annotation>         <xs:documentation>(deprecated)control of timecode input sources</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="manual"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pllControl">       <xs:annotation>         <xs:documentation>Phase Locked Loop control</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="freeRun"/>           <xs:enumeration value="lock"/>           <xs:enumeration value="reset"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sysTickDelay">       <xs:annotation>         <xs:documentation>amount of time to delay system tick (clock units). This data goes directly into register 0x15</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="67108863"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ppsDelay">       <xs:annotation>         <xs:documentation>PPS delay (clock units). This data is modified by hop count before being applied</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="67108863"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="intDelay">       <xs:annotation>         <xs:documentation>amount of time to delay system interrupt (clock units). This data goes directly into register 0x16</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1048575"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="headerInsertion">       <xs:annotation>         <xs:documentation>allow crc/ID insertion in time stamp</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="epoch">       <xs:annotation>         <xs:documentation>specify the timestamp epoch</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="standby">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pModelSource">       <xs:annotation>         <xs:documentation>Selects source of  baseline board phase models. Internal  models are forced to 0, external are source from the user space model generator.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="internal"/>           <xs:enumeration value="external"/>           <xs:enumeration value="disabled"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="obsClockTCLock">       <xs:annotation>         <xs:documentation>if enabled, the observation clock (and hence, the timestamps) will lock to the second count provided by the incomming EVLA timecode. if not, obsClock will only lock to the timecode PPS and will otherwise align with the CPU clock.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="tx">       <xs:annotation>         <xs:documentation>state of control register TX bit. Should normally be enabled to allow baseline board to byte align</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="chopperSeedRoot0" type="xs:string">       <xs:annotation>         <xs:documentation>chopper seed value for data path 0. This number is applied directly to register 0x54, lower byte.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="chopperSeedRoot1" type="xs:string">       <xs:annotation>         <xs:documentation>chopper seed value for data path 1. This number is applied directly to register 0x54, upper byte.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hopPpsCountSource">       <xs:annotation>         <xs:documentation>Select the timeCode source for the hop_pps register (0x1a). Note that changing this will cause the obsClock to track a different time code and may cause a hiccup in system timing.  </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A"/>           <xs:enumeration value="B"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/setup/@timeCodeSource

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  A enumeration  B
annotation	documentation (deprecated) pick source of time code data stream
source	<xs:attribute name="timeCodeSource">   <xs:annotation>     <xs:documentation>(deprecated) pick source of time code data stream</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A"/>       <xs:enumeration value="B"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@ppsCodeSelect

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  A enumeration  B enumeration  off
annotation	documentation (deprecated)pick source of time code data stream
source	<xs:attribute name="ppsCodeSelect">   <xs:annotation>     <xs:documentation>(deprecated)pick source of time code data stream</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A"/>       <xs:enumeration value="B"/>       <xs:enumeration value="off"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@clockSource

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  timeCode enumeration  external
annotation	documentation (deprecated)pick source of the 128MHz clock
source	<xs:attribute name="clockSource">   <xs:annotation>     <xs:documentation>(deprecated)pick source of the 128MHz clock</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="timeCode"/>       <xs:enumeration value="external"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@extPllClockSelect

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  A enumeration  B enumeration  external enumeration  off
annotation	documentation (deprecated)pick source of the 128MHz clock
source	<xs:attribute name="extPllClockSelect">   <xs:annotation>     <xs:documentation>(deprecated)pick source of the 128MHz clock</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A"/>       <xs:enumeration value="B"/>       <xs:enumeration value="external"/>       <xs:enumeration value="off"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@ppsOperation

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  auto enumeration  manual
annotation	documentation (deprecated)control of timecode input sources
source	<xs:attribute name="ppsOperation">   <xs:annotation>     <xs:documentation>(deprecated)control of timecode input sources</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="manual"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@pllControl

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  freeRun enumeration  lock enumeration  reset
annotation	documentation Phase Locked Loop control
source	<xs:attribute name="pllControl">   <xs:annotation>     <xs:documentation>Phase Locked Loop control</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="freeRun"/>       <xs:enumeration value="lock"/>       <xs:enumeration value="reset"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@sysTickDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  67108863
annotation	documentation amount of time to delay system tick (clock units). This data goes directly into register 0x15
source	<xs:attribute name="sysTickDelay">   <xs:annotation>     <xs:documentation>amount of time to delay system tick (clock units). This data goes directly into register 0x15</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="67108863"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@ppsDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  67108863
annotation	documentation PPS delay (clock units). This data is modified by hop count before being applied
source	<xs:attribute name="ppsDelay">   <xs:annotation>     <xs:documentation>PPS delay (clock units). This data is modified by hop count before being applied</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="67108863"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@intDelay

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1048575
annotation	documentation amount of time to delay system interrupt (clock units). This data goes directly into register 0x16
source	<xs:attribute name="intDelay">   <xs:annotation>     <xs:documentation>amount of time to delay system interrupt (clock units). This data goes directly into register 0x16</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1048575"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@headerInsertion

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation allow crc/ID insertion in time stamp
source	<xs:attribute name="headerInsertion">   <xs:annotation>     <xs:documentation>allow crc/ID insertion in time stamp</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@epoch

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation specify the timestamp epoch
source	<xs:attribute name="epoch">   <xs:annotation>     <xs:documentation>specify the timestamp epoch</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="standby">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@pModelSource

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  internal enumeration  external enumeration  disabled
annotation	documentation Selects source of  baseline board phase models. Internal  models are forced to 0, external are source from the user space model generator.
source	<xs:attribute name="pModelSource">   <xs:annotation>     <xs:documentation>Selects source of  baseline board phase models. Internal  models are forced to 0, external are source from the user space model generator.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="internal"/>       <xs:enumeration value="external"/>       <xs:enumeration value="disabled"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@obsClockTCLock

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation if enabled, the observation clock (and hence, the timestamps) will lock to the second count provided by the incomming EVLA timecode. if not, obsClock will only lock to the timecode PPS and will otherwise align with the CPU clock.
source	<xs:attribute name="obsClockTCLock">   <xs:annotation>     <xs:documentation>if enabled, the observation clock (and hence, the timestamps) will lock to the second count provided by the incomming EVLA timecode. if not, obsClock will only lock to the timecode PPS and will otherwise align with the CPU clock.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@tx

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation state of control register TX bit. Should normally be enabled to allow baseline board to byte align
source	<xs:attribute name="tx">   <xs:annotation>     <xs:documentation>state of control register TX bit. Should normally be enabled to allow baseline board to byte align</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/setup/@chopperSeedRoot0

type	xs:string
annotation	documentation chopper seed value for data path 0. This number is applied directly to register 0x54, lower byte.
source	<xs:attribute name="chopperSeedRoot0" type="xs:string">   <xs:annotation>     <xs:documentation>chopper seed value for data path 0. This number is applied directly to register 0x54, lower byte.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/setup/@chopperSeedRoot1

type	xs:string
annotation	documentation chopper seed value for data path 1. This number is applied directly to register 0x54, upper byte.
source	<xs:attribute name="chopperSeedRoot1" type="xs:string">   <xs:annotation>     <xs:documentation>chopper seed value for data path 1. This number is applied directly to register 0x54, upper byte.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/setup/@hopPpsCountSource

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  A enumeration  B
annotation	documentation Select the timeCode source for the hop_pps register (0x1a). Note that changing this will cause the obsClock to track a different time code and may cause a hiccup in system timing.
source	<xs:attribute name="hopPpsCountSource">   <xs:annotation>     <xs:documentation>Select the timeCode source for the hop_pps register (0x1a). Note that changing this will cause the obsClock to track a different time code and may cause a hiccup in system timing.  </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A"/>       <xs:enumeration value="B"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element timing/control

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation reset   xs:string            documentation reset the chip to defaults ppsReset   xs:string            documentation force the PPS code source reset clearStats   xs:string            documentation clears the flags accumulated within the 'status' element. clearErrors   xs:string            documentation clears all accumulated errors and status indicators.
annotation	documentation Momentary module commands, resets, etc.
source	<xs:element name="control" minOccurs="0">   <xs:annotation>     <xs:documentation>Momentary module commands, resets, etc.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>reset the chip to defaults</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ppsReset" type="xs:string">       <xs:annotation>         <xs:documentation>force the PPS code source reset</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clearStats" type="xs:string">       <xs:annotation>         <xs:documentation>clears the flags accumulated within the 'status' element.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clearErrors" type="xs:string">       <xs:annotation>         <xs:documentation>clears all accumulated errors and status indicators.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/control/@reset

type	xs:string
annotation	documentation reset the chip to defaults
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>reset the chip to defaults</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/control/@ppsReset

type	xs:string
annotation	documentation force the PPS code source reset
source	<xs:attribute name="ppsReset" type="xs:string">   <xs:annotation>     <xs:documentation>force the PPS code source reset</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/control/@clearStats

type	xs:string
annotation	documentation clears the flags accumulated within the 'status' element.
source	<xs:attribute name="clearStats" type="xs:string">   <xs:annotation>     <xs:documentation>clears the flags accumulated within the 'status' element.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/control/@clearErrors

type	xs:string
annotation	documentation clears all accumulated errors and status indicators.
source	<xs:attribute name="clearErrors" type="xs:string">   <xs:annotation>     <xs:documentation>clears all accumulated errors and status indicators.</xs:documentation>   </xs:annotation> </xs:attribute>

element timing/crc

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ledCrcInput
attributes	Name   Type   Use   Default   Fixed   Annotation scan   derived by: xs:string   optional         documentation (deprecated)CRC error checking mode scanWire   derived by: xs:string   optional         documentation (deprecated)when scan type is in 'single' mode, specify the wire to scan here scanWireInput0   derived by: xs:string   optional         documentation CRC wire check for Filter bank 0 to Timing scanWireInput1   derived by: xs:string   optional         documentation CRC wire check for Filter bank 1 to Timing forcePhaseErrorError   derived by: xs:string   optional         documentation force a CRC error on output port forceDumpTrigError   derived by: xs:string   optional         documentation force a CRC error on dumpTrig signal forcePhaseModError   derived by: xs:string   optional         documentation force a CRC error on phaseMod signal forceTimecodeError   derived by: xs:string   optional         documentation force a CRC error on timecode signal forceXbarCommandError   derived by: xs:string   optional         documentation force a CRC error on crossbar commands
annotation	documentation CRC setup information
source	<xs:element name="crc" minOccurs="0">   <xs:annotation>     <xs:documentation>CRC setup information </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ledCrcInput" minOccurs="0" maxOccurs="36">         <xs:annotation>           <xs:documentation>status LEDs for each filters port connection</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="filterId" use="required">             <xs:annotation>               <xs:documentation>source filter ID for this LED</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="17"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dataPath" use="required">             <xs:annotation>               <xs:documentation>data path ID for this LED</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="1"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="led" type="ledType" use="required">             <xs:annotation>               <xs:documentation>status of filter to timing CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="scan" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="single"/>           <xs:enumeration value="auto"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWire" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)when scan type is in 'single' mode, specify the wire to scan here</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireInput0" use="optional">       <xs:annotation>         <xs:documentation>CRC wire check for Filter bank 0 to Timing</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireInput1" use="optional">       <xs:annotation>         <xs:documentation>CRC wire check for Filter bank 1 to Timing</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forcePhaseErrorError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on output port</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceDumpTrigError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on dumpTrig signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forcePhaseModError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on phaseMod signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceTimecodeError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on timecode signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceXbarCommandError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on crossbar commands</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/crc/@scan

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  single enumeration  auto
annotation	documentation (deprecated)CRC error checking mode
source	<xs:attribute name="scan" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="single"/>       <xs:enumeration value="auto"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/@scanWire

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation (deprecated)when scan type is in 'single' mode, specify the wire to scan here
source	<xs:attribute name="scanWire" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)when scan type is in 'single' mode, specify the wire to scan here</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/@scanWireInput0

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation CRC wire check for Filter bank 0 to Timing
source	<xs:attribute name="scanWireInput0" use="optional">   <xs:annotation>     <xs:documentation>CRC wire check for Filter bank 0 to Timing</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/@scanWireInput1

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation CRC wire check for Filter bank 1 to Timing
source	<xs:attribute name="scanWireInput1" use="optional">   <xs:annotation>     <xs:documentation>CRC wire check for Filter bank 1 to Timing</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/@forcePhaseErrorError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation force a CRC error on output port
source	<xs:attribute name="forcePhaseErrorError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on output port</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/@forceDumpTrigError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation force a CRC error on dumpTrig signal
source	<xs:attribute name="forceDumpTrigError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on dumpTrig signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/@forcePhaseModError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation force a CRC error on phaseMod signal
source	<xs:attribute name="forcePhaseModError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on phaseMod signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/@forceTimecodeError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation force a CRC error on timecode signal
source	<xs:attribute name="forceTimecodeError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on timecode signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/@forceXbarCommandError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation force a CRC error on crossbar commands
source	<xs:attribute name="forceXbarCommandError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on crossbar commands</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element timing/crc/ledCrcInput

diagram
properties	minOcc  0 maxOcc  36 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation filterId   derived by: xs:int   required         documentation source filter ID for this LED dataPath   derived by: xs:int   required         documentation data path ID for this LED led   ledType   required         documentation status of filter to timing CRCs. Green = OK, Red = ERROR, Off = checking off
annotation	documentation status LEDs for each filters port connection
source	<xs:element name="ledCrcInput" minOccurs="0" maxOccurs="36">   <xs:annotation>     <xs:documentation>status LEDs for each filters port connection</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="filterId" use="required">       <xs:annotation>         <xs:documentation>source filter ID for this LED</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="17"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dataPath" use="required">       <xs:annotation>         <xs:documentation>data path ID for this LED</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="1"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="led" type="ledType" use="required">       <xs:annotation>         <xs:documentation>status of filter to timing CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/crc/ledCrcInput/@filterId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation source filter ID for this LED
source	<xs:attribute name="filterId" use="required">   <xs:annotation>     <xs:documentation>source filter ID for this LED</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="17"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/ledCrcInput/@dataPath

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation data path ID for this LED
source	<xs:attribute name="dataPath" use="required">   <xs:annotation>     <xs:documentation>data path ID for this LED</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="1"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/crc/ledCrcInput/@led

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of filter to timing CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="led" type="ledType" use="required">   <xs:annotation>     <xs:documentation>status of filter to timing CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

element timing/clockEdge

diagram
properties	minOcc  0 maxOcc  41 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation sourceId   xs:string   required         documentation specify path/filter id OR timecode id OR sTick OR output0 OR output1 edge   derived by: xs:string   required         documentation clock edge to use
annotation	documentation clock phase selection from filter PERR or timecode
source	<xs:element name="clockEdge" minOccurs="0" maxOccurs="41">   <xs:annotation>     <xs:documentation>clock phase selection from filter PERR or timecode</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="sourceId" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>specify path/filter id OR timecode id OR sTick OR output0 OR output1</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="edge" use="required">       <xs:annotation>         <xs:documentation>clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/clockEdge/@sourceId

type	xs:string
properties	use  required
annotation	documentation specify path/filter id OR timecode id OR sTick OR output0 OR output1
source	<xs:attribute name="sourceId" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>specify path/filter id OR timecode id OR sTick OR output0 OR output1</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/clockEdge/@edge

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation clock edge to use
source	<xs:attribute name="edge" use="required">   <xs:annotation>     <xs:documentation>clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element timing/timeInterval

diagram
properties	minOcc  0 maxOcc  36 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation filterId   xs:string   required         documentation the counts belong to this filter pTick   xs:int            documentation pTick to sTick delay value
annotation	documentation phase tick time interval counts
source	<xs:element name="timeInterval" minOccurs="0" maxOccurs="36">   <xs:annotation>     <xs:documentation>phase tick time interval counts</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="filterId" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>the counts belong to this filter</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pTick" type="xs:int">       <xs:annotation>         <xs:documentation>pTick to sTick delay value</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/timeInterval/@filterId

type	xs:string
properties	use  required
annotation	documentation the counts belong to this filter
source	<xs:attribute name="filterId" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>the counts belong to this filter</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/timeInterval/@pTick

type	xs:int
annotation	documentation pTick to sTick delay value
source	<xs:attribute name="pTick" type="xs:int">   <xs:annotation>     <xs:documentation>pTick to sTick delay value</xs:documentation>   </xs:annotation> </xs:attribute>

element timing/status

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation dataClock0   xs:string   required         documentation mask of data clock status bits for filter bank 0 dataClock1   xs:string   required         documentation mask of data clock status bits for filter bank 1 ppsCount   xs:int   required         documentation seconds count as derived by the timing chip from the selected time code stream. ppsCountA   xs:int   required         documentation seconds count as derived by the timing chip from the selected time code A stream. ppsCountB   xs:int   required         documentation seconds count as derived by the timing chip from the time code B stream. hopCount   xs:int   required         documentation number of hops the selected timecode has been through to get to this board hopCountA   xs:int   required         documentation number of hops timecode A has been through to get to this board hopCountB   xs:int   required         documentation number of hops timecode B has been through to get to this board statusReg   xs:string   required         documentation status register contents ppsTimeInterval   xs:int   required         documentation Contents of registers 0x55 and 0x56. This is the number of clocks between the external PPS coming into the station board and the PPS received at the timing FPGA out0TimeInterval   xs:int   required         documentation Contents of registers 0x49 and 0x4a. This is the number of clocks between the 'tick' at the output FPGA 0 and same 'tick' inside the timing FPGA out1TimeInterval   xs:int   required         documentation Contents of registers 0x4b and 0x4c. This is the number of clocks between the 'tick' at the output FPGA 1 and same 'tick' inside the timing FPGA ledPllAlarm   ledType   required         documentation PLL has lost reference or lock ledPllFreeRun   ledType   required         documentation PLL is either in free run or not ledTimecodeCrc   ledType   required         documentation timeCode CRC status ledTimecodeCrcA   ledType   required         documentation timeCode A CRC status ledTimecodeCrcB   ledType   required         documentation timeCode B CRC status ledTimecodePps   ledType   required         documentation timeCode PPS interval status ledTimecodeInputPpsA   ledType   required         documentation timeCode A PPS input clock interval status ledTimecodeInputPpsB   ledType   required         documentation timeCode B PPS input clock interval status ledTimecodeSystemPpsA   ledType   required         documentation timeCode A PPS board clock interval status ledTimecodeSystemPpsB   ledType   required         documentation timeCode B PPS board clock interval status ledPModCommand   ledType   required         documentation indicate if a phase mod command error exists ledPModFrame   ledType   required         documentation indicate if a phase mod frame error exists ledPModStartBit   ledType   required         documentation indicate if a phase mod start bit error exists ledPModRam   ledType   required         documentation indicate if a phase mod RAM error exists ledDTrigCommand   ledType   required         documentation indicate if a dump trigger command error exists ledDTrigTrigger   ledType   required         documentation indicate if a dump trigger trigger error exists ledClockToggle   ledType   required         documentation toggle status of the selected clock (timecode AB or external) ledDTrigStartBit   ledType   required         documentation indicate if a dump trigger start bit error exists ledDTrigRam   ledType   required         documentation indicate if a dump trigger RAM error exists ledExtClkToggle   ledType   required         documentation external clock toggle status ledSClkLock   ledType   required         documentation SCLK PLL lock status ledGBitTxLock   ledType   required         documentation gigabit transmitter PLL lock status ledClockAToggle   ledType   required         documentation 64MHz line A clock is toggling ledClockBToggle   ledType   required         documentation 64MHz line B clock is toggling ledSTickInterval   ledType   required         documentation if time between sTicks is not 10ms, an error exists ledSPpsInterval   ledType   required         documentation if time between sPPS is not 10ms, an error exists ledSTickWidth   ledType   required         documentation if width of sTick is incorrect, an error exists ledSPpsWidth   ledType   required         documentation if width of sPPS is incorrect, an error exists ledSTickAlign   ledType   required         documentation if alignment between sTick and sPPS is not coincedent, an error exists ledHopCountOverflow   ledType   required         documentation if the hop count overflowed, an error exists ledHopCountAOverflow   ledType   required         documentation if the A timecode hop count overflowed, an error exists ledHopCountBOverflow   ledType   required         documentation if the B timecode hop count overflowed, an error exists ledDataClock   ledType   required         documentation composite status of all data clocks ppsCodeSource   derived by: xs:string   required         documentation source of time code data stream extPllClockSource   derived by: xs:string   required         documentation source of the 128MHz clock
annotation	documentation status register flags
source	<xs:element name="status" minOccurs="0">   <xs:annotation>     <xs:documentation>status register flags</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="dataClock0" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>mask of data clock status bits for filter bank 0</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dataClock1" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>mask of data clock status bits for filter bank 1</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ppsCount" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>seconds count as derived by the timing chip from the selected time code stream.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ppsCountA" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>seconds count as derived by the timing chip from the selected time code A stream.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ppsCountB" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>seconds count as derived by the timing chip from the time code B stream.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hopCount" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>number of hops the selected timecode has been through to get to this board</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hopCountA" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>number of hops timecode A has been through to get to this board</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hopCountB" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>number of hops timecode B has been through to get to this board</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="statusReg" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>status register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ppsTimeInterval" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>Contents of registers 0x55 and 0x56. This is the number of clocks between the external PPS coming into the station board and the PPS received at the timing FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="out0TimeInterval" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>Contents of registers 0x49 and 0x4a. This is the number of clocks between the 'tick' at the output FPGA 0 and same 'tick' inside the timing FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="out1TimeInterval" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>Contents of registers 0x4b and 0x4c. This is the number of clocks between the 'tick' at the output FPGA 1 and same 'tick' inside the timing FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledPllAlarm" type="ledType" use="required">       <xs:annotation>         <xs:documentation>PLL has lost reference or lock</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledPllFreeRun" type="ledType" use="required">       <xs:annotation>         <xs:documentation>PLL is either in free run or not</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledTimecodeCrc" type="ledType" use="required">       <xs:annotation>         <xs:documentation>timeCode CRC status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledTimecodeCrcA" type="ledType" use="required">       <xs:annotation>         <xs:documentation>timeCode A CRC status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledTimecodeCrcB" type="ledType" use="required">       <xs:annotation>         <xs:documentation>timeCode B CRC status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledTimecodePps" type="ledType" use="required">       <xs:annotation>         <xs:documentation>timeCode PPS interval status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledTimecodeInputPpsA" type="ledType" use="required">       <xs:annotation>         <xs:documentation>timeCode A PPS input clock interval status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledTimecodeInputPpsB" type="ledType" use="required">       <xs:annotation>         <xs:documentation>timeCode B PPS input clock interval status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledTimecodeSystemPpsA" type="ledType" use="required">       <xs:annotation>         <xs:documentation>timeCode A PPS board clock interval status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledTimecodeSystemPpsB" type="ledType" use="required">       <xs:annotation>         <xs:documentation>timeCode B PPS board clock interval status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledPModCommand" type="ledType" use="required">       <xs:annotation>         <xs:documentation>indicate if a phase mod command error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledPModFrame" type="ledType" use="required">       <xs:annotation>         <xs:documentation>indicate if a phase mod frame error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledPModStartBit" type="ledType" use="required">       <xs:annotation>         <xs:documentation>indicate if a phase mod start bit error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledPModRam" type="ledType" use="required">       <xs:annotation>         <xs:documentation>indicate if a phase mod RAM error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDTrigCommand" type="ledType" use="required">       <xs:annotation>         <xs:documentation>indicate if a dump trigger command error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDTrigTrigger" type="ledType" use="required">       <xs:annotation>         <xs:documentation>indicate if a dump trigger trigger error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledClockToggle" type="ledType" use="required">       <xs:annotation>         <xs:documentation>toggle status of the selected clock (timecode AB or external)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDTrigStartBit" type="ledType" use="required">       <xs:annotation>         <xs:documentation>indicate if a dump trigger start bit error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDTrigRam" type="ledType" use="required">       <xs:annotation>         <xs:documentation>indicate if a dump trigger RAM error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledExtClkToggle" type="ledType" use="required">       <xs:annotation>         <xs:documentation>external clock toggle status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledSClkLock" type="ledType" use="required">       <xs:annotation>         <xs:documentation>SCLK PLL lock status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledGBitTxLock" type="ledType" use="required">       <xs:annotation>         <xs:documentation>gigabit transmitter PLL lock status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledClockAToggle" type="ledType" use="required">       <xs:annotation>         <xs:documentation>64MHz line A clock is toggling</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledClockBToggle" type="ledType" use="required">       <xs:annotation>         <xs:documentation>64MHz line B clock is toggling</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledSTickInterval" type="ledType" use="required">       <xs:annotation>         <xs:documentation>if time between sTicks is not 10ms, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledSPpsInterval" type="ledType" use="required">       <xs:annotation>         <xs:documentation>if time between sPPS is not 10ms, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledSTickWidth" type="ledType" use="required">       <xs:annotation>         <xs:documentation>if width of sTick is incorrect, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledSPpsWidth" type="ledType" use="required">       <xs:annotation>         <xs:documentation>if width of sPPS is incorrect, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledSTickAlign" type="ledType" use="required">       <xs:annotation>         <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledHopCountOverflow" type="ledType" use="required">       <xs:annotation>         <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledHopCountAOverflow" type="ledType" use="required">       <xs:annotation>         <xs:documentation>if the A timecode hop count overflowed, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledHopCountBOverflow" type="ledType" use="required">       <xs:annotation>         <xs:documentation>if the B timecode hop count overflowed, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDataClock" type="ledType" use="required">       <xs:annotation>         <xs:documentation>composite status of all data clocks</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ppsCodeSource" use="required">       <xs:annotation>         <xs:documentation>source of time code data stream</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A"/>           <xs:enumeration value="B"/>           <xs:enumeration value="off"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="extPllClockSource" use="required">       <xs:annotation>         <xs:documentation>source of the 128MHz clock</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A"/>           <xs:enumeration value="B"/>           <xs:enumeration value="external"/>           <xs:enumeration value="off"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/status/@dataClock0

type	xs:string
properties	use  required
annotation	documentation mask of data clock status bits for filter bank 0
source	<xs:attribute name="dataClock0" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>mask of data clock status bits for filter bank 0</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@dataClock1

type	xs:string
properties	use  required
annotation	documentation mask of data clock status bits for filter bank 1
source	<xs:attribute name="dataClock1" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>mask of data clock status bits for filter bank 1</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ppsCount

type	xs:int
properties	use  required
annotation	documentation seconds count as derived by the timing chip from the selected time code stream.
source	<xs:attribute name="ppsCount" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>seconds count as derived by the timing chip from the selected time code stream.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ppsCountA

type	xs:int
properties	use  required
annotation	documentation seconds count as derived by the timing chip from the selected time code A stream.
source	<xs:attribute name="ppsCountA" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>seconds count as derived by the timing chip from the selected time code A stream.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ppsCountB

type	xs:int
properties	use  required
annotation	documentation seconds count as derived by the timing chip from the time code B stream.
source	<xs:attribute name="ppsCountB" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>seconds count as derived by the timing chip from the time code B stream.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@hopCount

type	xs:int
properties	use  required
annotation	documentation number of hops the selected timecode has been through to get to this board
source	<xs:attribute name="hopCount" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>number of hops the selected timecode has been through to get to this board</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@hopCountA

type	xs:int
properties	use  required
annotation	documentation number of hops timecode A has been through to get to this board
source	<xs:attribute name="hopCountA" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>number of hops timecode A has been through to get to this board</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@hopCountB

type	xs:int
properties	use  required
annotation	documentation number of hops timecode B has been through to get to this board
source	<xs:attribute name="hopCountB" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>number of hops timecode B has been through to get to this board</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@statusReg

type	xs:string
properties	use  required
annotation	documentation status register contents
source	<xs:attribute name="statusReg" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>status register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ppsTimeInterval

type	xs:int
properties	use  required
annotation	documentation Contents of registers 0x55 and 0x56. This is the number of clocks between the external PPS coming into the station board and the PPS received at the timing FPGA
source	<xs:attribute name="ppsTimeInterval" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>Contents of registers 0x55 and 0x56. This is the number of clocks between the external PPS coming into the station board and the PPS received at the timing FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@out0TimeInterval

type	xs:int
properties	use  required
annotation	documentation Contents of registers 0x49 and 0x4a. This is the number of clocks between the 'tick' at the output FPGA 0 and same 'tick' inside the timing FPGA
source	<xs:attribute name="out0TimeInterval" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>Contents of registers 0x49 and 0x4a. This is the number of clocks between the 'tick' at the output FPGA 0 and same 'tick' inside the timing FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@out1TimeInterval

type	xs:int
properties	use  required
annotation	documentation Contents of registers 0x4b and 0x4c. This is the number of clocks between the 'tick' at the output FPGA 1 and same 'tick' inside the timing FPGA
source	<xs:attribute name="out1TimeInterval" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>Contents of registers 0x4b and 0x4c. This is the number of clocks between the 'tick' at the output FPGA 1 and same 'tick' inside the timing FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledPllAlarm

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation PLL has lost reference or lock
source	<xs:attribute name="ledPllAlarm" type="ledType" use="required">   <xs:annotation>     <xs:documentation>PLL has lost reference or lock</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledPllFreeRun

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation PLL is either in free run or not
source	<xs:attribute name="ledPllFreeRun" type="ledType" use="required">   <xs:annotation>     <xs:documentation>PLL is either in free run or not</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledTimecodeCrc

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation timeCode CRC status
source	<xs:attribute name="ledTimecodeCrc" type="ledType" use="required">   <xs:annotation>     <xs:documentation>timeCode CRC status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledTimecodeCrcA

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation timeCode A CRC status
source	<xs:attribute name="ledTimecodeCrcA" type="ledType" use="required">   <xs:annotation>     <xs:documentation>timeCode A CRC status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledTimecodeCrcB

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation timeCode B CRC status
source	<xs:attribute name="ledTimecodeCrcB" type="ledType" use="required">   <xs:annotation>     <xs:documentation>timeCode B CRC status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledTimecodePps

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation timeCode PPS interval status
source	<xs:attribute name="ledTimecodePps" type="ledType" use="required">   <xs:annotation>     <xs:documentation>timeCode PPS interval status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledTimecodeInputPpsA

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation timeCode A PPS input clock interval status
source	<xs:attribute name="ledTimecodeInputPpsA" type="ledType" use="required">   <xs:annotation>     <xs:documentation>timeCode A PPS input clock interval status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledTimecodeInputPpsB

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation timeCode B PPS input clock interval status
source	<xs:attribute name="ledTimecodeInputPpsB" type="ledType" use="required">   <xs:annotation>     <xs:documentation>timeCode B PPS input clock interval status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledTimecodeSystemPpsA

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation timeCode A PPS board clock interval status
source	<xs:attribute name="ledTimecodeSystemPpsA" type="ledType" use="required">   <xs:annotation>     <xs:documentation>timeCode A PPS board clock interval status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledTimecodeSystemPpsB

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation timeCode B PPS board clock interval status
source	<xs:attribute name="ledTimecodeSystemPpsB" type="ledType" use="required">   <xs:annotation>     <xs:documentation>timeCode B PPS board clock interval status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledPModCommand

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation indicate if a phase mod command error exists
source	<xs:attribute name="ledPModCommand" type="ledType" use="required">   <xs:annotation>     <xs:documentation>indicate if a phase mod command error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledPModFrame

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation indicate if a phase mod frame error exists
source	<xs:attribute name="ledPModFrame" type="ledType" use="required">   <xs:annotation>     <xs:documentation>indicate if a phase mod frame error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledPModStartBit

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation indicate if a phase mod start bit error exists
source	<xs:attribute name="ledPModStartBit" type="ledType" use="required">   <xs:annotation>     <xs:documentation>indicate if a phase mod start bit error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledPModRam

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation indicate if a phase mod RAM error exists
source	<xs:attribute name="ledPModRam" type="ledType" use="required">   <xs:annotation>     <xs:documentation>indicate if a phase mod RAM error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledDTrigCommand

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation indicate if a dump trigger command error exists
source	<xs:attribute name="ledDTrigCommand" type="ledType" use="required">   <xs:annotation>     <xs:documentation>indicate if a dump trigger command error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledDTrigTrigger

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation indicate if a dump trigger trigger error exists
source	<xs:attribute name="ledDTrigTrigger" type="ledType" use="required">   <xs:annotation>     <xs:documentation>indicate if a dump trigger trigger error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledClockToggle

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation toggle status of the selected clock (timecode AB or external)
source	<xs:attribute name="ledClockToggle" type="ledType" use="required">   <xs:annotation>     <xs:documentation>toggle status of the selected clock (timecode AB or external)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledDTrigStartBit

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation indicate if a dump trigger start bit error exists
source	<xs:attribute name="ledDTrigStartBit" type="ledType" use="required">   <xs:annotation>     <xs:documentation>indicate if a dump trigger start bit error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledDTrigRam

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation indicate if a dump trigger RAM error exists
source	<xs:attribute name="ledDTrigRam" type="ledType" use="required">   <xs:annotation>     <xs:documentation>indicate if a dump trigger RAM error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledExtClkToggle

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation external clock toggle status
source	<xs:attribute name="ledExtClkToggle" type="ledType" use="required">   <xs:annotation>     <xs:documentation>external clock toggle status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledSClkLock

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation SCLK PLL lock status
source	<xs:attribute name="ledSClkLock" type="ledType" use="required">   <xs:annotation>     <xs:documentation>SCLK PLL lock status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledGBitTxLock

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation gigabit transmitter PLL lock status
source	<xs:attribute name="ledGBitTxLock" type="ledType" use="required">   <xs:annotation>     <xs:documentation>gigabit transmitter PLL lock status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledClockAToggle

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation 64MHz line A clock is toggling
source	<xs:attribute name="ledClockAToggle" type="ledType" use="required">   <xs:annotation>     <xs:documentation>64MHz line A clock is toggling</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledClockBToggle

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation 64MHz line B clock is toggling
source	<xs:attribute name="ledClockBToggle" type="ledType" use="required">   <xs:annotation>     <xs:documentation>64MHz line B clock is toggling</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledSTickInterval

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation if time between sTicks is not 10ms, an error exists
source	<xs:attribute name="ledSTickInterval" type="ledType" use="required">   <xs:annotation>     <xs:documentation>if time between sTicks is not 10ms, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledSPpsInterval

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation if time between sPPS is not 10ms, an error exists
source	<xs:attribute name="ledSPpsInterval" type="ledType" use="required">   <xs:annotation>     <xs:documentation>if time between sPPS is not 10ms, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledSTickWidth

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation if width of sTick is incorrect, an error exists
source	<xs:attribute name="ledSTickWidth" type="ledType" use="required">   <xs:annotation>     <xs:documentation>if width of sTick is incorrect, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledSPpsWidth

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation if width of sPPS is incorrect, an error exists
source	<xs:attribute name="ledSPpsWidth" type="ledType" use="required">   <xs:annotation>     <xs:documentation>if width of sPPS is incorrect, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledSTickAlign

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation if alignment between sTick and sPPS is not coincedent, an error exists
source	<xs:attribute name="ledSTickAlign" type="ledType" use="required">   <xs:annotation>     <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledHopCountOverflow

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation if the hop count overflowed, an error exists
source	<xs:attribute name="ledHopCountOverflow" type="ledType" use="required">   <xs:annotation>     <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledHopCountAOverflow

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation if the A timecode hop count overflowed, an error exists
source	<xs:attribute name="ledHopCountAOverflow" type="ledType" use="required">   <xs:annotation>     <xs:documentation>if the A timecode hop count overflowed, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledHopCountBOverflow

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation if the B timecode hop count overflowed, an error exists
source	<xs:attribute name="ledHopCountBOverflow" type="ledType" use="required">   <xs:annotation>     <xs:documentation>if the B timecode hop count overflowed, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ledDataClock

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation composite status of all data clocks
source	<xs:attribute name="ledDataClock" type="ledType" use="required">   <xs:annotation>     <xs:documentation>composite status of all data clocks</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/status/@ppsCodeSource

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  A enumeration  B enumeration  off
annotation	documentation source of time code data stream
source	<xs:attribute name="ppsCodeSource" use="required">   <xs:annotation>     <xs:documentation>source of time code data stream</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A"/>       <xs:enumeration value="B"/>       <xs:enumeration value="off"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/status/@extPllClockSource

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  A enumeration  B enumeration  external enumeration  off
annotation	documentation source of the 128MHz clock
source	<xs:attribute name="extPllClockSource" use="required">   <xs:annotation>     <xs:documentation>source of the 128MHz clock</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A"/>       <xs:enumeration value="B"/>       <xs:enumeration value="external"/>       <xs:enumeration value="off"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element timing/errorCount

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation pllAlarm   xs:int   optional         documentation PLL has lost reference or lock timeCodeCRC   xs:int   optional         documentation timeCode CRC status timeCodePPS   xs:int   optional         documentation timeCode PPS interval status pModCommand   xs:int   optional         documentation indicate if a phase mod command error exists pModFrame   xs:int   optional         documentation indicate if a phase mod frame error exists pModStartBit   xs:int   optional         documentation indicate if a phase mod start bit error exists pModRAM   xs:int   optional         documentation indicate if a phase mod RAM error exists dumpTrigCommand   xs:int   optional         documentation indicate if a dump trigger command error exists dumpTrigTrigger   xs:int   optional         documentation indicate if a dump trigger trigger error exists dumpTrigStartBit   xs:int   optional         documentation indicate if a dump trigger start bit error exists dumpTrigRAM   xs:int   optional         documentation indicate if a dump trigger RAM error exists c64Lock   xs:int   optional         documentation CLK64 PLL lock status (deprecated) extClkToggle   xs:int   optional         documentation external clock toggle status sClkLock   xs:int   optional         documentation SCLK PLL lock status gBitTxLock   xs:int   optional         documentation gigabit transmitter PLL lock status sTickInterval   xs:int   optional         documentation if time between sTicks is not 10ms, an error exists sPpsInterval   xs:int   optional         documentation if time between sPPS is not 10ms, an error exists sTickWidth   xs:int   optional         documentation if sTick width is inclrrect, an error exists sPpsWidth   xs:int   optional         documentation if sPPS width is incorrect, an error exists sTickAlignment   xs:int   optional         documentation if alignment between sTick and sPPS is not coincedent, an error exists dataClock   xs:int   optional         documentation count of data clock errors from all inputs c64AToggle   xs:int            documentation 64MHz line A clock is toggling c64BToggle   xs:int            documentation 64MHz line B clock is toggling hopCountOverflow   xs:int            documentation if the hop count overflowed, an error exists
annotation	documentation status register counters
source	<xs:element name="errorCount" minOccurs="0">   <xs:annotation>     <xs:documentation>status register counters</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="pllAlarm" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>PLL has lost reference or lock</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timeCodeCRC" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>timeCode CRC status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timeCodePPS" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>timeCode PPS interval status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pModCommand" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>indicate if a phase mod command error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pModFrame" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>indicate if a phase mod frame error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pModStartBit" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>indicate if a phase mod start bit error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pModRAM" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>indicate if a phase mod RAM error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dumpTrigCommand" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>indicate if a dump trigger command error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dumpTrigTrigger" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>indicate if a dump trigger trigger error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dumpTrigStartBit" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>indicate if a dump trigger start bit error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dumpTrigRAM" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>indicate if a dump trigger RAM error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="c64Lock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>CLK64 PLL lock status (deprecated)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="extClkToggle" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>external clock toggle status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sClkLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>SCLK PLL lock status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="gBitTxLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>gigabit transmitter PLL lock status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTickInterval" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>if time between sTicks is not 10ms, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sPpsInterval" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>if time between sPPS is not 10ms, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTickWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>if sTick width is inclrrect, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sPpsWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>if sPPS width is incorrect, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTickAlignment" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dataClock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of data clock errors from all inputs</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="c64AToggle" type="xs:int">       <xs:annotation>         <xs:documentation>64MHz line A clock is toggling</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="c64BToggle" type="xs:int">       <xs:annotation>         <xs:documentation>64MHz line B clock is toggling</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hopCountOverflow" type="xs:int">       <xs:annotation>         <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/errorCount/@pllAlarm

type	xs:int
properties	use  optional
annotation	documentation PLL has lost reference or lock
source	<xs:attribute name="pllAlarm" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>PLL has lost reference or lock</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@timeCodeCRC

type	xs:int
properties	use  optional
annotation	documentation timeCode CRC status
source	<xs:attribute name="timeCodeCRC" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>timeCode CRC status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@timeCodePPS

type	xs:int
properties	use  optional
annotation	documentation timeCode PPS interval status
source	<xs:attribute name="timeCodePPS" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>timeCode PPS interval status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@pModCommand

type	xs:int
properties	use  optional
annotation	documentation indicate if a phase mod command error exists
source	<xs:attribute name="pModCommand" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>indicate if a phase mod command error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@pModFrame

type	xs:int
properties	use  optional
annotation	documentation indicate if a phase mod frame error exists
source	<xs:attribute name="pModFrame" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>indicate if a phase mod frame error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@pModStartBit

type	xs:int
properties	use  optional
annotation	documentation indicate if a phase mod start bit error exists
source	<xs:attribute name="pModStartBit" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>indicate if a phase mod start bit error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@pModRAM

type	xs:int
properties	use  optional
annotation	documentation indicate if a phase mod RAM error exists
source	<xs:attribute name="pModRAM" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>indicate if a phase mod RAM error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@dumpTrigCommand

type	xs:int
properties	use  optional
annotation	documentation indicate if a dump trigger command error exists
source	<xs:attribute name="dumpTrigCommand" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>indicate if a dump trigger command error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@dumpTrigTrigger

type	xs:int
properties	use  optional
annotation	documentation indicate if a dump trigger trigger error exists
source	<xs:attribute name="dumpTrigTrigger" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>indicate if a dump trigger trigger error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@dumpTrigStartBit

type	xs:int
properties	use  optional
annotation	documentation indicate if a dump trigger start bit error exists
source	<xs:attribute name="dumpTrigStartBit" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>indicate if a dump trigger start bit error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@dumpTrigRAM

type	xs:int
properties	use  optional
annotation	documentation indicate if a dump trigger RAM error exists
source	<xs:attribute name="dumpTrigRAM" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>indicate if a dump trigger RAM error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@c64Lock

type	xs:int
properties	use  optional
annotation	documentation CLK64 PLL lock status (deprecated)
source	<xs:attribute name="c64Lock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>CLK64 PLL lock status (deprecated)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@extClkToggle

type	xs:int
properties	use  optional
annotation	documentation external clock toggle status
source	<xs:attribute name="extClkToggle" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>external clock toggle status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@sClkLock

type	xs:int
properties	use  optional
annotation	documentation SCLK PLL lock status
source	<xs:attribute name="sClkLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>SCLK PLL lock status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@gBitTxLock

type	xs:int
properties	use  optional
annotation	documentation gigabit transmitter PLL lock status
source	<xs:attribute name="gBitTxLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>gigabit transmitter PLL lock status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@sTickInterval

type	xs:int
properties	use  optional
annotation	documentation if time between sTicks is not 10ms, an error exists
source	<xs:attribute name="sTickInterval" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>if time between sTicks is not 10ms, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@sPpsInterval

type	xs:int
properties	use  optional
annotation	documentation if time between sPPS is not 10ms, an error exists
source	<xs:attribute name="sPpsInterval" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>if time between sPPS is not 10ms, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@sTickWidth

type	xs:int
properties	use  optional
annotation	documentation if sTick width is inclrrect, an error exists
source	<xs:attribute name="sTickWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>if sTick width is inclrrect, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@sPpsWidth

type	xs:int
properties	use  optional
annotation	documentation if sPPS width is incorrect, an error exists
source	<xs:attribute name="sPpsWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>if sPPS width is incorrect, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@sTickAlignment

type	xs:int
properties	use  optional
annotation	documentation if alignment between sTick and sPPS is not coincedent, an error exists
source	<xs:attribute name="sTickAlignment" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@dataClock

type	xs:int
properties	use  optional
annotation	documentation count of data clock errors from all inputs
source	<xs:attribute name="dataClock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of data clock errors from all inputs</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@c64AToggle

type	xs:int
annotation	documentation 64MHz line A clock is toggling
source	<xs:attribute name="c64AToggle" type="xs:int">   <xs:annotation>     <xs:documentation>64MHz line A clock is toggling</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@c64BToggle

type	xs:int
annotation	documentation 64MHz line B clock is toggling
source	<xs:attribute name="c64BToggle" type="xs:int">   <xs:annotation>     <xs:documentation>64MHz line B clock is toggling</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/errorCount/@hopCountOverflow

type	xs:int
annotation	documentation if the hop count overflowed, an error exists
source	<xs:attribute name="hopCountOverflow" type="xs:int">   <xs:annotation>     <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

element timing/dumpTrig

diagram
properties	minOcc  0 maxOcc  16 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         documentation dump trig generation buffer ID epoch   xs:string            documentation obsClock time dump trigger sequence is referenced from. If time is in the future, this becomes the activation time operation   derived by: xs:string   optional         documentation enable or disable the dump trig generator recircFactor   xs:int            documentation recirculation factor to use when enabled ltaIntegTime   xs:int            documentation integration time for the LTA (microSeconds) hwIntegTime   derived by: xs:int            documentation integration time for the correlator chip (microSeconds) numPhaseBins   derived by: xs:int            documentation number of LTA phase bins to use bbId0SubBandMask   xs:string            documentation mask of sub bands with baseband ID 0 to bundle with this ID bbId1SubBandMask   xs:string            documentation mask of sub bands with baseband ID 1 to bundle with this ID bbId2SubBandMask   xs:string            documentation mask of sub bands with baseband ID 2 to bundle with this ID bbId3SubBandMask   xs:string            documentation mask of sub bands with baseband ID 3 to bundle with this ID bbId4SubBandMask   xs:string            documentation mask of sub bands with baseband ID 4 to bundle with this ID bbId5SubBandMask   xs:string            documentation mask of sub bands with baseband ID 5 to bundle with this ID bbId6SubBandMask   xs:string            documentation mask of sub bands with baseband ID 6 to bundle with this ID bbId7SubBandMask   xs:string            documentation mask of sub bands with baseband ID 7 to bundle with this ID
annotation	documentation dump trigger generator controls
source	<xs:element name="dumpTrig" minOccurs="0" maxOccurs="16">   <xs:annotation>     <xs:documentation>dump trigger generator controls </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>dump trig generation buffer ID</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="epoch" type="xs:string">       <xs:annotation>         <xs:documentation>obsClock time dump trigger sequence is referenced from. If time is in the future, this becomes the activation time</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="operation" use="optional">       <xs:annotation>         <xs:documentation>enable or disable the dump trig generator</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="recircFactor" type="xs:int">       <xs:annotation>         <xs:documentation>recirculation factor to use when enabled</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ltaIntegTime" type="xs:int">       <xs:annotation>         <xs:documentation>integration time for the LTA (microSeconds)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hwIntegTime">       <xs:annotation>         <xs:documentation>integration time for the correlator chip (microSeconds)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="500"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numPhaseBins">       <xs:annotation>         <xs:documentation>number of LTA phase bins to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="2000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bbId0SubBandMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands with baseband ID 0 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bbId1SubBandMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands with baseband ID 1 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bbId2SubBandMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands with baseband ID 2 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bbId3SubBandMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands with baseband ID 3 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bbId4SubBandMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands with baseband ID 4 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bbId5SubBandMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands with baseband ID 5 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bbId6SubBandMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands with baseband ID 6 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bbId7SubBandMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands with baseband ID 7 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/dumpTrig/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation dump trig generation buffer ID
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>dump trig generation buffer ID</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/dumpTrig/@epoch

type	xs:string
annotation	documentation obsClock time dump trigger sequence is referenced from. If time is in the future, this becomes the activation time
source	<xs:attribute name="epoch" type="xs:string">   <xs:annotation>     <xs:documentation>obsClock time dump trigger sequence is referenced from. If time is in the future, this becomes the activation time</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@operation

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable or disable the dump trig generator
source	<xs:attribute name="operation" use="optional">   <xs:annotation>     <xs:documentation>enable or disable the dump trig generator</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/dumpTrig/@recircFactor

type	xs:int
annotation	documentation recirculation factor to use when enabled
source	<xs:attribute name="recircFactor" type="xs:int">   <xs:annotation>     <xs:documentation>recirculation factor to use when enabled</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@ltaIntegTime

type	xs:int
annotation	documentation integration time for the LTA (microSeconds)
source	<xs:attribute name="ltaIntegTime" type="xs:int">   <xs:annotation>     <xs:documentation>integration time for the LTA (microSeconds)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@hwIntegTime

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  500
annotation	documentation integration time for the correlator chip (microSeconds)
source	<xs:attribute name="hwIntegTime">   <xs:annotation>     <xs:documentation>integration time for the correlator chip (microSeconds)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="500"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/dumpTrig/@numPhaseBins

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  2000
annotation	documentation number of LTA phase bins to use
source	<xs:attribute name="numPhaseBins">   <xs:annotation>     <xs:documentation>number of LTA phase bins to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="2000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/dumpTrig/@bbId0SubBandMask

type	xs:string
annotation	documentation mask of sub bands with baseband ID 0 to bundle with this ID
source	<xs:attribute name="bbId0SubBandMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands with baseband ID 0 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@bbId1SubBandMask

type	xs:string
annotation	documentation mask of sub bands with baseband ID 1 to bundle with this ID
source	<xs:attribute name="bbId1SubBandMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands with baseband ID 1 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@bbId2SubBandMask

type	xs:string
annotation	documentation mask of sub bands with baseband ID 2 to bundle with this ID
source	<xs:attribute name="bbId2SubBandMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands with baseband ID 2 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@bbId3SubBandMask

type	xs:string
annotation	documentation mask of sub bands with baseband ID 3 to bundle with this ID
source	<xs:attribute name="bbId3SubBandMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands with baseband ID 3 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@bbId4SubBandMask

type	xs:string
annotation	documentation mask of sub bands with baseband ID 4 to bundle with this ID
source	<xs:attribute name="bbId4SubBandMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands with baseband ID 4 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@bbId5SubBandMask

type	xs:string
annotation	documentation mask of sub bands with baseband ID 5 to bundle with this ID
source	<xs:attribute name="bbId5SubBandMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands with baseband ID 5 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@bbId6SubBandMask

type	xs:string
annotation	documentation mask of sub bands with baseband ID 6 to bundle with this ID
source	<xs:attribute name="bbId6SubBandMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands with baseband ID 6 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/dumpTrig/@bbId7SubBandMask

type	xs:string
annotation	documentation mask of sub bands with baseband ID 7 to bundle with this ID
source	<xs:attribute name="bbId7SubBandMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands with baseband ID 7 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

element timing/testPin

diagram
properties	minOcc  0 maxOcc  4 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         documentation specify pin to map signal   derived by: xs:int            documentation specify signal id
annotation	documentation route internal FPGA signals to external pins
source	<xs:element name="testPin" minOccurs="0" maxOccurs="4">   <xs:annotation>     <xs:documentation>route internal FPGA signals to external pins</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify pin to map</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="4"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="signal">       <xs:annotation>         <xs:documentation>specify signal id</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="255"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/testPin/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  4
annotation	documentation specify pin to map
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify pin to map</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="4"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/testPin/@signal

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
annotation	documentation specify signal id
source	<xs:attribute name="signal">   <xs:annotation>     <xs:documentation>specify signal id</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element timing/pErrorOut

diagram
properties	minOcc  0 maxOcc  18 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation outputId   derived by: xs:int   required         documentation specify the output line for these attributes pError0Select   derived by: xs:int   optional         documentation phase error from filter bank 0 to select pError1Select   derived by: xs:int   optional         documentation phase error from filter bank 1 to select dtGenSelect   derived by: xs:int            documentation specify which dump trigger generator to connect to this output
annotation	documentation filter phase error model selection for each output
source	<xs:element name="pErrorOut" minOccurs="0" maxOccurs="18">   <xs:annotation>     <xs:documentation>filter phase error model selection for each output</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="outputId" use="required">       <xs:annotation>         <xs:documentation>specify the output line for these attributes</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pError0Select" use="optional">       <xs:annotation>         <xs:documentation>phase error from filter bank 0 to select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pError1Select" use="optional">       <xs:annotation>         <xs:documentation>phase error from filter bank 1 to select</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dtGenSelect">       <xs:annotation>         <xs:documentation>specify which dump trigger generator to connect to this output</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/pErrorOut/@outputId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation specify the output line for these attributes
source	<xs:attribute name="outputId" use="required">   <xs:annotation>     <xs:documentation>specify the output line for these attributes</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/pErrorOut/@pError0Select

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation phase error from filter bank 0 to select
source	<xs:attribute name="pError0Select" use="optional">   <xs:annotation>     <xs:documentation>phase error from filter bank 0 to select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/pErrorOut/@pError1Select

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation phase error from filter bank 1 to select
source	<xs:attribute name="pError1Select" use="optional">   <xs:annotation>     <xs:documentation>phase error from filter bank 1 to select</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute timing/pErrorOut/@dtGenSelect

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation specify which dump trigger generator to connect to this output
source	<xs:attribute name="dtGenSelect">   <xs:annotation>     <xs:documentation>specify which dump trigger generator to connect to this output</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element timing/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation crc   xs:string            documentation report CRC status clockEdge   xs:string            documentation clock edge setups timeInterval   xs:string            documentation report phase tick  time interval status status   xs:string            documentation report functional contents of status register errorCount   xs:string            documentation report status register error counters dumpTrig   xs:string            documentation report dumpTrig status pErrorOut   xs:string            documentation report phase error output selection status testPin   xs:string            documentation report testPin status register   xs:string            documentation report specified register contents user   xs:string            documentation report user logging configuration about   xs:string            documentation report general module information error   xs:string            documentation report errors crossBar   xs:string            documentation report assumed state of crossbar connections setup   xs:string            documentation general setup parameters, confgiurations, and data source selection
annotation	documentation report module status and state
source	<xs:element name="state" minOccurs="0">   <xs:annotation>     <xs:documentation>report module status and state</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="crc" type="xs:string">       <xs:annotation>         <xs:documentation>report CRC status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clockEdge" type="xs:string">       <xs:annotation>         <xs:documentation>clock edge setups</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timeInterval" type="xs:string">       <xs:annotation>         <xs:documentation>report phase tick  time interval status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string">       <xs:annotation>         <xs:documentation>report functional contents of status register</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="errorCount" type="xs:string">       <xs:annotation>         <xs:documentation>report status register error counters</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dumpTrig" type="xs:string">       <xs:annotation>         <xs:documentation>report dumpTrig status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pErrorOut" type="xs:string">       <xs:annotation>         <xs:documentation>report phase error output selection status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="testPin" type="xs:string">       <xs:annotation>         <xs:documentation>report testPin status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="register" type="xs:string">       <xs:annotation>         <xs:documentation>report specified register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="user" type="xs:string">       <xs:annotation>         <xs:documentation>report user logging configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="about" type="xs:string">       <xs:annotation>         <xs:documentation>report general module information</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="error" type="xs:string">       <xs:annotation>         <xs:documentation>report errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="crossBar" type="xs:string">       <xs:annotation>         <xs:documentation>report assumed state of crossbar connections</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setup" type="xs:string">       <xs:annotation>         <xs:documentation>general setup parameters, confgiurations, and data source selection</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute timing/state/@crc

type	xs:string
annotation	documentation report CRC status
source	<xs:attribute name="crc" type="xs:string">   <xs:annotation>     <xs:documentation>report CRC status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@clockEdge

type	xs:string
annotation	documentation clock edge setups
source	<xs:attribute name="clockEdge" type="xs:string">   <xs:annotation>     <xs:documentation>clock edge setups</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@timeInterval

type	xs:string
annotation	documentation report phase tick  time interval status
source	<xs:attribute name="timeInterval" type="xs:string">   <xs:annotation>     <xs:documentation>report phase tick  time interval status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@status

type	xs:string
annotation	documentation report functional contents of status register
source	<xs:attribute name="status" type="xs:string">   <xs:annotation>     <xs:documentation>report functional contents of status register</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@errorCount

type	xs:string
annotation	documentation report status register error counters
source	<xs:attribute name="errorCount" type="xs:string">   <xs:annotation>     <xs:documentation>report status register error counters</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@dumpTrig

type	xs:string
annotation	documentation report dumpTrig status
source	<xs:attribute name="dumpTrig" type="xs:string">   <xs:annotation>     <xs:documentation>report dumpTrig status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@pErrorOut

type	xs:string
annotation	documentation report phase error output selection status
source	<xs:attribute name="pErrorOut" type="xs:string">   <xs:annotation>     <xs:documentation>report phase error output selection status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@testPin

type	xs:string
annotation	documentation report testPin status
source	<xs:attribute name="testPin" type="xs:string">   <xs:annotation>     <xs:documentation>report testPin status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@register

type	xs:string
annotation	documentation report specified register contents
source	<xs:attribute name="register" type="xs:string">   <xs:annotation>     <xs:documentation>report specified register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@user

type	xs:string
annotation	documentation report user logging configuration
source	<xs:attribute name="user" type="xs:string">   <xs:annotation>     <xs:documentation>report user logging configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@about

type	xs:string
annotation	documentation report general module information
source	<xs:attribute name="about" type="xs:string">   <xs:annotation>     <xs:documentation>report general module information</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@error

type	xs:string
annotation	documentation report errors
source	<xs:attribute name="error" type="xs:string">   <xs:annotation>     <xs:documentation>report errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@crossBar

type	xs:string
annotation	documentation report assumed state of crossbar connections
source	<xs:attribute name="crossBar" type="xs:string">   <xs:annotation>     <xs:documentation>report assumed state of crossbar connections</xs:documentation>   </xs:annotation> </xs:attribute>

attribute timing/state/@setup

type	xs:string
annotation	documentation general setup parameters, confgiurations, and data source selection
source	<xs:attribute name="setup" type="xs:string">   <xs:annotation>     <xs:documentation>general setup parameters, confgiurations, and data source selection</xs:documentation>   </xs:annotation> </xs:attribute>

element vciConfiguration

diagram
properties	content  complex
children	dataPath noiseDiode dumpTrig state error waferConfig crossBar wbcProduct
attributes	Name   Type   Use   Default   Fixed   Annotation activationTime   xs:dateTime            status   xs:string            configName   xs:string
source	<xs:element name="vciConfiguration">   <xs:complexType>     <xs:sequence>       <xs:element name="dataPath" minOccurs="0" maxOccurs="2">         <xs:complexType>           <xs:sequence>             <xs:element name="inputConfig" minOccurs="0">               <xs:complexType>                 <xs:attribute name="xlateLutLoad" type="xs:string"/>                 <xs:attribute name="bitsPerSample">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="1"/>                       <xs:maxInclusive value="8"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="numBands">                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="1"/>                       <xs:enumeration value="2"/>                       <xs:enumeration value="4"/>                       <xs:enumeration value="8"/>                       <xs:enumeration value="16"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="dataSource">                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="FORM_stream0"/>                       <xs:enumeration value="FORM_stream1"/>                       <xs:enumeration value="vsi0"/>                       <xs:enumeration value="vsi1"/>                       <xs:enumeration value="test0"/>                       <xs:enumeration value="test1"/>                       <xs:enumeration value="wbtg0"/>                       <xs:enumeration value="wbtg1"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>               </xs:complexType>             </xs:element>             <xs:element name="filterConfig" minOccurs="0" maxOccurs="18">               <xs:complexType>                 <xs:sequence>                   <xs:element name="lut" minOccurs="0">                     <xs:complexType>                       <xs:attribute name="stage1Load" type="xs:string"/>                       <xs:attribute name="stage2Load" type="xs:string"/>                       <xs:attribute name="stage3Load" type="xs:string"/>                       <xs:attribute name="stage4Load" type="xs:string"/>                       <xs:attribute name="mixerLoad" type="xs:string"/>                       <xs:attribute name="toneExtLoad" type="xs:string"/>                     </xs:complexType>                   </xs:element>                 </xs:sequence>                 <xs:attribute name="filterId" use="required">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="17"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="baseBandId" use="optional">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="7"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="subBandId">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="17"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="standby">                   <xs:annotation>                     <xs:documentation>Places filter/sub band into a standby more which may or may not reduce power consumption. Removing standby typically will require a reconfiguration of this sub band (which maybe included in the same message)</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="off"/>                       <xs:enumeration value="on"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="bandWidth">                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="31250"/>                       <xs:enumeration value="62500"/>                       <xs:enumeration value="125000"/>                       <xs:enumeration value="250000"/>                       <xs:enumeration value="500000"/>                       <xs:enumeration value="1000000"/>                       <xs:enumeration value="2000000"/>                       <xs:enumeration value="4000000"/>                       <xs:enumeration value="8000000"/>                       <xs:enumeration value="16000000"/>                       <xs:enumeration value="32000000"/>                       <xs:enumeration value="64000000"/>                       <xs:enumeration value="128000000"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="centerFreq" type="xs:string"/>                 <xs:attribute name="numBits">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="1"/>                       <xs:maxInclusive value="8"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="sourceBand">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="15"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="fractBitShift">                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="false"/>                       <xs:enumeration value="true"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="sideBandFlip">                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="false"/>                       <xs:enumeration value="true"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="mixer">                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="false"/>                       <xs:enumeration value="true"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="toneFreq" type="xs:int">                   <xs:annotation>                     <xs:documentation>tone frequency (Hz)</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="swIndex" type="xs:int">                   <xs:annotation>                     <xs:documentation>spectral window identifier</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="delays">                   <xs:annotation>                     <xs:documentation>apply sub band delay models</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="off"/>                       <xs:enumeration value="on"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="phaseModels">                   <xs:annotation>                     <xs:documentation>apply calculated phase models or set to zero (off)</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="off"/>                       <xs:enumeration value="on"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="rfiBlankLevel">                   <xs:annotation>                     <xs:documentation>normalized blanking parameter (0.0 - 1.0) where 0.0 is blank everything and 1.0 is blanking off</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string"/>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="rfiBlankDuration">                   <xs:annotation>                     <xs:documentation>blanking duration (in seconds) of an rfi detection</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string"/>                   </xs:simpleType>                 </xs:attribute>               </xs:complexType>             </xs:element>             <!--   <xs:element name="outputConfig" minOccurs="0" maxOccurs="16">   <xs:complexType>   <xs:attribute name="waferId" use="required">   <xs:simpleType>   <xs:restriction base="xs:int">   <xs:minInclusive value="0"/>   <xs:maxInclusive value="15"/>   </xs:restriction>   </xs:simpleType>   </xs:attribute>   <xs:attribute name="filterId">   <xs:simpleType>   <xs:restriction base="xs:int">   <xs:minInclusive value="0"/>   <xs:maxInclusive value="17"/>   </xs:restriction>   </xs:simpleType>   </xs:attribute>   <xs:attribute name="dumpTrigId">   <xs:simpleType>   <xs:restriction base="xs:int">   <xs:minInclusive value="0"/>   <xs:maxInclusive value="15"/>   </xs:restriction>   </xs:simpleType>   </xs:attribute>   </xs:complexType>   </xs:element>       -->           </xs:sequence>           <xs:attribute name="pathId" use="required">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="baseBandId">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="stationId">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="254"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bandWidth">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="2048000000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="radarMode">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sideBand">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="lower"/>                 <xs:enumeration value="upper"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="delayVectorLoad" type="xs:string"/>           <xs:attribute name="localOsc" type="xs:string"/>           <xs:attribute name="freqShift" type="xs:string"/>           <xs:attribute name="phaseModelSlot">             <xs:annotation>               <xs:documentation>specify if phase model for this baseband is delivered early or late in the 10ms window. This is used to allow ANDing of phase models from different station boards by the crossbar boards for polarization</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="early"/>                 <xs:enumeration value="late"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="testLut" type="xs:string">             <xs:annotation>               <xs:documentation>This attribute, if present, will cause a NULL LUT to be loaded in stage 1 of all filters on this bank. This allows for a complete configuration without the added heat load of a functioning filter stage (for test purposes)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="swPwrEpoch" type="xs:string">             <xs:annotation>               <xs:documentation>Specify the epoch (ISO 8601-UTC) for all sub band switched power integrations (default is to use dump trigger epoch)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="swPwrInteg" type="xs:string">             <xs:annotation>               <xs:documentation>Specify the number of seconds for each integration of switched power for all sub bands within his base band (default is to match LTA dump interval), Value is in seconds, minimum of 1 noise tube period (100ms)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="swbbName">             <xs:annotation>               <xs:documentation>Identifier for base band</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A1C1_3BIT"/>                 <xs:enumeration value="A2C2_3BIT"/>                 <xs:enumeration value="AC_8BIT"/>                 <xs:enumeration value="B1D1_3BIT"/>                 <xs:enumeration value="B2D2_3BIT"/>                 <xs:enumeration value="BD_8BIT"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="polarization">             <xs:annotation>               <xs:documentation>Identifier for base band polarization</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="R"/>                 <xs:enumeration value="L"/>                 <xs:enumeration value="X"/>                 <xs:enumeration value="Y"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="setDefaultGains" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>if this attribute is present, default valuse will be set for active filter stages. Any additional auto-gain setting attributes will override gains for their specific filter stages</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="setRequantRms" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>target RMS for this data paths filter requantizer gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="requantAgMask" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>Mask of data path filters that auto gain setting will target for requantizer gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="setStage1Rms" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>target RMS for this data paths filter stage 1 gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="stage1AgMask" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>Mask of data path filters that auto gain setting will target for stage 1 gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="setStage2Rms" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>target RMS for this data paths filter stage 2 gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="stage2AgMask" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>Mask of data path filters that auto gain setting will target for stage 2 gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="setStage3Rms" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>target RMS for this data paths filter stage 3 gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="stage3AgMask" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>Mask of data path filters that auto gain setting will target for stage 3 gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="setStage4Rms" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>target RMS for this data paths filter stage 4 gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="stage4AgMask" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>Mask of data path filters that auto gain setting will target for stage 4 gains</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="standby">             <xs:annotation>               <xs:documentation>Place all devices in this data path into a non-volitile low power state</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="noiseDiode" minOccurs="0">         <xs:complexType>           <xs:attribute name="noiseDiodeGen">             <xs:annotation>               <xs:documentation>enable/disable noise diode model function</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiodeDutyCycle">             <xs:annotation>               <xs:documentation>percentage of cycle that noise diode is ON</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="100"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiodePhase">             <xs:annotation>               <xs:documentation>ND offset from the provided epoch in seconds</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string"/>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiodeFreq">             <xs:annotation>               <xs:documentation>frequency of noise diode in Hertz</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string"/>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="noiseDiodeEpoch" type="xs:string">             <xs:annotation>               <xs:documentation>Epoch for T0 of the noise diode model (uses Obs clock)</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="dumpTrig" minOccurs="0" maxOccurs="16">         <xs:annotation>           <xs:documentation>dump trigger generator controls </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="phaseBinModel" minOccurs="0" maxOccurs="1">               <xs:annotation>                 <xs:documentation>   phase binning (pulsar) model for a single dump generator.   Based on TEMPO polyco.dat file. </xs:documentation>                 <xs:documentation>     Model time references (MJD).     tMid is polynomial reference time.     tStart, tEnd determine model validity timerange.     phaseRef is as provided by POLYCO.DAT, units of turns.     freqRef is as provided by POLYCO.DAT, units of Hertz   </xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="modelCff" minOccurs="1" maxOccurs="20">                     <xs:annotation>                       <xs:documentation> Coefficent(s) for the binning model.       </xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:attribute name="index" type="xs:int" use="required"/>                       <xs:attribute name="cff" type="xs:string" use="required"/>                     </xs:complexType>                   </xs:element>                 </xs:sequence>                 <xs:attribute name="numCff" use="required">                   <xs:annotation>                     <xs:documentation>count of model coefficients</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="1"/>                       <xs:maxInclusive value="20"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="tMid" type="xs:string" use="required"/>                 <xs:attribute name="tStart" type="xs:double" use="optional"/>                 <xs:attribute name="tEnd" type="xs:double" use="optional"/>                 <xs:attribute name="phaseRef" type="xs:string" use="required"/>                 <xs:attribute name="freqRef" type="xs:string" use="required"/>               </xs:complexType>             </xs:element>             <xs:element name="phaseBinGroup" minOccurs="0" maxOccurs="1000">               <xs:annotation>                 <xs:documentation>phase bin integration specificiation</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:attribute name="bindex">                   <xs:annotation>                     <xs:documentation>index of this phase integration slice within the full period</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="999"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="bin">                   <xs:annotation>                     <xs:documentation>LTA bin number to assign to this phase slice</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="1999"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="numBins">                   <xs:annotation>                     <xs:documentation>count of adjacent bins sharing these same parameters</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="1"/>                       <xs:maxInclusive value="2000"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="maxHwIntegTime" type="xs:string">                   <xs:annotation>                     <xs:documentation>maximum integration time for the correlator chip (microSeconds) deafult is 500</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="binWidth" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>width of this bin as normalized fractional pulsar period. Default is full allocation</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="phaseOffset" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>normalized phase (offset) of this bin group within binning period</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>dump trig generation buffer ID</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="binningPeriod" type="xs:string">             <xs:annotation>               <xs:documentation>default fixed period for phase binning (micro seconds)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="binningOffset" type="xs:string">             <xs:annotation>               <xs:documentation>fixed period offset for phase binning (0.0-1.0)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="epoch" type="xs:string">             <xs:annotation>               <xs:documentation>obsClock time this script becomes active</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="standby" use="optional">             <xs:annotation>               <xs:documentation>enable or disable the dump trig generator</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="recircFactor" type="xs:int">             <xs:annotation>               <xs:documentation>recirculation factor to use when enabled</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ltaIntegFactor" type="xs:int">             <xs:annotation>               <xs:documentation>count of hardware integrations to accumulate</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="countOn" type="xs:int">             <xs:annotation>               <xs:documentation>count of integrations to produce during a single burst period</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="countOffset" type="xs:int">             <xs:annotation>               <xs:documentation>count of integrations to offset burst sequence from epoch.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="countOff" type="xs:int">             <xs:annotation>               <xs:documentation>count of integrations to supress during a single burst period</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hwIntegTime" type="xs:string">             <xs:annotation>               <xs:documentation>integration time for the correlator chip (microSeconds)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="subBandMask0" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands for data path 0 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="subBandMask1" type="xs:string">             <xs:annotation>               <xs:documentation>mask of sub bands for data path 1 to bundle with this ID</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="phaseBinBank" use="optional">             <xs:annotation>               <xs:documentation>use one or both phase bin memory banks</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="bank0"/>                 <xs:enumeration value="bank1"/>                 <xs:enumeration value="all"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numPhaseBins">             <xs:annotation>               <xs:documentation>number of LTA bins to allocate use for standard dumptrig or report the number of bins automatically allocated during phase binning</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="2000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="startBin">             <xs:annotation>               <xs:documentation>starting bin number for LTA bins (for phase binning)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="2000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:complexType>           <xs:attribute name="activationUTC" type="xs:int"/>           <xs:attribute name="dataPath" type="xs:string">             <xs:annotation>               <xs:documentation>report basic data path configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="noiseDiode" type="xs:string">             <xs:annotation>               <xs:documentation>report noise diode configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dumpTrig" type="xs:string">             <xs:annotation>               <xs:documentation>report specfied dump trigger configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="waferConfig" type="xs:string">             <xs:annotation>               <xs:documentation>report specfied wafer configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="wbcProduct" type="xs:string">             <xs:annotation>               <xs:documentation>report wideband correlator data product settings</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element ref="error" minOccurs="0"/>       <xs:element name="waferConfig" minOccurs="0" maxOccurs="18">         <xs:annotation>           <xs:documentation>setup for individual board output wafers, sets up output and timing FPGAs</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="waferId" use="required">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="path0FilterId">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="path1FilterId">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dumpTrigId">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element ref="crossBar" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>control of rack crossbar switch (WRITE ONLY)</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="wbcProduct" minOccurs="0" maxOccurs="32">         <xs:annotation>           <xs:documentation>configure wideband correlator product generation</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>specified id for this product set</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="integEnable">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="laggedPath">             <xs:annotation>               <xs:documentation>which data path to use as lagged data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="laggedBand">             <xs:annotation>               <xs:documentation>which band to use from the lagged data path</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="promptPath">             <xs:annotation>               <xs:documentation>which data path to use as prompt data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="promptBand">             <xs:annotation>               <xs:documentation>which band to use from the prompt data path</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="integration">             <xs:annotation>               <xs:documentation>number of times to integrate this product lag set</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numLags">             <xs:annotation>               <xs:documentation>specified number of lags to create for this product. A zero value disables this product ID.</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="63"/>                 <xs:maxInclusive value="4096"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="activationTime" type="xs:dateTime"/>     <xs:attribute name="status" type="xs:string"/>     <xs:attribute name="configName" type="xs:string"/>   </xs:complexType> </xs:element>

attribute vciConfiguration/@activationTime

type	xs:dateTime
source	<xs:attribute name="activationTime" type="xs:dateTime"/>

attribute vciConfiguration/@status

type	xs:string
source	<xs:attribute name="status" type="xs:string"/>

attribute vciConfiguration/@configName

type	xs:string
source	<xs:attribute name="configName" type="xs:string"/>

element vciConfiguration/dataPath

diagram
properties	minOcc  0 maxOcc  2 content  complex
children	inputConfig filterConfig
attributes	Name   Type   Use   Default   Fixed   Annotation pathId   derived by: xs:int   required         baseBandId   derived by: xs:int            stationId   derived by: xs:int            bandWidth   derived by: xs:int            radarMode   derived by: xs:string            sideBand   derived by: xs:string            delayVectorLoad   xs:string            localOsc   xs:string            freqShift   xs:string            phaseModelSlot   derived by: xs:string            documentation specify if phase model for this baseband is delivered early or late in the 10ms window. This is used to allow ANDing of phase models from different station boards by the crossbar boards for polarization testLut   xs:string            documentation This attribute, if present, will cause a NULL LUT to be loaded in stage 1 of all filters on this bank. This allows for a complete configuration without the added heat load of a functioning filter stage (for test purposes) swPwrEpoch   xs:string            documentation Specify the epoch (ISO 8601-UTC) for all sub band switched power integrations (default is to use dump trigger epoch) swPwrInteg   xs:string            documentation Specify the number of seconds for each integration of switched power for all sub bands within his base band (default is to match LTA dump interval), Value is in seconds, minimum of 1 noise tube period (100ms) swbbName   derived by: xs:string            documentation Identifier for base band polarization   derived by: xs:string            documentation Identifier for base band polarization setDefaultGains   xs:string   optional         documentation if this attribute is present, default valuse will be set for active filter stages. Any additional auto-gain setting attributes will override gains for their specific filter stages setRequantRms   xs:string   optional         documentation target RMS for this data paths filter requantizer gains requantAgMask   xs:string   optional         documentation Mask of data path filters that auto gain setting will target for requantizer gains setStage1Rms   xs:string   optional         documentation target RMS for this data paths filter stage 1 gains stage1AgMask   xs:string   optional         documentation Mask of data path filters that auto gain setting will target for stage 1 gains setStage2Rms   xs:string   optional         documentation target RMS for this data paths filter stage 2 gains stage2AgMask   xs:string   optional         documentation Mask of data path filters that auto gain setting will target for stage 2 gains setStage3Rms   xs:string   optional         documentation target RMS for this data paths filter stage 3 gains stage3AgMask   xs:string   optional         documentation Mask of data path filters that auto gain setting will target for stage 3 gains setStage4Rms   xs:string   optional         documentation target RMS for this data paths filter stage 4 gains stage4AgMask   xs:string   optional         documentation Mask of data path filters that auto gain setting will target for stage 4 gains standby   derived by: xs:string            documentation Place all devices in this data path into a non-volitile low power state
source	<xs:element name="dataPath" minOccurs="0" maxOccurs="2">   <xs:complexType>     <xs:sequence>       <xs:element name="inputConfig" minOccurs="0">         <xs:complexType>           <xs:attribute name="xlateLutLoad" type="xs:string"/>           <xs:attribute name="bitsPerSample">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="8"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numBands">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dataSource">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="FORM_stream0"/>                 <xs:enumeration value="FORM_stream1"/>                 <xs:enumeration value="vsi0"/>                 <xs:enumeration value="vsi1"/>                 <xs:enumeration value="test0"/>                 <xs:enumeration value="test1"/>                 <xs:enumeration value="wbtg0"/>                 <xs:enumeration value="wbtg1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="filterConfig" minOccurs="0" maxOccurs="18">         <xs:complexType>           <xs:sequence>             <xs:element name="lut" minOccurs="0">               <xs:complexType>                 <xs:attribute name="stage1Load" type="xs:string"/>                 <xs:attribute name="stage2Load" type="xs:string"/>                 <xs:attribute name="stage3Load" type="xs:string"/>                 <xs:attribute name="stage4Load" type="xs:string"/>                 <xs:attribute name="mixerLoad" type="xs:string"/>                 <xs:attribute name="toneExtLoad" type="xs:string"/>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="filterId" use="required">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="baseBandId" use="optional">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="subBandId">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="standby">             <xs:annotation>               <xs:documentation>Places filter/sub band into a standby more which may or may not reduce power consumption. Removing standby typically will require a reconfiguration of this sub band (which maybe included in the same message)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bandWidth">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="31250"/>                 <xs:enumeration value="62500"/>                 <xs:enumeration value="125000"/>                 <xs:enumeration value="250000"/>                 <xs:enumeration value="500000"/>                 <xs:enumeration value="1000000"/>                 <xs:enumeration value="2000000"/>                 <xs:enumeration value="4000000"/>                 <xs:enumeration value="8000000"/>                 <xs:enumeration value="16000000"/>                 <xs:enumeration value="32000000"/>                 <xs:enumeration value="64000000"/>                 <xs:enumeration value="128000000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="centerFreq" type="xs:string"/>           <xs:attribute name="numBits">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="8"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sourceBand">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="fractBitShift">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="false"/>                 <xs:enumeration value="true"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sideBandFlip">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="false"/>                 <xs:enumeration value="true"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="mixer">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="false"/>                 <xs:enumeration value="true"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="toneFreq" type="xs:int">             <xs:annotation>               <xs:documentation>tone frequency (Hz)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="swIndex" type="xs:int">             <xs:annotation>               <xs:documentation>spectral window identifier</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delays">             <xs:annotation>               <xs:documentation>apply sub band delay models</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="phaseModels">             <xs:annotation>               <xs:documentation>apply calculated phase models or set to zero (off)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="rfiBlankLevel">             <xs:annotation>               <xs:documentation>normalized blanking parameter (0.0 - 1.0) where 0.0 is blank everything and 1.0 is blanking off</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string"/>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="rfiBlankDuration">             <xs:annotation>               <xs:documentation>blanking duration (in seconds) of an rfi detection</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string"/>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <!--   <xs:element name="outputConfig" minOccurs="0" maxOccurs="16">   <xs:complexType>   <xs:attribute name="waferId" use="required">   <xs:simpleType>   <xs:restriction base="xs:int">   <xs:minInclusive value="0"/>   <xs:maxInclusive value="15"/>   </xs:restriction>   </xs:simpleType>   </xs:attribute>   <xs:attribute name="filterId">   <xs:simpleType>   <xs:restriction base="xs:int">   <xs:minInclusive value="0"/>   <xs:maxInclusive value="17"/>   </xs:restriction>   </xs:simpleType>   </xs:attribute>   <xs:attribute name="dumpTrigId">   <xs:simpleType>   <xs:restriction base="xs:int">   <xs:minInclusive value="0"/>   <xs:maxInclusive value="15"/>   </xs:restriction>   </xs:simpleType>   </xs:attribute>   </xs:complexType>   </xs:element>       -->     </xs:sequence>     <xs:attribute name="pathId" use="required">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="baseBandId">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="stationId">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="254"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bandWidth">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="2048000000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="radarMode">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sideBand">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="lower"/>           <xs:enumeration value="upper"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="delayVectorLoad" type="xs:string"/>     <xs:attribute name="localOsc" type="xs:string"/>     <xs:attribute name="freqShift" type="xs:string"/>     <xs:attribute name="phaseModelSlot">       <xs:annotation>         <xs:documentation>specify if phase model for this baseband is delivered early or late in the 10ms window. This is used to allow ANDing of phase models from different station boards by the crossbar boards for polarization</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="early"/>           <xs:enumeration value="late"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="testLut" type="xs:string">       <xs:annotation>         <xs:documentation>This attribute, if present, will cause a NULL LUT to be loaded in stage 1 of all filters on this bank. This allows for a complete configuration without the added heat load of a functioning filter stage (for test purposes)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="swPwrEpoch" type="xs:string">       <xs:annotation>         <xs:documentation>Specify the epoch (ISO 8601-UTC) for all sub band switched power integrations (default is to use dump trigger epoch)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="swPwrInteg" type="xs:string">       <xs:annotation>         <xs:documentation>Specify the number of seconds for each integration of switched power for all sub bands within his base band (default is to match LTA dump interval), Value is in seconds, minimum of 1 noise tube period (100ms)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="swbbName">       <xs:annotation>         <xs:documentation>Identifier for base band</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A1C1_3BIT"/>           <xs:enumeration value="A2C2_3BIT"/>           <xs:enumeration value="AC_8BIT"/>           <xs:enumeration value="B1D1_3BIT"/>           <xs:enumeration value="B2D2_3BIT"/>           <xs:enumeration value="BD_8BIT"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="polarization">       <xs:annotation>         <xs:documentation>Identifier for base band polarization</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="R"/>           <xs:enumeration value="L"/>           <xs:enumeration value="X"/>           <xs:enumeration value="Y"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="setDefaultGains" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>if this attribute is present, default valuse will be set for active filter stages. Any additional auto-gain setting attributes will override gains for their specific filter stages</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setRequantRms" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>target RMS for this data paths filter requantizer gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="requantAgMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>Mask of data path filters that auto gain setting will target for requantizer gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setStage1Rms" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>target RMS for this data paths filter stage 1 gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stage1AgMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>Mask of data path filters that auto gain setting will target for stage 1 gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setStage2Rms" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>target RMS for this data paths filter stage 2 gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stage2AgMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>Mask of data path filters that auto gain setting will target for stage 2 gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setStage3Rms" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>target RMS for this data paths filter stage 3 gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stage3AgMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>Mask of data path filters that auto gain setting will target for stage 3 gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setStage4Rms" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>target RMS for this data paths filter stage 4 gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stage4AgMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>Mask of data path filters that auto gain setting will target for stage 4 gains</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="standby">       <xs:annotation>         <xs:documentation>Place all devices in this data path into a non-volitile low power state</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/dataPath/@pathId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
source	<xs:attribute name="pathId" use="required">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@baseBandId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
source	<xs:attribute name="baseBandId">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@stationId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  254
source	<xs:attribute name="stationId">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="254"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@bandWidth

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  2048000000
source	<xs:attribute name="bandWidth">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="2048000000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@radarMode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="radarMode">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@sideBand

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  lower enumeration  upper
source	<xs:attribute name="sideBand">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="lower"/>       <xs:enumeration value="upper"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@delayVectorLoad

type	xs:string
source	<xs:attribute name="delayVectorLoad" type="xs:string"/>

attribute vciConfiguration/dataPath/@localOsc

type	xs:string
source	<xs:attribute name="localOsc" type="xs:string"/>

attribute vciConfiguration/dataPath/@freqShift

type	xs:string
source	<xs:attribute name="freqShift" type="xs:string"/>

attribute vciConfiguration/dataPath/@phaseModelSlot

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  early enumeration  late
annotation	documentation specify if phase model for this baseband is delivered early or late in the 10ms window. This is used to allow ANDing of phase models from different station boards by the crossbar boards for polarization
source	<xs:attribute name="phaseModelSlot">   <xs:annotation>     <xs:documentation>specify if phase model for this baseband is delivered early or late in the 10ms window. This is used to allow ANDing of phase models from different station boards by the crossbar boards for polarization</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="early"/>       <xs:enumeration value="late"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@testLut

type	xs:string
annotation	documentation This attribute, if present, will cause a NULL LUT to be loaded in stage 1 of all filters on this bank. This allows for a complete configuration without the added heat load of a functioning filter stage (for test purposes)
source	<xs:attribute name="testLut" type="xs:string">   <xs:annotation>     <xs:documentation>This attribute, if present, will cause a NULL LUT to be loaded in stage 1 of all filters on this bank. This allows for a complete configuration without the added heat load of a functioning filter stage (for test purposes)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@swPwrEpoch

type	xs:string
annotation	documentation Specify the epoch (ISO 8601-UTC) for all sub band switched power integrations (default is to use dump trigger epoch)
source	<xs:attribute name="swPwrEpoch" type="xs:string">   <xs:annotation>     <xs:documentation>Specify the epoch (ISO 8601-UTC) for all sub band switched power integrations (default is to use dump trigger epoch)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@swPwrInteg

type	xs:string
annotation	documentation Specify the number of seconds for each integration of switched power for all sub bands within his base band (default is to match LTA dump interval), Value is in seconds, minimum of 1 noise tube period (100ms)
source	<xs:attribute name="swPwrInteg" type="xs:string">   <xs:annotation>     <xs:documentation>Specify the number of seconds for each integration of switched power for all sub bands within his base band (default is to match LTA dump interval), Value is in seconds, minimum of 1 noise tube period (100ms)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@swbbName

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  A1C1_3BIT enumeration  A2C2_3BIT enumeration  AC_8BIT enumeration  B1D1_3BIT enumeration  B2D2_3BIT enumeration  BD_8BIT
annotation	documentation Identifier for base band
source	<xs:attribute name="swbbName">   <xs:annotation>     <xs:documentation>Identifier for base band</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A1C1_3BIT"/>       <xs:enumeration value="A2C2_3BIT"/>       <xs:enumeration value="AC_8BIT"/>       <xs:enumeration value="B1D1_3BIT"/>       <xs:enumeration value="B2D2_3BIT"/>       <xs:enumeration value="BD_8BIT"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@polarization

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  R enumeration  L enumeration  X enumeration  Y
annotation	documentation Identifier for base band polarization
source	<xs:attribute name="polarization">   <xs:annotation>     <xs:documentation>Identifier for base band polarization</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="R"/>       <xs:enumeration value="L"/>       <xs:enumeration value="X"/>       <xs:enumeration value="Y"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/@setDefaultGains

type	xs:string
properties	use  optional
annotation	documentation if this attribute is present, default valuse will be set for active filter stages. Any additional auto-gain setting attributes will override gains for their specific filter stages
source	<xs:attribute name="setDefaultGains" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>if this attribute is present, default valuse will be set for active filter stages. Any additional auto-gain setting attributes will override gains for their specific filter stages</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@setRequantRms

type	xs:string
properties	use  optional
annotation	documentation target RMS for this data paths filter requantizer gains
source	<xs:attribute name="setRequantRms" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>target RMS for this data paths filter requantizer gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@requantAgMask

type	xs:string
properties	use  optional
annotation	documentation Mask of data path filters that auto gain setting will target for requantizer gains
source	<xs:attribute name="requantAgMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>Mask of data path filters that auto gain setting will target for requantizer gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@setStage1Rms

type	xs:string
properties	use  optional
annotation	documentation target RMS for this data paths filter stage 1 gains
source	<xs:attribute name="setStage1Rms" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>target RMS for this data paths filter stage 1 gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@stage1AgMask

type	xs:string
properties	use  optional
annotation	documentation Mask of data path filters that auto gain setting will target for stage 1 gains
source	<xs:attribute name="stage1AgMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>Mask of data path filters that auto gain setting will target for stage 1 gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@setStage2Rms

type	xs:string
properties	use  optional
annotation	documentation target RMS for this data paths filter stage 2 gains
source	<xs:attribute name="setStage2Rms" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>target RMS for this data paths filter stage 2 gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@stage2AgMask

type	xs:string
properties	use  optional
annotation	documentation Mask of data path filters that auto gain setting will target for stage 2 gains
source	<xs:attribute name="stage2AgMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>Mask of data path filters that auto gain setting will target for stage 2 gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@setStage3Rms

type	xs:string
properties	use  optional
annotation	documentation target RMS for this data paths filter stage 3 gains
source	<xs:attribute name="setStage3Rms" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>target RMS for this data paths filter stage 3 gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@stage3AgMask

type	xs:string
properties	use  optional
annotation	documentation Mask of data path filters that auto gain setting will target for stage 3 gains
source	<xs:attribute name="stage3AgMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>Mask of data path filters that auto gain setting will target for stage 3 gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@setStage4Rms

type	xs:string
properties	use  optional
annotation	documentation target RMS for this data paths filter stage 4 gains
source	<xs:attribute name="setStage4Rms" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>target RMS for this data paths filter stage 4 gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@stage4AgMask

type	xs:string
properties	use  optional
annotation	documentation Mask of data path filters that auto gain setting will target for stage 4 gains
source	<xs:attribute name="stage4AgMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>Mask of data path filters that auto gain setting will target for stage 4 gains</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation Place all devices in this data path into a non-volitile low power state
source	<xs:attribute name="standby">   <xs:annotation>     <xs:documentation>Place all devices in this data path into a non-volitile low power state</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element vciConfiguration/dataPath/inputConfig

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation xlateLutLoad   xs:string            bitsPerSample   derived by: xs:int            numBands   derived by: xs:string            dataSource   derived by: xs:string
source	<xs:element name="inputConfig" minOccurs="0">   <xs:complexType>     <xs:attribute name="xlateLutLoad" type="xs:string"/>     <xs:attribute name="bitsPerSample">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="8"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numBands">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="4"/>           <xs:enumeration value="8"/>           <xs:enumeration value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dataSource">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="FORM_stream0"/>           <xs:enumeration value="FORM_stream1"/>           <xs:enumeration value="vsi0"/>           <xs:enumeration value="vsi1"/>           <xs:enumeration value="test0"/>           <xs:enumeration value="test1"/>           <xs:enumeration value="wbtg0"/>           <xs:enumeration value="wbtg1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/dataPath/inputConfig/@xlateLutLoad

type	xs:string
source	<xs:attribute name="xlateLutLoad" type="xs:string"/>

attribute vciConfiguration/dataPath/inputConfig/@bitsPerSample

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  8
source	<xs:attribute name="bitsPerSample">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="8"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/inputConfig/@numBands

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  1 enumeration  2 enumeration  4 enumeration  8 enumeration  16
source	<xs:attribute name="numBands">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="4"/>       <xs:enumeration value="8"/>       <xs:enumeration value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/inputConfig/@dataSource

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  FORM_stream0 enumeration  FORM_stream1 enumeration  vsi0 enumeration  vsi1 enumeration  test0 enumeration  test1 enumeration  wbtg0 enumeration  wbtg1
source	<xs:attribute name="dataSource">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="FORM_stream0"/>       <xs:enumeration value="FORM_stream1"/>       <xs:enumeration value="vsi0"/>       <xs:enumeration value="vsi1"/>       <xs:enumeration value="test0"/>       <xs:enumeration value="test1"/>       <xs:enumeration value="wbtg0"/>       <xs:enumeration value="wbtg1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element vciConfiguration/dataPath/filterConfig

diagram
properties	minOcc  0 maxOcc  18 content  complex
children	lut
attributes	Name   Type   Use   Default   Fixed   Annotation filterId   derived by: xs:int   required         baseBandId   derived by: xs:int   optional         subBandId   derived by: xs:int            standby   derived by: xs:string            documentation Places filter/sub band into a standby more which may or may not reduce power consumption. Removing standby typically will require a reconfiguration of this sub band (which maybe included in the same message) bandWidth   derived by: xs:string            centerFreq   xs:string            numBits   derived by: xs:int            sourceBand   derived by: xs:int            fractBitShift   derived by: xs:string            sideBandFlip   derived by: xs:string            mixer   derived by: xs:string            toneFreq   xs:int            documentation tone frequency (Hz) swIndex   xs:int            documentation spectral window identifier delays   derived by: xs:string            documentation apply sub band delay models phaseModels   derived by: xs:string            documentation apply calculated phase models or set to zero (off) rfiBlankLevel   derived by: xs:string            documentation normalized blanking parameter (0.0 - 1.0) where 0.0 is blank everything and 1.0 is blanking off rfiBlankDuration   derived by: xs:string            documentation blanking duration (in seconds) of an rfi detection
source	<xs:element name="filterConfig" minOccurs="0" maxOccurs="18">   <xs:complexType>     <xs:sequence>       <xs:element name="lut" minOccurs="0">         <xs:complexType>           <xs:attribute name="stage1Load" type="xs:string"/>           <xs:attribute name="stage2Load" type="xs:string"/>           <xs:attribute name="stage3Load" type="xs:string"/>           <xs:attribute name="stage4Load" type="xs:string"/>           <xs:attribute name="mixerLoad" type="xs:string"/>           <xs:attribute name="toneExtLoad" type="xs:string"/>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="filterId" use="required">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="baseBandId" use="optional">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="subBandId">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="standby">       <xs:annotation>         <xs:documentation>Places filter/sub band into a standby more which may or may not reduce power consumption. Removing standby typically will require a reconfiguration of this sub band (which maybe included in the same message)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bandWidth">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="31250"/>           <xs:enumeration value="62500"/>           <xs:enumeration value="125000"/>           <xs:enumeration value="250000"/>           <xs:enumeration value="500000"/>           <xs:enumeration value="1000000"/>           <xs:enumeration value="2000000"/>           <xs:enumeration value="4000000"/>           <xs:enumeration value="8000000"/>           <xs:enumeration value="16000000"/>           <xs:enumeration value="32000000"/>           <xs:enumeration value="64000000"/>           <xs:enumeration value="128000000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="centerFreq" type="xs:string"/>     <xs:attribute name="numBits">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="8"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sourceBand">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="fractBitShift">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="false"/>           <xs:enumeration value="true"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sideBandFlip">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="false"/>           <xs:enumeration value="true"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="mixer">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="false"/>           <xs:enumeration value="true"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="toneFreq" type="xs:int">       <xs:annotation>         <xs:documentation>tone frequency (Hz)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="swIndex" type="xs:int">       <xs:annotation>         <xs:documentation>spectral window identifier</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delays">       <xs:annotation>         <xs:documentation>apply sub band delay models</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="phaseModels">       <xs:annotation>         <xs:documentation>apply calculated phase models or set to zero (off)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="rfiBlankLevel">       <xs:annotation>         <xs:documentation>normalized blanking parameter (0.0 - 1.0) where 0.0 is blank everything and 1.0 is blanking off</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string"/>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="rfiBlankDuration">       <xs:annotation>         <xs:documentation>blanking duration (in seconds) of an rfi detection</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string"/>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/dataPath/filterConfig/@filterId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
source	<xs:attribute name="filterId" use="required">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@baseBandId

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
source	<xs:attribute name="baseBandId" use="optional">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@subBandId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
source	<xs:attribute name="subBandId">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation Places filter/sub band into a standby more which may or may not reduce power consumption. Removing standby typically will require a reconfiguration of this sub band (which maybe included in the same message)
source	<xs:attribute name="standby">   <xs:annotation>     <xs:documentation>Places filter/sub band into a standby more which may or may not reduce power consumption. Removing standby typically will require a reconfiguration of this sub band (which maybe included in the same message)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@bandWidth

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  31250 enumeration  62500 enumeration  125000 enumeration  250000 enumeration  500000 enumeration  1000000 enumeration  2000000 enumeration  4000000 enumeration  8000000 enumeration  16000000 enumeration  32000000 enumeration  64000000 enumeration  128000000
source	<xs:attribute name="bandWidth">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="31250"/>       <xs:enumeration value="62500"/>       <xs:enumeration value="125000"/>       <xs:enumeration value="250000"/>       <xs:enumeration value="500000"/>       <xs:enumeration value="1000000"/>       <xs:enumeration value="2000000"/>       <xs:enumeration value="4000000"/>       <xs:enumeration value="8000000"/>       <xs:enumeration value="16000000"/>       <xs:enumeration value="32000000"/>       <xs:enumeration value="64000000"/>       <xs:enumeration value="128000000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@centerFreq

type	xs:string
source	<xs:attribute name="centerFreq" type="xs:string"/>

attribute vciConfiguration/dataPath/filterConfig/@numBits

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  8
source	<xs:attribute name="numBits">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="8"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@sourceBand

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
source	<xs:attribute name="sourceBand">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@fractBitShift

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  false enumeration  true
source	<xs:attribute name="fractBitShift">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="false"/>       <xs:enumeration value="true"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@sideBandFlip

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  false enumeration  true
source	<xs:attribute name="sideBandFlip">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="false"/>       <xs:enumeration value="true"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@mixer

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  false enumeration  true
source	<xs:attribute name="mixer">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="false"/>       <xs:enumeration value="true"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@toneFreq

type	xs:int
annotation	documentation tone frequency (Hz)
source	<xs:attribute name="toneFreq" type="xs:int">   <xs:annotation>     <xs:documentation>tone frequency (Hz)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@swIndex

type	xs:int
annotation	documentation spectral window identifier
source	<xs:attribute name="swIndex" type="xs:int">   <xs:annotation>     <xs:documentation>spectral window identifier</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@delays

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation apply sub band delay models
source	<xs:attribute name="delays">   <xs:annotation>     <xs:documentation>apply sub band delay models</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@phaseModels

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation apply calculated phase models or set to zero (off)
source	<xs:attribute name="phaseModels">   <xs:annotation>     <xs:documentation>apply calculated phase models or set to zero (off)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@rfiBlankLevel

type	restriction of xs:string
annotation	documentation normalized blanking parameter (0.0 - 1.0) where 0.0 is blank everything and 1.0 is blanking off
source	<xs:attribute name="rfiBlankLevel">   <xs:annotation>     <xs:documentation>normalized blanking parameter (0.0 - 1.0) where 0.0 is blank everything and 1.0 is blanking off</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dataPath/filterConfig/@rfiBlankDuration

type	restriction of xs:string
annotation	documentation blanking duration (in seconds) of an rfi detection
source	<xs:attribute name="rfiBlankDuration">   <xs:annotation>     <xs:documentation>blanking duration (in seconds) of an rfi detection</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:attribute>

element vciConfiguration/dataPath/filterConfig/lut

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation stage1Load   xs:string            stage2Load   xs:string            stage3Load   xs:string            stage4Load   xs:string            mixerLoad   xs:string            toneExtLoad   xs:string
source	<xs:element name="lut" minOccurs="0">   <xs:complexType>     <xs:attribute name="stage1Load" type="xs:string"/>     <xs:attribute name="stage2Load" type="xs:string"/>     <xs:attribute name="stage3Load" type="xs:string"/>     <xs:attribute name="stage4Load" type="xs:string"/>     <xs:attribute name="mixerLoad" type="xs:string"/>     <xs:attribute name="toneExtLoad" type="xs:string"/>   </xs:complexType> </xs:element>

attribute vciConfiguration/dataPath/filterConfig/lut/@stage1Load

type	xs:string
source	<xs:attribute name="stage1Load" type="xs:string"/>

attribute vciConfiguration/dataPath/filterConfig/lut/@stage2Load

type	xs:string
source	<xs:attribute name="stage2Load" type="xs:string"/>

attribute vciConfiguration/dataPath/filterConfig/lut/@stage3Load

type	xs:string
source	<xs:attribute name="stage3Load" type="xs:string"/>

attribute vciConfiguration/dataPath/filterConfig/lut/@stage4Load

type	xs:string
source	<xs:attribute name="stage4Load" type="xs:string"/>

attribute vciConfiguration/dataPath/filterConfig/lut/@mixerLoad

type	xs:string
source	<xs:attribute name="mixerLoad" type="xs:string"/>

attribute vciConfiguration/dataPath/filterConfig/lut/@toneExtLoad

type	xs:string
source	<xs:attribute name="toneExtLoad" type="xs:string"/>

element vciConfiguration/noiseDiode

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation noiseDiodeGen   derived by: xs:string            documentation enable/disable noise diode model function noiseDiodeDutyCycle   derived by: xs:int            documentation percentage of cycle that noise diode is ON noiseDiodePhase   derived by: xs:string            documentation ND offset from the provided epoch in seconds noiseDiodeFreq   derived by: xs:string            documentation frequency of noise diode in Hertz noiseDiodeEpoch   xs:string            documentation Epoch for T0 of the noise diode model (uses Obs clock)
source	<xs:element name="noiseDiode" minOccurs="0">   <xs:complexType>     <xs:attribute name="noiseDiodeGen">       <xs:annotation>         <xs:documentation>enable/disable noise diode model function</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiodeDutyCycle">       <xs:annotation>         <xs:documentation>percentage of cycle that noise diode is ON</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="100"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiodePhase">       <xs:annotation>         <xs:documentation>ND offset from the provided epoch in seconds</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string"/>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiodeFreq">       <xs:annotation>         <xs:documentation>frequency of noise diode in Hertz</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string"/>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="noiseDiodeEpoch" type="xs:string">       <xs:annotation>         <xs:documentation>Epoch for T0 of the noise diode model (uses Obs clock)</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/noiseDiode/@noiseDiodeGen

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation enable/disable noise diode model function
source	<xs:attribute name="noiseDiodeGen">   <xs:annotation>     <xs:documentation>enable/disable noise diode model function</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/noiseDiode/@noiseDiodeDutyCycle

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  100
annotation	documentation percentage of cycle that noise diode is ON
source	<xs:attribute name="noiseDiodeDutyCycle">   <xs:annotation>     <xs:documentation>percentage of cycle that noise diode is ON</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="100"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/noiseDiode/@noiseDiodePhase

type	restriction of xs:string
annotation	documentation ND offset from the provided epoch in seconds
source	<xs:attribute name="noiseDiodePhase">   <xs:annotation>     <xs:documentation>ND offset from the provided epoch in seconds</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/noiseDiode/@noiseDiodeFreq

type	restriction of xs:string
annotation	documentation frequency of noise diode in Hertz
source	<xs:attribute name="noiseDiodeFreq">   <xs:annotation>     <xs:documentation>frequency of noise diode in Hertz</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/noiseDiode/@noiseDiodeEpoch

type	xs:string
annotation	documentation Epoch for T0 of the noise diode model (uses Obs clock)
source	<xs:attribute name="noiseDiodeEpoch" type="xs:string">   <xs:annotation>     <xs:documentation>Epoch for T0 of the noise diode model (uses Obs clock)</xs:documentation>   </xs:annotation> </xs:attribute>

element vciConfiguration/dumpTrig

diagram
properties	minOcc  0 maxOcc  16 content  complex
children	phaseBinModel phaseBinGroup
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         documentation dump trig generation buffer ID binningPeriod   xs:string            documentation default fixed period for phase binning (micro seconds) binningOffset   xs:string            documentation fixed period offset for phase binning (0.0-1.0) epoch   xs:string            documentation obsClock time this script becomes active standby   derived by: xs:string   optional         documentation enable or disable the dump trig generator recircFactor   xs:int            documentation recirculation factor to use when enabled ltaIntegFactor   xs:int            documentation count of hardware integrations to accumulate countOn   xs:int            documentation count of integrations to produce during a single burst period countOffset   xs:int            documentation count of integrations to offset burst sequence from epoch. countOff   xs:int            documentation count of integrations to supress during a single burst period hwIntegTime   xs:string            documentation integration time for the correlator chip (microSeconds) subBandMask0   xs:string            documentation mask of sub bands for data path 0 to bundle with this ID subBandMask1   xs:string            documentation mask of sub bands for data path 1 to bundle with this ID phaseBinBank   derived by: xs:string   optional         documentation use one or both phase bin memory banks numPhaseBins   derived by: xs:int            documentation number of LTA bins to allocate use for standard dumptrig or report the number of bins automatically allocated during phase binning startBin   derived by: xs:int            documentation starting bin number for LTA bins (for phase binning)
annotation	documentation dump trigger generator controls
source	<xs:element name="dumpTrig" minOccurs="0" maxOccurs="16">   <xs:annotation>     <xs:documentation>dump trigger generator controls </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="phaseBinModel" minOccurs="0" maxOccurs="1">         <xs:annotation>           <xs:documentation>   phase binning (pulsar) model for a single dump generator.   Based on TEMPO polyco.dat file. </xs:documentation>           <xs:documentation>     Model time references (MJD).     tMid is polynomial reference time.     tStart, tEnd determine model validity timerange.     phaseRef is as provided by POLYCO.DAT, units of turns.     freqRef is as provided by POLYCO.DAT, units of Hertz   </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="modelCff" minOccurs="1" maxOccurs="20">               <xs:annotation>                 <xs:documentation> Coefficent(s) for the binning model.       </xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:attribute name="index" type="xs:int" use="required"/>                 <xs:attribute name="cff" type="xs:string" use="required"/>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="numCff" use="required">             <xs:annotation>               <xs:documentation>count of model coefficients</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="20"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="tMid" type="xs:string" use="required"/>           <xs:attribute name="tStart" type="xs:double" use="optional"/>           <xs:attribute name="tEnd" type="xs:double" use="optional"/>           <xs:attribute name="phaseRef" type="xs:string" use="required"/>           <xs:attribute name="freqRef" type="xs:string" use="required"/>         </xs:complexType>       </xs:element>       <xs:element name="phaseBinGroup" minOccurs="0" maxOccurs="1000">         <xs:annotation>           <xs:documentation>phase bin integration specificiation</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="bindex">             <xs:annotation>               <xs:documentation>index of this phase integration slice within the full period</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="999"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bin">             <xs:annotation>               <xs:documentation>LTA bin number to assign to this phase slice</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1999"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numBins">             <xs:annotation>               <xs:documentation>count of adjacent bins sharing these same parameters</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="2000"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="maxHwIntegTime" type="xs:string">             <xs:annotation>               <xs:documentation>maximum integration time for the correlator chip (microSeconds) deafult is 500</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="binWidth" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>width of this bin as normalized fractional pulsar period. Default is full allocation</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="phaseOffset" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>normalized phase (offset) of this bin group within binning period</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>dump trig generation buffer ID</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="binningPeriod" type="xs:string">       <xs:annotation>         <xs:documentation>default fixed period for phase binning (micro seconds)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="binningOffset" type="xs:string">       <xs:annotation>         <xs:documentation>fixed period offset for phase binning (0.0-1.0)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="epoch" type="xs:string">       <xs:annotation>         <xs:documentation>obsClock time this script becomes active</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="standby" use="optional">       <xs:annotation>         <xs:documentation>enable or disable the dump trig generator</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="recircFactor" type="xs:int">       <xs:annotation>         <xs:documentation>recirculation factor to use when enabled</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ltaIntegFactor" type="xs:int">       <xs:annotation>         <xs:documentation>count of hardware integrations to accumulate</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="countOn" type="xs:int">       <xs:annotation>         <xs:documentation>count of integrations to produce during a single burst period</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="countOffset" type="xs:int">       <xs:annotation>         <xs:documentation>count of integrations to offset burst sequence from epoch.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="countOff" type="xs:int">       <xs:annotation>         <xs:documentation>count of integrations to supress during a single burst period</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hwIntegTime" type="xs:string">       <xs:annotation>         <xs:documentation>integration time for the correlator chip (microSeconds)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="subBandMask0" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands for data path 0 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="subBandMask1" type="xs:string">       <xs:annotation>         <xs:documentation>mask of sub bands for data path 1 to bundle with this ID</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="phaseBinBank" use="optional">       <xs:annotation>         <xs:documentation>use one or both phase bin memory banks</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="bank0"/>           <xs:enumeration value="bank1"/>           <xs:enumeration value="all"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numPhaseBins">       <xs:annotation>         <xs:documentation>number of LTA bins to allocate use for standard dumptrig or report the number of bins automatically allocated during phase binning</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="2000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="startBin">       <xs:annotation>         <xs:documentation>starting bin number for LTA bins (for phase binning)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="2000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/dumpTrig/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation dump trig generation buffer ID
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>dump trig generation buffer ID</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dumpTrig/@binningPeriod

type	xs:string
annotation	documentation default fixed period for phase binning (micro seconds)
source	<xs:attribute name="binningPeriod" type="xs:string">   <xs:annotation>     <xs:documentation>default fixed period for phase binning (micro seconds)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@binningOffset

type	xs:string
annotation	documentation fixed period offset for phase binning (0.0-1.0)
source	<xs:attribute name="binningOffset" type="xs:string">   <xs:annotation>     <xs:documentation>fixed period offset for phase binning (0.0-1.0)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@epoch

type	xs:string
annotation	documentation obsClock time this script becomes active
source	<xs:attribute name="epoch" type="xs:string">   <xs:annotation>     <xs:documentation>obsClock time this script becomes active</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@standby

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation enable or disable the dump trig generator
source	<xs:attribute name="standby" use="optional">   <xs:annotation>     <xs:documentation>enable or disable the dump trig generator</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dumpTrig/@recircFactor

type	xs:int
annotation	documentation recirculation factor to use when enabled
source	<xs:attribute name="recircFactor" type="xs:int">   <xs:annotation>     <xs:documentation>recirculation factor to use when enabled</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@ltaIntegFactor

type	xs:int
annotation	documentation count of hardware integrations to accumulate
source	<xs:attribute name="ltaIntegFactor" type="xs:int">   <xs:annotation>     <xs:documentation>count of hardware integrations to accumulate</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@countOn

type	xs:int
annotation	documentation count of integrations to produce during a single burst period
source	<xs:attribute name="countOn" type="xs:int">   <xs:annotation>     <xs:documentation>count of integrations to produce during a single burst period</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@countOffset

type	xs:int
annotation	documentation count of integrations to offset burst sequence from epoch.
source	<xs:attribute name="countOffset" type="xs:int">   <xs:annotation>     <xs:documentation>count of integrations to offset burst sequence from epoch.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@countOff

type	xs:int
annotation	documentation count of integrations to supress during a single burst period
source	<xs:attribute name="countOff" type="xs:int">   <xs:annotation>     <xs:documentation>count of integrations to supress during a single burst period</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@hwIntegTime

type	xs:string
annotation	documentation integration time for the correlator chip (microSeconds)
source	<xs:attribute name="hwIntegTime" type="xs:string">   <xs:annotation>     <xs:documentation>integration time for the correlator chip (microSeconds)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@subBandMask0

type	xs:string
annotation	documentation mask of sub bands for data path 0 to bundle with this ID
source	<xs:attribute name="subBandMask0" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands for data path 0 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@subBandMask1

type	xs:string
annotation	documentation mask of sub bands for data path 1 to bundle with this ID
source	<xs:attribute name="subBandMask1" type="xs:string">   <xs:annotation>     <xs:documentation>mask of sub bands for data path 1 to bundle with this ID</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/@phaseBinBank

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  bank0 enumeration  bank1 enumeration  all
annotation	documentation use one or both phase bin memory banks
source	<xs:attribute name="phaseBinBank" use="optional">   <xs:annotation>     <xs:documentation>use one or both phase bin memory banks</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="bank0"/>       <xs:enumeration value="bank1"/>       <xs:enumeration value="all"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dumpTrig/@numPhaseBins

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  2000
annotation	documentation number of LTA bins to allocate use for standard dumptrig or report the number of bins automatically allocated during phase binning
source	<xs:attribute name="numPhaseBins">   <xs:annotation>     <xs:documentation>number of LTA bins to allocate use for standard dumptrig or report the number of bins automatically allocated during phase binning</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="2000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dumpTrig/@startBin

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  2000
annotation	documentation starting bin number for LTA bins (for phase binning)
source	<xs:attribute name="startBin">   <xs:annotation>     <xs:documentation>starting bin number for LTA bins (for phase binning)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="2000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element vciConfiguration/dumpTrig/phaseBinModel

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	modelCff
attributes	Name   Type   Use   Default   Fixed   Annotation numCff   derived by: xs:int   required         documentation count of model coefficients tMid   xs:string   required         tStart   xs:double   optional         tEnd   xs:double   optional         phaseRef   xs:string   required         freqRef   xs:string   required
annotation	documentation   phase binning (pulsar) model for a single dump generator.   Based on TEMPO polyco.dat file. documentation     Model time references (MJD).     tMid is polynomial reference time.     tStart, tEnd determine model validity timerange.     phaseRef is as provided by POLYCO.DAT, units of turns.     freqRef is as provided by POLYCO.DAT, units of Hertz
source	<xs:element name="phaseBinModel" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>   phase binning (pulsar) model for a single dump generator.   Based on TEMPO polyco.dat file. </xs:documentation>     <xs:documentation>     Model time references (MJD).     tMid is polynomial reference time.     tStart, tEnd determine model validity timerange.     phaseRef is as provided by POLYCO.DAT, units of turns.     freqRef is as provided by POLYCO.DAT, units of Hertz   </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="modelCff" minOccurs="1" maxOccurs="20">         <xs:annotation>           <xs:documentation> Coefficent(s) for the binning model.       </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="index" type="xs:int" use="required"/>           <xs:attribute name="cff" type="xs:string" use="required"/>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="numCff" use="required">       <xs:annotation>         <xs:documentation>count of model coefficients</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="20"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="tMid" type="xs:string" use="required"/>     <xs:attribute name="tStart" type="xs:double" use="optional"/>     <xs:attribute name="tEnd" type="xs:double" use="optional"/>     <xs:attribute name="phaseRef" type="xs:string" use="required"/>     <xs:attribute name="freqRef" type="xs:string" use="required"/>   </xs:complexType> </xs:element>

attribute vciConfiguration/dumpTrig/phaseBinModel/@numCff

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  20
annotation	documentation count of model coefficients
source	<xs:attribute name="numCff" use="required">   <xs:annotation>     <xs:documentation>count of model coefficients</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="20"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dumpTrig/phaseBinModel/@tMid

type	xs:string
properties	use  required
source	<xs:attribute name="tMid" type="xs:string" use="required"/>

attribute vciConfiguration/dumpTrig/phaseBinModel/@tStart

type	xs:double
properties	use  optional
source	<xs:attribute name="tStart" type="xs:double" use="optional"/>

attribute vciConfiguration/dumpTrig/phaseBinModel/@tEnd

type	xs:double
properties	use  optional
source	<xs:attribute name="tEnd" type="xs:double" use="optional"/>

attribute vciConfiguration/dumpTrig/phaseBinModel/@phaseRef

type	xs:string
properties	use  required
source	<xs:attribute name="phaseRef" type="xs:string" use="required"/>

attribute vciConfiguration/dumpTrig/phaseBinModel/@freqRef

type	xs:string
properties	use  required
source	<xs:attribute name="freqRef" type="xs:string" use="required"/>

element vciConfiguration/dumpTrig/phaseBinModel/modelCff

diagram
properties	minOcc  1 maxOcc  20 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation index   xs:int   required         cff   xs:string   required
annotation	documentation Coefficent(s) for the binning model.
source	<xs:element name="modelCff" minOccurs="1" maxOccurs="20">   <xs:annotation>     <xs:documentation> Coefficent(s) for the binning model.       </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="index" type="xs:int" use="required"/>     <xs:attribute name="cff" type="xs:string" use="required"/>   </xs:complexType> </xs:element>

attribute vciConfiguration/dumpTrig/phaseBinModel/modelCff/@index

type	xs:int
properties	use  required
source	<xs:attribute name="index" type="xs:int" use="required"/>

attribute vciConfiguration/dumpTrig/phaseBinModel/modelCff/@cff

type	xs:string
properties	use  required
source	<xs:attribute name="cff" type="xs:string" use="required"/>

element vciConfiguration/dumpTrig/phaseBinGroup

diagram
properties	minOcc  0 maxOcc  1000 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation bindex   derived by: xs:int            documentation index of this phase integration slice within the full period bin   derived by: xs:int            documentation LTA bin number to assign to this phase slice numBins   derived by: xs:int            documentation count of adjacent bins sharing these same parameters maxHwIntegTime   xs:string            documentation maximum integration time for the correlator chip (microSeconds) deafult is 500 binWidth   xs:string   optional         documentation width of this bin as normalized fractional pulsar period. Default is full allocation phaseOffset   xs:string   required         documentation normalized phase (offset) of this bin group within binning period
annotation	documentation phase bin integration specificiation
source	<xs:element name="phaseBinGroup" minOccurs="0" maxOccurs="1000">   <xs:annotation>     <xs:documentation>phase bin integration specificiation</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="bindex">       <xs:annotation>         <xs:documentation>index of this phase integration slice within the full period</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="999"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bin">       <xs:annotation>         <xs:documentation>LTA bin number to assign to this phase slice</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1999"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numBins">       <xs:annotation>         <xs:documentation>count of adjacent bins sharing these same parameters</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="2000"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="maxHwIntegTime" type="xs:string">       <xs:annotation>         <xs:documentation>maximum integration time for the correlator chip (microSeconds) deafult is 500</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="binWidth" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>width of this bin as normalized fractional pulsar period. Default is full allocation</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="phaseOffset" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>normalized phase (offset) of this bin group within binning period</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/dumpTrig/phaseBinGroup/@bindex

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  999
annotation	documentation index of this phase integration slice within the full period
source	<xs:attribute name="bindex">   <xs:annotation>     <xs:documentation>index of this phase integration slice within the full period</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="999"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dumpTrig/phaseBinGroup/@bin

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1999
annotation	documentation LTA bin number to assign to this phase slice
source	<xs:attribute name="bin">   <xs:annotation>     <xs:documentation>LTA bin number to assign to this phase slice</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1999"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dumpTrig/phaseBinGroup/@numBins

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  2000
annotation	documentation count of adjacent bins sharing these same parameters
source	<xs:attribute name="numBins">   <xs:annotation>     <xs:documentation>count of adjacent bins sharing these same parameters</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="2000"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/dumpTrig/phaseBinGroup/@maxHwIntegTime

type	xs:string
annotation	documentation maximum integration time for the correlator chip (microSeconds) deafult is 500
source	<xs:attribute name="maxHwIntegTime" type="xs:string">   <xs:annotation>     <xs:documentation>maximum integration time for the correlator chip (microSeconds) deafult is 500</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/phaseBinGroup/@binWidth

type	xs:string
properties	use  optional
annotation	documentation width of this bin as normalized fractional pulsar period. Default is full allocation
source	<xs:attribute name="binWidth" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>width of this bin as normalized fractional pulsar period. Default is full allocation</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/dumpTrig/phaseBinGroup/@phaseOffset

type	xs:string
properties	use  required
annotation	documentation normalized phase (offset) of this bin group within binning period
source	<xs:attribute name="phaseOffset" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>normalized phase (offset) of this bin group within binning period</xs:documentation>   </xs:annotation> </xs:attribute>

element vciConfiguration/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation activationUTC   xs:int            dataPath   xs:string            documentation report basic data path configuration noiseDiode   xs:string            documentation report noise diode configuration dumpTrig   xs:string            documentation report specfied dump trigger configuration waferConfig   xs:string            documentation report specfied wafer configuration wbcProduct   xs:string            documentation report wideband correlator data product settings
source	<xs:element name="state" minOccurs="0">   <xs:complexType>     <xs:attribute name="activationUTC" type="xs:int"/>     <xs:attribute name="dataPath" type="xs:string">       <xs:annotation>         <xs:documentation>report basic data path configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="noiseDiode" type="xs:string">       <xs:annotation>         <xs:documentation>report noise diode configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dumpTrig" type="xs:string">       <xs:annotation>         <xs:documentation>report specfied dump trigger configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="waferConfig" type="xs:string">       <xs:annotation>         <xs:documentation>report specfied wafer configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="wbcProduct" type="xs:string">       <xs:annotation>         <xs:documentation>report wideband correlator data product settings</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/state/@activationUTC

type	xs:int
source	<xs:attribute name="activationUTC" type="xs:int"/>

attribute vciConfiguration/state/@dataPath

type	xs:string
annotation	documentation report basic data path configuration
source	<xs:attribute name="dataPath" type="xs:string">   <xs:annotation>     <xs:documentation>report basic data path configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/state/@noiseDiode

type	xs:string
annotation	documentation report noise diode configuration
source	<xs:attribute name="noiseDiode" type="xs:string">   <xs:annotation>     <xs:documentation>report noise diode configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/state/@dumpTrig

type	xs:string
annotation	documentation report specfied dump trigger configuration
source	<xs:attribute name="dumpTrig" type="xs:string">   <xs:annotation>     <xs:documentation>report specfied dump trigger configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/state/@waferConfig

type	xs:string
annotation	documentation report specfied wafer configuration
source	<xs:attribute name="waferConfig" type="xs:string">   <xs:annotation>     <xs:documentation>report specfied wafer configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/state/@wbcProduct

type	xs:string
annotation	documentation report wideband correlator data product settings
source	<xs:attribute name="wbcProduct" type="xs:string">   <xs:annotation>     <xs:documentation>report wideband correlator data product settings</xs:documentation>   </xs:annotation> </xs:attribute>

element vciConfiguration/waferConfig

diagram
properties	minOcc  0 maxOcc  18 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation waferId   derived by: xs:int   required         path0FilterId   derived by: xs:int            path1FilterId   derived by: xs:int            dumpTrigId   derived by: xs:int
annotation	documentation setup for individual board output wafers, sets up output and timing FPGAs
source	<xs:element name="waferConfig" minOccurs="0" maxOccurs="18">   <xs:annotation>     <xs:documentation>setup for individual board output wafers, sets up output and timing FPGAs</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="waferId" use="required">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="path0FilterId">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="path1FilterId">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dumpTrigId">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/waferConfig/@waferId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
source	<xs:attribute name="waferId" use="required">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/waferConfig/@path0FilterId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
source	<xs:attribute name="path0FilterId">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/waferConfig/@path1FilterId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
source	<xs:attribute name="path1FilterId">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/waferConfig/@dumpTrigId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
source	<xs:attribute name="dumpTrigId">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element vciConfiguration/wbcProduct

diagram
properties	minOcc  0 maxOcc  32 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:int   required         documentation specified id for this product set integEnable   derived by: xs:string            laggedPath   derived by: xs:int            documentation which data path to use as lagged data laggedBand   derived by: xs:int            documentation which band to use from the lagged data path promptPath   derived by: xs:int            documentation which data path to use as prompt data promptBand   derived by: xs:int            documentation which band to use from the prompt data path integration   derived by: xs:int            documentation number of times to integrate this product lag set numLags   derived by: xs:int            documentation specified number of lags to create for this product. A zero value disables this product ID.
annotation	documentation configure wideband correlator product generation
source	<xs:element name="wbcProduct" minOccurs="0" maxOccurs="32">   <xs:annotation>     <xs:documentation>configure wideband correlator product generation</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>specified id for this product set</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="integEnable">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="laggedPath">       <xs:annotation>         <xs:documentation>which data path to use as lagged data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="laggedBand">       <xs:annotation>         <xs:documentation>which band to use from the lagged data path</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="promptPath">       <xs:annotation>         <xs:documentation>which data path to use as prompt data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="promptBand">       <xs:annotation>         <xs:documentation>which band to use from the prompt data path</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="integration">       <xs:annotation>         <xs:documentation>number of times to integrate this product lag set</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numLags">       <xs:annotation>         <xs:documentation>specified number of lags to create for this product. A zero value disables this product ID.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="63"/>           <xs:maxInclusive value="4096"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vciConfiguration/wbcProduct/@id

type	xs:int
properties	use  required
annotation	documentation specified id for this product set
source	<xs:attribute name="id" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>specified id for this product set</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vciConfiguration/wbcProduct/@integEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="integEnable">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/wbcProduct/@laggedPath

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation which data path to use as lagged data
source	<xs:attribute name="laggedPath">   <xs:annotation>     <xs:documentation>which data path to use as lagged data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/wbcProduct/@laggedBand

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation which band to use from the lagged data path
source	<xs:attribute name="laggedBand">   <xs:annotation>     <xs:documentation>which band to use from the lagged data path</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/wbcProduct/@promptPath

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation which data path to use as prompt data
source	<xs:attribute name="promptPath">   <xs:annotation>     <xs:documentation>which data path to use as prompt data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/wbcProduct/@promptBand

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation which band to use from the prompt data path
source	<xs:attribute name="promptBand">   <xs:annotation>     <xs:documentation>which band to use from the prompt data path</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/wbcProduct/@integration

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation number of times to integrate this product lag set
source	<xs:attribute name="integration">   <xs:annotation>     <xs:documentation>number of times to integrate this product lag set</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vciConfiguration/wbcProduct/@numLags

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  63 maxInclusive  4096
annotation	documentation specified number of lags to create for this product. A zero value disables this product ID.
source	<xs:attribute name="numLags">   <xs:annotation>     <xs:documentation>specified number of lags to create for this product. A zero value disables this product ID.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="63"/>       <xs:maxInclusive value="4096"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element vsi

diagram
properties	content  complex
children	timeInterval clockEdge setup status crc testPin testGen errorCount control user about register error state
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         time   xs:dateTime   optional         led   ledType            reset   xs:string            documentation assert module reset clockEnable   derived by: xs:string            documentation (deprecated - use standby attribute) Master enable for clocks inputDataClkMask   xs:string            documentation input clock error mask clocksPerTick   xs:int            documentation number of 128MHz clocks per tick ticksPerPPS   xs:int            documentation number of ticks per pulse-per-second sysTickDelay   xs:int            documentation number of clock cycles to delay the system tick accessErr   xs:string            documentation mask of register access errors, write to clear loopback   derived by: xs:string            documentation specify if VSI is externally wired in loopback configuration standby   derived by: xs:string            ledDevice   ledType            documentation Status of this FPGA device
annotation	documentation VSI interface setup and control
source	<xs:element name="vsi">   <xs:annotation>     <xs:documentation>VSI interface setup and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="timeInterval" minOccurs="0" maxOccurs="19">         <xs:annotation>           <xs:documentation>input signal time interval measurements</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="line" use="required">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="input0"/>                 <xs:enumeration value="input1"/>                 <xs:enumeration value="input2"/>                 <xs:enumeration value="input3"/>                 <xs:enumeration value="input4"/>                 <xs:enumeration value="input5"/>                 <xs:enumeration value="input6"/>                 <xs:enumeration value="input7"/>                 <xs:enumeration value="input8"/>                 <xs:enumeration value="input9"/>                 <xs:enumeration value="input10"/>                 <xs:enumeration value="input11"/>                 <xs:enumeration value="input12"/>                 <xs:enumeration value="input13"/>                 <xs:enumeration value="input14"/>                 <xs:enumeration value="input15"/>                 <xs:enumeration value="input16"/>                 <xs:enumeration value="input17"/>                 <xs:enumeration value="vsi"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dTick_sTick" type="xs:int" use="required"/>           <xs:attribute name="dTick" type="xs:int" use="required"/>           <xs:attribute name="sTick" type="xs:int" use="required"/>           <xs:attribute name="sTick_dTick" type="xs:int" use="required"/>         </xs:complexType>       </xs:element>       <xs:element name="clockEdge" minOccurs="0" maxOccurs="20">         <xs:annotation>           <xs:documentation>signal clock edge selection</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify input signalsignal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="nb0"/>                 <xs:enumeration value="nb1"/>                 <xs:enumeration value="nb2"/>                 <xs:enumeration value="nb3"/>                 <xs:enumeration value="nb4"/>                 <xs:enumeration value="nb5"/>                 <xs:enumeration value="nb6"/>                 <xs:enumeration value="nb7"/>                 <xs:enumeration value="nb8"/>                 <xs:enumeration value="nb9"/>                 <xs:enumeration value="nb10"/>                 <xs:enumeration value="nb11"/>                 <xs:enumeration value="nb12"/>                 <xs:enumeration value="nb13"/>                 <xs:enumeration value="nb14"/>                 <xs:enumeration value="nb15"/>                 <xs:enumeration value="nb16"/>                 <xs:enumeration value="nb17"/>                 <xs:enumeration value="sTick"/>                 <xs:enumeration value="vsi"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="edge" use="required">             <xs:annotation>               <xs:documentation>clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="setup" minOccurs="0">         <xs:complexType>           <xs:attribute name="clocksPerTick" type="xs:int">             <xs:annotation>               <xs:documentation>number of 128MHz clocks per tick</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ticksPerPPS" type="xs:int">             <xs:annotation>               <xs:documentation>number of ticks per pulse-per-second</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sysTickDelay" type="xs:int">             <xs:annotation>               <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="loopback">             <xs:annotation>               <xs:documentation>specify if VSI is externally wired in loopback configuration</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="standby">             <xs:annotation>               <xs:documentation>Place device into low power state (asserts clock disable bit in control register)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ppsCodeSeconds" type="xs:int">             <xs:annotation>               <xs:documentation>PPSCODE seconds count</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hopCount" type="xs:int">             <xs:annotation>               <xs:documentation>Hop count to insert into test PPSCODE generator</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="status" minOccurs="0">         <xs:complexType>           <xs:attribute name="ledVsi" type="ledType" use="required"/>           <xs:attribute name="inputDataClkMask" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>input clock error mask</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="accessErr" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>mask of register access errors, write to clear</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="crc" minOccurs="0">         <xs:annotation>           <xs:documentation>CRC setup information </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ledCrcNB" minOccurs="0" maxOccurs="18">               <xs:annotation>                 <xs:documentation>status LEDs for each filters narrow band VSI connection</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:attribute name="portId" use="required">                   <xs:annotation>                     <xs:documentation>port id for this LED</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:maxInclusive value="17"/>                       <xs:minInclusive value="0"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="led" type="ledType" use="required">                   <xs:annotation>                     <xs:documentation>status of filter to VSI narrow band input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="scan" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="single"/>                 <xs:enumeration value="auto"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="loopback" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)bit select for loop back testing</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="39"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireNB" use="optional">             <xs:annotation>               <xs:documentation>CRC checking select for narrow band (filter to VSI) wires</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="narrowBand" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)bit select for narrow band</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="sind"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireVlbi" use="optional">             <xs:annotation>               <xs:documentation>CRC checking select for vlbi (VSI to Input FPGA) data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWireLoopback" use="optional">             <xs:annotation>               <xs:documentation>CRC checking select for installed loopback cable</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="auto"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vlbi" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)bit select for vlbi data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="31"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forcePpsCodeCrcError" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on timecode signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceOutputErrorVsi">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="none"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceOutputErrorVlbi">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="none"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ledCrcLoopback" type="ledType">             <xs:annotation>               <xs:documentation>status of VSI In/Out (loopback) CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testPin" minOccurs="0" maxOccurs="4">         <xs:annotation>           <xs:documentation>route internal FPGA signal to external pin</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>specify pin number</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="signal">             <xs:annotation>               <xs:documentation>signal routed to specified pin</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="255"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testGen" minOccurs="0">         <xs:annotation>           <xs:documentation>Internal test generator</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="mode">             <xs:annotation>               <xs:documentation>operational mode for test generator</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="random"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="timecodeTestGen">             <xs:annotation>               <xs:documentation>operational mode for timecode test generator</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="seed" type="xs:string">             <xs:annotation>               <xs:documentation>pseudo random data seed.</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="errorCount" minOccurs="0">         <xs:annotation>           <xs:documentation>status register counters</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="vsiSelectRange" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>invalid VSI bit selected</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="inOutCrcMatch" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>Input and output CRC selection mismatch</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="tClkLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>CLK64 PLL lock status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sClkLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>SCLK PLL lock status</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTickWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>Width of sTicks is not correct</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sPpsWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>Width of sPPS is not correct</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTickAlignment" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hopCountOverflow" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dataClock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of data clock errors from all inputs</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="control" minOccurs="0">         <xs:complexType>           <xs:attribute name="reset" type="xs:string">             <xs:annotation>               <xs:documentation>assert module reset</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element ref="user" minOccurs="0"/>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element name="state" minOccurs="0">         <xs:complexType>           <xs:attribute name="clockEdge" type="xs:string"/>           <xs:attribute name="crc" type="xs:string"/>           <xs:attribute name="testPin" type="xs:string"/>           <xs:attribute name="errorCount" type="xs:string"/>           <xs:attribute name="testGen" type="xs:string"/>           <xs:attribute name="timeInterval">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="input0"/>                 <xs:enumeration value="input1"/>                 <xs:enumeration value="input2"/>                 <xs:enumeration value="input3"/>                 <xs:enumeration value="input4"/>                 <xs:enumeration value="input5"/>                 <xs:enumeration value="input6"/>                 <xs:enumeration value="input7"/>                 <xs:enumeration value="input8"/>                 <xs:enumeration value="input9"/>                 <xs:enumeration value="input10"/>                 <xs:enumeration value="input11"/>                 <xs:enumeration value="input12"/>                 <xs:enumeration value="input13"/>                 <xs:enumeration value="input14"/>                 <xs:enumeration value="input15"/>                 <xs:enumeration value="input16"/>                 <xs:enumeration value="input17"/>                 <xs:enumeration value="vsi"/>                 <xs:enumeration value=""/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="user" type="xs:string"/>           <xs:attribute name="about" type="xs:string"/>           <xs:attribute name="error" type="xs:string"/>           <xs:attribute name="register" type="xs:string"/>           <xs:attribute name="setup" type="xs:string"/>           <xs:attribute name="status" type="xs:string"/>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="id" use="required">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="time" type="xs:dateTime" use="optional"/>     <xs:attribute name="led" type="ledType"/>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>assert module reset</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clockEnable">       <xs:annotation>         <xs:documentation>(deprecated - use standby attribute) Master enable for clocks</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inputDataClkMask" type="xs:string">       <xs:annotation>         <xs:documentation>input clock error mask</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clocksPerTick" type="xs:int">       <xs:annotation>         <xs:documentation>number of 128MHz clocks per tick</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ticksPerPPS" type="xs:int">       <xs:annotation>         <xs:documentation>number of ticks per pulse-per-second</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sysTickDelay" type="xs:int">       <xs:annotation>         <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="accessErr" type="xs:string">       <xs:annotation>         <xs:documentation>mask of register access errors, write to clear</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="loopback">       <xs:annotation>         <xs:documentation>specify if VSI is externally wired in loopback configuration</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="standby">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
source	<xs:attribute name="id" use="required">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/@time

type	xs:dateTime
properties	use  optional
source	<xs:attribute name="time" type="xs:dateTime" use="optional"/>

attribute vsi/@led

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="led" type="ledType"/>

attribute vsi/@reset

type	xs:string
annotation	documentation assert module reset
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>assert module reset</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/@clockEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation (deprecated - use standby attribute) Master enable for clocks
source	<xs:attribute name="clockEnable">   <xs:annotation>     <xs:documentation>(deprecated - use standby attribute) Master enable for clocks</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/@inputDataClkMask

type	xs:string
annotation	documentation input clock error mask
source	<xs:attribute name="inputDataClkMask" type="xs:string">   <xs:annotation>     <xs:documentation>input clock error mask</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/@clocksPerTick

type	xs:int
annotation	documentation number of 128MHz clocks per tick
source	<xs:attribute name="clocksPerTick" type="xs:int">   <xs:annotation>     <xs:documentation>number of 128MHz clocks per tick</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/@ticksPerPPS

type	xs:int
annotation	documentation number of ticks per pulse-per-second
source	<xs:attribute name="ticksPerPPS" type="xs:int">   <xs:annotation>     <xs:documentation>number of ticks per pulse-per-second</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/@sysTickDelay

type	xs:int
annotation	documentation number of clock cycles to delay the system tick
source	<xs:attribute name="sysTickDelay" type="xs:int">   <xs:annotation>     <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/@accessErr

type	xs:string
annotation	documentation mask of register access errors, write to clear
source	<xs:attribute name="accessErr" type="xs:string">   <xs:annotation>     <xs:documentation>mask of register access errors, write to clear</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/@loopback

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation specify if VSI is externally wired in loopback configuration
source	<xs:attribute name="loopback">   <xs:annotation>     <xs:documentation>specify if VSI is externally wired in loopback configuration</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="standby">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

element vsi/timeInterval

diagram
properties	minOcc  0 maxOcc  19 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation line   derived by: xs:string   required         dTick_sTick   xs:int   required         dTick   xs:int   required         sTick   xs:int   required         sTick_dTick   xs:int   required
annotation	documentation input signal time interval measurements
source	<xs:element name="timeInterval" minOccurs="0" maxOccurs="19">   <xs:annotation>     <xs:documentation>input signal time interval measurements</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="line" use="required">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="input0"/>           <xs:enumeration value="input1"/>           <xs:enumeration value="input2"/>           <xs:enumeration value="input3"/>           <xs:enumeration value="input4"/>           <xs:enumeration value="input5"/>           <xs:enumeration value="input6"/>           <xs:enumeration value="input7"/>           <xs:enumeration value="input8"/>           <xs:enumeration value="input9"/>           <xs:enumeration value="input10"/>           <xs:enumeration value="input11"/>           <xs:enumeration value="input12"/>           <xs:enumeration value="input13"/>           <xs:enumeration value="input14"/>           <xs:enumeration value="input15"/>           <xs:enumeration value="input16"/>           <xs:enumeration value="input17"/>           <xs:enumeration value="vsi"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dTick_sTick" type="xs:int" use="required"/>     <xs:attribute name="dTick" type="xs:int" use="required"/>     <xs:attribute name="sTick" type="xs:int" use="required"/>     <xs:attribute name="sTick_dTick" type="xs:int" use="required"/>   </xs:complexType> </xs:element>

attribute vsi/timeInterval/@line

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  input0 enumeration  input1 enumeration  input2 enumeration  input3 enumeration  input4 enumeration  input5 enumeration  input6 enumeration  input7 enumeration  input8 enumeration  input9 enumeration  input10 enumeration  input11 enumeration  input12 enumeration  input13 enumeration  input14 enumeration  input15 enumeration  input16 enumeration  input17 enumeration  vsi
source	<xs:attribute name="line" use="required">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="input0"/>       <xs:enumeration value="input1"/>       <xs:enumeration value="input2"/>       <xs:enumeration value="input3"/>       <xs:enumeration value="input4"/>       <xs:enumeration value="input5"/>       <xs:enumeration value="input6"/>       <xs:enumeration value="input7"/>       <xs:enumeration value="input8"/>       <xs:enumeration value="input9"/>       <xs:enumeration value="input10"/>       <xs:enumeration value="input11"/>       <xs:enumeration value="input12"/>       <xs:enumeration value="input13"/>       <xs:enumeration value="input14"/>       <xs:enumeration value="input15"/>       <xs:enumeration value="input16"/>       <xs:enumeration value="input17"/>       <xs:enumeration value="vsi"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/timeInterval/@dTick_sTick

type	xs:int
properties	use  required
source	<xs:attribute name="dTick_sTick" type="xs:int" use="required"/>

attribute vsi/timeInterval/@dTick

type	xs:int
properties	use  required
source	<xs:attribute name="dTick" type="xs:int" use="required"/>

attribute vsi/timeInterval/@sTick

type	xs:int
properties	use  required
source	<xs:attribute name="sTick" type="xs:int" use="required"/>

attribute vsi/timeInterval/@sTick_dTick

type	xs:int
properties	use  required
source	<xs:attribute name="sTick_dTick" type="xs:int" use="required"/>

element vsi/clockEdge

diagram
properties	minOcc  0 maxOcc  20 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:string   required         documentation specify input signalsignal edge   derived by: xs:string   required         documentation clock edge to use
annotation	documentation signal clock edge selection
source	<xs:element name="clockEdge" minOccurs="0" maxOccurs="20">   <xs:annotation>     <xs:documentation>signal clock edge selection</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify input signalsignal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="nb0"/>           <xs:enumeration value="nb1"/>           <xs:enumeration value="nb2"/>           <xs:enumeration value="nb3"/>           <xs:enumeration value="nb4"/>           <xs:enumeration value="nb5"/>           <xs:enumeration value="nb6"/>           <xs:enumeration value="nb7"/>           <xs:enumeration value="nb8"/>           <xs:enumeration value="nb9"/>           <xs:enumeration value="nb10"/>           <xs:enumeration value="nb11"/>           <xs:enumeration value="nb12"/>           <xs:enumeration value="nb13"/>           <xs:enumeration value="nb14"/>           <xs:enumeration value="nb15"/>           <xs:enumeration value="nb16"/>           <xs:enumeration value="nb17"/>           <xs:enumeration value="sTick"/>           <xs:enumeration value="vsi"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="edge" use="required">       <xs:annotation>         <xs:documentation>clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/clockEdge/@id

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  nb0 enumeration  nb1 enumeration  nb2 enumeration  nb3 enumeration  nb4 enumeration  nb5 enumeration  nb6 enumeration  nb7 enumeration  nb8 enumeration  nb9 enumeration  nb10 enumeration  nb11 enumeration  nb12 enumeration  nb13 enumeration  nb14 enumeration  nb15 enumeration  nb16 enumeration  nb17 enumeration  sTick enumeration  vsi
annotation	documentation specify input signalsignal
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify input signalsignal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="nb0"/>       <xs:enumeration value="nb1"/>       <xs:enumeration value="nb2"/>       <xs:enumeration value="nb3"/>       <xs:enumeration value="nb4"/>       <xs:enumeration value="nb5"/>       <xs:enumeration value="nb6"/>       <xs:enumeration value="nb7"/>       <xs:enumeration value="nb8"/>       <xs:enumeration value="nb9"/>       <xs:enumeration value="nb10"/>       <xs:enumeration value="nb11"/>       <xs:enumeration value="nb12"/>       <xs:enumeration value="nb13"/>       <xs:enumeration value="nb14"/>       <xs:enumeration value="nb15"/>       <xs:enumeration value="nb16"/>       <xs:enumeration value="nb17"/>       <xs:enumeration value="sTick"/>       <xs:enumeration value="vsi"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/clockEdge/@edge

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation clock edge to use
source	<xs:attribute name="edge" use="required">   <xs:annotation>     <xs:documentation>clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element vsi/setup

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation clocksPerTick   xs:int            documentation number of 128MHz clocks per tick ticksPerPPS   xs:int            documentation number of ticks per pulse-per-second sysTickDelay   xs:int            documentation number of clock cycles to delay the system tick loopback   derived by: xs:string            documentation specify if VSI is externally wired in loopback configuration standby   derived by: xs:string            documentation Place device into low power state (asserts clock disable bit in control register) ppsCodeSeconds   xs:int            documentation PPSCODE seconds count hopCount   xs:int            documentation Hop count to insert into test PPSCODE generator
source	<xs:element name="setup" minOccurs="0">   <xs:complexType>     <xs:attribute name="clocksPerTick" type="xs:int">       <xs:annotation>         <xs:documentation>number of 128MHz clocks per tick</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ticksPerPPS" type="xs:int">       <xs:annotation>         <xs:documentation>number of ticks per pulse-per-second</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sysTickDelay" type="xs:int">       <xs:annotation>         <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="loopback">       <xs:annotation>         <xs:documentation>specify if VSI is externally wired in loopback configuration</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="standby">       <xs:annotation>         <xs:documentation>Place device into low power state (asserts clock disable bit in control register)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ppsCodeSeconds" type="xs:int">       <xs:annotation>         <xs:documentation>PPSCODE seconds count</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hopCount" type="xs:int">       <xs:annotation>         <xs:documentation>Hop count to insert into test PPSCODE generator</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/setup/@clocksPerTick

type	xs:int
annotation	documentation number of 128MHz clocks per tick
source	<xs:attribute name="clocksPerTick" type="xs:int">   <xs:annotation>     <xs:documentation>number of 128MHz clocks per tick</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/setup/@ticksPerPPS

type	xs:int
annotation	documentation number of ticks per pulse-per-second
source	<xs:attribute name="ticksPerPPS" type="xs:int">   <xs:annotation>     <xs:documentation>number of ticks per pulse-per-second</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/setup/@sysTickDelay

type	xs:int
annotation	documentation number of clock cycles to delay the system tick
source	<xs:attribute name="sysTickDelay" type="xs:int">   <xs:annotation>     <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/setup/@loopback

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation specify if VSI is externally wired in loopback configuration
source	<xs:attribute name="loopback">   <xs:annotation>     <xs:documentation>specify if VSI is externally wired in loopback configuration</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/setup/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation Place device into low power state (asserts clock disable bit in control register)
source	<xs:attribute name="standby">   <xs:annotation>     <xs:documentation>Place device into low power state (asserts clock disable bit in control register)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/setup/@ppsCodeSeconds

type	xs:int
annotation	documentation PPSCODE seconds count
source	<xs:attribute name="ppsCodeSeconds" type="xs:int">   <xs:annotation>     <xs:documentation>PPSCODE seconds count</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/setup/@hopCount

type	xs:int
annotation	documentation Hop count to insert into test PPSCODE generator
source	<xs:attribute name="hopCount" type="xs:int">   <xs:annotation>     <xs:documentation>Hop count to insert into test PPSCODE generator</xs:documentation>   </xs:annotation> </xs:attribute>

element vsi/status

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ledVsi   ledType   required         inputDataClkMask   xs:string   required         documentation input clock error mask accessErr   xs:string   required         documentation mask of register access errors, write to clear
source	<xs:element name="status" minOccurs="0">   <xs:complexType>     <xs:attribute name="ledVsi" type="ledType" use="required"/>     <xs:attribute name="inputDataClkMask" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>input clock error mask</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="accessErr" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>mask of register access errors, write to clear</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/status/@ledVsi

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="ledVsi" type="ledType" use="required"/>

attribute vsi/status/@inputDataClkMask

type	xs:string
properties	use  required
annotation	documentation input clock error mask
source	<xs:attribute name="inputDataClkMask" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>input clock error mask</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/status/@accessErr

type	xs:string
properties	use  required
annotation	documentation mask of register access errors, write to clear
source	<xs:attribute name="accessErr" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>mask of register access errors, write to clear</xs:documentation>   </xs:annotation> </xs:attribute>

element vsi/crc

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ledCrcNB
attributes	Name   Type   Use   Default   Fixed   Annotation scan   derived by: xs:string   optional         documentation (deprecated)CRC error checking mode loopback   derived by: xs:int   optional         documentation (deprecated)bit select for loop back testing scanWireNB   derived by: xs:string   optional         documentation CRC checking select for narrow band (filter to VSI) wires narrowBand   derived by: xs:string   optional         documentation (deprecated)bit select for narrow band scanWireVlbi   derived by: xs:string   optional         documentation CRC checking select for vlbi (VSI to Input FPGA) data scanWireLoopback   derived by: xs:string   optional         documentation CRC checking select for installed loopback cable vlbi   derived by: xs:int   optional         documentation (deprecated)bit select for vlbi data forcePpsCodeCrcError   derived by: xs:string   optional         documentation force a CRC error on timecode signal forceOutputErrorVsi   derived by: xs:string            forceOutputErrorVlbi   derived by: xs:string            ledCrcLoopback   ledType            documentation status of VSI In/Out (loopback) CRCs. Green = OK, Red = ERROR, Off = checking off
annotation	documentation CRC setup information
source	<xs:element name="crc" minOccurs="0">   <xs:annotation>     <xs:documentation>CRC setup information </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ledCrcNB" minOccurs="0" maxOccurs="18">         <xs:annotation>           <xs:documentation>status LEDs for each filters narrow band VSI connection</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="portId" use="required">             <xs:annotation>               <xs:documentation>port id for this LED</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:maxInclusive value="17"/>                 <xs:minInclusive value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="led" type="ledType" use="required">             <xs:annotation>               <xs:documentation>status of filter to VSI narrow band input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="scan" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="single"/>           <xs:enumeration value="auto"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="loopback" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)bit select for loop back testing</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="39"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireNB" use="optional">       <xs:annotation>         <xs:documentation>CRC checking select for narrow band (filter to VSI) wires</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="narrowBand" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)bit select for narrow band</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="sind"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireVlbi" use="optional">       <xs:annotation>         <xs:documentation>CRC checking select for vlbi (VSI to Input FPGA) data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWireLoopback" use="optional">       <xs:annotation>         <xs:documentation>CRC checking select for installed loopback cable</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="auto"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vlbi" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)bit select for vlbi data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="31"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forcePpsCodeCrcError" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on timecode signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceOutputErrorVsi">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="none"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceOutputErrorVlbi">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="none"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledCrcLoopback" type="ledType">       <xs:annotation>         <xs:documentation>status of VSI In/Out (loopback) CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/crc/@scan

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  single enumeration  auto
annotation	documentation (deprecated)CRC error checking mode
source	<xs:attribute name="scan" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="single"/>       <xs:enumeration value="auto"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@loopback

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  39
annotation	documentation (deprecated)bit select for loop back testing
source	<xs:attribute name="loopback" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)bit select for loop back testing</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="39"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@scanWireNB

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation CRC checking select for narrow band (filter to VSI) wires
source	<xs:attribute name="scanWireNB" use="optional">   <xs:annotation>     <xs:documentation>CRC checking select for narrow band (filter to VSI) wires</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@narrowBand

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  sind
annotation	documentation (deprecated)bit select for narrow band
source	<xs:attribute name="narrowBand" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)bit select for narrow band</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="sind"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@scanWireVlbi

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  dataValid enumeration  dataClock
annotation	documentation CRC checking select for vlbi (VSI to Input FPGA) data
source	<xs:attribute name="scanWireVlbi" use="optional">   <xs:annotation>     <xs:documentation>CRC checking select for vlbi (VSI to Input FPGA) data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@scanWireLoopback

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  auto enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39
annotation	documentation CRC checking select for installed loopback cable
source	<xs:attribute name="scanWireLoopback" use="optional">   <xs:annotation>     <xs:documentation>CRC checking select for installed loopback cable</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="auto"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@vlbi

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  31
annotation	documentation (deprecated)bit select for vlbi data
source	<xs:attribute name="vlbi" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)bit select for vlbi data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="31"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@forcePpsCodeCrcError

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation force a CRC error on timecode signal
source	<xs:attribute name="forcePpsCodeCrcError" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on timecode signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@forceOutputErrorVsi

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  none enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39
source	<xs:attribute name="forceOutputErrorVsi">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="none"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@forceOutputErrorVlbi

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  none enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31
source	<xs:attribute name="forceOutputErrorVlbi">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="none"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/@ledCrcLoopback

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of VSI In/Out (loopback) CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcLoopback" type="ledType">   <xs:annotation>     <xs:documentation>status of VSI In/Out (loopback) CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

element vsi/crc/ledCrcNB

diagram
properties	minOcc  0 maxOcc  18 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation portId   derived by: xs:int   required         documentation port id for this LED led   ledType   required         documentation status of filter to VSI narrow band input CRCs. Green = OK, Red = ERROR, Off = checking off
annotation	documentation status LEDs for each filters narrow band VSI connection
source	<xs:element name="ledCrcNB" minOccurs="0" maxOccurs="18">   <xs:annotation>     <xs:documentation>status LEDs for each filters narrow band VSI connection</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="portId" use="required">       <xs:annotation>         <xs:documentation>port id for this LED</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:maxInclusive value="17"/>           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="led" type="ledType" use="required">       <xs:annotation>         <xs:documentation>status of filter to VSI narrow band input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/crc/ledCrcNB/@portId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation port id for this LED
source	<xs:attribute name="portId" use="required">   <xs:annotation>     <xs:documentation>port id for this LED</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:maxInclusive value="17"/>       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/crc/ledCrcNB/@led

type	ledType
properties	use  required
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of filter to VSI narrow band input CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="led" type="ledType" use="required">   <xs:annotation>     <xs:documentation>status of filter to VSI narrow band input CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

element vsi/testPin

diagram
properties	minOcc  0 maxOcc  4 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:int   required         documentation specify pin number signal   derived by: xs:int            documentation signal routed to specified pin
annotation	documentation route internal FPGA signal to external pin
source	<xs:element name="testPin" minOccurs="0" maxOccurs="4">   <xs:annotation>     <xs:documentation>route internal FPGA signal to external pin</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>specify pin number</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="signal">       <xs:annotation>         <xs:documentation>signal routed to specified pin</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="255"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/testPin/@id

type	xs:int
properties	use  required
annotation	documentation specify pin number
source	<xs:attribute name="id" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>specify pin number</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/testPin/@signal

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  255
annotation	documentation signal routed to specified pin
source	<xs:attribute name="signal">   <xs:annotation>     <xs:documentation>signal routed to specified pin</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="255"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element vsi/testGen

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation mode   derived by: xs:string            documentation operational mode for test generator timecodeTestGen   derived by: xs:string            documentation operational mode for timecode test generator seed   xs:string            documentation pseudo random data seed.
annotation	documentation Internal test generator
source	<xs:element name="testGen" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal test generator</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="mode">       <xs:annotation>         <xs:documentation>operational mode for test generator</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="random"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="timecodeTestGen">       <xs:annotation>         <xs:documentation>operational mode for timecode test generator</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="seed" type="xs:string">       <xs:annotation>         <xs:documentation>pseudo random data seed.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/testGen/@mode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  random
annotation	documentation operational mode for test generator
source	<xs:attribute name="mode">   <xs:annotation>     <xs:documentation>operational mode for test generator</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="random"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/testGen/@timecodeTestGen

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation operational mode for timecode test generator
source	<xs:attribute name="timecodeTestGen">   <xs:annotation>     <xs:documentation>operational mode for timecode test generator</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/testGen/@seed

type	xs:string
annotation	documentation pseudo random data seed.
source	<xs:attribute name="seed" type="xs:string">   <xs:annotation>     <xs:documentation>pseudo random data seed.</xs:documentation>   </xs:annotation> </xs:attribute>

element vsi/errorCount

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation vsiSelectRange   xs:int   optional         documentation invalid VSI bit selected inOutCrcMatch   xs:int   optional         documentation Input and output CRC selection mismatch tClkLock   xs:int   optional         documentation CLK64 PLL lock status sClkLock   xs:int   optional         documentation SCLK PLL lock status sTickWidth   xs:int   optional         documentation Width of sTicks is not correct sPpsWidth   xs:int   optional         documentation Width of sPPS is not correct sTickAlignment   xs:int   optional         documentation if alignment between sTick and sPPS is not coincedent, an error exists hopCountOverflow   xs:int   optional         documentation if the hop count overflowed, an error exists dataClock   xs:int   optional         documentation count of data clock errors from all inputs
annotation	documentation status register counters
source	<xs:element name="errorCount" minOccurs="0">   <xs:annotation>     <xs:documentation>status register counters</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="vsiSelectRange" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>invalid VSI bit selected</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="inOutCrcMatch" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>Input and output CRC selection mismatch</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="tClkLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>CLK64 PLL lock status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sClkLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>SCLK PLL lock status</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTickWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>Width of sTicks is not correct</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sPpsWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>Width of sPPS is not correct</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTickAlignment" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hopCountOverflow" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dataClock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of data clock errors from all inputs</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/errorCount/@vsiSelectRange

type	xs:int
properties	use  optional
annotation	documentation invalid VSI bit selected
source	<xs:attribute name="vsiSelectRange" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>invalid VSI bit selected</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/errorCount/@inOutCrcMatch

type	xs:int
properties	use  optional
annotation	documentation Input and output CRC selection mismatch
source	<xs:attribute name="inOutCrcMatch" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>Input and output CRC selection mismatch</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/errorCount/@tClkLock

type	xs:int
properties	use  optional
annotation	documentation CLK64 PLL lock status
source	<xs:attribute name="tClkLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>CLK64 PLL lock status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/errorCount/@sClkLock

type	xs:int
properties	use  optional
annotation	documentation SCLK PLL lock status
source	<xs:attribute name="sClkLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>SCLK PLL lock status</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/errorCount/@sTickWidth

type	xs:int
properties	use  optional
annotation	documentation Width of sTicks is not correct
source	<xs:attribute name="sTickWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>Width of sTicks is not correct</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/errorCount/@sPpsWidth

type	xs:int
properties	use  optional
annotation	documentation Width of sPPS is not correct
source	<xs:attribute name="sPpsWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>Width of sPPS is not correct</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/errorCount/@sTickAlignment

type	xs:int
properties	use  optional
annotation	documentation if alignment between sTick and sPPS is not coincedent, an error exists
source	<xs:attribute name="sTickAlignment" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>if alignment between sTick and sPPS is not coincedent, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/errorCount/@hopCountOverflow

type	xs:int
properties	use  optional
annotation	documentation if the hop count overflowed, an error exists
source	<xs:attribute name="hopCountOverflow" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>if the hop count overflowed, an error exists</xs:documentation>   </xs:annotation> </xs:attribute>

attribute vsi/errorCount/@dataClock

type	xs:int
properties	use  optional
annotation	documentation count of data clock errors from all inputs
source	<xs:attribute name="dataClock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of data clock errors from all inputs</xs:documentation>   </xs:annotation> </xs:attribute>

element vsi/control

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation reset   xs:string            documentation assert module reset
source	<xs:element name="control" minOccurs="0">   <xs:complexType>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>assert module reset</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute vsi/control/@reset

type	xs:string
annotation	documentation assert module reset
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>assert module reset</xs:documentation>   </xs:annotation> </xs:attribute>

element vsi/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation clockEdge   xs:string            crc   xs:string            testPin   xs:string            errorCount   xs:string            testGen   xs:string            timeInterval   derived by: xs:string            user   xs:string            about   xs:string            error   xs:string            register   xs:string            setup   xs:string            status   xs:string
source	<xs:element name="state" minOccurs="0">   <xs:complexType>     <xs:attribute name="clockEdge" type="xs:string"/>     <xs:attribute name="crc" type="xs:string"/>     <xs:attribute name="testPin" type="xs:string"/>     <xs:attribute name="errorCount" type="xs:string"/>     <xs:attribute name="testGen" type="xs:string"/>     <xs:attribute name="timeInterval">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="input0"/>           <xs:enumeration value="input1"/>           <xs:enumeration value="input2"/>           <xs:enumeration value="input3"/>           <xs:enumeration value="input4"/>           <xs:enumeration value="input5"/>           <xs:enumeration value="input6"/>           <xs:enumeration value="input7"/>           <xs:enumeration value="input8"/>           <xs:enumeration value="input9"/>           <xs:enumeration value="input10"/>           <xs:enumeration value="input11"/>           <xs:enumeration value="input12"/>           <xs:enumeration value="input13"/>           <xs:enumeration value="input14"/>           <xs:enumeration value="input15"/>           <xs:enumeration value="input16"/>           <xs:enumeration value="input17"/>           <xs:enumeration value="vsi"/>           <xs:enumeration value=""/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="user" type="xs:string"/>     <xs:attribute name="about" type="xs:string"/>     <xs:attribute name="error" type="xs:string"/>     <xs:attribute name="register" type="xs:string"/>     <xs:attribute name="setup" type="xs:string"/>     <xs:attribute name="status" type="xs:string"/>   </xs:complexType> </xs:element>

attribute vsi/state/@clockEdge

type	xs:string
source	<xs:attribute name="clockEdge" type="xs:string"/>

attribute vsi/state/@crc

type	xs:string
source	<xs:attribute name="crc" type="xs:string"/>

attribute vsi/state/@testPin

type	xs:string
source	<xs:attribute name="testPin" type="xs:string"/>

attribute vsi/state/@errorCount

type	xs:string
source	<xs:attribute name="errorCount" type="xs:string"/>

attribute vsi/state/@testGen

type	xs:string
source	<xs:attribute name="testGen" type="xs:string"/>

attribute vsi/state/@timeInterval

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  input0 enumeration  input1 enumeration  input2 enumeration  input3 enumeration  input4 enumeration  input5 enumeration  input6 enumeration  input7 enumeration  input8 enumeration  input9 enumeration  input10 enumeration  input11 enumeration  input12 enumeration  input13 enumeration  input14 enumeration  input15 enumeration  input16 enumeration  input17 enumeration  vsi enumeration
source	<xs:attribute name="timeInterval">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="input0"/>       <xs:enumeration value="input1"/>       <xs:enumeration value="input2"/>       <xs:enumeration value="input3"/>       <xs:enumeration value="input4"/>       <xs:enumeration value="input5"/>       <xs:enumeration value="input6"/>       <xs:enumeration value="input7"/>       <xs:enumeration value="input8"/>       <xs:enumeration value="input9"/>       <xs:enumeration value="input10"/>       <xs:enumeration value="input11"/>       <xs:enumeration value="input12"/>       <xs:enumeration value="input13"/>       <xs:enumeration value="input14"/>       <xs:enumeration value="input15"/>       <xs:enumeration value="input16"/>       <xs:enumeration value="input17"/>       <xs:enumeration value="vsi"/>       <xs:enumeration value=""/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute vsi/state/@user

type	xs:string
source	<xs:attribute name="user" type="xs:string"/>

attribute vsi/state/@about

type	xs:string
source	<xs:attribute name="about" type="xs:string"/>

attribute vsi/state/@error

type	xs:string
source	<xs:attribute name="error" type="xs:string"/>

attribute vsi/state/@register

type	xs:string
source	<xs:attribute name="register" type="xs:string"/>

attribute vsi/state/@setup

type	xs:string
source	<xs:attribute name="setup" type="xs:string"/>

attribute vsi/state/@status

type	xs:string
source	<xs:attribute name="status" type="xs:string"/>

element wbc

diagram
properties	content  complex
children	inOut crc clockEdge timeInterval testGen testPin product bbSlope status setup control errorCount state about error register schedule user
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         documentation time this message was generated led   ledType            delayTapCal   derived by: xs:string            documentation state of the input tap delay calibration sysClockLock   derived by: xs:string            documentation state of SCLK standby   derived by: xs:string            documentation module standby or run mode programEnable   derived by: xs:string            documentation enable module personality reloading reset   xs:string            documentation assert module reset integration   derived by: xs:int   optional         documentation number of integration cycles for all lags collected sampleDelay   xs:int            documentation contents of lagged sample register sysTickDelay   xs:int            documentation number of clock cycles to delay the system tick accessErr   xs:string            documentation mask of register access errors, write to clear delay0   derived by: xs:int            documentation add zero or one clock delay to path 0 delay1   derived by: xs:int            documentation add zero or one clock delay to path 1 ledDevice   ledType            documentation Status of this FPGA device
annotation	documentation Wideband Correlator FPGA setup and control
source	<xs:element name="wbc">   <xs:annotation>     <xs:documentation>Wideband Correlator FPGA setup and control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="inOut" minOccurs="0">         <xs:annotation>           <xs:documentation>general input and output bus control and status (deprecated)</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="numBands">             <xs:annotation>               <xs:documentation>number of bands in wideband input</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numBits">             <xs:annotation>               <xs:documentation>number of sampled bits in wideband input</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="8"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inRate" use="optional">             <xs:annotation>               <xs:documentation>input data rate</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="outRate" use="optional">             <xs:annotation>               <xs:documentation>output data rate</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="crc" minOccurs="0">         <xs:annotation>           <xs:documentation>CRC setup information </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="scan" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="single"/>                 <xs:enumeration value="auto"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="ledCrcInput0" type="ledType">             <xs:annotation>               <xs:documentation>status of Delay to WBC path 0 CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledCrcInput1" type="ledType">             <xs:annotation>               <xs:documentation>status of Delay to WBC path 1CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="scanWire0" use="optional">             <xs:annotation>               <xs:documentation>specify wire to check CRCfor data path 0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="delayError"/>                 <xs:enumeration value="delayFrame"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="scanWire1" use="optional">             <xs:annotation>               <xs:documentation>specify wire to check CRCfor data path 1</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="auto"/>                 <xs:enumeration value="off"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="delayError"/>                 <xs:enumeration value="delayFrame"/>                 <xs:enumeration value="dataClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="input0" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)input 0 bit to generate CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="delayError"/>                 <xs:enumeration value="delayFrame"/>                 <xs:enumeration value="sysClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="input1" use="optional">             <xs:annotation>               <xs:documentation>(deprecated)input 1 bit to generate CRC for</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>                 <xs:enumeration value="dataValid"/>                 <xs:enumeration value="noiseDiode"/>                 <xs:enumeration value="delayError"/>                 <xs:enumeration value="delayFrame"/>                 <xs:enumeration value="sysClock"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceOutputError0" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on port wire</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="none"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="forceOutputError1" use="optional">             <xs:annotation>               <xs:documentation>force a CRC error on port wire</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="none"/>                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="2"/>                 <xs:enumeration value="3"/>                 <xs:enumeration value="4"/>                 <xs:enumeration value="5"/>                 <xs:enumeration value="6"/>                 <xs:enumeration value="7"/>                 <xs:enumeration value="8"/>                 <xs:enumeration value="9"/>                 <xs:enumeration value="10"/>                 <xs:enumeration value="11"/>                 <xs:enumeration value="12"/>                 <xs:enumeration value="13"/>                 <xs:enumeration value="14"/>                 <xs:enumeration value="15"/>                 <xs:enumeration value="16"/>                 <xs:enumeration value="17"/>                 <xs:enumeration value="18"/>                 <xs:enumeration value="19"/>                 <xs:enumeration value="20"/>                 <xs:enumeration value="21"/>                 <xs:enumeration value="22"/>                 <xs:enumeration value="23"/>                 <xs:enumeration value="24"/>                 <xs:enumeration value="25"/>                 <xs:enumeration value="26"/>                 <xs:enumeration value="27"/>                 <xs:enumeration value="28"/>                 <xs:enumeration value="29"/>                 <xs:enumeration value="30"/>                 <xs:enumeration value="31"/>                 <xs:enumeration value="32"/>                 <xs:enumeration value="33"/>                 <xs:enumeration value="34"/>                 <xs:enumeration value="35"/>                 <xs:enumeration value="36"/>                 <xs:enumeration value="37"/>                 <xs:enumeration value="38"/>                 <xs:enumeration value="39"/>                 <xs:enumeration value="40"/>                 <xs:enumeration value="41"/>                 <xs:enumeration value="42"/>                 <xs:enumeration value="43"/>                 <xs:enumeration value="44"/>                 <xs:enumeration value="45"/>                 <xs:enumeration value="46"/>                 <xs:enumeration value="47"/>                 <xs:enumeration value="48"/>                 <xs:enumeration value="49"/>                 <xs:enumeration value="50"/>                 <xs:enumeration value="51"/>                 <xs:enumeration value="52"/>                 <xs:enumeration value="53"/>                 <xs:enumeration value="54"/>                 <xs:enumeration value="55"/>                 <xs:enumeration value="56"/>                 <xs:enumeration value="57"/>                 <xs:enumeration value="58"/>                 <xs:enumeration value="59"/>                 <xs:enumeration value="60"/>                 <xs:enumeration value="61"/>                 <xs:enumeration value="62"/>                 <xs:enumeration value="63"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="clockEdge" minOccurs="0" maxOccurs="3">         <xs:annotation>           <xs:documentation>signal clock edge selection (deprecated)</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:annotation>               <xs:documentation>specify signal</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="sTick"/>                 <xs:enumeration value="data0"/>                 <xs:enumeration value="data1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="edge" use="required">             <xs:annotation>               <xs:documentation>clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="timeInterval" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>input signal time interval measurements</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="pathId" use="required">             <xs:annotation>               <xs:documentation>baseband path of specified signals</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="dTick_sTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sTick_dTick" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>time interval count in clock cycles</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testGen" minOccurs="0">         <xs:annotation>           <xs:documentation>Internal test generator</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="mode">             <xs:annotation>               <xs:documentation>operational mode for test generator</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="random"/>                 <xs:enumeration value="delta"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="path0Seed" type="xs:string">             <xs:annotation>               <xs:documentation>pseudo random data seed value for path 0</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="path1Seed" type="xs:string">             <xs:annotation>               <xs:documentation>pseudo random data seed value for path 1</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayError0" type="xs:string">             <xs:annotation>               <xs:documentation>delay error value for path 0</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayError1" type="xs:string">             <xs:annotation>               <xs:documentation>delay error value for path 1</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dataValid">             <xs:annotation>               <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="alwaysValid"/>                 <xs:enumeration value="oneInvalid"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testPin" minOccurs="0" maxOccurs="4">         <xs:annotation>           <xs:documentation>route internal FPGA signal to external pin</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>specify pin number</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="signal">             <xs:annotation>               <xs:documentation>signal routed to specified pin</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="31"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="product" minOccurs="0" maxOccurs="32">         <xs:annotation>           <xs:documentation>configure wideband correlator product generation</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="id" type="xs:int" use="required">             <xs:annotation>               <xs:documentation>specified id for this product set</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="integEnable">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="laggedPath">             <xs:annotation>               <xs:documentation>which data path to use as lagged data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="laggedBand">             <xs:annotation>               <xs:documentation>which band to use from the lagged data path</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="promptPath">             <xs:annotation>               <xs:documentation>which data path to use as prompt data</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="promptBand">             <xs:annotation>               <xs:documentation>which band to use from the prompt data path</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="15"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="integration">             <xs:annotation>               <xs:documentation>number of times to integrate this product lag set</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numLags">             <xs:annotation>               <xs:documentation>specified number of lags to create for this product. A zero value disables this product ID.</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="63"/>                 <xs:maxInclusive value="4096"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="bbSlope" minOccurs="0" maxOccurs="32">         <xs:annotation>           <xs:documentation>results of base band slope calculations</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="time" type="xs:dateTime">             <xs:annotation>               <xs:documentation>time this measurement  was initiated</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="stationId" use="required">             <xs:annotation>               <xs:documentation>station id of this measurement</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="254"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="basebandId" use="required">             <xs:annotation>               <xs:documentation>CM baseband id applied to this data path</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="swbbName" use="required">             <xs:annotation>               <xs:documentation>spectral window identifier for base band</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A1C1_3BIT"/>                 <xs:enumeration value="A2C2_3BIT"/>                 <xs:enumeration value="AC_8BIT"/>                 <xs:enumeration value="B1D1_3BIT"/>                 <xs:enumeration value="B2D2_3BIT"/>                 <xs:enumeration value="BD_8BIT"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="slope" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>slope across entire baseband in dB/band</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="lag0" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>raw lag 0 count normalized by validity count</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="status" minOccurs="0">         <xs:complexType>           <xs:attribute name="sysClockLock" use="required">             <xs:annotation>               <xs:documentation>state of SCLK</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="lock"/>                 <xs:enumeration value="free"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="accessErr" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>mask of register access errors</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="setup" minOccurs="0">         <xs:complexType>           <xs:attribute name="standby">             <xs:annotation>               <xs:documentation>module standby or run mode</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sysTickDelay" type="xs:int">             <xs:annotation>               <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delay0">             <xs:annotation>               <xs:documentation>add zero or one clock delay to path 0</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="delay1">             <xs:annotation>               <xs:documentation>add zero or one clock delay to path 1</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="sTickEdge">             <xs:annotation>               <xs:documentation>STICK clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="data0Edge">             <xs:annotation>               <xs:documentation>data path 0 clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="data1Edge">             <xs:annotation>               <xs:documentation>data path 1 clock edge to use</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="rising"/>                 <xs:enumeration value="falling"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numBands">             <xs:annotation>               <xs:documentation>number of bands in wideband input</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="16"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="numBits">             <xs:annotation>               <xs:documentation>number of sampled bits in wideband input</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="1"/>                 <xs:maxInclusive value="8"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="inRate" use="optional">             <xs:annotation>               <xs:documentation>input data rate</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="outRate" use="optional">             <xs:annotation>               <xs:documentation>output data rate</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="256MHz"/>                 <xs:enumeration value="128MHz"/>                 <xs:enumeration value="64MHz"/>                 <xs:enumeration value="32MHz"/>                 <xs:enumeration value="16MHz"/>                 <xs:enumeration value="8MHz"/>                 <xs:enumeration value="4MHz"/>                 <xs:enumeration value="2MHz"/>                 <xs:enumeration value="1MHz"/>                 <xs:enumeration value="500KHz"/>                 <xs:enumeration value="250KHz"/>                 <xs:enumeration value="125KHz"/>                 <xs:enumeration value="62500Hz"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="control" minOccurs="0">         <xs:complexType>           <xs:attribute name="reset" type="xs:string">             <xs:annotation>               <xs:documentation>assert module reset</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="errorCount" minOccurs="0">         <xs:annotation>           <xs:documentation>FPGA error accumulations</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="sysClkLock" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of sclock out-of-lock conditions</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="sysTickWidth" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of sTick width errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="numBands" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of invalid number of bands errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="laggedBand" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of invalid lagged band errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="promptBand" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of invalid prompt band errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="combination" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>count of invalid combination  errors</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:annotation>           <xs:documentation>report module configuration and state information</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="inOut" type="xs:string">             <xs:annotation>               <xs:documentation>report general input and output conditions</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="product" type="xs:string">             <xs:annotation>               <xs:documentation>report limited product information</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="crc" type="xs:string">             <xs:annotation>               <xs:documentation>report crc information</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="clockEdge" type="xs:string">             <xs:annotation>               <xs:documentation>clock edge setups</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="timeInterval">             <xs:annotation>               <xs:documentation>time interval measurements</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value=""/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="testPin" type="xs:string">             <xs:annotation>               <xs:documentation>report test pin setups</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="testGen" type="xs:string">             <xs:annotation>               <xs:documentation>report test generator state</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="errorCount" type="xs:string">             <xs:annotation>               <xs:documentation>report error counters</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="register" type="xs:string">             <xs:annotation>               <xs:documentation>report specified register contents</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="user" type="xs:string">             <xs:annotation>               <xs:documentation>report user logging configuration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="about" type="xs:string">             <xs:annotation>               <xs:documentation>report general information about this module</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bbSlope" type="xs:string">             <xs:annotation>               <xs:documentation>return latest base band slope measurements</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="error" type="xs:string">             <xs:annotation>               <xs:documentation>report errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="setup" type="xs:string">             <xs:annotation>               <xs:documentation>return setup parameters</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string">             <xs:annotation>               <xs:documentation>return status</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element ref="about" minOccurs="0"/>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="schedule" minOccurs="0"/>       <xs:element ref="user" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime" use="optional">       <xs:annotation>         <xs:documentation>time this message was generated</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="led" type="ledType"/>     <xs:attribute name="delayTapCal">       <xs:annotation>         <xs:documentation>state of the input tap delay calibration</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ready"/>           <xs:enumeration value="notReady"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sysClockLock">       <xs:annotation>         <xs:documentation>state of SCLK</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="lock"/>           <xs:enumeration value="free"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="standby">       <xs:annotation>         <xs:documentation>module standby or run mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="programEnable">       <xs:annotation>         <xs:documentation>enable module personality reloading</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="yes"/>           <xs:enumeration value="no"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>assert module reset</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="integration" use="optional">       <xs:annotation>         <xs:documentation>number of integration cycles for all lags collected</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sampleDelay" type="xs:int">       <xs:annotation>         <xs:documentation>contents of lagged sample register</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sysTickDelay" type="xs:int">       <xs:annotation>         <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="accessErr" type="xs:string">       <xs:annotation>         <xs:documentation>mask of register access errors, write to clear</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delay0">       <xs:annotation>         <xs:documentation>add zero or one clock delay to path 0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="delay1">       <xs:annotation>         <xs:documentation>add zero or one clock delay to path 1</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledDevice" type="ledType">       <xs:annotation>         <xs:documentation>Status of this FPGA device</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/@time

type	xs:dateTime
properties	use  optional
annotation	documentation time this message was generated
source	<xs:attribute name="time" type="xs:dateTime" use="optional">   <xs:annotation>     <xs:documentation>time this message was generated</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/@led

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:attribute name="led" type="ledType"/>

attribute wbc/@delayTapCal

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  ready enumeration  notReady
annotation	documentation state of the input tap delay calibration
source	<xs:attribute name="delayTapCal">   <xs:annotation>     <xs:documentation>state of the input tap delay calibration</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ready"/>       <xs:enumeration value="notReady"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/@sysClockLock

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  lock enumeration  free
annotation	documentation state of SCLK
source	<xs:attribute name="sysClockLock">   <xs:annotation>     <xs:documentation>state of SCLK</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="lock"/>       <xs:enumeration value="free"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation module standby or run mode
source	<xs:attribute name="standby">   <xs:annotation>     <xs:documentation>module standby or run mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/@programEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  yes enumeration  no
annotation	documentation enable module personality reloading
source	<xs:attribute name="programEnable">   <xs:annotation>     <xs:documentation>enable module personality reloading</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="yes"/>       <xs:enumeration value="no"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/@reset

type	xs:string
annotation	documentation assert module reset
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>assert module reset</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/@integration

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation number of integration cycles for all lags collected
source	<xs:attribute name="integration" use="optional">   <xs:annotation>     <xs:documentation>number of integration cycles for all lags collected</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/@sampleDelay

type	xs:int
annotation	documentation contents of lagged sample register
source	<xs:attribute name="sampleDelay" type="xs:int">   <xs:annotation>     <xs:documentation>contents of lagged sample register</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/@sysTickDelay

type	xs:int
annotation	documentation number of clock cycles to delay the system tick
source	<xs:attribute name="sysTickDelay" type="xs:int">   <xs:annotation>     <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/@accessErr

type	xs:string
annotation	documentation mask of register access errors, write to clear
source	<xs:attribute name="accessErr" type="xs:string">   <xs:annotation>     <xs:documentation>mask of register access errors, write to clear</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/@delay0

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation add zero or one clock delay to path 0
source	<xs:attribute name="delay0">   <xs:annotation>     <xs:documentation>add zero or one clock delay to path 0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/@delay1

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation add zero or one clock delay to path 1
source	<xs:attribute name="delay1">   <xs:annotation>     <xs:documentation>add zero or one clock delay to path 1</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/@ledDevice

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation Status of this FPGA device
source	<xs:attribute name="ledDevice" type="ledType">   <xs:annotation>     <xs:documentation>Status of this FPGA device</xs:documentation>   </xs:annotation> </xs:attribute>

element wbc/inOut

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation numBands   derived by: xs:int            documentation number of bands in wideband input numBits   derived by: xs:int            documentation number of sampled bits in wideband input inRate   derived by: xs:string   optional         documentation input data rate outRate   derived by: xs:string   optional         documentation output data rate
annotation	documentation general input and output bus control and status (deprecated)
source	<xs:element name="inOut" minOccurs="0">   <xs:annotation>     <xs:documentation>general input and output bus control and status (deprecated)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="numBands">       <xs:annotation>         <xs:documentation>number of bands in wideband input</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numBits">       <xs:annotation>         <xs:documentation>number of sampled bits in wideband input</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="8"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inRate" use="optional">       <xs:annotation>         <xs:documentation>input data rate</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outRate" use="optional">       <xs:annotation>         <xs:documentation>output data rate</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/inOut/@numBands

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  16
annotation	documentation number of bands in wideband input
source	<xs:attribute name="numBands">   <xs:annotation>     <xs:documentation>number of bands in wideband input</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/inOut/@numBits

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  8
annotation	documentation number of sampled bits in wideband input
source	<xs:attribute name="numBits">   <xs:annotation>     <xs:documentation>number of sampled bits in wideband input</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="8"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/inOut/@inRate

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
annotation	documentation input data rate
source	<xs:attribute name="inRate" use="optional">   <xs:annotation>     <xs:documentation>input data rate</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/inOut/@outRate

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
annotation	documentation output data rate
source	<xs:attribute name="outRate" use="optional">   <xs:annotation>     <xs:documentation>output data rate</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element wbc/crc

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation scan   derived by: xs:string   optional         documentation (deprecated)CRC error checking mode ledCrcInput0   ledType            documentation status of Delay to WBC path 0 CRCs. Green = OK, Red = ERROR, Off = checking off ledCrcInput1   ledType            documentation status of Delay to WBC path 1CRCs. Green = OK, Red = ERROR, Off = checking off scanWire0   derived by: xs:string   optional         documentation specify wire to check CRCfor data path 0 scanWire1   derived by: xs:string   optional         documentation specify wire to check CRCfor data path 1 input0   derived by: xs:string   optional         documentation (deprecated)input 0 bit to generate CRC for input1   derived by: xs:string   optional         documentation (deprecated)input 1 bit to generate CRC for forceOutputError0   derived by: xs:string   optional         documentation force a CRC error on port wire forceOutputError1   derived by: xs:string   optional         documentation force a CRC error on port wire
annotation	documentation CRC setup information
source	<xs:element name="crc" minOccurs="0">   <xs:annotation>     <xs:documentation>CRC setup information </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="scan" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="single"/>           <xs:enumeration value="auto"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ledCrcInput0" type="ledType">       <xs:annotation>         <xs:documentation>status of Delay to WBC path 0 CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledCrcInput1" type="ledType">       <xs:annotation>         <xs:documentation>status of Delay to WBC path 1CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="scanWire0" use="optional">       <xs:annotation>         <xs:documentation>specify wire to check CRCfor data path 0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="delayError"/>           <xs:enumeration value="delayFrame"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanWire1" use="optional">       <xs:annotation>         <xs:documentation>specify wire to check CRCfor data path 1</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="auto"/>           <xs:enumeration value="off"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="delayError"/>           <xs:enumeration value="delayFrame"/>           <xs:enumeration value="dataClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="input0" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)input 0 bit to generate CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="delayError"/>           <xs:enumeration value="delayFrame"/>           <xs:enumeration value="sysClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="input1" use="optional">       <xs:annotation>         <xs:documentation>(deprecated)input 1 bit to generate CRC for</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>           <xs:enumeration value="dataValid"/>           <xs:enumeration value="noiseDiode"/>           <xs:enumeration value="delayError"/>           <xs:enumeration value="delayFrame"/>           <xs:enumeration value="sysClock"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceOutputError0" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on port wire</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="none"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="forceOutputError1" use="optional">       <xs:annotation>         <xs:documentation>force a CRC error on port wire</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="none"/>           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="2"/>           <xs:enumeration value="3"/>           <xs:enumeration value="4"/>           <xs:enumeration value="5"/>           <xs:enumeration value="6"/>           <xs:enumeration value="7"/>           <xs:enumeration value="8"/>           <xs:enumeration value="9"/>           <xs:enumeration value="10"/>           <xs:enumeration value="11"/>           <xs:enumeration value="12"/>           <xs:enumeration value="13"/>           <xs:enumeration value="14"/>           <xs:enumeration value="15"/>           <xs:enumeration value="16"/>           <xs:enumeration value="17"/>           <xs:enumeration value="18"/>           <xs:enumeration value="19"/>           <xs:enumeration value="20"/>           <xs:enumeration value="21"/>           <xs:enumeration value="22"/>           <xs:enumeration value="23"/>           <xs:enumeration value="24"/>           <xs:enumeration value="25"/>           <xs:enumeration value="26"/>           <xs:enumeration value="27"/>           <xs:enumeration value="28"/>           <xs:enumeration value="29"/>           <xs:enumeration value="30"/>           <xs:enumeration value="31"/>           <xs:enumeration value="32"/>           <xs:enumeration value="33"/>           <xs:enumeration value="34"/>           <xs:enumeration value="35"/>           <xs:enumeration value="36"/>           <xs:enumeration value="37"/>           <xs:enumeration value="38"/>           <xs:enumeration value="39"/>           <xs:enumeration value="40"/>           <xs:enumeration value="41"/>           <xs:enumeration value="42"/>           <xs:enumeration value="43"/>           <xs:enumeration value="44"/>           <xs:enumeration value="45"/>           <xs:enumeration value="46"/>           <xs:enumeration value="47"/>           <xs:enumeration value="48"/>           <xs:enumeration value="49"/>           <xs:enumeration value="50"/>           <xs:enumeration value="51"/>           <xs:enumeration value="52"/>           <xs:enumeration value="53"/>           <xs:enumeration value="54"/>           <xs:enumeration value="55"/>           <xs:enumeration value="56"/>           <xs:enumeration value="57"/>           <xs:enumeration value="58"/>           <xs:enumeration value="59"/>           <xs:enumeration value="60"/>           <xs:enumeration value="61"/>           <xs:enumeration value="62"/>           <xs:enumeration value="63"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/crc/@scan

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  single enumeration  auto
annotation	documentation (deprecated)CRC error checking mode
source	<xs:attribute name="scan" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)CRC error checking mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="single"/>       <xs:enumeration value="auto"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/crc/@ledCrcInput0

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of Delay to WBC path 0 CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInput0" type="ledType">   <xs:annotation>     <xs:documentation>status of Delay to WBC path 0 CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/crc/@ledCrcInput1

type	ledType
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
annotation	documentation status of Delay to WBC path 1CRCs. Green = OK, Red = ERROR, Off = checking off
source	<xs:attribute name="ledCrcInput1" type="ledType">   <xs:annotation>     <xs:documentation>status of Delay to WBC path 1CRCs. Green = OK, Red = ERROR, Off = checking off</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/crc/@scanWire0

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  delayError enumeration  delayFrame enumeration  dataClock
annotation	documentation specify wire to check CRCfor data path 0
source	<xs:attribute name="scanWire0" use="optional">   <xs:annotation>     <xs:documentation>specify wire to check CRCfor data path 0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="delayError"/>       <xs:enumeration value="delayFrame"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/crc/@scanWire1

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  auto enumeration  off enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  delayError enumeration  delayFrame enumeration  dataClock
annotation	documentation specify wire to check CRCfor data path 1
source	<xs:attribute name="scanWire1" use="optional">   <xs:annotation>     <xs:documentation>specify wire to check CRCfor data path 1</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="auto"/>       <xs:enumeration value="off"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="delayError"/>       <xs:enumeration value="delayFrame"/>       <xs:enumeration value="dataClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/crc/@input0

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  delayError enumeration  delayFrame enumeration  sysClock
annotation	documentation (deprecated)input 0 bit to generate CRC for
source	<xs:attribute name="input0" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)input 0 bit to generate CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="delayError"/>       <xs:enumeration value="delayFrame"/>       <xs:enumeration value="sysClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/crc/@input1

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63 enumeration  dataValid enumeration  noiseDiode enumeration  delayError enumeration  delayFrame enumeration  sysClock
annotation	documentation (deprecated)input 1 bit to generate CRC for
source	<xs:attribute name="input1" use="optional">   <xs:annotation>     <xs:documentation>(deprecated)input 1 bit to generate CRC for</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>       <xs:enumeration value="dataValid"/>       <xs:enumeration value="noiseDiode"/>       <xs:enumeration value="delayError"/>       <xs:enumeration value="delayFrame"/>       <xs:enumeration value="sysClock"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/crc/@forceOutputError0

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  none enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63
annotation	documentation force a CRC error on port wire
source	<xs:attribute name="forceOutputError0" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on port wire</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="none"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/crc/@forceOutputError1

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  none enumeration  0 enumeration  1 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6 enumeration  7 enumeration  8 enumeration  9 enumeration  10 enumeration  11 enumeration  12 enumeration  13 enumeration  14 enumeration  15 enumeration  16 enumeration  17 enumeration  18 enumeration  19 enumeration  20 enumeration  21 enumeration  22 enumeration  23 enumeration  24 enumeration  25 enumeration  26 enumeration  27 enumeration  28 enumeration  29 enumeration  30 enumeration  31 enumeration  32 enumeration  33 enumeration  34 enumeration  35 enumeration  36 enumeration  37 enumeration  38 enumeration  39 enumeration  40 enumeration  41 enumeration  42 enumeration  43 enumeration  44 enumeration  45 enumeration  46 enumeration  47 enumeration  48 enumeration  49 enumeration  50 enumeration  51 enumeration  52 enumeration  53 enumeration  54 enumeration  55 enumeration  56 enumeration  57 enumeration  58 enumeration  59 enumeration  60 enumeration  61 enumeration  62 enumeration  63
annotation	documentation force a CRC error on port wire
source	<xs:attribute name="forceOutputError1" use="optional">   <xs:annotation>     <xs:documentation>force a CRC error on port wire</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="none"/>       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="2"/>       <xs:enumeration value="3"/>       <xs:enumeration value="4"/>       <xs:enumeration value="5"/>       <xs:enumeration value="6"/>       <xs:enumeration value="7"/>       <xs:enumeration value="8"/>       <xs:enumeration value="9"/>       <xs:enumeration value="10"/>       <xs:enumeration value="11"/>       <xs:enumeration value="12"/>       <xs:enumeration value="13"/>       <xs:enumeration value="14"/>       <xs:enumeration value="15"/>       <xs:enumeration value="16"/>       <xs:enumeration value="17"/>       <xs:enumeration value="18"/>       <xs:enumeration value="19"/>       <xs:enumeration value="20"/>       <xs:enumeration value="21"/>       <xs:enumeration value="22"/>       <xs:enumeration value="23"/>       <xs:enumeration value="24"/>       <xs:enumeration value="25"/>       <xs:enumeration value="26"/>       <xs:enumeration value="27"/>       <xs:enumeration value="28"/>       <xs:enumeration value="29"/>       <xs:enumeration value="30"/>       <xs:enumeration value="31"/>       <xs:enumeration value="32"/>       <xs:enumeration value="33"/>       <xs:enumeration value="34"/>       <xs:enumeration value="35"/>       <xs:enumeration value="36"/>       <xs:enumeration value="37"/>       <xs:enumeration value="38"/>       <xs:enumeration value="39"/>       <xs:enumeration value="40"/>       <xs:enumeration value="41"/>       <xs:enumeration value="42"/>       <xs:enumeration value="43"/>       <xs:enumeration value="44"/>       <xs:enumeration value="45"/>       <xs:enumeration value="46"/>       <xs:enumeration value="47"/>       <xs:enumeration value="48"/>       <xs:enumeration value="49"/>       <xs:enumeration value="50"/>       <xs:enumeration value="51"/>       <xs:enumeration value="52"/>       <xs:enumeration value="53"/>       <xs:enumeration value="54"/>       <xs:enumeration value="55"/>       <xs:enumeration value="56"/>       <xs:enumeration value="57"/>       <xs:enumeration value="58"/>       <xs:enumeration value="59"/>       <xs:enumeration value="60"/>       <xs:enumeration value="61"/>       <xs:enumeration value="62"/>       <xs:enumeration value="63"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element wbc/clockEdge

diagram
properties	minOcc  0 maxOcc  3 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:string   required         documentation specify signal edge   derived by: xs:string   required         documentation clock edge to use
annotation	documentation signal clock edge selection (deprecated)
source	<xs:element name="clockEdge" minOccurs="0" maxOccurs="3">   <xs:annotation>     <xs:documentation>signal clock edge selection (deprecated)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:annotation>         <xs:documentation>specify signal</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="sTick"/>           <xs:enumeration value="data0"/>           <xs:enumeration value="data1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="edge" use="required">       <xs:annotation>         <xs:documentation>clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/clockEdge/@id

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  sTick enumeration  data0 enumeration  data1
annotation	documentation specify signal
source	<xs:attribute name="id" use="required">   <xs:annotation>     <xs:documentation>specify signal</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="sTick"/>       <xs:enumeration value="data0"/>       <xs:enumeration value="data1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/clockEdge/@edge

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation clock edge to use
source	<xs:attribute name="edge" use="required">   <xs:annotation>     <xs:documentation>clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element wbc/timeInterval

diagram
properties	minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation pathId   derived by: xs:int   required         documentation baseband path of specified signals dTick_sTick   xs:int   required         documentation time interval count in clock cycles dTick   xs:int   required         documentation time interval count in clock cycles sTick   xs:int   required         documentation time interval count in clock cycles sTick_dTick   xs:int   required         documentation time interval count in clock cycles
annotation	documentation input signal time interval measurements
source	<xs:element name="timeInterval" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>input signal time interval measurements</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="pathId" use="required">       <xs:annotation>         <xs:documentation>baseband path of specified signals</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="dTick_sTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sTick_dTick" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>time interval count in clock cycles</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/timeInterval/@pathId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation baseband path of specified signals
source	<xs:attribute name="pathId" use="required">   <xs:annotation>     <xs:documentation>baseband path of specified signals</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/timeInterval/@dTick_sTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles
source	<xs:attribute name="dTick_sTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/timeInterval/@dTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles
source	<xs:attribute name="dTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/timeInterval/@sTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles
source	<xs:attribute name="sTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/timeInterval/@sTick_dTick

type	xs:int
properties	use  required
annotation	documentation time interval count in clock cycles
source	<xs:attribute name="sTick_dTick" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>time interval count in clock cycles</xs:documentation>   </xs:annotation> </xs:attribute>

element wbc/testGen

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation mode   derived by: xs:string            documentation operational mode for test generator path0Seed   xs:string            documentation pseudo random data seed value for path 0 path1Seed   xs:string            documentation pseudo random data seed value for path 1 delayError0   xs:string            documentation delay error value for path 0 delayError1   xs:string            documentation delay error value for path 1 dataValid   derived by: xs:string            documentation Specify if test pattern has 100% data valid or one sample is marked invalid.
annotation	documentation Internal test generator
source	<xs:element name="testGen" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal test generator</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="mode">       <xs:annotation>         <xs:documentation>operational mode for test generator</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="random"/>           <xs:enumeration value="delta"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="path0Seed" type="xs:string">       <xs:annotation>         <xs:documentation>pseudo random data seed value for path 0</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="path1Seed" type="xs:string">       <xs:annotation>         <xs:documentation>pseudo random data seed value for path 1</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayError0" type="xs:string">       <xs:annotation>         <xs:documentation>delay error value for path 0</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayError1" type="xs:string">       <xs:annotation>         <xs:documentation>delay error value for path 1</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dataValid">       <xs:annotation>         <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="alwaysValid"/>           <xs:enumeration value="oneInvalid"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/testGen/@mode

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  random enumeration  delta
annotation	documentation operational mode for test generator
source	<xs:attribute name="mode">   <xs:annotation>     <xs:documentation>operational mode for test generator</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="random"/>       <xs:enumeration value="delta"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/testGen/@path0Seed

type	xs:string
annotation	documentation pseudo random data seed value for path 0
source	<xs:attribute name="path0Seed" type="xs:string">   <xs:annotation>     <xs:documentation>pseudo random data seed value for path 0</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/testGen/@path1Seed

type	xs:string
annotation	documentation pseudo random data seed value for path 1
source	<xs:attribute name="path1Seed" type="xs:string">   <xs:annotation>     <xs:documentation>pseudo random data seed value for path 1</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/testGen/@delayError0

type	xs:string
annotation	documentation delay error value for path 0
source	<xs:attribute name="delayError0" type="xs:string">   <xs:annotation>     <xs:documentation>delay error value for path 0</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/testGen/@delayError1

type	xs:string
annotation	documentation delay error value for path 1
source	<xs:attribute name="delayError1" type="xs:string">   <xs:annotation>     <xs:documentation>delay error value for path 1</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/testGen/@dataValid

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  alwaysValid enumeration  oneInvalid
annotation	documentation Specify if test pattern has 100% data valid or one sample is marked invalid.
source	<xs:attribute name="dataValid">   <xs:annotation>     <xs:documentation>Specify if test pattern has 100% data valid or one sample is marked invalid.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="alwaysValid"/>       <xs:enumeration value="oneInvalid"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element wbc/testPin

diagram
properties	minOcc  0 maxOcc  4 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:int   required         documentation specify pin number signal   derived by: xs:int            documentation signal routed to specified pin
annotation	documentation route internal FPGA signal to external pin
source	<xs:element name="testPin" minOccurs="0" maxOccurs="4">   <xs:annotation>     <xs:documentation>route internal FPGA signal to external pin</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>specify pin number</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="signal">       <xs:annotation>         <xs:documentation>signal routed to specified pin</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="31"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/testPin/@id

type	xs:int
properties	use  required
annotation	documentation specify pin number
source	<xs:attribute name="id" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>specify pin number</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/testPin/@signal

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  31
annotation	documentation signal routed to specified pin
source	<xs:attribute name="signal">   <xs:annotation>     <xs:documentation>signal routed to specified pin</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="31"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element wbc/product

diagram
properties	minOcc  0 maxOcc  32 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:int   required         documentation specified id for this product set integEnable   derived by: xs:string            laggedPath   derived by: xs:int            documentation which data path to use as lagged data laggedBand   derived by: xs:int            documentation which band to use from the lagged data path promptPath   derived by: xs:int            documentation which data path to use as prompt data promptBand   derived by: xs:int            documentation which band to use from the prompt data path integration   derived by: xs:int            documentation number of times to integrate this product lag set numLags   derived by: xs:int            documentation specified number of lags to create for this product. A zero value disables this product ID.
annotation	documentation configure wideband correlator product generation
source	<xs:element name="product" minOccurs="0" maxOccurs="32">   <xs:annotation>     <xs:documentation>configure wideband correlator product generation</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>specified id for this product set</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="integEnable">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="laggedPath">       <xs:annotation>         <xs:documentation>which data path to use as lagged data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="laggedBand">       <xs:annotation>         <xs:documentation>which band to use from the lagged data path</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="promptPath">       <xs:annotation>         <xs:documentation>which data path to use as prompt data</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="promptBand">       <xs:annotation>         <xs:documentation>which band to use from the prompt data path</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="integration">       <xs:annotation>         <xs:documentation>number of times to integrate this product lag set</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numLags">       <xs:annotation>         <xs:documentation>specified number of lags to create for this product. A zero value disables this product ID.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="63"/>           <xs:maxInclusive value="4096"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/product/@id

type	xs:int
properties	use  required
annotation	documentation specified id for this product set
source	<xs:attribute name="id" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>specified id for this product set</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/product/@integEnable

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
source	<xs:attribute name="integEnable">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/product/@laggedPath

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation which data path to use as lagged data
source	<xs:attribute name="laggedPath">   <xs:annotation>     <xs:documentation>which data path to use as lagged data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/product/@laggedBand

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation which band to use from the lagged data path
source	<xs:attribute name="laggedBand">   <xs:annotation>     <xs:documentation>which band to use from the lagged data path</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/product/@promptPath

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation which data path to use as prompt data
source	<xs:attribute name="promptPath">   <xs:annotation>     <xs:documentation>which data path to use as prompt data</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/product/@promptBand

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  15
annotation	documentation which band to use from the prompt data path
source	<xs:attribute name="promptBand">   <xs:annotation>     <xs:documentation>which band to use from the prompt data path</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="15"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/product/@integration

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation number of times to integrate this product lag set
source	<xs:attribute name="integration">   <xs:annotation>     <xs:documentation>number of times to integrate this product lag set</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/product/@numLags

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  63 maxInclusive  4096
annotation	documentation specified number of lags to create for this product. A zero value disables this product ID.
source	<xs:attribute name="numLags">   <xs:annotation>     <xs:documentation>specified number of lags to create for this product. A zero value disables this product ID.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="63"/>       <xs:maxInclusive value="4096"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element wbc/bbSlope

diagram
properties	minOcc  0 maxOcc  32 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime            documentation time this measurement  was initiated stationId   derived by: xs:int   required         documentation station id of this measurement basebandId   derived by: xs:int   required         documentation CM baseband id applied to this data path swbbName   derived by: xs:string   required         documentation spectral window identifier for base band slope   xs:string   required         documentation slope across entire baseband in dB/band lag0   xs:string   required         documentation raw lag 0 count normalized by validity count
annotation	documentation results of base band slope calculations
source	<xs:element name="bbSlope" minOccurs="0" maxOccurs="32">   <xs:annotation>     <xs:documentation>results of base band slope calculations</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="time" type="xs:dateTime">       <xs:annotation>         <xs:documentation>time this measurement  was initiated</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stationId" use="required">       <xs:annotation>         <xs:documentation>station id of this measurement</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="254"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="basebandId" use="required">       <xs:annotation>         <xs:documentation>CM baseband id applied to this data path</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="swbbName" use="required">       <xs:annotation>         <xs:documentation>spectral window identifier for base band</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A1C1_3BIT"/>           <xs:enumeration value="A2C2_3BIT"/>           <xs:enumeration value="AC_8BIT"/>           <xs:enumeration value="B1D1_3BIT"/>           <xs:enumeration value="B2D2_3BIT"/>           <xs:enumeration value="BD_8BIT"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="slope" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>slope across entire baseband in dB/band</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="lag0" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>raw lag 0 count normalized by validity count</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/bbSlope/@time

type	xs:dateTime
annotation	documentation time this measurement  was initiated
source	<xs:attribute name="time" type="xs:dateTime">   <xs:annotation>     <xs:documentation>time this measurement  was initiated</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/bbSlope/@stationId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  254
annotation	documentation station id of this measurement
source	<xs:attribute name="stationId" use="required">   <xs:annotation>     <xs:documentation>station id of this measurement</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="254"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/bbSlope/@basebandId

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation CM baseband id applied to this data path
source	<xs:attribute name="basebandId" use="required">   <xs:annotation>     <xs:documentation>CM baseband id applied to this data path</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/bbSlope/@swbbName

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  A1C1_3BIT enumeration  A2C2_3BIT enumeration  AC_8BIT enumeration  B1D1_3BIT enumeration  B2D2_3BIT enumeration  BD_8BIT
annotation	documentation spectral window identifier for base band
source	<xs:attribute name="swbbName" use="required">   <xs:annotation>     <xs:documentation>spectral window identifier for base band</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A1C1_3BIT"/>       <xs:enumeration value="A2C2_3BIT"/>       <xs:enumeration value="AC_8BIT"/>       <xs:enumeration value="B1D1_3BIT"/>       <xs:enumeration value="B2D2_3BIT"/>       <xs:enumeration value="BD_8BIT"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/bbSlope/@slope

type	xs:string
properties	use  required
annotation	documentation slope across entire baseband in dB/band
source	<xs:attribute name="slope" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>slope across entire baseband in dB/band</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/bbSlope/@lag0

type	xs:string
properties	use  required
annotation	documentation raw lag 0 count normalized by validity count
source	<xs:attribute name="lag0" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>raw lag 0 count normalized by validity count</xs:documentation>   </xs:annotation> </xs:attribute>

element wbc/status

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation sysClockLock   derived by: xs:string   required         documentation state of SCLK accessErr   xs:string   required         documentation mask of register access errors
source	<xs:element name="status" minOccurs="0">   <xs:complexType>     <xs:attribute name="sysClockLock" use="required">       <xs:annotation>         <xs:documentation>state of SCLK</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="lock"/>           <xs:enumeration value="free"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="accessErr" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>mask of register access errors</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/status/@sysClockLock

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  lock enumeration  free
annotation	documentation state of SCLK
source	<xs:attribute name="sysClockLock" use="required">   <xs:annotation>     <xs:documentation>state of SCLK</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="lock"/>       <xs:enumeration value="free"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/status/@accessErr

type	xs:string
properties	use  required
annotation	documentation mask of register access errors
source	<xs:attribute name="accessErr" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>mask of register access errors</xs:documentation>   </xs:annotation> </xs:attribute>

element wbc/setup

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation standby   derived by: xs:string            documentation module standby or run mode sysTickDelay   xs:int            documentation number of clock cycles to delay the system tick delay0   derived by: xs:int            documentation add zero or one clock delay to path 0 delay1   derived by: xs:int            documentation add zero or one clock delay to path 1 sTickEdge   derived by: xs:string            documentation STICK clock edge to use data0Edge   derived by: xs:string            documentation data path 0 clock edge to use data1Edge   derived by: xs:string            documentation data path 1 clock edge to use numBands   derived by: xs:int            documentation number of bands in wideband input numBits   derived by: xs:int            documentation number of sampled bits in wideband input inRate   derived by: xs:string   optional         documentation input data rate outRate   derived by: xs:string   optional         documentation output data rate
source	<xs:element name="setup" minOccurs="0">   <xs:complexType>     <xs:attribute name="standby">       <xs:annotation>         <xs:documentation>module standby or run mode</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sysTickDelay" type="xs:int">       <xs:annotation>         <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delay0">       <xs:annotation>         <xs:documentation>add zero or one clock delay to path 0</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="delay1">       <xs:annotation>         <xs:documentation>add zero or one clock delay to path 1</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="sTickEdge">       <xs:annotation>         <xs:documentation>STICK clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="data0Edge">       <xs:annotation>         <xs:documentation>data path 0 clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="data1Edge">       <xs:annotation>         <xs:documentation>data path 1 clock edge to use</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="rising"/>           <xs:enumeration value="falling"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numBands">       <xs:annotation>         <xs:documentation>number of bands in wideband input</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="16"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="numBits">       <xs:annotation>         <xs:documentation>number of sampled bits in wideband input</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="1"/>           <xs:maxInclusive value="8"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="inRate" use="optional">       <xs:annotation>         <xs:documentation>input data rate</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="outRate" use="optional">       <xs:annotation>         <xs:documentation>output data rate</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="256MHz"/>           <xs:enumeration value="128MHz"/>           <xs:enumeration value="64MHz"/>           <xs:enumeration value="32MHz"/>           <xs:enumeration value="16MHz"/>           <xs:enumeration value="8MHz"/>           <xs:enumeration value="4MHz"/>           <xs:enumeration value="2MHz"/>           <xs:enumeration value="1MHz"/>           <xs:enumeration value="500KHz"/>           <xs:enumeration value="250KHz"/>           <xs:enumeration value="125KHz"/>           <xs:enumeration value="62500Hz"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/setup/@standby

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation module standby or run mode
source	<xs:attribute name="standby">   <xs:annotation>     <xs:documentation>module standby or run mode</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@sysTickDelay

type	xs:int
annotation	documentation number of clock cycles to delay the system tick
source	<xs:attribute name="sysTickDelay" type="xs:int">   <xs:annotation>     <xs:documentation>number of clock cycles to delay the system tick</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/setup/@delay0

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation add zero or one clock delay to path 0
source	<xs:attribute name="delay0">   <xs:annotation>     <xs:documentation>add zero or one clock delay to path 0</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@delay1

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation add zero or one clock delay to path 1
source	<xs:attribute name="delay1">   <xs:annotation>     <xs:documentation>add zero or one clock delay to path 1</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@sTickEdge

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation STICK clock edge to use
source	<xs:attribute name="sTickEdge">   <xs:annotation>     <xs:documentation>STICK clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@data0Edge

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation data path 0 clock edge to use
source	<xs:attribute name="data0Edge">   <xs:annotation>     <xs:documentation>data path 0 clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@data1Edge

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  rising enumeration  falling
annotation	documentation data path 1 clock edge to use
source	<xs:attribute name="data1Edge">   <xs:annotation>     <xs:documentation>data path 1 clock edge to use</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="rising"/>       <xs:enumeration value="falling"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@numBands

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  16
annotation	documentation number of bands in wideband input
source	<xs:attribute name="numBands">   <xs:annotation>     <xs:documentation>number of bands in wideband input</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="16"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@numBits

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  8
annotation	documentation number of sampled bits in wideband input
source	<xs:attribute name="numBits">   <xs:annotation>     <xs:documentation>number of sampled bits in wideband input</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="1"/>       <xs:maxInclusive value="8"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@inRate

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
annotation	documentation input data rate
source	<xs:attribute name="inRate" use="optional">   <xs:annotation>     <xs:documentation>input data rate</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/setup/@outRate

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  256MHz enumeration  128MHz enumeration  64MHz enumeration  32MHz enumeration  16MHz enumeration  8MHz enumeration  4MHz enumeration  2MHz enumeration  1MHz enumeration  500KHz enumeration  250KHz enumeration  125KHz enumeration  62500Hz
annotation	documentation output data rate
source	<xs:attribute name="outRate" use="optional">   <xs:annotation>     <xs:documentation>output data rate</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="256MHz"/>       <xs:enumeration value="128MHz"/>       <xs:enumeration value="64MHz"/>       <xs:enumeration value="32MHz"/>       <xs:enumeration value="16MHz"/>       <xs:enumeration value="8MHz"/>       <xs:enumeration value="4MHz"/>       <xs:enumeration value="2MHz"/>       <xs:enumeration value="1MHz"/>       <xs:enumeration value="500KHz"/>       <xs:enumeration value="250KHz"/>       <xs:enumeration value="125KHz"/>       <xs:enumeration value="62500Hz"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element wbc/control

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation reset   xs:string            documentation assert module reset
source	<xs:element name="control" minOccurs="0">   <xs:complexType>     <xs:attribute name="reset" type="xs:string">       <xs:annotation>         <xs:documentation>assert module reset</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/control/@reset

type	xs:string
annotation	documentation assert module reset
source	<xs:attribute name="reset" type="xs:string">   <xs:annotation>     <xs:documentation>assert module reset</xs:documentation>   </xs:annotation> </xs:attribute>

element wbc/errorCount

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation sysClkLock   xs:int   optional         documentation count of sclock out-of-lock conditions sysTickWidth   xs:int   optional         documentation count of sTick width errors numBands   xs:int   optional         documentation count of invalid number of bands errors laggedBand   xs:int   optional         documentation count of invalid lagged band errors promptBand   xs:int   optional         documentation count of invalid prompt band errors combination   xs:int   optional         documentation count of invalid combination  errors
annotation	documentation FPGA error accumulations
source	<xs:element name="errorCount" minOccurs="0">   <xs:annotation>     <xs:documentation>FPGA error accumulations</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="sysClkLock" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of sclock out-of-lock conditions</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="sysTickWidth" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of sTick width errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="numBands" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of invalid number of bands errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="laggedBand" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of invalid lagged band errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="promptBand" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of invalid prompt band errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="combination" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>count of invalid combination  errors</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/errorCount/@sysClkLock

type	xs:int
properties	use  optional
annotation	documentation count of sclock out-of-lock conditions
source	<xs:attribute name="sysClkLock" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of sclock out-of-lock conditions</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/errorCount/@sysTickWidth

type	xs:int
properties	use  optional
annotation	documentation count of sTick width errors
source	<xs:attribute name="sysTickWidth" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of sTick width errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/errorCount/@numBands

type	xs:int
properties	use  optional
annotation	documentation count of invalid number of bands errors
source	<xs:attribute name="numBands" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of invalid number of bands errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/errorCount/@laggedBand

type	xs:int
properties	use  optional
annotation	documentation count of invalid lagged band errors
source	<xs:attribute name="laggedBand" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of invalid lagged band errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/errorCount/@promptBand

type	xs:int
properties	use  optional
annotation	documentation count of invalid prompt band errors
source	<xs:attribute name="promptBand" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of invalid prompt band errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/errorCount/@combination

type	xs:int
properties	use  optional
annotation	documentation count of invalid combination  errors
source	<xs:attribute name="combination" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>count of invalid combination  errors</xs:documentation>   </xs:annotation> </xs:attribute>

element wbc/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation inOut   xs:string            documentation report general input and output conditions product   xs:string            documentation report limited product information crc   xs:string            documentation report crc information clockEdge   xs:string            documentation clock edge setups timeInterval   derived by: xs:string            documentation time interval measurements testPin   xs:string            documentation report test pin setups testGen   xs:string            documentation report test generator state errorCount   xs:string            documentation report error counters register   xs:string            documentation report specified register contents user   xs:string            documentation report user logging configuration about   xs:string            documentation report general information about this module bbSlope   xs:string            documentation return latest base band slope measurements error   xs:string            documentation report errors setup   xs:string            documentation return setup parameters status   xs:string            documentation return status
annotation	documentation report module configuration and state information
source	<xs:element name="state" minOccurs="0">   <xs:annotation>     <xs:documentation>report module configuration and state information</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="inOut" type="xs:string">       <xs:annotation>         <xs:documentation>report general input and output conditions</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="product" type="xs:string">       <xs:annotation>         <xs:documentation>report limited product information</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="crc" type="xs:string">       <xs:annotation>         <xs:documentation>report crc information</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clockEdge" type="xs:string">       <xs:annotation>         <xs:documentation>clock edge setups</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timeInterval">       <xs:annotation>         <xs:documentation>time interval measurements</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value=""/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="testPin" type="xs:string">       <xs:annotation>         <xs:documentation>report test pin setups</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="testGen" type="xs:string">       <xs:annotation>         <xs:documentation>report test generator state</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="errorCount" type="xs:string">       <xs:annotation>         <xs:documentation>report error counters</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="register" type="xs:string">       <xs:annotation>         <xs:documentation>report specified register contents</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="user" type="xs:string">       <xs:annotation>         <xs:documentation>report user logging configuration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="about" type="xs:string">       <xs:annotation>         <xs:documentation>report general information about this module</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bbSlope" type="xs:string">       <xs:annotation>         <xs:documentation>return latest base band slope measurements</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="error" type="xs:string">       <xs:annotation>         <xs:documentation>report errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setup" type="xs:string">       <xs:annotation>         <xs:documentation>return setup parameters</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string">       <xs:annotation>         <xs:documentation>return status</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute wbc/state/@inOut

type	xs:string
annotation	documentation report general input and output conditions
source	<xs:attribute name="inOut" type="xs:string">   <xs:annotation>     <xs:documentation>report general input and output conditions</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@product

type	xs:string
annotation	documentation report limited product information
source	<xs:attribute name="product" type="xs:string">   <xs:annotation>     <xs:documentation>report limited product information</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@crc

type	xs:string
annotation	documentation report crc information
source	<xs:attribute name="crc" type="xs:string">   <xs:annotation>     <xs:documentation>report crc information</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@clockEdge

type	xs:string
annotation	documentation clock edge setups
source	<xs:attribute name="clockEdge" type="xs:string">   <xs:annotation>     <xs:documentation>clock edge setups</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@timeInterval

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration
annotation	documentation time interval measurements
source	<xs:attribute name="timeInterval">   <xs:annotation>     <xs:documentation>time interval measurements</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value=""/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbc/state/@testPin

type	xs:string
annotation	documentation report test pin setups
source	<xs:attribute name="testPin" type="xs:string">   <xs:annotation>     <xs:documentation>report test pin setups</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@testGen

type	xs:string
annotation	documentation report test generator state
source	<xs:attribute name="testGen" type="xs:string">   <xs:annotation>     <xs:documentation>report test generator state</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@errorCount

type	xs:string
annotation	documentation report error counters
source	<xs:attribute name="errorCount" type="xs:string">   <xs:annotation>     <xs:documentation>report error counters</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@register

type	xs:string
annotation	documentation report specified register contents
source	<xs:attribute name="register" type="xs:string">   <xs:annotation>     <xs:documentation>report specified register contents</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@user

type	xs:string
annotation	documentation report user logging configuration
source	<xs:attribute name="user" type="xs:string">   <xs:annotation>     <xs:documentation>report user logging configuration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@about

type	xs:string
annotation	documentation report general information about this module
source	<xs:attribute name="about" type="xs:string">   <xs:annotation>     <xs:documentation>report general information about this module</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@bbSlope

type	xs:string
annotation	documentation return latest base band slope measurements
source	<xs:attribute name="bbSlope" type="xs:string">   <xs:annotation>     <xs:documentation>return latest base band slope measurements</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@error

type	xs:string
annotation	documentation report errors
source	<xs:attribute name="error" type="xs:string">   <xs:annotation>     <xs:documentation>report errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@setup

type	xs:string
annotation	documentation return setup parameters
source	<xs:attribute name="setup" type="xs:string">   <xs:annotation>     <xs:documentation>return setup parameters</xs:documentation>   </xs:annotation> </xs:attribute>

attribute wbc/state/@status

type	xs:string
annotation	documentation return status
source	<xs:attribute name="status" type="xs:string">   <xs:annotation>     <xs:documentation>return status</xs:documentation>   </xs:annotation> </xs:attribute>

element about

diagram
properties	content  complex
used by	elements  delay fanout firFilter fpgaConfig input output timing vsi wbc
attributes	Name   Type   Use   Default   Fixed   Annotation fpgaVersion   xs:int   required         documentation version of FPGA program fpgaRevision   xs:int   required         documentation revision of FPGA program driverVersion   xs:string   required         documentation version of module driver status   xs:string   required         documentation general module health and status functionType   xs:int   required         documentation function type of FPGA slotId   xs:int            documentation slot Id of motherboard or module rackId   xs:int            documentation rack Id of motherboard or module crateId   xs:int            documentation crate Id of motherboard or module ipAddress   xs:string            documentation IP address of motherboard CMIB
annotation	documentation module and driver information
source	<xs:element name="about">   <xs:annotation>     <xs:documentation>module and driver information</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="fpgaVersion" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>version of FPGA program</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="fpgaRevision" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>revision of FPGA program</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="driverVersion" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>version of module driver</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>general module health and status </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="functionType" type="xs:int" use="required">       <xs:annotation>         <xs:documentation>function type of FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="slotId" type="xs:int">       <xs:annotation>         <xs:documentation>slot Id of motherboard or module</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="rackId" type="xs:int">       <xs:annotation>         <xs:documentation>rack Id of motherboard or module</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="crateId" type="xs:int">       <xs:annotation>         <xs:documentation>crate Id of motherboard or module</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ipAddress" type="xs:string">       <xs:annotation>         <xs:documentation>IP address of motherboard CMIB</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute about/@fpgaVersion

type	xs:int
properties	use  required
annotation	documentation version of FPGA program
source	<xs:attribute name="fpgaVersion" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>version of FPGA program</xs:documentation>   </xs:annotation> </xs:attribute>

attribute about/@fpgaRevision

type	xs:int
properties	use  required
annotation	documentation revision of FPGA program
source	<xs:attribute name="fpgaRevision" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>revision of FPGA program</xs:documentation>   </xs:annotation> </xs:attribute>

attribute about/@driverVersion

type	xs:string
properties	use  required
annotation	documentation version of module driver
source	<xs:attribute name="driverVersion" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>version of module driver</xs:documentation>   </xs:annotation> </xs:attribute>

attribute about/@status

type	xs:string
properties	use  required
annotation	documentation general module health and status
source	<xs:attribute name="status" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>general module health and status </xs:documentation>   </xs:annotation> </xs:attribute>

attribute about/@functionType

type	xs:int
properties	use  required
annotation	documentation function type of FPGA
source	<xs:attribute name="functionType" type="xs:int" use="required">   <xs:annotation>     <xs:documentation>function type of FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute about/@slotId

type	xs:int
annotation	documentation slot Id of motherboard or module
source	<xs:attribute name="slotId" type="xs:int">   <xs:annotation>     <xs:documentation>slot Id of motherboard or module</xs:documentation>   </xs:annotation> </xs:attribute>

attribute about/@rackId

type	xs:int
annotation	documentation rack Id of motherboard or module
source	<xs:attribute name="rackId" type="xs:int">   <xs:annotation>     <xs:documentation>rack Id of motherboard or module</xs:documentation>   </xs:annotation> </xs:attribute>

attribute about/@crateId

type	xs:int
annotation	documentation crate Id of motherboard or module
source	<xs:attribute name="crateId" type="xs:int">   <xs:annotation>     <xs:documentation>crate Id of motherboard or module</xs:documentation>   </xs:annotation> </xs:attribute>

attribute about/@ipAddress

type	xs:string
annotation	documentation IP address of motherboard CMIB
source	<xs:attribute name="ipAddress" type="xs:string">   <xs:annotation>     <xs:documentation>IP address of motherboard CMIB</xs:documentation>   </xs:annotation> </xs:attribute>

element error

diagram
properties	content  complex
used by	elements  delay fanout firFilter fpgaConfig input mcb output timing vciConfiguration vsi wbc
attributes	Name   Type   Use   Default   Fixed   Annotation message   xs:string   required         documentation error message level   derived by: xs:string   required         documentation error severity level
annotation	documentation module error reporting
source	<xs:element name="error">   <xs:annotation>     <xs:documentation>module error reporting</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="message" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>error message</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="level" use="required">       <xs:annotation>         <xs:documentation>error severity level</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="LOG_EMERG"/>           <xs:enumeration value="LOG_ALERT"/>           <xs:enumeration value="LOG_CRIT"/>           <xs:enumeration value="LOG_ERR"/>           <xs:enumeration value="LOG_WARNING"/>           <xs:enumeration value="LOG_NOTICE"/>           <xs:enumeration value="LOG_INFO"/>           <xs:enumeration value="LOG_DEBUG"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute error/@message

type	xs:string
properties	use  required
annotation	documentation error message
source	<xs:attribute name="message" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>error message</xs:documentation>   </xs:annotation> </xs:attribute>

attribute error/@level

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  LOG_EMERG enumeration  LOG_ALERT enumeration  LOG_CRIT enumeration  LOG_ERR enumeration  LOG_WARNING enumeration  LOG_NOTICE enumeration  LOG_INFO enumeration  LOG_DEBUG
annotation	documentation error severity level
source	<xs:attribute name="level" use="required">   <xs:annotation>     <xs:documentation>error severity level</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="LOG_EMERG"/>       <xs:enumeration value="LOG_ALERT"/>       <xs:enumeration value="LOG_CRIT"/>       <xs:enumeration value="LOG_ERR"/>       <xs:enumeration value="LOG_WARNING"/>       <xs:enumeration value="LOG_NOTICE"/>       <xs:enumeration value="LOG_INFO"/>       <xs:enumeration value="LOG_DEBUG"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element mcb

diagram
properties	content  complex
children	state error register
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         documentation time this message was generated
annotation	documentation MC Bus register access package
source	<xs:element name="mcb">   <xs:annotation>     <xs:documentation>MC Bus register access package</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="state" minOccurs="0">         <xs:complexType>           <xs:attribute name="register" type="xs:string">             <xs:annotation>               <xs:documentation>report specified register contents</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element ref="error" minOccurs="0"/>       <xs:element ref="register" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="time" type="xs:dateTime" use="optional">       <xs:annotation>         <xs:documentation>time this message was generated</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute mcb/@time

type	xs:dateTime
properties	use  optional
annotation	documentation time this message was generated
source	<xs:attribute name="time" type="xs:dateTime" use="optional">   <xs:annotation>     <xs:documentation>time this message was generated</xs:documentation>   </xs:annotation> </xs:attribute>

element mcb/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation register   xs:string            documentation report specified register contents
source	<xs:element name="state" minOccurs="0">   <xs:complexType>     <xs:attribute name="register" type="xs:string">       <xs:annotation>         <xs:documentation>report specified register contents</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute mcb/state/@register

type	xs:string
annotation	documentation report specified register contents
source	<xs:attribute name="register" type="xs:string">   <xs:annotation>     <xs:documentation>report specified register contents</xs:documentation>   </xs:annotation> </xs:attribute>

element register

diagram
properties	content  complex
used by	elements  delay fanout firFilter fpgaConfig input mcb output timing vsi wbc
attributes	Name   Type   Use   Default   Fixed   Annotation address   xs:string   required         documentation register address value   xs:string   required         documentation register value
annotation	documentation direct module register access
source	<xs:element name="register">   <xs:annotation>     <xs:documentation>direct module register access</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="address" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>register address</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="value" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>register value</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute register/@address

type	xs:string
properties	use  required
annotation	documentation register address
source	<xs:attribute name="address" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>register address</xs:documentation>   </xs:annotation> </xs:attribute>

attribute register/@value

type	xs:string
properties	use  required
annotation	documentation register value
source	<xs:attribute name="value" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>register value</xs:documentation>   </xs:annotation> </xs:attribute>

element user

diagram
properties	content  complex
used by	elements  delay fanout firFilter fpgaConfig input output timing vsi wbc
attributes	Name   Type   Use   Default   Fixed   Annotation logLevel   derived by: xs:string   optional         documentation threshold for logging messages logPipe   derived by: xs:string   optional         documentation On-off switch for message logging logFile   xs:string   optional         documentation file to save log messages in
annotation	documentation user message logging control
source	<xs:element name="user">   <xs:annotation>     <xs:documentation>user message logging control</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="logLevel" use="optional">       <xs:annotation>         <xs:documentation>threshold for logging messages</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="LOG_EMERG"/>           <xs:enumeration value="LOG_ALERT"/>           <xs:enumeration value="LOG_CRIT"/>           <xs:enumeration value="LOG_ERR"/>           <xs:enumeration value="LOG_WARNING"/>           <xs:enumeration value="LOG_NOTICE"/>           <xs:enumeration value="LOG_INFO"/>           <xs:enumeration value="LOG_DEBUG"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="logPipe" use="optional">       <xs:annotation>         <xs:documentation>On-off switch for message logging</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="logFile" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>file to save log messages in</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute user/@logLevel

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  LOG_EMERG enumeration  LOG_ALERT enumeration  LOG_CRIT enumeration  LOG_ERR enumeration  LOG_WARNING enumeration  LOG_NOTICE enumeration  LOG_INFO enumeration  LOG_DEBUG
annotation	documentation threshold for logging messages
source	<xs:attribute name="logLevel" use="optional">   <xs:annotation>     <xs:documentation>threshold for logging messages</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="LOG_EMERG"/>       <xs:enumeration value="LOG_ALERT"/>       <xs:enumeration value="LOG_CRIT"/>       <xs:enumeration value="LOG_ERR"/>       <xs:enumeration value="LOG_WARNING"/>       <xs:enumeration value="LOG_NOTICE"/>       <xs:enumeration value="LOG_INFO"/>       <xs:enumeration value="LOG_DEBUG"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute user/@logPipe

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation On-off switch for message logging
source	<xs:attribute name="logPipe" use="optional">   <xs:annotation>     <xs:documentation>On-off switch for message logging</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute user/@logFile

type	xs:string
properties	use  optional
annotation	documentation file to save log messages in
source	<xs:attribute name="logFile" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>file to save log messages in</xs:documentation>   </xs:annotation> </xs:attribute>

simpleType ledType

type	restriction of xs:string
properties	base  xs:string
used by	attributes  wbc/@led delay/@led vsi/@led vsi/crc/ledCrcNB/@led output/@led firFilter/@led timing/@led timing/crc/ledCrcInput/@led input/@led timing/status/@ledClockAToggle timing/status/@ledClockBToggle timing/status/@ledClockToggle delay/crc/@ledCrcInput output/crc/@ledCrcInput wbc/crc/@ledCrcInput0 wbc/crc/@ledCrcInput1 firFilter/crc/@ledCrcInputA input/crc/@ledCrcInputA firFilter/crc/@ledCrcInputB input/crc/@ledCrcInputB input/crc/@ledCrcInputC delay/crc/@ledCrcInternal vsi/crc/@ledCrcLoopback input/crc/@ledCrcVsi0 input/crc/@ledCrcVsi1 timing/status/@ledDataClock delay/@ledDelay wbc/@ledDevice input/@ledDevice output/@ledDevice fpgaConfig/@ledDevice firFilter/@ledDevice timing/@ledDevice delay/@ledDevice vsi/@ledDevice fanout/@ledDevice input/@ledDeviceForm timing/status/@ledDTrigCommand timing/status/@ledDTrigRam timing/status/@ledDTrigStartBit timing/status/@ledDTrigTrigger timing/status/@ledExtClkToggle input/@ledForm timing/status/@ledGBitTxLock timing/status/@ledHopCountAOverflow timing/status/@ledHopCountBOverflow timing/status/@ledHopCountOverflow firFilter/@ledLUT delay/@ledModel timing/status/@ledPllAlarm timing/status/@ledPllFreeRun timing/status/@ledPModCommand timing/status/@ledPModFrame timing/status/@ledPModRam timing/status/@ledPModStartBit timing/status/@ledSClkLock timing/status/@ledSPpsInterval timing/status/@ledSPpsWidth timing/status/@ledSTickAlign timing/status/@ledSTickInterval timing/status/@ledSTickWidth timing/status/@ledTimecodeCrc timing/status/@ledTimecodeCrcA timing/status/@ledTimecodeCrcB timing/status/@ledTimecodeInputPpsA timing/status/@ledTimecodeInputPpsB timing/status/@ledTimecodePps timing/status/@ledTimecodeSystemPpsA timing/status/@ledTimecodeSystemPpsB timing/@ledTiming vsi/status/@ledVsi
facets	Kind  Value  Annotation enumeration  off enumeration  red enumeration  yellow enumeration  green
source	<xs:simpleType name="ledType">   <xs:restriction base="xs:string">     <xs:enumeration value="off"/>     <xs:enumeration value="red"/>     <xs:enumeration value="yellow"/>     <xs:enumeration value="green"/>   </xs:restriction> </xs:simpleType>

element clipMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control sampler clip monitoring
source	<xs:element name="clipMonitor">   <xs:annotation>     <xs:documentation>control sampler clip monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute clipMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute clipMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element crcMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation reportInterval   xs:int            documentation report generation interval in seconds scanLine   derived by: xs:int            documentation line id to scan scanType   derived by: xs:string            integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control CRC status monitoring
source	<xs:element name="crcMonitor">   <xs:annotation>     <xs:documentation>control CRC status monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="reportInterval" type="xs:int">       <xs:annotation>         <xs:documentation>report generation interval in seconds</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="scanLine">       <xs:annotation>         <xs:documentation>line id to scan</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="69"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="scanType">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="single"/>           <xs:enumeration value="auto"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute crcMonitor/@reportInterval

type	xs:int
annotation	documentation report generation interval in seconds
source	<xs:attribute name="reportInterval" type="xs:int">   <xs:annotation>     <xs:documentation>report generation interval in seconds</xs:documentation>   </xs:annotation> </xs:attribute>

attribute crcMonitor/@scanLine

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  69
annotation	documentation line id to scan
source	<xs:attribute name="scanLine">   <xs:annotation>     <xs:documentation>line id to scan</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="69"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crcMonitor/@scanType

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  single enumeration  auto
source	<xs:attribute name="scanType">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="single"/>       <xs:enumeration value="auto"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute crcMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute crcMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element errorCountMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control error count reporting
source	<xs:element name="errorCountMonitor">   <xs:annotation>     <xs:documentation>control error count reporting</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute errorCountMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute errorCountMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element fpgaProgram

diagram
properties	content  complex
used by	element  supervisor
attributes	Name   Type   Use   Default   Fixed   Annotation device   derived by: xs:string   required         pathId   derived by: xs:int            documentation Wideband path id for filter bank bank   derived by: xs:int            documentation bank number for LTA fpga chips reset   derived by: xs:string   optional         documentation state of the MCB fanout reset line deviceStatus   derived by: xs:string            documentation current best-known program status of the chip operation   derived by: xs:string            documentation operation to perform (clear chip or program chip)
annotation	documentation control FPGA bit stream personality loading
source	<xs:element name="fpgaProgram">   <xs:annotation>     <xs:documentation>control FPGA bit stream personality loading</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="device" use="required">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="input"/>           <xs:enumeration value="delay"/>           <xs:enumeration value="wbc"/>           <xs:enumeration value="filter"/>           <xs:enumeration value="timing"/>           <xs:enumeration value="output"/>           <xs:enumeration value="vsi"/>           <xs:enumeration value="config"/>           <xs:enumeration value="fanout"/>           <xs:enumeration value="ethernet"/>           <xs:enumeration value="lta"/>           <xs:enumeration value="recirculator"/>           <xs:enumeration value="mcb"/>           <xs:enumeration value="rxp"/>           <xs:enumeration value=""/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pathId">       <xs:annotation>         <xs:documentation>Wideband path id for filter bank</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bank">       <xs:annotation>         <xs:documentation>bank number for LTA fpga chips</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="reset" use="optional">       <xs:annotation>         <xs:documentation>state of the MCB fanout reset line</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="enable"/>           <xs:enumeration value="disable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="deviceStatus">       <xs:annotation>         <xs:documentation>current best-known program status of the chip</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="unknown"/>           <xs:enumeration value="failed"/>           <xs:enumeration value="notProgrammed"/>           <xs:enumeration value="queued"/>           <xs:enumeration value="busy"/>           <xs:enumeration value="programmed"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="operation">       <xs:annotation>         <xs:documentation>operation to perform (clear chip or program chip)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="deprogram"/>           <xs:enumeration value="program"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute fpgaProgram/@device

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  input enumeration  delay enumeration  wbc enumeration  filter enumeration  timing enumeration  output enumeration  vsi enumeration  config enumeration  fanout enumeration  ethernet enumeration  lta enumeration  recirculator enumeration  mcb enumeration  rxp enumeration
source	<xs:attribute name="device" use="required">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="input"/>       <xs:enumeration value="delay"/>       <xs:enumeration value="wbc"/>       <xs:enumeration value="filter"/>       <xs:enumeration value="timing"/>       <xs:enumeration value="output"/>       <xs:enumeration value="vsi"/>       <xs:enumeration value="config"/>       <xs:enumeration value="fanout"/>       <xs:enumeration value="ethernet"/>       <xs:enumeration value="lta"/>       <xs:enumeration value="recirculator"/>       <xs:enumeration value="mcb"/>       <xs:enumeration value="rxp"/>       <xs:enumeration value=""/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaProgram/@pathId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation Wideband path id for filter bank
source	<xs:attribute name="pathId">   <xs:annotation>     <xs:documentation>Wideband path id for filter bank</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaProgram/@bank

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation bank number for LTA fpga chips
source	<xs:attribute name="bank">   <xs:annotation>     <xs:documentation>bank number for LTA fpga chips</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaProgram/@reset

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  enable enumeration  disable
annotation	documentation state of the MCB fanout reset line
source	<xs:attribute name="reset" use="optional">   <xs:annotation>     <xs:documentation>state of the MCB fanout reset line</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="enable"/>       <xs:enumeration value="disable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaProgram/@deviceStatus

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  unknown enumeration  failed enumeration  notProgrammed enumeration  queued enumeration  busy enumeration  programmed
annotation	documentation current best-known program status of the chip
source	<xs:attribute name="deviceStatus">   <xs:annotation>     <xs:documentation>current best-known program status of the chip</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="unknown"/>       <xs:enumeration value="failed"/>       <xs:enumeration value="notProgrammed"/>       <xs:enumeration value="queued"/>       <xs:enumeration value="busy"/>       <xs:enumeration value="programmed"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute fpgaProgram/@operation

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  deprogram enumeration  program
annotation	documentation operation to perform (clear chip or program chip)
source	<xs:attribute name="operation">   <xs:annotation>     <xs:documentation>operation to perform (clear chip or program chip)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="deprogram"/>       <xs:enumeration value="program"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element inputStateMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control input state count monitoring
source	<xs:element name="inputStateMonitor">   <xs:annotation>     <xs:documentation>control input state count monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute inputStateMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute inputStateMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element intervalMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control tick interval monitoring
source	<xs:element name="intervalMonitor">   <xs:annotation>     <xs:documentation>control tick interval monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute intervalMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute intervalMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element outputStateMonitor

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control output state count monitoring
source	<xs:element name="outputStateMonitor">   <xs:annotation>     <xs:documentation>control output state count monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute outputStateMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute outputStateMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element powerMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control power monitoring
source	<xs:element name="powerMonitor">   <xs:annotation>     <xs:documentation>control power monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute powerMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute powerMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element quantizerMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control filter requantizer monitoring
source	<xs:element name="quantizerMonitor">   <xs:annotation>     <xs:documentation>control filter requantizer monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute quantizerMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute quantizerMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element rfiMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control radio frequency interference monitoring
source	<xs:element name="rfiMonitor">   <xs:annotation>     <xs:documentation>control radio frequency interference monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute rfiMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute rfiMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element schedule

diagram
properties	content  complex
used by	elements  delay fanout firFilter fpgaConfig input output timing wbc
attributes	Name   Type   Use   Default   Fixed   Annotation time   xs:dateTime   optional         documentation time to execute transfer repeat   xs:int   optional         documentation time increment between re-schedules clear   xs:int   optional         documentation clear all buffers
annotation	documentation scheduled register buffer transfer
source	<xs:element name="schedule">   <xs:annotation>     <xs:documentation>scheduled register buffer transfer</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="time" type="xs:dateTime" use="optional">       <xs:annotation>         <xs:documentation>time to execute transfer</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="repeat" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>time increment between re-schedules</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clear" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>clear all buffers</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute schedule/@time

type	xs:dateTime
properties	use  optional
annotation	documentation time to execute transfer
source	<xs:attribute name="time" type="xs:dateTime" use="optional">   <xs:annotation>     <xs:documentation>time to execute transfer</xs:documentation>   </xs:annotation> </xs:attribute>

attribute schedule/@repeat

type	xs:int
properties	use  optional
annotation	documentation time increment between re-schedules
source	<xs:attribute name="repeat" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>time increment between re-schedules</xs:documentation>   </xs:annotation> </xs:attribute>

attribute schedule/@clear

type	xs:int
properties	use  optional
annotation	documentation clear all buffers
source	<xs:attribute name="clear" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>clear all buffers</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor

diagram
properties	content  complex
children	metrics baselineBoardGridStatus fpgaProgram dataProducts configQueue fpgaSource state tableLoad tableName selfTestResults testUtility configuration connections
attributes	Name   Type   Use   Default   Fixed   Annotation hwComponentState   derived by: xs:string   optional         time   xs:dateTime            blankInterval   xs:int   optional         documentation time in seconds to invalidate data or supress gBit data transmissions when 'blanking' attribute is present blanking   xs:string   optional         documentation if present, data will be invalidated (station board) or output will be supressed (baseline board) for the tim especified by 'blankInterval' rowBlankingMask   xs:string   optional         documentation mask of correllator rows to blank (stop frame transfers) for the duration of the blanking interval columnBlankingMask   xs:string   optional         documentation mask of correllator columns to blank (stop frame transfers) for the duration of the blanking interval correlation   derived by: xs:string   optional         documentation enable or disable correlation on all correlators (baseline board only) delayModels   derived by: xs:string   optional         documentation enable or disable external delay model parsing (station board only) clearErrors   xs:string            documentation presence of thsi attribute will zero all error counters on the board ps1_8Volt   derived by: xs:string   optional         documentation status of 1.8 volt power supply interruptSource   derived by: xs:string            documentation Source of system interrupts. Hardware interrupts com through the PCI bus, simulated come from the real time clock embedded on the CMIB. serialNumber   xs:string            documentation Board S/N as reported by hardware slotId   xs:int   optional         documentation Board slot number as reported by hardware rackId   xs:int   optional         documentation rack location of this motherboard crateId   xs:int   optional         documentation crate location of this motherboard ccRephase   xs:string   optional         documentation force CC-Recirculator clock rephasing driverVersion   xs:string   optional         documentation version build date for MCB driver shell   xs:string            documentation arbitrary string sent to the 'system' command setGain   xs:string   optional         documentation arbitrary string to force a board wide requantizer auto-gain setting setRQGain   xs:string   optional         documentation arbitrary string to force a board wide requantizer auto-gain setting setS1Gain   xs:string   optional         documentation arbitrary string to force a board wide stage1 auto-gain setting setS2Gain   xs:string   optional         documentation arbitrary string to force a board wide stage1 auto-gain setting setS3Gain   xs:string   optional         documentation arbitrary string to force a board wide stage1 auto-gain setting setS4Gain   xs:string   optional         documentation arbitrary string to force a board wide stage1 auto-gain setting
source	<xs:element name="supervisor">   <xs:complexType>     <xs:sequence>       <xs:element name="metrics" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="tasklet" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:attribute name="taskletId" type="xs:string"/>                 <xs:attribute name="timeMax" type="xs:int"/>                 <xs:attribute name="durationMax" type="xs:int"/>                 <xs:attribute name="durationMin" type="xs:int"/>                 <xs:attribute name="latencyMax" type="xs:int"/>                 <xs:attribute name="latencyMin" type="xs:int"/>                 <xs:attribute name="reset" type="xs:string"/>               </xs:complexType>             </xs:element>             <xs:element name="system" minOccurs="0">               <xs:complexType>                 <xs:attribute name="memory" type="xs:int"/>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="baselineBoardGridStatus" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="column" minOccurs="0" maxOccurs="8">               <xs:complexType>                 <xs:attribute name="id" type="xs:int"/>                 <xs:attribute name="ledDeviceLta" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of lta device status for rows 0-7</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="ledCcToLta" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of lta to CC status LEDs for rows 0-7. This is a mask of the lta root attribute ledCcToLta</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="ledLtaToLta" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of lta to lta status for rows 0-7. This is a mask of the lta root attribute ledLtaToLta</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="ledDeviceCorr" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of CC device status for rows 0-7</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="ledXStatus" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of CC X input status for rows 0-7. This is a mask of the CC:status attribute xStatus</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="ledYStatus" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of CC Y input status for rows 0-7. This is a mask of the CC:status attribute yStatus</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="correlationMask" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of correlaton enables for rows 0-7. 1 = correlation enabled, 0 = disabled</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="testVectorMask" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of test vector receivers for rows 0-7. 1 = receivers enabled, 0 = disabled</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="phaseRotationMask" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of phase rotation enables for rows 0-7. 1 = rotation enabled, 0 = disabled</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="autoCorrelationMask" type="xs:string">                   <xs:annotation>                     <xs:documentation>mask of auto correlation configuratins for rows 0-7. 1 = auto correlation enabled, 0 = disabled</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>             <xs:element name="dummy" minOccurs="0">               <xs:complexType>                 <xs:attribute name="alsoDummy" type="xs:int"/>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element ref="fpgaProgram" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>control FPGA bit stream personality loading for individual chips</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="dataProducts" minOccurs="0">         <xs:annotation>           <xs:documentation>Specify the integration times and control other aspects of the station board data product tasks.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element ref="clipMonitor" minOccurs="0"/>             <xs:element ref="crcMonitor" minOccurs="0"/>             <xs:element ref="inputStateMonitor" minOccurs="0"/>             <xs:element ref="quantizerMonitor" minOccurs="0"/>             <xs:element ref="powerMonitor" minOccurs="0"/>             <xs:element ref="rfiMonitor" minOccurs="0"/>             <xs:element ref="toneExtract" minOccurs="0"/>             <xs:element ref="intervalMonitor" minOccurs="0"/>             <xs:element ref="errorCountMonitor" minOccurs="0"/>             <xs:element ref="wbcMonitor" minOccurs="0" maxOccurs="32"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="configQueue" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>report state of or manage configuration queue elements</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="configName" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>name of configuration as specified in vciConfiguration</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="activationTime" type="xs:string">             <xs:annotation>               <xs:documentation>configuration activation time as specified in vciConfiguration or as actually occured if configuration is active or complete</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="remove">             <xs:annotation>               <xs:documentation>if present, any configuration in the queue with a matching configName will be deleted</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="no"/>                 <xs:enumeration value="yes"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="status">             <xs:annotation>               <xs:documentation>status of thisi configuration</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="waiting"/>                 <xs:enumeration value="inProcess"/>                 <xs:enumeration value="active"/>                 <xs:enumeration value="complete"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="fpgaSource" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="fpgaBitStreamName" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:attribute name="device" use="required">                   <xs:annotation>                     <xs:documentation>FPGA device class</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="input"/>                       <xs:enumeration value="delay"/>                       <xs:enumeration value="wbc"/>                       <xs:enumeration value="filter"/>                       <xs:enumeration value="timing"/>                       <xs:enumeration value="output"/>                       <xs:enumeration value="vsi"/>                       <xs:enumeration value="config"/>                       <xs:enumeration value="fanout"/>                       <xs:enumeration value="ethernet"/>                       <xs:enumeration value="lta"/>                       <xs:enumeration value="recirculator"/>                       <xs:enumeration value="mcb"/>                       <xs:enumeration value="rxp"/>                       <xs:enumeration value=""/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="bitFile" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>path to personality program bit stream file</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="driver" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>name of CMIB driver to use for programming</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="pathId">                   <xs:annotation>                     <xs:documentation>Wideband path id for driver name (required for filter, delay, and output)</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="1"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="bank">                   <xs:annotation>                     <xs:documentation>bank number for LTA fpga chips</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="7"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="directory" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element name="state" minOccurs="0">         <xs:complexType>           <xs:attribute name="fpgaProgram" type="xs:string"/>           <xs:attribute name="fpgaSource" type="xs:string"/>           <xs:attribute name="metrics" type="xs:string"/>           <xs:attribute name="dataProducts" type="xs:string"/>           <xs:attribute name="tableName" type="xs:string"/>           <xs:attribute name="tableLoad" type="xs:string"/>           <xs:attribute name="selfTestResults" type="xs:string"/>           <xs:attribute name="testUtility" type="xs:string"/>           <xs:attribute name="configuration" type="xs:string"/>           <xs:attribute name="connections" type="xs:string"/>           <xs:attribute name="configQueue" type="xs:string"/>           <xs:attribute name="baselineBoardGridStatus" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element name="tableLoad" minOccurs="0">         <xs:annotation>           <xs:documentation>force load of LUTs as currently specified by supervisor:tableName element</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="filterS1LutMask" type="xs:string"/>           <xs:attribute name="filterS2LutMask" type="xs:string"/>           <xs:attribute name="filterS3LutMask" type="xs:string"/>           <xs:attribute name="filterS4LutMask" type="xs:string"/>           <xs:attribute name="filterMixerMask" type="xs:string"/>           <xs:attribute name="filterToneExtMask" type="xs:string"/>           <xs:attribute name="inputXlate" type="xs:string"/>           <xs:attribute name="delayVectorLoadMask" type="xs:string"/>           <xs:attribute name="delayVectorLoadProgress0" type="xs:int"/>           <xs:attribute name="delayVectorLoadProgress1" type="xs:int"/>           <xs:attribute name="tableLoadVerify">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="tableName" minOccurs="0">         <xs:annotation>           <xs:documentation>when read, report the names of the currently loaded LUTs, when written, set the LUT filenames for future loading with supervisor:tableLoad element</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="filter" minOccurs="0" maxOccurs="36">               <xs:complexType>                 <xs:attribute name="id" type="xs:string" use="required"/>                 <xs:attribute name="stage1Lut" type="xs:string"/>                 <xs:attribute name="stage2Lut" type="xs:string"/>                 <xs:attribute name="stage3Lut" type="xs:string"/>                 <xs:attribute name="stage4Lut" type="xs:string"/>                 <xs:attribute name="mixerLut" type="xs:string"/>                 <xs:attribute name="toneExtLut" type="xs:string"/>               </xs:complexType>             </xs:element>             <xs:element name="input" minOccurs="0">               <xs:complexType>                 <xs:attribute name="translatorLut" type="xs:string"/>               </xs:complexType>             </xs:element>             <xs:element name="delayVector" minOccurs="0" maxOccurs="2">               <xs:complexType>                 <xs:attribute name="id" use="required">                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="1"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="vectorFileName" type="xs:string"/>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="selfTestResults" minOccurs="0">         <xs:complexType>           <xs:attribute name="power">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="pass"/>                 <xs:enumeration value="fail"/>                 <xs:enumeration value="skipped"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="rxp">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="pass"/>                 <xs:enumeration value="fail"/>                 <xs:enumeration value="skipped"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="recirculator">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="pass"/>                 <xs:enumeration value="fail"/>                 <xs:enumeration value="skipped"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="lta">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="pass"/>                 <xs:enumeration value="fail"/>                 <xs:enumeration value="skipped"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="cc">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="pass"/>                 <xs:enumeration value="fail"/>                 <xs:enumeration value="skipped"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="testUtility" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="vectorTest" minOccurs="0">               <xs:annotation>                 <xs:documentation>supply models to the delay modules, generate phase models, and start dump triggers</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:attribute name="moduleId">                   <xs:annotation>                     <xs:documentation>delay module or wideband path number (0|1|both)</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="0"/>                       <xs:enumeration value="1"/>                       <xs:enumeration value="both"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="duration">                   <xs:annotation>                     <xs:documentation>number of seconds to run test. Duration is limited to 10 second increments, default is  'forever'</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="10"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="module0Filename" type="xs:string">                   <xs:annotation>                     <xs:documentation>full path to model file for baseband path 0</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="module1Filename" type="xs:string">                   <xs:annotation>                     <xs:documentation>full path to model file for baseband path 1</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="activationTime" type="xs:dateTime">                   <xs:annotation>                     <xs:documentation>test will begin execution at the time specified (based on comparison with observation clock) User can specify a time in ISO format, an offset from current time in integer seconds (+20), or 'now' for immediate execution.</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="phaseModels">                   <xs:annotation>                     <xs:documentation>test will begin execution after  the delay specified (in seconds, default is on)</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="off"/>                       <xs:enumeration value="on"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="progress" type="xs:int"/>                 <xs:attribute name="ltaIntegFactor" type="xs:int">                   <xs:annotation>                     <xs:documentation>count of hardware integrations to accumulate</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="hwIntegTime" type="xs:int">                   <xs:annotation>                     <xs:documentation>correlator chip integration time in microseconds (default is 500)</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="halt" type="xs:string">                   <xs:annotation>                     <xs:documentation>force model updating and dump trigger generation to abort.</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>             <xs:element name="powerCheck" minOccurs="0">               <xs:annotation>                 <xs:documentation>verify the board power and temp</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:attribute name="status" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>             <xs:element name="recirculatorStartup" minOccurs="0">               <xs:annotation>                 <xs:documentation>start the recirculators and connect with the correlator chip</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="hmReceiverStatus" minOccurs="0" maxOccurs="unbounded">                     <xs:complexType>                       <xs:attribute name="id" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>identification of FPGA</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="status" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>status of setup</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="message" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>return message from process</xs:documentation>                         </xs:annotation>                       </xs:attribute>                     </xs:complexType>                   </xs:element>                 </xs:sequence>                 <xs:attribute name="status" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>             <xs:element name="ltaStartup" minOccurs="0">               <xs:annotation>                 <xs:documentation>start the LTAs and power up the correlators</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="ccPowerStatus" minOccurs="0" maxOccurs="unbounded">                     <xs:complexType>                       <xs:attribute name="id" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>identification of FPGA</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="status" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>status of setup</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="message" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>return message from process</xs:documentation>                         </xs:annotation>                       </xs:attribute>                     </xs:complexType>                   </xs:element>                   <xs:element name="ltaRamStatus" minOccurs="0" maxOccurs="unbounded">                     <xs:complexType>                       <xs:attribute name="id" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>identification of FPGA</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="status" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>status of setup</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="bank1" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>return message from RAM bank 1 test process</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="bank2" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>return message from RAM bank 2 test process</xs:documentation>                         </xs:annotation>                       </xs:attribute>                     </xs:complexType>                   </xs:element>                 </xs:sequence>                 <xs:attribute name="status" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="targetIp" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>target back end processor node IP address</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="targetMac" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>target back end processor node MAC address</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="ccLowVoltage" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>recorded correlator chip minimum voltage</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="ccHighVoltage" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>recorded correlator chip maximum voltage</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="testRamOnFail" use="optional">                   <xs:annotation>                     <xs:documentation>enable or disable detailed RAM test after LTA reports RAM failure</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="disable"/>                       <xs:enumeration value="enable"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="chipStartDelay" type="xs:int" use="optional">                   <xs:annotation>                     <xs:documentation>CC to CC startup delay in tick counts</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="dataFlow" use="optional">                   <xs:annotation>                     <xs:documentation>enable or disable frame processing after test</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="disable"/>                       <xs:enumeration value="enable"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="clearRam" use="optional">                   <xs:annotation>                     <xs:documentation>enable or disable RAM clear after dump</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="disable"/>                       <xs:enumeration value="enable"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="progress" type="xs:int"/>               </xs:complexType>             </xs:element>             <xs:element name="rxpStartup" minOccurs="0">               <xs:annotation>                 <xs:documentation>setup RXP FPGAs so that inputs are as specified and output mux has maximum number of valid signals from wafer inputs</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:attribute name="status" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="clockSource" use="optional">                   <xs:annotation>                     <xs:documentation>source of 128 MHz clock</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="wafer"/>                       <xs:enumeration value="external"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="signalSource" use="optional">                   <xs:annotation>                     <xs:documentation>source of data signal (internal = test) </xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="wafers"/>                       <xs:enumeration value="skySimulate"/>                       <xs:enumeration value="testPattern"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="phasing" use="optional">                   <xs:annotation>                     <xs:documentation>enable all wafers for inclusion into phased array data stream</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="disable"/>                       <xs:enumeration value="enable"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="vdifFrameGeneration" use="optional">                   <xs:annotation>                     <xs:documentation>enable vdif frame generation and output to the ethernet FPGA</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="disable"/>                       <xs:enumeration value="enable"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="lowerLockStatus" use="optional">                   <xs:annotation>                     <xs:documentation>lock status of all inputs to lower RXP</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="notLocked"/>                       <xs:enumeration value="locked"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="upperLockStatus" use="optional">                   <xs:annotation>                     <xs:documentation>lock status of all inputs to lower RXP</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="notLocked"/>                       <xs:enumeration value="locked"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>               </xs:complexType>             </xs:element>             <xs:element name="ccVectorStartup" minOccurs="0">               <xs:annotation>                 <xs:documentation>setup CCs for test vector reception and optionally set the clock phases</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="ccVectorStatus" minOccurs="0" maxOccurs="unbounded">                     <xs:complexType>                       <xs:attribute name="id" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>identification of FPGA</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="status" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>status of setup</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="message" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>return message from process</xs:documentation>                         </xs:annotation>                       </xs:attribute>                     </xs:complexType>                   </xs:element>                 </xs:sequence>                 <xs:attribute name="status" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="phaseDwell" type="xs:int" use="optional">                   <xs:annotation>                     <xs:documentation>time to wait in ms between phase tests</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="ccClockPhaseCal" use="optional">                   <xs:annotation>                     <xs:documentation>optionally set the clock phases</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="disable"/>                       <xs:enumeration value="enable"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="phaseCalPasses" type="xs:int" use="optional">                   <xs:annotation>                     <xs:documentation>number of phase cal passes to perform</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="vectorReportInterval" type="xs:int" use="optional">                   <xs:annotation>                     <xs:documentation>time to wait in ms after phase cal has completed before reporting line errors</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="progress" type="xs:int"/>               </xs:complexType>             </xs:element>             <xs:element name="recirculatorRamTest" minOccurs="0">               <xs:annotation>                 <xs:documentation>test the recirculator RAM (recircs must have proper personality loaded)</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="ramTestResult" minOccurs="0" maxOccurs="unbounded">                     <xs:complexType>                       <xs:attribute name="id" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>identification of FPGA</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="status" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>status of setup</xs:documentation>                         </xs:annotation>                       </xs:attribute>                       <xs:attribute name="message" type="xs:string" use="required">                         <xs:annotation>                           <xs:documentation>return message from process</xs:documentation>                         </xs:annotation>                       </xs:attribute>                     </xs:complexType>                   </xs:element>                 </xs:sequence>                 <xs:attribute name="id" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>identification of FPGA</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="status" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="optional">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="configuration" minOccurs="0">         <xs:complexType>           <xs:attribute name="stbInitFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded when the CMIB state changes to 'initialize'</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="stbConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded when the CMIB state changes to 'configure'</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="stbRunFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded when the CMIB state changes to 'run'</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="corrConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the CC MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="recircConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the recirculator MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="rxpConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the RXP MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ltaConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the LTA MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ethernetConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the GBit ethernet MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vsiConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the VSI MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="filterConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the filter MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="inputConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the input MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="delayConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the delay MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="outputConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the output MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="wbcConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the  MAH</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="timingConfigFilename" type="xs:string">             <xs:annotation>               <xs:documentation>specify the file to be loaded onto the timing MAH</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="connections" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="link" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:attribute name="destMod">                   <xs:annotation>                     <xs:documentation>line destination module or filter id</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="17"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="srcMod">                   <xs:annotation>                     <xs:documentation>line source module or filter id</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="17"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="destPort">                   <xs:annotation>                     <xs:documentation>line destination port for filter input</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="A"/>                       <xs:enumeration value="B"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="srcPort">                   <xs:annotation>                     <xs:documentation>line source port for filter output</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="A"/>                       <xs:enumeration value="B"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="pathId">                   <xs:annotation>                     <xs:documentation>wideband path</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:int">                       <xs:minInclusive value="0"/>                       <xs:maxInclusive value="1"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="destDev">                   <xs:annotation>                     <xs:documentation>destination module (device)</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="formA"/>                       <xs:enumeration value="formB"/>                       <xs:enumeration value="formC"/>                       <xs:enumeration value="vsi"/>                       <xs:enumeration value="input"/>                       <xs:enumeration value="delay"/>                       <xs:enumeration value="filter"/>                       <xs:enumeration value="output"/>                       <xs:enumeration value="timing"/>                       <xs:enumeration value="wbc"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="srcDev">                   <xs:annotation>                     <xs:documentation>source module (device)</xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="formA"/>                       <xs:enumeration value="formB"/>                       <xs:enumeration value="formC"/>                       <xs:enumeration value="vsi"/>                       <xs:enumeration value="input"/>                       <xs:enumeration value="delay"/>                       <xs:enumeration value="filter"/>                       <xs:enumeration value="output"/>                       <xs:enumeration value="timing"/>                       <xs:enumeration value="wbc"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>                 <xs:attribute name="status" use="required">                   <xs:simpleType>                     <xs:restriction base="xs:string">                       <xs:enumeration value="ok"/>                       <xs:enumeration value="error"/>                       <xs:enumeration value="NC"/>                       <xs:enumeration value="unused"/>                     </xs:restriction>                   </xs:simpleType>                 </xs:attribute>               </xs:complexType>             </xs:element>             <xs:element name="dummy" minOccurs="0">               <xs:complexType>                 <xs:attribute name="alsoDummy" type="xs:string"/>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="hwComponentState" use="optional">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="initialize"/>           <xs:enumeration value="initializing"/>           <xs:enumeration value="initialized"/>           <xs:enumeration value="program"/>           <xs:enumeration value="programming"/>           <xs:enumeration value="programmed"/>           <xs:enumeration value="deprogram"/>           <xs:enumeration value="configure"/>           <xs:enumeration value="configuring"/>           <xs:enumeration value="configured"/>           <xs:enumeration value="standbyOn"/>           <xs:enumeration value="standbyOff"/>           <xs:enumeration value="standby"/>           <xs:enumeration value="run"/>           <xs:enumeration value="running"/>           <xs:enumeration value="halt"/>           <xs:enumeration value="halting"/>           <xs:enumeration value="reboot"/>           <xs:enumeration value="rebooting"/>           <xs:enumeration value="resetting"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="time" type="xs:dateTime"/>     <xs:attribute name="blankInterval" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>time in seconds to invalidate data or supress gBit data transmissions when 'blanking' attribute is present</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="blanking" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>if present, data will be invalidated (station board) or output will be supressed (baseline board) for the tim especified by 'blankInterval'</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="rowBlankingMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>mask of correllator rows to blank (stop frame transfers) for the duration of the blanking interval</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="columnBlankingMask" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>mask of correllator columns to blank (stop frame transfers) for the duration of the blanking interval</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="correlation" use="optional">       <xs:annotation>         <xs:documentation>enable or disable correlation on all correlators (baseline board only)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="delayModels" use="optional">       <xs:annotation>         <xs:documentation>enable or disable external delay model parsing (station board only)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="clearErrors" type="xs:string">       <xs:annotation>         <xs:documentation>presence of thsi attribute will zero all error counters on the board</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ps1_8Volt" use="optional">       <xs:annotation>         <xs:documentation>status of 1.8 volt power supply</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="fault"/>           <xs:enumeration value="ok"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="interruptSource">       <xs:annotation>         <xs:documentation>Source of system interrupts. Hardware interrupts com through the PCI bus, simulated come from the real time clock embedded on the CMIB. </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="y0"/>           <xs:enumeration value="y1"/>           <xs:enumeration value="y2"/>           <xs:enumeration value="y3"/>           <xs:enumeration value="y4"/>           <xs:enumeration value="y5"/>           <xs:enumeration value="y6"/>           <xs:enumeration value="y7"/>           <xs:enumeration value="x0"/>           <xs:enumeration value="x1"/>           <xs:enumeration value="x2"/>           <xs:enumeration value="x3"/>           <xs:enumeration value="x4"/>           <xs:enumeration value="x5"/>           <xs:enumeration value="x6"/>           <xs:enumeration value="x7"/>           <xs:enumeration value="timingFPGA"/>           <xs:enumeration value="simulated"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="serialNumber" type="xs:string">       <xs:annotation>         <xs:documentation>Board S/N as reported by hardware</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="slotId" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>Board slot number as reported by hardware</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="rackId" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>rack location of this motherboard</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="crateId" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>crate location of this motherboard</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ccRephase" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>force CC-Recirculator clock rephasing</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="driverVersion" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>version build date for MCB driver</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="shell" type="xs:string">       <xs:annotation>         <xs:documentation>arbitrary string sent to the 'system' command</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setGain" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>arbitrary string to force a board wide requantizer auto-gain setting</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setRQGain" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>arbitrary string to force a board wide requantizer auto-gain setting</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setS1Gain" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>arbitrary string to force a board wide stage1 auto-gain setting</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setS2Gain" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>arbitrary string to force a board wide stage1 auto-gain setting</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setS3Gain" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>arbitrary string to force a board wide stage1 auto-gain setting</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="setS4Gain" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>arbitrary string to force a board wide stage1 auto-gain setting</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/@hwComponentState

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  initialize enumeration  initializing enumeration  initialized enumeration  program enumeration  programming enumeration  programmed enumeration  deprogram enumeration  configure enumeration  configuring enumeration  configured enumeration  standbyOn enumeration  standbyOff enumeration  standby enumeration  run enumeration  running enumeration  halt enumeration  halting enumeration  reboot enumeration  rebooting enumeration  resetting
source	<xs:attribute name="hwComponentState" use="optional">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="initialize"/>       <xs:enumeration value="initializing"/>       <xs:enumeration value="initialized"/>       <xs:enumeration value="program"/>       <xs:enumeration value="programming"/>       <xs:enumeration value="programmed"/>       <xs:enumeration value="deprogram"/>       <xs:enumeration value="configure"/>       <xs:enumeration value="configuring"/>       <xs:enumeration value="configured"/>       <xs:enumeration value="standbyOn"/>       <xs:enumeration value="standbyOff"/>       <xs:enumeration value="standby"/>       <xs:enumeration value="run"/>       <xs:enumeration value="running"/>       <xs:enumeration value="halt"/>       <xs:enumeration value="halting"/>       <xs:enumeration value="reboot"/>       <xs:enumeration value="rebooting"/>       <xs:enumeration value="resetting"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/@time

type	xs:dateTime
source	<xs:attribute name="time" type="xs:dateTime"/>

attribute supervisor/@blankInterval

type	xs:int
properties	use  optional
annotation	documentation time in seconds to invalidate data or supress gBit data transmissions when 'blanking' attribute is present
source	<xs:attribute name="blankInterval" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>time in seconds to invalidate data or supress gBit data transmissions when 'blanking' attribute is present</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@blanking

type	xs:string
properties	use  optional
annotation	documentation if present, data will be invalidated (station board) or output will be supressed (baseline board) for the tim especified by 'blankInterval'
source	<xs:attribute name="blanking" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>if present, data will be invalidated (station board) or output will be supressed (baseline board) for the tim especified by 'blankInterval'</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@rowBlankingMask

type	xs:string
properties	use  optional
annotation	documentation mask of correllator rows to blank (stop frame transfers) for the duration of the blanking interval
source	<xs:attribute name="rowBlankingMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>mask of correllator rows to blank (stop frame transfers) for the duration of the blanking interval</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@columnBlankingMask

type	xs:string
properties	use  optional
annotation	documentation mask of correllator columns to blank (stop frame transfers) for the duration of the blanking interval
source	<xs:attribute name="columnBlankingMask" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>mask of correllator columns to blank (stop frame transfers) for the duration of the blanking interval</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@correlation

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable or disable correlation on all correlators (baseline board only)
source	<xs:attribute name="correlation" use="optional">   <xs:annotation>     <xs:documentation>enable or disable correlation on all correlators (baseline board only)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/@delayModels

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable or disable external delay model parsing (station board only)
source	<xs:attribute name="delayModels" use="optional">   <xs:annotation>     <xs:documentation>enable or disable external delay model parsing (station board only)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/@clearErrors

type	xs:string
annotation	documentation presence of thsi attribute will zero all error counters on the board
source	<xs:attribute name="clearErrors" type="xs:string">   <xs:annotation>     <xs:documentation>presence of thsi attribute will zero all error counters on the board</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@ps1_8Volt

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  fault enumeration  ok
annotation	documentation status of 1.8 volt power supply
source	<xs:attribute name="ps1_8Volt" use="optional">   <xs:annotation>     <xs:documentation>status of 1.8 volt power supply</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="fault"/>       <xs:enumeration value="ok"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/@interruptSource

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  y0 enumeration  y1 enumeration  y2 enumeration  y3 enumeration  y4 enumeration  y5 enumeration  y6 enumeration  y7 enumeration  x0 enumeration  x1 enumeration  x2 enumeration  x3 enumeration  x4 enumeration  x5 enumeration  x6 enumeration  x7 enumeration  timingFPGA enumeration  simulated
annotation	documentation Source of system interrupts. Hardware interrupts com through the PCI bus, simulated come from the real time clock embedded on the CMIB.
source	<xs:attribute name="interruptSource">   <xs:annotation>     <xs:documentation>Source of system interrupts. Hardware interrupts com through the PCI bus, simulated come from the real time clock embedded on the CMIB. </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="y0"/>       <xs:enumeration value="y1"/>       <xs:enumeration value="y2"/>       <xs:enumeration value="y3"/>       <xs:enumeration value="y4"/>       <xs:enumeration value="y5"/>       <xs:enumeration value="y6"/>       <xs:enumeration value="y7"/>       <xs:enumeration value="x0"/>       <xs:enumeration value="x1"/>       <xs:enumeration value="x2"/>       <xs:enumeration value="x3"/>       <xs:enumeration value="x4"/>       <xs:enumeration value="x5"/>       <xs:enumeration value="x6"/>       <xs:enumeration value="x7"/>       <xs:enumeration value="timingFPGA"/>       <xs:enumeration value="simulated"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/@serialNumber

type	xs:string
annotation	documentation Board S/N as reported by hardware
source	<xs:attribute name="serialNumber" type="xs:string">   <xs:annotation>     <xs:documentation>Board S/N as reported by hardware</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@slotId

type	xs:int
properties	use  optional
annotation	documentation Board slot number as reported by hardware
source	<xs:attribute name="slotId" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>Board slot number as reported by hardware</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@rackId

type	xs:int
properties	use  optional
annotation	documentation rack location of this motherboard
source	<xs:attribute name="rackId" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>rack location of this motherboard</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@crateId

type	xs:int
properties	use  optional
annotation	documentation crate location of this motherboard
source	<xs:attribute name="crateId" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>crate location of this motherboard</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@ccRephase

type	xs:string
properties	use  optional
annotation	documentation force CC-Recirculator clock rephasing
source	<xs:attribute name="ccRephase" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>force CC-Recirculator clock rephasing</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@driverVersion

type	xs:string
properties	use  optional
annotation	documentation version build date for MCB driver
source	<xs:attribute name="driverVersion" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>version build date for MCB driver</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@shell

type	xs:string
annotation	documentation arbitrary string sent to the 'system' command
source	<xs:attribute name="shell" type="xs:string">   <xs:annotation>     <xs:documentation>arbitrary string sent to the 'system' command</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@setGain

type	xs:string
properties	use  optional
annotation	documentation arbitrary string to force a board wide requantizer auto-gain setting
source	<xs:attribute name="setGain" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>arbitrary string to force a board wide requantizer auto-gain setting</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@setRQGain

type	xs:string
properties	use  optional
annotation	documentation arbitrary string to force a board wide requantizer auto-gain setting
source	<xs:attribute name="setRQGain" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>arbitrary string to force a board wide requantizer auto-gain setting</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@setS1Gain

type	xs:string
properties	use  optional
annotation	documentation arbitrary string to force a board wide stage1 auto-gain setting
source	<xs:attribute name="setS1Gain" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>arbitrary string to force a board wide stage1 auto-gain setting</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@setS2Gain

type	xs:string
properties	use  optional
annotation	documentation arbitrary string to force a board wide stage1 auto-gain setting
source	<xs:attribute name="setS2Gain" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>arbitrary string to force a board wide stage1 auto-gain setting</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@setS3Gain

type	xs:string
properties	use  optional
annotation	documentation arbitrary string to force a board wide stage1 auto-gain setting
source	<xs:attribute name="setS3Gain" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>arbitrary string to force a board wide stage1 auto-gain setting</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/@setS4Gain

type	xs:string
properties	use  optional
annotation	documentation arbitrary string to force a board wide stage1 auto-gain setting
source	<xs:attribute name="setS4Gain" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>arbitrary string to force a board wide stage1 auto-gain setting</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/metrics

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	tasklet system
source	<xs:element name="metrics" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="tasklet" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:attribute name="taskletId" type="xs:string"/>           <xs:attribute name="timeMax" type="xs:int"/>           <xs:attribute name="durationMax" type="xs:int"/>           <xs:attribute name="durationMin" type="xs:int"/>           <xs:attribute name="latencyMax" type="xs:int"/>           <xs:attribute name="latencyMin" type="xs:int"/>           <xs:attribute name="reset" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element name="system" minOccurs="0">         <xs:complexType>           <xs:attribute name="memory" type="xs:int"/>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element supervisor/metrics/tasklet

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation taskletId   xs:string            timeMax   xs:int            durationMax   xs:int            durationMin   xs:int            latencyMax   xs:int            latencyMin   xs:int            reset   xs:string
source	<xs:element name="tasklet" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:attribute name="taskletId" type="xs:string"/>     <xs:attribute name="timeMax" type="xs:int"/>     <xs:attribute name="durationMax" type="xs:int"/>     <xs:attribute name="durationMin" type="xs:int"/>     <xs:attribute name="latencyMax" type="xs:int"/>     <xs:attribute name="latencyMin" type="xs:int"/>     <xs:attribute name="reset" type="xs:string"/>   </xs:complexType> </xs:element>

attribute supervisor/metrics/tasklet/@taskletId

type	xs:string
source	<xs:attribute name="taskletId" type="xs:string"/>

attribute supervisor/metrics/tasklet/@timeMax

type	xs:int
source	<xs:attribute name="timeMax" type="xs:int"/>

attribute supervisor/metrics/tasklet/@durationMax

type	xs:int
source	<xs:attribute name="durationMax" type="xs:int"/>

attribute supervisor/metrics/tasklet/@durationMin

type	xs:int
source	<xs:attribute name="durationMin" type="xs:int"/>

attribute supervisor/metrics/tasklet/@latencyMax

type	xs:int
source	<xs:attribute name="latencyMax" type="xs:int"/>

attribute supervisor/metrics/tasklet/@latencyMin

type	xs:int
source	<xs:attribute name="latencyMin" type="xs:int"/>

attribute supervisor/metrics/tasklet/@reset

type	xs:string
source	<xs:attribute name="reset" type="xs:string"/>

element supervisor/metrics/system

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation memory   xs:int
source	<xs:element name="system" minOccurs="0">   <xs:complexType>     <xs:attribute name="memory" type="xs:int"/>   </xs:complexType> </xs:element>

attribute supervisor/metrics/system/@memory

type	xs:int
source	<xs:attribute name="memory" type="xs:int"/>

element supervisor/baselineBoardGridStatus

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	column dummy
source	<xs:element name="baselineBoardGridStatus" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="column" minOccurs="0" maxOccurs="8">         <xs:complexType>           <xs:attribute name="id" type="xs:int"/>           <xs:attribute name="ledDeviceLta" type="xs:string">             <xs:annotation>               <xs:documentation>mask of lta device status for rows 0-7</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledCcToLta" type="xs:string">             <xs:annotation>               <xs:documentation>mask of lta to CC status LEDs for rows 0-7. This is a mask of the lta root attribute ledCcToLta</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledLtaToLta" type="xs:string">             <xs:annotation>               <xs:documentation>mask of lta to lta status for rows 0-7. This is a mask of the lta root attribute ledLtaToLta</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledDeviceCorr" type="xs:string">             <xs:annotation>               <xs:documentation>mask of CC device status for rows 0-7</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledXStatus" type="xs:string">             <xs:annotation>               <xs:documentation>mask of CC X input status for rows 0-7. This is a mask of the CC:status attribute xStatus</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ledYStatus" type="xs:string">             <xs:annotation>               <xs:documentation>mask of CC Y input status for rows 0-7. This is a mask of the CC:status attribute yStatus</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="correlationMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of correlaton enables for rows 0-7. 1 = correlation enabled, 0 = disabled</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="testVectorMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of test vector receivers for rows 0-7. 1 = receivers enabled, 0 = disabled</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="phaseRotationMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of phase rotation enables for rows 0-7. 1 = rotation enabled, 0 = disabled</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="autoCorrelationMask" type="xs:string">             <xs:annotation>               <xs:documentation>mask of auto correlation configuratins for rows 0-7. 1 = auto correlation enabled, 0 = disabled</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="dummy" minOccurs="0">         <xs:complexType>           <xs:attribute name="alsoDummy" type="xs:int"/>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element supervisor/baselineBoardGridStatus/column

diagram
properties	minOcc  0 maxOcc  8 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:int            ledDeviceLta   xs:string            documentation mask of lta device status for rows 0-7 ledCcToLta   xs:string            documentation mask of lta to CC status LEDs for rows 0-7. This is a mask of the lta root attribute ledCcToLta ledLtaToLta   xs:string            documentation mask of lta to lta status for rows 0-7. This is a mask of the lta root attribute ledLtaToLta ledDeviceCorr   xs:string            documentation mask of CC device status for rows 0-7 ledXStatus   xs:string            documentation mask of CC X input status for rows 0-7. This is a mask of the CC:status attribute xStatus ledYStatus   xs:string            documentation mask of CC Y input status for rows 0-7. This is a mask of the CC:status attribute yStatus correlationMask   xs:string            documentation mask of correlaton enables for rows 0-7. 1 = correlation enabled, 0 = disabled testVectorMask   xs:string            documentation mask of test vector receivers for rows 0-7. 1 = receivers enabled, 0 = disabled phaseRotationMask   xs:string            documentation mask of phase rotation enables for rows 0-7. 1 = rotation enabled, 0 = disabled autoCorrelationMask   xs:string            documentation mask of auto correlation configuratins for rows 0-7. 1 = auto correlation enabled, 0 = disabled
source	<xs:element name="column" minOccurs="0" maxOccurs="8">   <xs:complexType>     <xs:attribute name="id" type="xs:int"/>     <xs:attribute name="ledDeviceLta" type="xs:string">       <xs:annotation>         <xs:documentation>mask of lta device status for rows 0-7</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledCcToLta" type="xs:string">       <xs:annotation>         <xs:documentation>mask of lta to CC status LEDs for rows 0-7. This is a mask of the lta root attribute ledCcToLta</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledLtaToLta" type="xs:string">       <xs:annotation>         <xs:documentation>mask of lta to lta status for rows 0-7. This is a mask of the lta root attribute ledLtaToLta</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledDeviceCorr" type="xs:string">       <xs:annotation>         <xs:documentation>mask of CC device status for rows 0-7</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledXStatus" type="xs:string">       <xs:annotation>         <xs:documentation>mask of CC X input status for rows 0-7. This is a mask of the CC:status attribute xStatus</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ledYStatus" type="xs:string">       <xs:annotation>         <xs:documentation>mask of CC Y input status for rows 0-7. This is a mask of the CC:status attribute yStatus</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="correlationMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of correlaton enables for rows 0-7. 1 = correlation enabled, 0 = disabled</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="testVectorMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of test vector receivers for rows 0-7. 1 = receivers enabled, 0 = disabled</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="phaseRotationMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of phase rotation enables for rows 0-7. 1 = rotation enabled, 0 = disabled</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="autoCorrelationMask" type="xs:string">       <xs:annotation>         <xs:documentation>mask of auto correlation configuratins for rows 0-7. 1 = auto correlation enabled, 0 = disabled</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/baselineBoardGridStatus/column/@id

type	xs:int
source	<xs:attribute name="id" type="xs:int"/>

attribute supervisor/baselineBoardGridStatus/column/@ledDeviceLta

type	xs:string
annotation	documentation mask of lta device status for rows 0-7
source	<xs:attribute name="ledDeviceLta" type="xs:string">   <xs:annotation>     <xs:documentation>mask of lta device status for rows 0-7</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@ledCcToLta

type	xs:string
annotation	documentation mask of lta to CC status LEDs for rows 0-7. This is a mask of the lta root attribute ledCcToLta
source	<xs:attribute name="ledCcToLta" type="xs:string">   <xs:annotation>     <xs:documentation>mask of lta to CC status LEDs for rows 0-7. This is a mask of the lta root attribute ledCcToLta</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@ledLtaToLta

type	xs:string
annotation	documentation mask of lta to lta status for rows 0-7. This is a mask of the lta root attribute ledLtaToLta
source	<xs:attribute name="ledLtaToLta" type="xs:string">   <xs:annotation>     <xs:documentation>mask of lta to lta status for rows 0-7. This is a mask of the lta root attribute ledLtaToLta</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@ledDeviceCorr

type	xs:string
annotation	documentation mask of CC device status for rows 0-7
source	<xs:attribute name="ledDeviceCorr" type="xs:string">   <xs:annotation>     <xs:documentation>mask of CC device status for rows 0-7</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@ledXStatus

type	xs:string
annotation	documentation mask of CC X input status for rows 0-7. This is a mask of the CC:status attribute xStatus
source	<xs:attribute name="ledXStatus" type="xs:string">   <xs:annotation>     <xs:documentation>mask of CC X input status for rows 0-7. This is a mask of the CC:status attribute xStatus</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@ledYStatus

type	xs:string
annotation	documentation mask of CC Y input status for rows 0-7. This is a mask of the CC:status attribute yStatus
source	<xs:attribute name="ledYStatus" type="xs:string">   <xs:annotation>     <xs:documentation>mask of CC Y input status for rows 0-7. This is a mask of the CC:status attribute yStatus</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@correlationMask

type	xs:string
annotation	documentation mask of correlaton enables for rows 0-7. 1 = correlation enabled, 0 = disabled
source	<xs:attribute name="correlationMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of correlaton enables for rows 0-7. 1 = correlation enabled, 0 = disabled</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@testVectorMask

type	xs:string
annotation	documentation mask of test vector receivers for rows 0-7. 1 = receivers enabled, 0 = disabled
source	<xs:attribute name="testVectorMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of test vector receivers for rows 0-7. 1 = receivers enabled, 0 = disabled</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@phaseRotationMask

type	xs:string
annotation	documentation mask of phase rotation enables for rows 0-7. 1 = rotation enabled, 0 = disabled
source	<xs:attribute name="phaseRotationMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of phase rotation enables for rows 0-7. 1 = rotation enabled, 0 = disabled</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/baselineBoardGridStatus/column/@autoCorrelationMask

type	xs:string
annotation	documentation mask of auto correlation configuratins for rows 0-7. 1 = auto correlation enabled, 0 = disabled
source	<xs:attribute name="autoCorrelationMask" type="xs:string">   <xs:annotation>     <xs:documentation>mask of auto correlation configuratins for rows 0-7. 1 = auto correlation enabled, 0 = disabled</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/baselineBoardGridStatus/dummy

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation alsoDummy   xs:int
source	<xs:element name="dummy" minOccurs="0">   <xs:complexType>     <xs:attribute name="alsoDummy" type="xs:int"/>   </xs:complexType> </xs:element>

attribute supervisor/baselineBoardGridStatus/dummy/@alsoDummy

type	xs:int
source	<xs:attribute name="alsoDummy" type="xs:int"/>

element supervisor/dataProducts

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	clipMonitor crcMonitor inputStateMonitor quantizerMonitor powerMonitor rfiMonitor toneExtract intervalMonitor errorCountMonitor wbcMonitor
annotation	documentation Specify the integration times and control other aspects of the station board data product tasks.
source	<xs:element name="dataProducts" minOccurs="0">   <xs:annotation>     <xs:documentation>Specify the integration times and control other aspects of the station board data product tasks.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="clipMonitor" minOccurs="0"/>       <xs:element ref="crcMonitor" minOccurs="0"/>       <xs:element ref="inputStateMonitor" minOccurs="0"/>       <xs:element ref="quantizerMonitor" minOccurs="0"/>       <xs:element ref="powerMonitor" minOccurs="0"/>       <xs:element ref="rfiMonitor" minOccurs="0"/>       <xs:element ref="toneExtract" minOccurs="0"/>       <xs:element ref="intervalMonitor" minOccurs="0"/>       <xs:element ref="errorCountMonitor" minOccurs="0"/>       <xs:element ref="wbcMonitor" minOccurs="0" maxOccurs="32"/>     </xs:sequence>   </xs:complexType> </xs:element>

element supervisor/configQueue

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation configName   xs:string   required         documentation name of configuration as specified in vciConfiguration activationTime   xs:string            documentation configuration activation time as specified in vciConfiguration or as actually occured if configuration is active or complete remove   derived by: xs:string            documentation if present, any configuration in the queue with a matching configName will be deleted status   derived by: xs:string            documentation status of thisi configuration
annotation	documentation report state of or manage configuration queue elements
source	<xs:element name="configQueue" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>report state of or manage configuration queue elements</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="configName" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>name of configuration as specified in vciConfiguration</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="activationTime" type="xs:string">       <xs:annotation>         <xs:documentation>configuration activation time as specified in vciConfiguration or as actually occured if configuration is active or complete</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="remove">       <xs:annotation>         <xs:documentation>if present, any configuration in the queue with a matching configName will be deleted</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="no"/>           <xs:enumeration value="yes"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="status">       <xs:annotation>         <xs:documentation>status of thisi configuration</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="waiting"/>           <xs:enumeration value="inProcess"/>           <xs:enumeration value="active"/>           <xs:enumeration value="complete"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/configQueue/@configName

type	xs:string
properties	use  required
annotation	documentation name of configuration as specified in vciConfiguration
source	<xs:attribute name="configName" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>name of configuration as specified in vciConfiguration</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configQueue/@activationTime

type	xs:string
annotation	documentation configuration activation time as specified in vciConfiguration or as actually occured if configuration is active or complete
source	<xs:attribute name="activationTime" type="xs:string">   <xs:annotation>     <xs:documentation>configuration activation time as specified in vciConfiguration or as actually occured if configuration is active or complete</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configQueue/@remove

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  no enumeration  yes
annotation	documentation if present, any configuration in the queue with a matching configName will be deleted
source	<xs:attribute name="remove">   <xs:annotation>     <xs:documentation>if present, any configuration in the queue with a matching configName will be deleted</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="no"/>       <xs:enumeration value="yes"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/configQueue/@status

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  waiting enumeration  inProcess enumeration  active enumeration  complete
annotation	documentation status of thisi configuration
source	<xs:attribute name="status">   <xs:annotation>     <xs:documentation>status of thisi configuration</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="waiting"/>       <xs:enumeration value="inProcess"/>       <xs:enumeration value="active"/>       <xs:enumeration value="complete"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element supervisor/fpgaSource

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	fpgaBitStreamName
attributes	Name   Type   Use   Default   Fixed   Annotation directory   xs:string
source	<xs:element name="fpgaSource" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="fpgaBitStreamName" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:attribute name="device" use="required">             <xs:annotation>               <xs:documentation>FPGA device class</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="input"/>                 <xs:enumeration value="delay"/>                 <xs:enumeration value="wbc"/>                 <xs:enumeration value="filter"/>                 <xs:enumeration value="timing"/>                 <xs:enumeration value="output"/>                 <xs:enumeration value="vsi"/>                 <xs:enumeration value="config"/>                 <xs:enumeration value="fanout"/>                 <xs:enumeration value="ethernet"/>                 <xs:enumeration value="lta"/>                 <xs:enumeration value="recirculator"/>                 <xs:enumeration value="mcb"/>                 <xs:enumeration value="rxp"/>                 <xs:enumeration value=""/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bitFile" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>path to personality program bit stream file</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="driver" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>name of CMIB driver to use for programming</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="pathId">             <xs:annotation>               <xs:documentation>Wideband path id for driver name (required for filter, delay, and output)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="bank">             <xs:annotation>               <xs:documentation>bank number for LTA fpga chips</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="7"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="directory" type="xs:string"/>   </xs:complexType> </xs:element>

attribute supervisor/fpgaSource/@directory

type	xs:string
source	<xs:attribute name="directory" type="xs:string"/>

element supervisor/fpgaSource/fpgaBitStreamName

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation device   derived by: xs:string   required         documentation FPGA device class bitFile   xs:string   optional         documentation path to personality program bit stream file driver   xs:string   optional         documentation name of CMIB driver to use for programming pathId   derived by: xs:int            documentation Wideband path id for driver name (required for filter, delay, and output) bank   derived by: xs:int            documentation bank number for LTA fpga chips
source	<xs:element name="fpgaBitStreamName" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:attribute name="device" use="required">       <xs:annotation>         <xs:documentation>FPGA device class</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="input"/>           <xs:enumeration value="delay"/>           <xs:enumeration value="wbc"/>           <xs:enumeration value="filter"/>           <xs:enumeration value="timing"/>           <xs:enumeration value="output"/>           <xs:enumeration value="vsi"/>           <xs:enumeration value="config"/>           <xs:enumeration value="fanout"/>           <xs:enumeration value="ethernet"/>           <xs:enumeration value="lta"/>           <xs:enumeration value="recirculator"/>           <xs:enumeration value="mcb"/>           <xs:enumeration value="rxp"/>           <xs:enumeration value=""/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bitFile" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>path to personality program bit stream file</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="driver" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>name of CMIB driver to use for programming</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="pathId">       <xs:annotation>         <xs:documentation>Wideband path id for driver name (required for filter, delay, and output)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="bank">       <xs:annotation>         <xs:documentation>bank number for LTA fpga chips</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="7"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/fpgaSource/fpgaBitStreamName/@device

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  input enumeration  delay enumeration  wbc enumeration  filter enumeration  timing enumeration  output enumeration  vsi enumeration  config enumeration  fanout enumeration  ethernet enumeration  lta enumeration  recirculator enumeration  mcb enumeration  rxp enumeration
annotation	documentation FPGA device class
source	<xs:attribute name="device" use="required">   <xs:annotation>     <xs:documentation>FPGA device class</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="input"/>       <xs:enumeration value="delay"/>       <xs:enumeration value="wbc"/>       <xs:enumeration value="filter"/>       <xs:enumeration value="timing"/>       <xs:enumeration value="output"/>       <xs:enumeration value="vsi"/>       <xs:enumeration value="config"/>       <xs:enumeration value="fanout"/>       <xs:enumeration value="ethernet"/>       <xs:enumeration value="lta"/>       <xs:enumeration value="recirculator"/>       <xs:enumeration value="mcb"/>       <xs:enumeration value="rxp"/>       <xs:enumeration value=""/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/fpgaSource/fpgaBitStreamName/@bitFile

type	xs:string
properties	use  optional
annotation	documentation path to personality program bit stream file
source	<xs:attribute name="bitFile" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>path to personality program bit stream file</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/fpgaSource/fpgaBitStreamName/@driver

type	xs:string
properties	use  optional
annotation	documentation name of CMIB driver to use for programming
source	<xs:attribute name="driver" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>name of CMIB driver to use for programming</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/fpgaSource/fpgaBitStreamName/@pathId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation Wideband path id for driver name (required for filter, delay, and output)
source	<xs:attribute name="pathId">   <xs:annotation>     <xs:documentation>Wideband path id for driver name (required for filter, delay, and output)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/fpgaSource/fpgaBitStreamName/@bank

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  7
annotation	documentation bank number for LTA fpga chips
source	<xs:attribute name="bank">   <xs:annotation>     <xs:documentation>bank number for LTA fpga chips</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="7"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element supervisor/state

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation fpgaProgram   xs:string            fpgaSource   xs:string            metrics   xs:string            dataProducts   xs:string            tableName   xs:string            tableLoad   xs:string            selfTestResults   xs:string            testUtility   xs:string            configuration   xs:string            connections   xs:string            configQueue   xs:string            baselineBoardGridStatus   xs:string
source	<xs:element name="state" minOccurs="0">   <xs:complexType>     <xs:attribute name="fpgaProgram" type="xs:string"/>     <xs:attribute name="fpgaSource" type="xs:string"/>     <xs:attribute name="metrics" type="xs:string"/>     <xs:attribute name="dataProducts" type="xs:string"/>     <xs:attribute name="tableName" type="xs:string"/>     <xs:attribute name="tableLoad" type="xs:string"/>     <xs:attribute name="selfTestResults" type="xs:string"/>     <xs:attribute name="testUtility" type="xs:string"/>     <xs:attribute name="configuration" type="xs:string"/>     <xs:attribute name="connections" type="xs:string"/>     <xs:attribute name="configQueue" type="xs:string"/>     <xs:attribute name="baselineBoardGridStatus" type="xs:string"/>   </xs:complexType> </xs:element>

attribute supervisor/state/@fpgaProgram

type	xs:string
source	<xs:attribute name="fpgaProgram" type="xs:string"/>

attribute supervisor/state/@fpgaSource

type	xs:string
source	<xs:attribute name="fpgaSource" type="xs:string"/>

attribute supervisor/state/@metrics

type	xs:string
source	<xs:attribute name="metrics" type="xs:string"/>

attribute supervisor/state/@dataProducts

type	xs:string
source	<xs:attribute name="dataProducts" type="xs:string"/>

attribute supervisor/state/@tableName

type	xs:string
source	<xs:attribute name="tableName" type="xs:string"/>

attribute supervisor/state/@tableLoad

type	xs:string
source	<xs:attribute name="tableLoad" type="xs:string"/>

attribute supervisor/state/@selfTestResults

type	xs:string
source	<xs:attribute name="selfTestResults" type="xs:string"/>

attribute supervisor/state/@testUtility

type	xs:string
source	<xs:attribute name="testUtility" type="xs:string"/>

attribute supervisor/state/@configuration

type	xs:string
source	<xs:attribute name="configuration" type="xs:string"/>

attribute supervisor/state/@connections

type	xs:string
source	<xs:attribute name="connections" type="xs:string"/>

attribute supervisor/state/@configQueue

type	xs:string
source	<xs:attribute name="configQueue" type="xs:string"/>

attribute supervisor/state/@baselineBoardGridStatus

type	xs:string
source	<xs:attribute name="baselineBoardGridStatus" type="xs:string"/>

element supervisor/tableLoad

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation filterS1LutMask   xs:string            filterS2LutMask   xs:string            filterS3LutMask   xs:string            filterS4LutMask   xs:string            filterMixerMask   xs:string            filterToneExtMask   xs:string            inputXlate   xs:string            delayVectorLoadMask   xs:string            delayVectorLoadProgress0   xs:int            delayVectorLoadProgress1   xs:int            tableLoadVerify   derived by: xs:string
annotation	documentation force load of LUTs as currently specified by supervisor:tableName element
source	<xs:element name="tableLoad" minOccurs="0">   <xs:annotation>     <xs:documentation>force load of LUTs as currently specified by supervisor:tableName element</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="filterS1LutMask" type="xs:string"/>     <xs:attribute name="filterS2LutMask" type="xs:string"/>     <xs:attribute name="filterS3LutMask" type="xs:string"/>     <xs:attribute name="filterS4LutMask" type="xs:string"/>     <xs:attribute name="filterMixerMask" type="xs:string"/>     <xs:attribute name="filterToneExtMask" type="xs:string"/>     <xs:attribute name="inputXlate" type="xs:string"/>     <xs:attribute name="delayVectorLoadMask" type="xs:string"/>     <xs:attribute name="delayVectorLoadProgress0" type="xs:int"/>     <xs:attribute name="delayVectorLoadProgress1" type="xs:int"/>     <xs:attribute name="tableLoadVerify">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/tableLoad/@filterS1LutMask

type	xs:string
source	<xs:attribute name="filterS1LutMask" type="xs:string"/>

attribute supervisor/tableLoad/@filterS2LutMask

type	xs:string
source	<xs:attribute name="filterS2LutMask" type="xs:string"/>

attribute supervisor/tableLoad/@filterS3LutMask

type	xs:string
source	<xs:attribute name="filterS3LutMask" type="xs:string"/>

attribute supervisor/tableLoad/@filterS4LutMask

type	xs:string
source	<xs:attribute name="filterS4LutMask" type="xs:string"/>

attribute supervisor/tableLoad/@filterMixerMask

type	xs:string
source	<xs:attribute name="filterMixerMask" type="xs:string"/>

attribute supervisor/tableLoad/@filterToneExtMask

type	xs:string
source	<xs:attribute name="filterToneExtMask" type="xs:string"/>

attribute supervisor/tableLoad/@inputXlate

type	xs:string
source	<xs:attribute name="inputXlate" type="xs:string"/>

attribute supervisor/tableLoad/@delayVectorLoadMask

type	xs:string
source	<xs:attribute name="delayVectorLoadMask" type="xs:string"/>

attribute supervisor/tableLoad/@delayVectorLoadProgress0

type	xs:int
source	<xs:attribute name="delayVectorLoadProgress0" type="xs:int"/>

attribute supervisor/tableLoad/@delayVectorLoadProgress1

type	xs:int
source	<xs:attribute name="delayVectorLoadProgress1" type="xs:int"/>

attribute supervisor/tableLoad/@tableLoadVerify

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
source	<xs:attribute name="tableLoadVerify">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element supervisor/tableName

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	filter input delayVector
annotation	documentation when read, report the names of the currently loaded LUTs, when written, set the LUT filenames for future loading with supervisor:tableLoad element
source	<xs:element name="tableName" minOccurs="0">   <xs:annotation>     <xs:documentation>when read, report the names of the currently loaded LUTs, when written, set the LUT filenames for future loading with supervisor:tableLoad element</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="filter" minOccurs="0" maxOccurs="36">         <xs:complexType>           <xs:attribute name="id" type="xs:string" use="required"/>           <xs:attribute name="stage1Lut" type="xs:string"/>           <xs:attribute name="stage2Lut" type="xs:string"/>           <xs:attribute name="stage3Lut" type="xs:string"/>           <xs:attribute name="stage4Lut" type="xs:string"/>           <xs:attribute name="mixerLut" type="xs:string"/>           <xs:attribute name="toneExtLut" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element name="input" minOccurs="0">         <xs:complexType>           <xs:attribute name="translatorLut" type="xs:string"/>         </xs:complexType>       </xs:element>       <xs:element name="delayVector" minOccurs="0" maxOccurs="2">         <xs:complexType>           <xs:attribute name="id" use="required">             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vectorFileName" type="xs:string"/>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element supervisor/tableName/filter

diagram
properties	minOcc  0 maxOcc  36 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         stage1Lut   xs:string            stage2Lut   xs:string            stage3Lut   xs:string            stage4Lut   xs:string            mixerLut   xs:string            toneExtLut   xs:string
source	<xs:element name="filter" minOccurs="0" maxOccurs="36">   <xs:complexType>     <xs:attribute name="id" type="xs:string" use="required"/>     <xs:attribute name="stage1Lut" type="xs:string"/>     <xs:attribute name="stage2Lut" type="xs:string"/>     <xs:attribute name="stage3Lut" type="xs:string"/>     <xs:attribute name="stage4Lut" type="xs:string"/>     <xs:attribute name="mixerLut" type="xs:string"/>     <xs:attribute name="toneExtLut" type="xs:string"/>   </xs:complexType> </xs:element>

attribute supervisor/tableName/filter/@id

type	xs:string
properties	use  required
source	<xs:attribute name="id" type="xs:string" use="required"/>

attribute supervisor/tableName/filter/@stage1Lut

type	xs:string
source	<xs:attribute name="stage1Lut" type="xs:string"/>

attribute supervisor/tableName/filter/@stage2Lut

type	xs:string
source	<xs:attribute name="stage2Lut" type="xs:string"/>

attribute supervisor/tableName/filter/@stage3Lut

type	xs:string
source	<xs:attribute name="stage3Lut" type="xs:string"/>

attribute supervisor/tableName/filter/@stage4Lut

type	xs:string
source	<xs:attribute name="stage4Lut" type="xs:string"/>

attribute supervisor/tableName/filter/@mixerLut

type	xs:string
source	<xs:attribute name="mixerLut" type="xs:string"/>

attribute supervisor/tableName/filter/@toneExtLut

type	xs:string
source	<xs:attribute name="toneExtLut" type="xs:string"/>

element supervisor/tableName/input

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation translatorLut   xs:string
source	<xs:element name="input" minOccurs="0">   <xs:complexType>     <xs:attribute name="translatorLut" type="xs:string"/>   </xs:complexType> </xs:element>

attribute supervisor/tableName/input/@translatorLut

type	xs:string
source	<xs:attribute name="translatorLut" type="xs:string"/>

element supervisor/tableName/delayVector

diagram
properties	minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         vectorFileName   xs:string
source	<xs:element name="delayVector" minOccurs="0" maxOccurs="2">   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vectorFileName" type="xs:string"/>   </xs:complexType> </xs:element>

attribute supervisor/tableName/delayVector/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
source	<xs:attribute name="id" use="required">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/tableName/delayVector/@vectorFileName

type	xs:string
source	<xs:attribute name="vectorFileName" type="xs:string"/>

element supervisor/selfTestResults

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation power   derived by: xs:string            rxp   derived by: xs:string            recirculator   derived by: xs:string            lta   derived by: xs:string            cc   derived by: xs:string
source	<xs:element name="selfTestResults" minOccurs="0">   <xs:complexType>     <xs:attribute name="power">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="pass"/>           <xs:enumeration value="fail"/>           <xs:enumeration value="skipped"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="rxp">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="pass"/>           <xs:enumeration value="fail"/>           <xs:enumeration value="skipped"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="recirculator">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="pass"/>           <xs:enumeration value="fail"/>           <xs:enumeration value="skipped"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="lta">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="pass"/>           <xs:enumeration value="fail"/>           <xs:enumeration value="skipped"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="cc">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="pass"/>           <xs:enumeration value="fail"/>           <xs:enumeration value="skipped"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/selfTestResults/@power

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  pass enumeration  fail enumeration  skipped
source	<xs:attribute name="power">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="pass"/>       <xs:enumeration value="fail"/>       <xs:enumeration value="skipped"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/selfTestResults/@rxp

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  pass enumeration  fail enumeration  skipped
source	<xs:attribute name="rxp">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="pass"/>       <xs:enumeration value="fail"/>       <xs:enumeration value="skipped"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/selfTestResults/@recirculator

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  pass enumeration  fail enumeration  skipped
source	<xs:attribute name="recirculator">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="pass"/>       <xs:enumeration value="fail"/>       <xs:enumeration value="skipped"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/selfTestResults/@lta

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  pass enumeration  fail enumeration  skipped
source	<xs:attribute name="lta">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="pass"/>       <xs:enumeration value="fail"/>       <xs:enumeration value="skipped"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/selfTestResults/@cc

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  pass enumeration  fail enumeration  skipped
source	<xs:attribute name="cc">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="pass"/>       <xs:enumeration value="fail"/>       <xs:enumeration value="skipped"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element supervisor/testUtility

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	vectorTest powerCheck recirculatorStartup ltaStartup rxpStartup ccVectorStartup recirculatorRamTest
source	<xs:element name="testUtility" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="vectorTest" minOccurs="0">         <xs:annotation>           <xs:documentation>supply models to the delay modules, generate phase models, and start dump triggers</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="moduleId">             <xs:annotation>               <xs:documentation>delay module or wideband path number (0|1|both)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="0"/>                 <xs:enumeration value="1"/>                 <xs:enumeration value="both"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="duration">             <xs:annotation>               <xs:documentation>number of seconds to run test. Duration is limited to 10 second increments, default is  'forever'</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="10"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="module0Filename" type="xs:string">             <xs:annotation>               <xs:documentation>full path to model file for baseband path 0</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="module1Filename" type="xs:string">             <xs:annotation>               <xs:documentation>full path to model file for baseband path 1</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="activationTime" type="xs:dateTime">             <xs:annotation>               <xs:documentation>test will begin execution at the time specified (based on comparison with observation clock) User can specify a time in ISO format, an offset from current time in integer seconds (+20), or 'now' for immediate execution.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="phaseModels">             <xs:annotation>               <xs:documentation>test will begin execution after  the delay specified (in seconds, default is on)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="off"/>                 <xs:enumeration value="on"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="progress" type="xs:int"/>           <xs:attribute name="ltaIntegFactor" type="xs:int">             <xs:annotation>               <xs:documentation>count of hardware integrations to accumulate</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="hwIntegTime" type="xs:int">             <xs:annotation>               <xs:documentation>correlator chip integration time in microseconds (default is 500)</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="halt" type="xs:string">             <xs:annotation>               <xs:documentation>force model updating and dump trigger generation to abort.</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="powerCheck" minOccurs="0">         <xs:annotation>           <xs:documentation>verify the board power and temp</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="status" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="recirculatorStartup" minOccurs="0">         <xs:annotation>           <xs:documentation>start the recirculators and connect with the correlator chip</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="hmReceiverStatus" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:attribute name="id" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>identification of FPGA</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="status" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="status" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="ltaStartup" minOccurs="0">         <xs:annotation>           <xs:documentation>start the LTAs and power up the correlators</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ccPowerStatus" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:attribute name="id" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>identification of FPGA</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="status" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>             <xs:element name="ltaRamStatus" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:attribute name="id" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>identification of FPGA</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="status" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="bank1" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>return message from RAM bank 1 test process</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="bank2" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>return message from RAM bank 2 test process</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="status" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="targetIp" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>target back end processor node IP address</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="targetMac" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>target back end processor node MAC address</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ccLowVoltage" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>recorded correlator chip minimum voltage</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ccHighVoltage" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>recorded correlator chip maximum voltage</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="testRamOnFail" use="optional">             <xs:annotation>               <xs:documentation>enable or disable detailed RAM test after LTA reports RAM failure</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="chipStartDelay" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>CC to CC startup delay in tick counts</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="dataFlow" use="optional">             <xs:annotation>               <xs:documentation>enable or disable frame processing after test</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="clearRam" use="optional">             <xs:annotation>               <xs:documentation>enable or disable RAM clear after dump</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="progress" type="xs:int"/>         </xs:complexType>       </xs:element>       <xs:element name="rxpStartup" minOccurs="0">         <xs:annotation>           <xs:documentation>setup RXP FPGAs so that inputs are as specified and output mux has maximum number of valid signals from wafer inputs</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="status" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="clockSource" use="optional">             <xs:annotation>               <xs:documentation>source of 128 MHz clock</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="wafer"/>                 <xs:enumeration value="external"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="signalSource" use="optional">             <xs:annotation>               <xs:documentation>source of data signal (internal = test) </xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="wafers"/>                 <xs:enumeration value="skySimulate"/>                 <xs:enumeration value="testPattern"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="phasing" use="optional">             <xs:annotation>               <xs:documentation>enable all wafers for inclusion into phased array data stream</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="vdifFrameGeneration" use="optional">             <xs:annotation>               <xs:documentation>enable vdif frame generation and output to the ethernet FPGA</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="lowerLockStatus" use="optional">             <xs:annotation>               <xs:documentation>lock status of all inputs to lower RXP</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLocked"/>                 <xs:enumeration value="locked"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="upperLockStatus" use="optional">             <xs:annotation>               <xs:documentation>lock status of all inputs to lower RXP</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="notLocked"/>                 <xs:enumeration value="locked"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="ccVectorStartup" minOccurs="0">         <xs:annotation>           <xs:documentation>setup CCs for test vector reception and optionally set the clock phases</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ccVectorStatus" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:attribute name="id" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>identification of FPGA</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="status" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="status" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="phaseDwell" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>time to wait in ms between phase tests</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="ccClockPhaseCal" use="optional">             <xs:annotation>               <xs:documentation>optionally set the clock phases</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="disable"/>                 <xs:enumeration value="enable"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="phaseCalPasses" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>number of phase cal passes to perform</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="vectorReportInterval" type="xs:int" use="optional">             <xs:annotation>               <xs:documentation>time to wait in ms after phase cal has completed before reporting line errors</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="progress" type="xs:int"/>         </xs:complexType>       </xs:element>       <xs:element name="recirculatorRamTest" minOccurs="0">         <xs:annotation>           <xs:documentation>test the recirculator RAM (recircs must have proper personality loaded)</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ramTestResult" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:attribute name="id" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>identification of FPGA</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="status" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>status of setup</xs:documentation>                   </xs:annotation>                 </xs:attribute>                 <xs:attribute name="message" type="xs:string" use="required">                   <xs:annotation>                     <xs:documentation>return message from process</xs:documentation>                   </xs:annotation>                 </xs:attribute>               </xs:complexType>             </xs:element>           </xs:sequence>           <xs:attribute name="id" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>identification of FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="optional">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element supervisor/testUtility/vectorTest

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation moduleId   derived by: xs:string            documentation delay module or wideband path number (0|1|both) duration   derived by: xs:int            documentation number of seconds to run test. Duration is limited to 10 second increments, default is  'forever' module0Filename   xs:string            documentation full path to model file for baseband path 0 module1Filename   xs:string            documentation full path to model file for baseband path 1 activationTime   xs:dateTime            documentation test will begin execution at the time specified (based on comparison with observation clock) User can specify a time in ISO format, an offset from current time in integer seconds (+20), or 'now' for immediate execution. phaseModels   derived by: xs:string            documentation test will begin execution after  the delay specified (in seconds, default is on) progress   xs:int            ltaIntegFactor   xs:int            documentation count of hardware integrations to accumulate hwIntegTime   xs:int            documentation correlator chip integration time in microseconds (default is 500) halt   xs:string            documentation force model updating and dump trigger generation to abort.
annotation	documentation supply models to the delay modules, generate phase models, and start dump triggers
source	<xs:element name="vectorTest" minOccurs="0">   <xs:annotation>     <xs:documentation>supply models to the delay modules, generate phase models, and start dump triggers</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="moduleId">       <xs:annotation>         <xs:documentation>delay module or wideband path number (0|1|both)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="0"/>           <xs:enumeration value="1"/>           <xs:enumeration value="both"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="duration">       <xs:annotation>         <xs:documentation>number of seconds to run test. Duration is limited to 10 second increments, default is  'forever'</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="10"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="module0Filename" type="xs:string">       <xs:annotation>         <xs:documentation>full path to model file for baseband path 0</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="module1Filename" type="xs:string">       <xs:annotation>         <xs:documentation>full path to model file for baseband path 1</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="activationTime" type="xs:dateTime">       <xs:annotation>         <xs:documentation>test will begin execution at the time specified (based on comparison with observation clock) User can specify a time in ISO format, an offset from current time in integer seconds (+20), or 'now' for immediate execution.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="phaseModels">       <xs:annotation>         <xs:documentation>test will begin execution after  the delay specified (in seconds, default is on)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="off"/>           <xs:enumeration value="on"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="progress" type="xs:int"/>     <xs:attribute name="ltaIntegFactor" type="xs:int">       <xs:annotation>         <xs:documentation>count of hardware integrations to accumulate</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="hwIntegTime" type="xs:int">       <xs:annotation>         <xs:documentation>correlator chip integration time in microseconds (default is 500)</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="halt" type="xs:string">       <xs:annotation>         <xs:documentation>force model updating and dump trigger generation to abort.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/vectorTest/@moduleId

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  0 enumeration  1 enumeration  both
annotation	documentation delay module or wideband path number (0|1|both)
source	<xs:attribute name="moduleId">   <xs:annotation>     <xs:documentation>delay module or wideband path number (0|1|both)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="0"/>       <xs:enumeration value="1"/>       <xs:enumeration value="both"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/vectorTest/@duration

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  10
annotation	documentation number of seconds to run test. Duration is limited to 10 second increments, default is  'forever'
source	<xs:attribute name="duration">   <xs:annotation>     <xs:documentation>number of seconds to run test. Duration is limited to 10 second increments, default is  'forever'</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="10"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/vectorTest/@module0Filename

type	xs:string
annotation	documentation full path to model file for baseband path 0
source	<xs:attribute name="module0Filename" type="xs:string">   <xs:annotation>     <xs:documentation>full path to model file for baseband path 0</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/vectorTest/@module1Filename

type	xs:string
annotation	documentation full path to model file for baseband path 1
source	<xs:attribute name="module1Filename" type="xs:string">   <xs:annotation>     <xs:documentation>full path to model file for baseband path 1</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/vectorTest/@activationTime

type	xs:dateTime
annotation	documentation test will begin execution at the time specified (based on comparison with observation clock) User can specify a time in ISO format, an offset from current time in integer seconds (+20), or 'now' for immediate execution.
source	<xs:attribute name="activationTime" type="xs:dateTime">   <xs:annotation>     <xs:documentation>test will begin execution at the time specified (based on comparison with observation clock) User can specify a time in ISO format, an offset from current time in integer seconds (+20), or 'now' for immediate execution.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/vectorTest/@phaseModels

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  off enumeration  on
annotation	documentation test will begin execution after  the delay specified (in seconds, default is on)
source	<xs:attribute name="phaseModels">   <xs:annotation>     <xs:documentation>test will begin execution after  the delay specified (in seconds, default is on)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="off"/>       <xs:enumeration value="on"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/vectorTest/@progress

type	xs:int
source	<xs:attribute name="progress" type="xs:int"/>

attribute supervisor/testUtility/vectorTest/@ltaIntegFactor

type	xs:int
annotation	documentation count of hardware integrations to accumulate
source	<xs:attribute name="ltaIntegFactor" type="xs:int">   <xs:annotation>     <xs:documentation>count of hardware integrations to accumulate</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/vectorTest/@hwIntegTime

type	xs:int
annotation	documentation correlator chip integration time in microseconds (default is 500)
source	<xs:attribute name="hwIntegTime" type="xs:int">   <xs:annotation>     <xs:documentation>correlator chip integration time in microseconds (default is 500)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/vectorTest/@halt

type	xs:string
annotation	documentation force model updating and dump trigger generation to abort.
source	<xs:attribute name="halt" type="xs:string">   <xs:annotation>     <xs:documentation>force model updating and dump trigger generation to abort.</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/testUtility/powerCheck

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation status   xs:string   optional         documentation status of setup message   xs:string   optional         documentation return message from process
annotation	documentation verify the board power and temp
source	<xs:element name="powerCheck" minOccurs="0">   <xs:annotation>     <xs:documentation>verify the board power and temp</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="status" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/powerCheck/@status

type	xs:string
properties	use  optional
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/powerCheck/@message

type	xs:string
properties	use  optional
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/testUtility/recirculatorStartup

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	hmReceiverStatus
attributes	Name   Type   Use   Default   Fixed   Annotation status   xs:string   optional         documentation status of setup message   xs:string   optional         documentation return message from process
annotation	documentation start the recirculators and connect with the correlator chip
source	<xs:element name="recirculatorStartup" minOccurs="0">   <xs:annotation>     <xs:documentation>start the recirculators and connect with the correlator chip</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="hmReceiverStatus" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:attribute name="id" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>identification of FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="status" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/recirculatorStartup/@status

type	xs:string
properties	use  optional
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/recirculatorStartup/@message

type	xs:string
properties	use  optional
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/testUtility/recirculatorStartup/hmReceiverStatus

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation identification of FPGA status   xs:string   required         documentation status of setup message   xs:string   required         documentation return message from process
source	<xs:element name="hmReceiverStatus" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:attribute name="id" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>identification of FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/recirculatorStartup/hmReceiverStatus/@id

type	xs:string
properties	use  required
annotation	documentation identification of FPGA
source	<xs:attribute name="id" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>identification of FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/recirculatorStartup/hmReceiverStatus/@status

type	xs:string
properties	use  required
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/recirculatorStartup/hmReceiverStatus/@message

type	xs:string
properties	use  required
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/testUtility/ltaStartup

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ccPowerStatus ltaRamStatus
attributes	Name   Type   Use   Default   Fixed   Annotation status   xs:string   optional         documentation status of setup message   xs:string   optional         documentation return message from process targetIp   xs:string   optional         documentation target back end processor node IP address targetMac   xs:string   optional         documentation target back end processor node MAC address ccLowVoltage   xs:string   optional         documentation recorded correlator chip minimum voltage ccHighVoltage   xs:string   optional         documentation recorded correlator chip maximum voltage testRamOnFail   derived by: xs:string   optional         documentation enable or disable detailed RAM test after LTA reports RAM failure chipStartDelay   xs:int   optional         documentation CC to CC startup delay in tick counts dataFlow   derived by: xs:string   optional         documentation enable or disable frame processing after test clearRam   derived by: xs:string   optional         documentation enable or disable RAM clear after dump progress   xs:int
annotation	documentation start the LTAs and power up the correlators
source	<xs:element name="ltaStartup" minOccurs="0">   <xs:annotation>     <xs:documentation>start the LTAs and power up the correlators</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ccPowerStatus" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:attribute name="id" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>identification of FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="ltaRamStatus" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:attribute name="id" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>identification of FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bank1" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>return message from RAM bank 1 test process</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="bank2" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>return message from RAM bank 2 test process</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="status" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="targetIp" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>target back end processor node IP address</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="targetMac" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>target back end processor node MAC address</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ccLowVoltage" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>recorded correlator chip minimum voltage</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ccHighVoltage" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>recorded correlator chip maximum voltage</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="testRamOnFail" use="optional">       <xs:annotation>         <xs:documentation>enable or disable detailed RAM test after LTA reports RAM failure</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="chipStartDelay" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>CC to CC startup delay in tick counts</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="dataFlow" use="optional">       <xs:annotation>         <xs:documentation>enable or disable frame processing after test</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="clearRam" use="optional">       <xs:annotation>         <xs:documentation>enable or disable RAM clear after dump</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="progress" type="xs:int"/>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/ltaStartup/@status

type	xs:string
properties	use  optional
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@message

type	xs:string
properties	use  optional
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@targetIp

type	xs:string
properties	use  optional
annotation	documentation target back end processor node IP address
source	<xs:attribute name="targetIp" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>target back end processor node IP address</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@targetMac

type	xs:string
properties	use  optional
annotation	documentation target back end processor node MAC address
source	<xs:attribute name="targetMac" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>target back end processor node MAC address</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@ccLowVoltage

type	xs:string
properties	use  optional
annotation	documentation recorded correlator chip minimum voltage
source	<xs:attribute name="ccLowVoltage" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>recorded correlator chip minimum voltage</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@ccHighVoltage

type	xs:string
properties	use  optional
annotation	documentation recorded correlator chip maximum voltage
source	<xs:attribute name="ccHighVoltage" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>recorded correlator chip maximum voltage</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@testRamOnFail

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable or disable detailed RAM test after LTA reports RAM failure
source	<xs:attribute name="testRamOnFail" use="optional">   <xs:annotation>     <xs:documentation>enable or disable detailed RAM test after LTA reports RAM failure</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@chipStartDelay

type	xs:int
properties	use  optional
annotation	documentation CC to CC startup delay in tick counts
source	<xs:attribute name="chipStartDelay" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>CC to CC startup delay in tick counts</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@dataFlow

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable or disable frame processing after test
source	<xs:attribute name="dataFlow" use="optional">   <xs:annotation>     <xs:documentation>enable or disable frame processing after test</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@clearRam

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable or disable RAM clear after dump
source	<xs:attribute name="clearRam" use="optional">   <xs:annotation>     <xs:documentation>enable or disable RAM clear after dump</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/@progress

type	xs:int
source	<xs:attribute name="progress" type="xs:int"/>

element supervisor/testUtility/ltaStartup/ccPowerStatus

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation identification of FPGA status   xs:string   required         documentation status of setup message   xs:string   required         documentation return message from process
source	<xs:element name="ccPowerStatus" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:attribute name="id" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>identification of FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/ltaStartup/ccPowerStatus/@id

type	xs:string
properties	use  required
annotation	documentation identification of FPGA
source	<xs:attribute name="id" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>identification of FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/ccPowerStatus/@status

type	xs:string
properties	use  required
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/ccPowerStatus/@message

type	xs:string
properties	use  required
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/testUtility/ltaStartup/ltaRamStatus

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation identification of FPGA status   xs:string   required         documentation status of setup bank1   xs:string   required         documentation return message from RAM bank 1 test process bank2   xs:string   required         documentation return message from RAM bank 2 test process
source	<xs:element name="ltaRamStatus" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:attribute name="id" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>identification of FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bank1" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>return message from RAM bank 1 test process</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="bank2" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>return message from RAM bank 2 test process</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/ltaStartup/ltaRamStatus/@id

type	xs:string
properties	use  required
annotation	documentation identification of FPGA
source	<xs:attribute name="id" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>identification of FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/ltaRamStatus/@status

type	xs:string
properties	use  required
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/ltaRamStatus/@bank1

type	xs:string
properties	use  required
annotation	documentation return message from RAM bank 1 test process
source	<xs:attribute name="bank1" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>return message from RAM bank 1 test process</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ltaStartup/ltaRamStatus/@bank2

type	xs:string
properties	use  required
annotation	documentation return message from RAM bank 2 test process
source	<xs:attribute name="bank2" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>return message from RAM bank 2 test process</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/testUtility/rxpStartup

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation status   xs:string   optional         documentation status of setup message   xs:string   optional         documentation return message from process clockSource   derived by: xs:string   optional         documentation source of 128 MHz clock signalSource   derived by: xs:string   optional         documentation source of data signal (internal = test) phasing   derived by: xs:string   optional         documentation enable all wafers for inclusion into phased array data stream vdifFrameGeneration   derived by: xs:string   optional         documentation enable vdif frame generation and output to the ethernet FPGA lowerLockStatus   derived by: xs:string   optional         documentation lock status of all inputs to lower RXP upperLockStatus   derived by: xs:string   optional         documentation lock status of all inputs to lower RXP
annotation	documentation setup RXP FPGAs so that inputs are as specified and output mux has maximum number of valid signals from wafer inputs
source	<xs:element name="rxpStartup" minOccurs="0">   <xs:annotation>     <xs:documentation>setup RXP FPGAs so that inputs are as specified and output mux has maximum number of valid signals from wafer inputs</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="status" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="clockSource" use="optional">       <xs:annotation>         <xs:documentation>source of 128 MHz clock</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="wafer"/>           <xs:enumeration value="external"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="signalSource" use="optional">       <xs:annotation>         <xs:documentation>source of data signal (internal = test) </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="wafers"/>           <xs:enumeration value="skySimulate"/>           <xs:enumeration value="testPattern"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="phasing" use="optional">       <xs:annotation>         <xs:documentation>enable all wafers for inclusion into phased array data stream</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="vdifFrameGeneration" use="optional">       <xs:annotation>         <xs:documentation>enable vdif frame generation and output to the ethernet FPGA</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="lowerLockStatus" use="optional">       <xs:annotation>         <xs:documentation>lock status of all inputs to lower RXP</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLocked"/>           <xs:enumeration value="locked"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="upperLockStatus" use="optional">       <xs:annotation>         <xs:documentation>lock status of all inputs to lower RXP</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="notLocked"/>           <xs:enumeration value="locked"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/rxpStartup/@status

type	xs:string
properties	use  optional
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/rxpStartup/@message

type	xs:string
properties	use  optional
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/rxpStartup/@clockSource

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  wafer enumeration  external
annotation	documentation source of 128 MHz clock
source	<xs:attribute name="clockSource" use="optional">   <xs:annotation>     <xs:documentation>source of 128 MHz clock</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="wafer"/>       <xs:enumeration value="external"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/rxpStartup/@signalSource

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  wafers enumeration  skySimulate enumeration  testPattern
annotation	documentation source of data signal (internal = test)
source	<xs:attribute name="signalSource" use="optional">   <xs:annotation>     <xs:documentation>source of data signal (internal = test) </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="wafers"/>       <xs:enumeration value="skySimulate"/>       <xs:enumeration value="testPattern"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/rxpStartup/@phasing

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable all wafers for inclusion into phased array data stream
source	<xs:attribute name="phasing" use="optional">   <xs:annotation>     <xs:documentation>enable all wafers for inclusion into phased array data stream</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/rxpStartup/@vdifFrameGeneration

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation enable vdif frame generation and output to the ethernet FPGA
source	<xs:attribute name="vdifFrameGeneration" use="optional">   <xs:annotation>     <xs:documentation>enable vdif frame generation and output to the ethernet FPGA</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/rxpStartup/@lowerLockStatus

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  notLocked enumeration  locked
annotation	documentation lock status of all inputs to lower RXP
source	<xs:attribute name="lowerLockStatus" use="optional">   <xs:annotation>     <xs:documentation>lock status of all inputs to lower RXP</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLocked"/>       <xs:enumeration value="locked"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/rxpStartup/@upperLockStatus

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  notLocked enumeration  locked
annotation	documentation lock status of all inputs to lower RXP
source	<xs:attribute name="upperLockStatus" use="optional">   <xs:annotation>     <xs:documentation>lock status of all inputs to lower RXP</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="notLocked"/>       <xs:enumeration value="locked"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element supervisor/testUtility/ccVectorStartup

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ccVectorStatus
attributes	Name   Type   Use   Default   Fixed   Annotation status   xs:string   optional         documentation status of setup message   xs:string   optional         documentation return message from process phaseDwell   xs:int   optional         documentation time to wait in ms between phase tests ccClockPhaseCal   derived by: xs:string   optional         documentation optionally set the clock phases phaseCalPasses   xs:int   optional         documentation number of phase cal passes to perform vectorReportInterval   xs:int   optional         documentation time to wait in ms after phase cal has completed before reporting line errors progress   xs:int
annotation	documentation setup CCs for test vector reception and optionally set the clock phases
source	<xs:element name="ccVectorStartup" minOccurs="0">   <xs:annotation>     <xs:documentation>setup CCs for test vector reception and optionally set the clock phases</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ccVectorStatus" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:attribute name="id" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>identification of FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="status" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="phaseDwell" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>time to wait in ms between phase tests</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ccClockPhaseCal" use="optional">       <xs:annotation>         <xs:documentation>optionally set the clock phases</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="disable"/>           <xs:enumeration value="enable"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="phaseCalPasses" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>number of phase cal passes to perform</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vectorReportInterval" type="xs:int" use="optional">       <xs:annotation>         <xs:documentation>time to wait in ms after phase cal has completed before reporting line errors</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="progress" type="xs:int"/>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/ccVectorStartup/@status

type	xs:string
properties	use  optional
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ccVectorStartup/@message

type	xs:string
properties	use  optional
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ccVectorStartup/@phaseDwell

type	xs:int
properties	use  optional
annotation	documentation time to wait in ms between phase tests
source	<xs:attribute name="phaseDwell" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>time to wait in ms between phase tests</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ccVectorStartup/@ccClockPhaseCal

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  disable enumeration  enable
annotation	documentation optionally set the clock phases
source	<xs:attribute name="ccClockPhaseCal" use="optional">   <xs:annotation>     <xs:documentation>optionally set the clock phases</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="disable"/>       <xs:enumeration value="enable"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/testUtility/ccVectorStartup/@phaseCalPasses

type	xs:int
properties	use  optional
annotation	documentation number of phase cal passes to perform
source	<xs:attribute name="phaseCalPasses" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>number of phase cal passes to perform</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ccVectorStartup/@vectorReportInterval

type	xs:int
properties	use  optional
annotation	documentation time to wait in ms after phase cal has completed before reporting line errors
source	<xs:attribute name="vectorReportInterval" type="xs:int" use="optional">   <xs:annotation>     <xs:documentation>time to wait in ms after phase cal has completed before reporting line errors</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ccVectorStartup/@progress

type	xs:int
source	<xs:attribute name="progress" type="xs:int"/>

element supervisor/testUtility/ccVectorStartup/ccVectorStatus

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation identification of FPGA status   xs:string   required         documentation status of setup message   xs:string   required         documentation return message from process
source	<xs:element name="ccVectorStatus" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:attribute name="id" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>identification of FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/ccVectorStartup/ccVectorStatus/@id

type	xs:string
properties	use  required
annotation	documentation identification of FPGA
source	<xs:attribute name="id" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>identification of FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ccVectorStartup/ccVectorStatus/@status

type	xs:string
properties	use  required
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/ccVectorStartup/ccVectorStatus/@message

type	xs:string
properties	use  required
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/testUtility/recirculatorRamTest

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ramTestResult
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation identification of FPGA status   xs:string   optional         documentation status of setup message   xs:string   optional         documentation return message from process
annotation	documentation test the recirculator RAM (recircs must have proper personality loaded)
source	<xs:element name="recirculatorRamTest" minOccurs="0">   <xs:annotation>     <xs:documentation>test the recirculator RAM (recircs must have proper personality loaded)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ramTestResult" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:attribute name="id" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>identification of FPGA</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="status" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>status of setup</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="message" type="xs:string" use="required">             <xs:annotation>               <xs:documentation>return message from process</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="id" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>identification of FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="optional">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/recirculatorRamTest/@id

type	xs:string
properties	use  required
annotation	documentation identification of FPGA
source	<xs:attribute name="id" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>identification of FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/recirculatorRamTest/@status

type	xs:string
properties	use  optional
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/recirculatorRamTest/@message

type	xs:string
properties	use  optional
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="optional">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/testUtility/recirculatorRamTest/ramTestResult

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation identification of FPGA status   xs:string   required         documentation status of setup message   xs:string   required         documentation return message from process
source	<xs:element name="ramTestResult" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:attribute name="id" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>identification of FPGA</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="status" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>status of setup</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="message" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>return message from process</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/testUtility/recirculatorRamTest/ramTestResult/@id

type	xs:string
properties	use  required
annotation	documentation identification of FPGA
source	<xs:attribute name="id" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>identification of FPGA</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/recirculatorRamTest/ramTestResult/@status

type	xs:string
properties	use  required
annotation	documentation status of setup
source	<xs:attribute name="status" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>status of setup</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/testUtility/recirculatorRamTest/ramTestResult/@message

type	xs:string
properties	use  required
annotation	documentation return message from process
source	<xs:attribute name="message" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>return message from process</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/configuration

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation stbInitFilename   xs:string            documentation specify the file to be loaded when the CMIB state changes to 'initialize' stbConfigFilename   xs:string            documentation specify the file to be loaded when the CMIB state changes to 'configure' stbRunFilename   xs:string            documentation specify the file to be loaded when the CMIB state changes to 'run' corrConfigFilename   xs:string            documentation specify the file to be loaded onto the CC MAH recircConfigFilename   xs:string            documentation specify the file to be loaded onto the recirculator MAH rxpConfigFilename   xs:string            documentation specify the file to be loaded onto the RXP MAH ltaConfigFilename   xs:string            documentation specify the file to be loaded onto the LTA MAH ethernetConfigFilename   xs:string            documentation specify the file to be loaded onto the GBit ethernet MAH vsiConfigFilename   xs:string            documentation specify the file to be loaded onto the VSI MAH filterConfigFilename   xs:string            documentation specify the file to be loaded onto the filter MAH inputConfigFilename   xs:string            documentation specify the file to be loaded onto the input MAH delayConfigFilename   xs:string            documentation specify the file to be loaded onto the delay MAH outputConfigFilename   xs:string            documentation specify the file to be loaded onto the output MAH wbcConfigFilename   xs:string            documentation specify the file to be loaded onto the  MAH timingConfigFilename   xs:string            documentation specify the file to be loaded onto the timing MAH
source	<xs:element name="configuration" minOccurs="0">   <xs:complexType>     <xs:attribute name="stbInitFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded when the CMIB state changes to 'initialize'</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stbConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded when the CMIB state changes to 'configure'</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="stbRunFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded when the CMIB state changes to 'run'</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="corrConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the CC MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="recircConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the recirculator MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="rxpConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the RXP MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ltaConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the LTA MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ethernetConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the GBit ethernet MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="vsiConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the VSI MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="filterConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the filter MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="inputConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the input MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="delayConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the delay MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="outputConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the output MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="wbcConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the  MAH</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="timingConfigFilename" type="xs:string">       <xs:annotation>         <xs:documentation>specify the file to be loaded onto the timing MAH</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/configuration/@stbInitFilename

type	xs:string
annotation	documentation specify the file to be loaded when the CMIB state changes to 'initialize'
source	<xs:attribute name="stbInitFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded when the CMIB state changes to 'initialize'</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@stbConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded when the CMIB state changes to 'configure'
source	<xs:attribute name="stbConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded when the CMIB state changes to 'configure'</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@stbRunFilename

type	xs:string
annotation	documentation specify the file to be loaded when the CMIB state changes to 'run'
source	<xs:attribute name="stbRunFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded when the CMIB state changes to 'run'</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@corrConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the CC MAH
source	<xs:attribute name="corrConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the CC MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@recircConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the recirculator MAH
source	<xs:attribute name="recircConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the recirculator MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@rxpConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the RXP MAH
source	<xs:attribute name="rxpConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the RXP MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@ltaConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the LTA MAH
source	<xs:attribute name="ltaConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the LTA MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@ethernetConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the GBit ethernet MAH
source	<xs:attribute name="ethernetConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the GBit ethernet MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@vsiConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the VSI MAH
source	<xs:attribute name="vsiConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the VSI MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@filterConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the filter MAH
source	<xs:attribute name="filterConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the filter MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@inputConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the input MAH
source	<xs:attribute name="inputConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the input MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@delayConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the delay MAH
source	<xs:attribute name="delayConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the delay MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@outputConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the output MAH
source	<xs:attribute name="outputConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the output MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@wbcConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the  MAH
source	<xs:attribute name="wbcConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the  MAH</xs:documentation>   </xs:annotation> </xs:attribute>

attribute supervisor/configuration/@timingConfigFilename

type	xs:string
annotation	documentation specify the file to be loaded onto the timing MAH
source	<xs:attribute name="timingConfigFilename" type="xs:string">   <xs:annotation>     <xs:documentation>specify the file to be loaded onto the timing MAH</xs:documentation>   </xs:annotation> </xs:attribute>

element supervisor/connections

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	link dummy
source	<xs:element name="connections" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="link" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:attribute name="destMod">             <xs:annotation>               <xs:documentation>line destination module or filter id</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="srcMod">             <xs:annotation>               <xs:documentation>line source module or filter id</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="17"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="destPort">             <xs:annotation>               <xs:documentation>line destination port for filter input</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A"/>                 <xs:enumeration value="B"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="srcPort">             <xs:annotation>               <xs:documentation>line source port for filter output</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="A"/>                 <xs:enumeration value="B"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="pathId">             <xs:annotation>               <xs:documentation>wideband path</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:int">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="1"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="destDev">             <xs:annotation>               <xs:documentation>destination module (device)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="formA"/>                 <xs:enumeration value="formB"/>                 <xs:enumeration value="formC"/>                 <xs:enumeration value="vsi"/>                 <xs:enumeration value="input"/>                 <xs:enumeration value="delay"/>                 <xs:enumeration value="filter"/>                 <xs:enumeration value="output"/>                 <xs:enumeration value="timing"/>                 <xs:enumeration value="wbc"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="srcDev">             <xs:annotation>               <xs:documentation>source module (device)</xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="formA"/>                 <xs:enumeration value="formB"/>                 <xs:enumeration value="formC"/>                 <xs:enumeration value="vsi"/>                 <xs:enumeration value="input"/>                 <xs:enumeration value="delay"/>                 <xs:enumeration value="filter"/>                 <xs:enumeration value="output"/>                 <xs:enumeration value="timing"/>                 <xs:enumeration value="wbc"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>           <xs:attribute name="status" use="required">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:enumeration value="ok"/>                 <xs:enumeration value="error"/>                 <xs:enumeration value="NC"/>                 <xs:enumeration value="unused"/>               </xs:restriction>             </xs:simpleType>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element name="dummy" minOccurs="0">         <xs:complexType>           <xs:attribute name="alsoDummy" type="xs:string"/>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element supervisor/connections/link

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation destMod   derived by: xs:int            documentation line destination module or filter id srcMod   derived by: xs:int            documentation line source module or filter id destPort   derived by: xs:string            documentation line destination port for filter input srcPort   derived by: xs:string            documentation line source port for filter output pathId   derived by: xs:int            documentation wideband path destDev   derived by: xs:string            documentation destination module (device) srcDev   derived by: xs:string            documentation source module (device) status   derived by: xs:string   required
source	<xs:element name="link" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:attribute name="destMod">       <xs:annotation>         <xs:documentation>line destination module or filter id</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="srcMod">       <xs:annotation>         <xs:documentation>line source module or filter id</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="17"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="destPort">       <xs:annotation>         <xs:documentation>line destination port for filter input</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A"/>           <xs:enumeration value="B"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="srcPort">       <xs:annotation>         <xs:documentation>line source port for filter output</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="A"/>           <xs:enumeration value="B"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="pathId">       <xs:annotation>         <xs:documentation>wideband path</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="destDev">       <xs:annotation>         <xs:documentation>destination module (device)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="formA"/>           <xs:enumeration value="formB"/>           <xs:enumeration value="formC"/>           <xs:enumeration value="vsi"/>           <xs:enumeration value="input"/>           <xs:enumeration value="delay"/>           <xs:enumeration value="filter"/>           <xs:enumeration value="output"/>           <xs:enumeration value="timing"/>           <xs:enumeration value="wbc"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="srcDev">       <xs:annotation>         <xs:documentation>source module (device)</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="formA"/>           <xs:enumeration value="formB"/>           <xs:enumeration value="formC"/>           <xs:enumeration value="vsi"/>           <xs:enumeration value="input"/>           <xs:enumeration value="delay"/>           <xs:enumeration value="filter"/>           <xs:enumeration value="output"/>           <xs:enumeration value="timing"/>           <xs:enumeration value="wbc"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="status" use="required">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="ok"/>           <xs:enumeration value="error"/>           <xs:enumeration value="NC"/>           <xs:enumeration value="unused"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute supervisor/connections/link/@destMod

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation line destination module or filter id
source	<xs:attribute name="destMod">   <xs:annotation>     <xs:documentation>line destination module or filter id</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/connections/link/@srcMod

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
annotation	documentation line source module or filter id
source	<xs:attribute name="srcMod">   <xs:annotation>     <xs:documentation>line source module or filter id</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="17"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/connections/link/@destPort

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  A enumeration  B
annotation	documentation line destination port for filter input
source	<xs:attribute name="destPort">   <xs:annotation>     <xs:documentation>line destination port for filter input</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A"/>       <xs:enumeration value="B"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/connections/link/@srcPort

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  A enumeration  B
annotation	documentation line source port for filter output
source	<xs:attribute name="srcPort">   <xs:annotation>     <xs:documentation>line source port for filter output</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="A"/>       <xs:enumeration value="B"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/connections/link/@pathId

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
annotation	documentation wideband path
source	<xs:attribute name="pathId">   <xs:annotation>     <xs:documentation>wideband path</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/connections/link/@destDev

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  formA enumeration  formB enumeration  formC enumeration  vsi enumeration  input enumeration  delay enumeration  filter enumeration  output enumeration  timing enumeration  wbc
annotation	documentation destination module (device)
source	<xs:attribute name="destDev">   <xs:annotation>     <xs:documentation>destination module (device)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="formA"/>       <xs:enumeration value="formB"/>       <xs:enumeration value="formC"/>       <xs:enumeration value="vsi"/>       <xs:enumeration value="input"/>       <xs:enumeration value="delay"/>       <xs:enumeration value="filter"/>       <xs:enumeration value="output"/>       <xs:enumeration value="timing"/>       <xs:enumeration value="wbc"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/connections/link/@srcDev

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  formA enumeration  formB enumeration  formC enumeration  vsi enumeration  input enumeration  delay enumeration  filter enumeration  output enumeration  timing enumeration  wbc
annotation	documentation source module (device)
source	<xs:attribute name="srcDev">   <xs:annotation>     <xs:documentation>source module (device)</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="formA"/>       <xs:enumeration value="formB"/>       <xs:enumeration value="formC"/>       <xs:enumeration value="vsi"/>       <xs:enumeration value="input"/>       <xs:enumeration value="delay"/>       <xs:enumeration value="filter"/>       <xs:enumeration value="output"/>       <xs:enumeration value="timing"/>       <xs:enumeration value="wbc"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute supervisor/connections/link/@status

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  ok enumeration  error enumeration  NC enumeration  unused
source	<xs:attribute name="status" use="required">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="ok"/>       <xs:enumeration value="error"/>       <xs:enumeration value="NC"/>       <xs:enumeration value="unused"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element supervisor/connections/dummy

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation alsoDummy   xs:string
source	<xs:element name="dummy" minOccurs="0">   <xs:complexType>     <xs:attribute name="alsoDummy" type="xs:string"/>   </xs:complexType> </xs:element>

attribute supervisor/connections/dummy/@alsoDummy

type	xs:string
source	<xs:attribute name="alsoDummy" type="xs:string"/>

element toneExtract

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control tone extraction
source	<xs:element name="toneExtract">   <xs:annotation>     <xs:documentation>control tone extraction</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute toneExtract/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute toneExtract/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

element wbcMonitor

diagram
properties	content  complex
used by	element  supervisor/dataProducts
attributes	Name   Type   Use   Default   Fixed   Annotation id   derived by: xs:int   required         integrationTime   xs:int            outputDevice   xs:string
annotation	documentation control wide band correlator product  monitoring
source	<xs:element name="wbcMonitor">   <xs:annotation>     <xs:documentation>control wide band correlator product  monitoring</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="id" use="required">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>           <xs:maxInclusive value="31"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="integrationTime" type="xs:int"/>     <xs:attribute name="outputDevice" type="xs:string"/>   </xs:complexType> </xs:element>

attribute wbcMonitor/@id

type	restriction of xs:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  31
source	<xs:attribute name="id" use="required">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="31"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute wbcMonitor/@integrationTime

type	xs:int
source	<xs:attribute name="integrationTime" type="xs:int"/>

attribute wbcMonitor/@outputDevice

type	xs:string
source	<xs:attribute name="outputDevice" type="xs:string"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
